Aritech 2405ST-E Güç Kaynağı

Aritech 2405ST-E (ST-x Series Power Supply 24V ailesi), güç kaynağı ürünüdür.

The Product

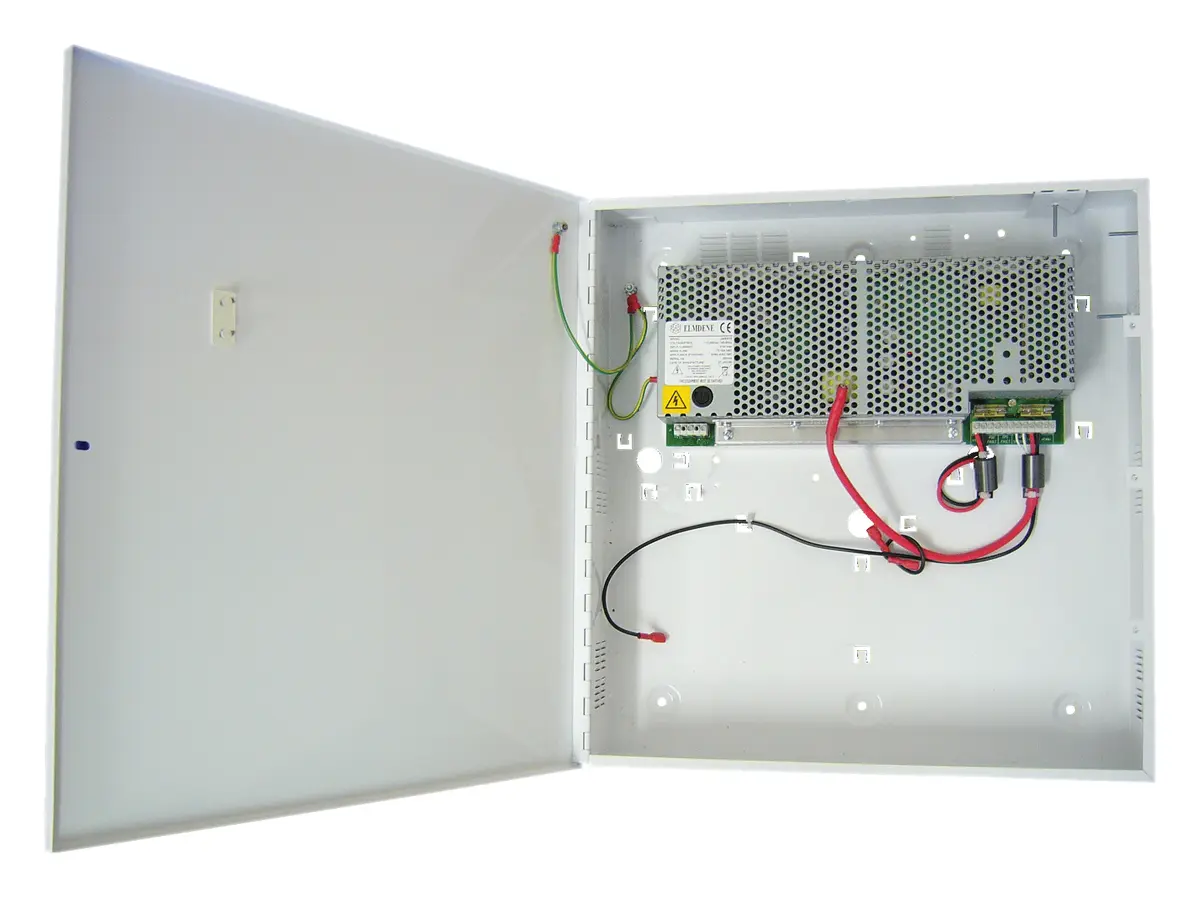

The 2405ST-E is a fully featured EN54-4 approved power supply ideal for use in fire system applications. It features intelligent battery charging, monitoring and signaling. Regulated 27.6 VDC output will source up to 5.7 A into the load.

The load output features full electronic short circuit protection under both mains and standby battery operation. Maximum battery life is assured through continuous active battery monitoring and 3 different charge levels: bulk (fast charge), absorption and temperature compensated float. Deep discharge protection prevents premature battery failure when operating from standby for extended periods.

Inside the unit, a diagnostic led with various flash patterns, ensure accurate diagnostics when the unit is in fault.

Öne Çıkan Özellikler

• Approved to EN54-4 certified
• Self contained box houses 17 Ah batteries
• Electronic overload protection
• Deep battery discharge protection
• Mains & Fault LED indicators
• Fault diagnostics led, inside of unit
• 2 x relay outputs
• Wide input voltage range
• Start-up from batteries

Nerelerde kullanılır?

Yangın algılama sisteminde giriş/çıkış kontrolü, loop izolasyonu veya kurulum aksesuarı olarak kullanılır.

Kurulum ve uyumluluk

Yangın algılama sistemleri; Binaların Yangından Korunması Hakkında Yönetmelik ve TS EN 54 standardına uygun olarak projelendirilmeli ve yetkili ekiplerce devreye alınmalıdır.

Tüm özellikler

• EN 54-4 approved, 27.6 V, 5.7 A, intelligent power supply
• Approved to EN54-4 certified
• Self contained box houses 17 Ah batteries
• Electronic overload protection
• Deep battery discharge protection
• Mains & Fault LED indicators
• Fault diagnostics led, inside of unit
• 2 x relay outputs
• Wide input voltage range
• Start-up from batteries
