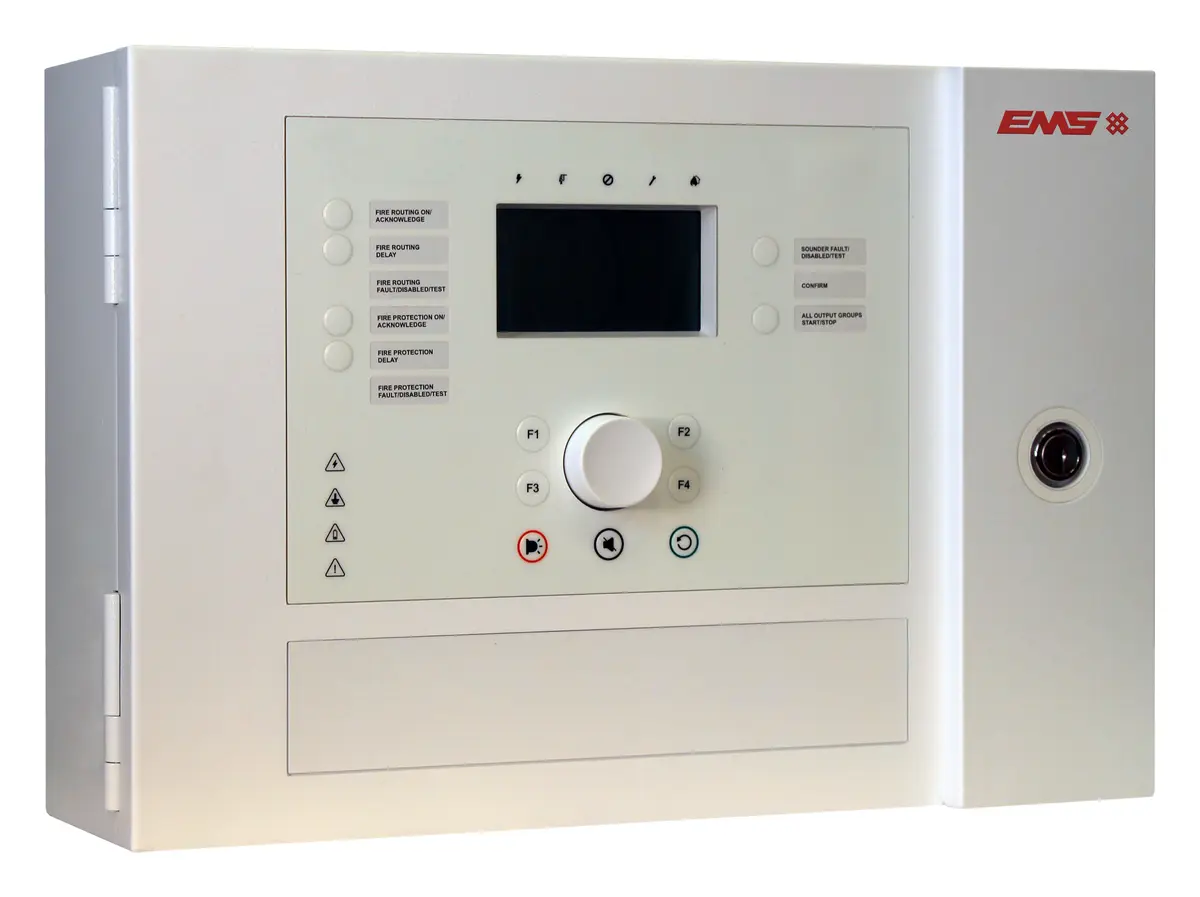

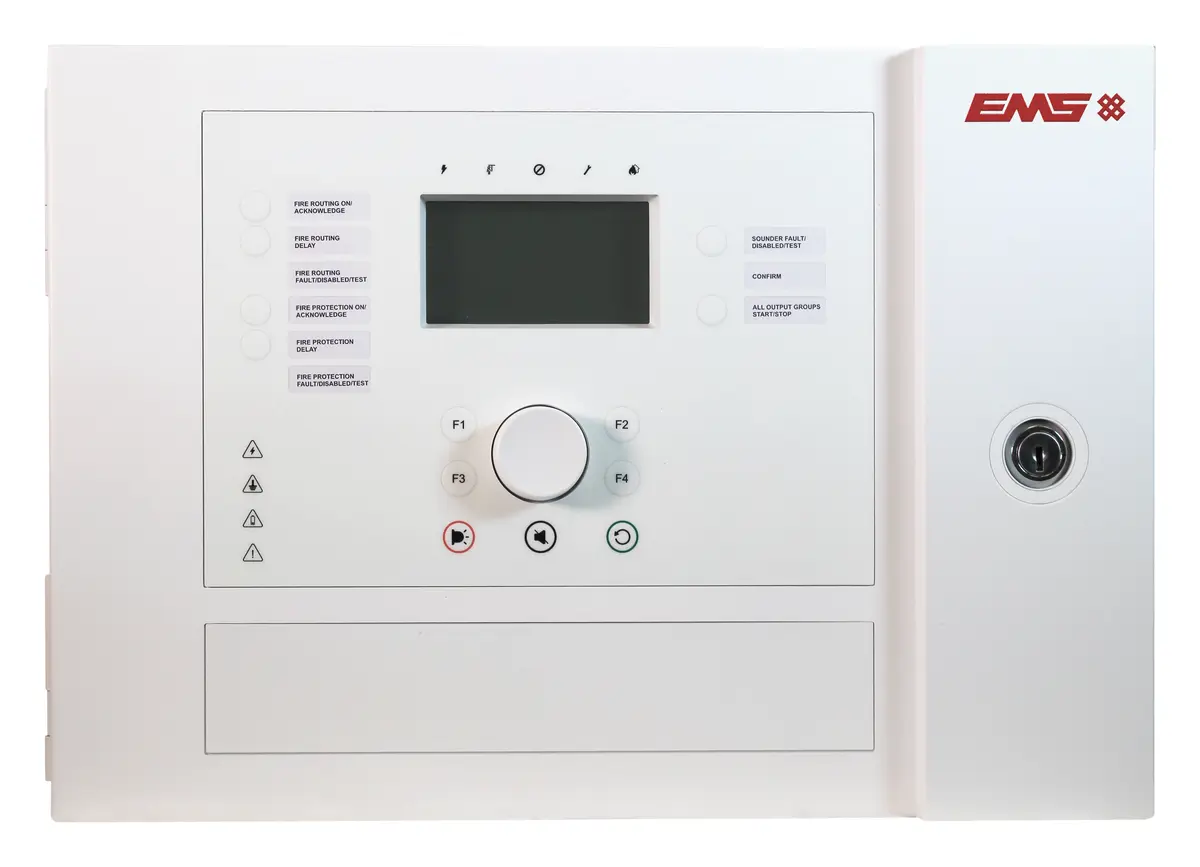

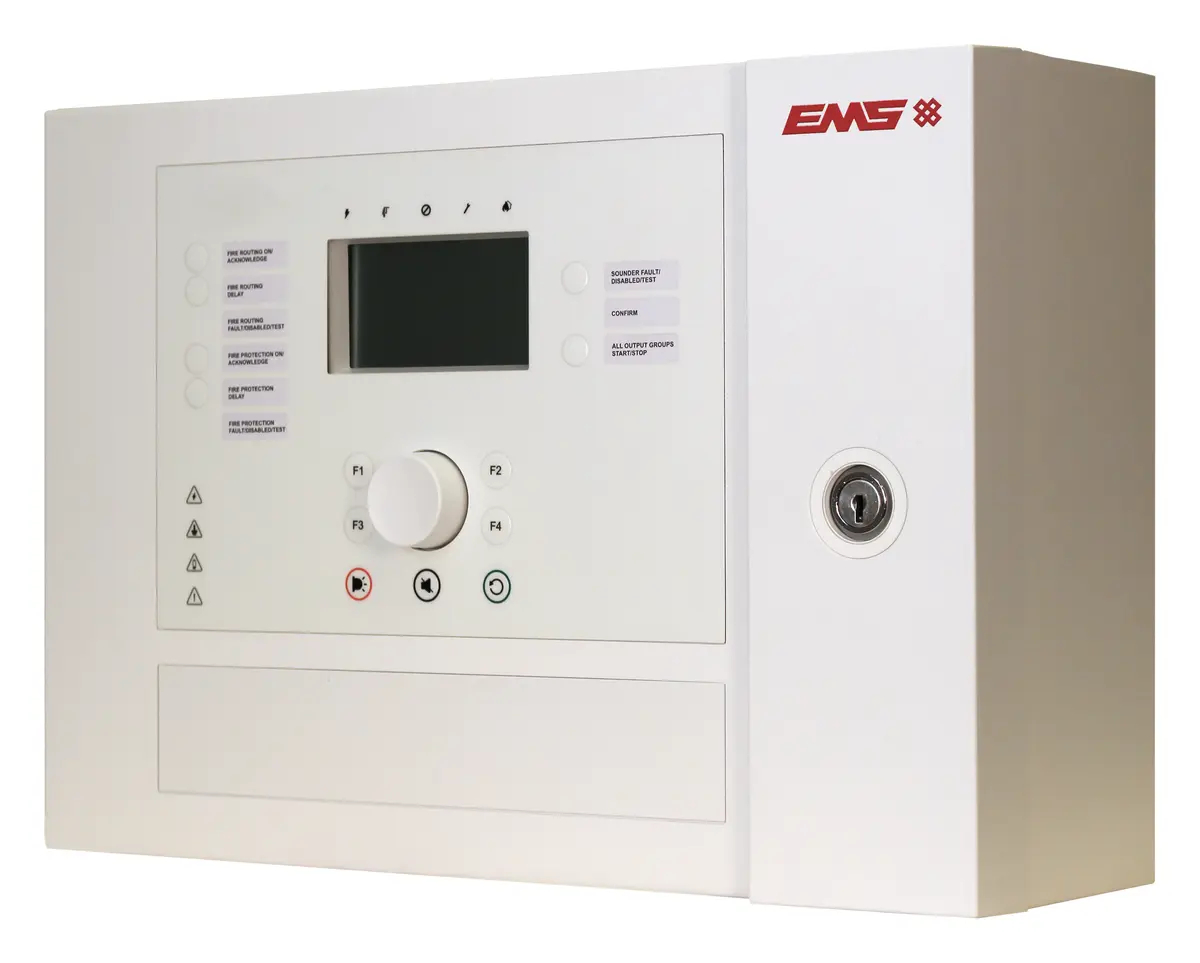

Aritech 2X-AF2-FB-S-W-99 2 Loop Adresli Yangın Alarm Paneli

Aritech 2X-AF2-FB-S-W-99 (EMS Ariel Panels ailesi), adresli yangın alarm paneli ürünüdür. CPR standart/onaylarına uygundur.

Overview

The new 2X-A series life safety control systems bring the speed and functionality of high-end intelligent processing to small to mid-sized addressable applications. Based on 2X series learned experience and with complete backwards compatibility, the new 2X-A features an attractive contemporary design that fits with any decor. With improved robustness, manufactured in metal, special plastics and easy electronics removal, it allows painting in any colour. The main controls are easily located using an improved and robust jog dial.

With high power loop addressable detection, a full line of easily configured option cards and modules, as well as USB and Ethernet® connectivity, these quick-to configure systems offer versatility that benefits building owners and life safety system installers alike.

The Panel

The fire panels supplied in local language, with user interface with fire brigade and fire protection controls, with 2 loops that supports up to 256 devices in 512 zones, have standard 4 supervised sounder/fire-routing outputs, which can be used as freely programmable outputs as well. In addition 2 conventional relay outputs and 2 supervised outputs, working in pair and dedicated to common fire and fault conditions, as well as 2 user configurable inputs for monitoring and control are available.

Options

The panel supports one network board to create a maximum of 64 nodes / 256 loops network of fire panels and fire panel repeaters (including conventional fire panels and fire repeater panels up to a maximum of 64 conventional zones). Last but not least, in case seperate zone indications are required, a 24 zone fire/fault LED indicator board can be mounted in the panel or repeater with ample space for custom text.

Approvals & compliance

• CE / CPD / EN54-2 / EN54-4 / EN54-21 • WEEE / RoHS compliant

Öne Çıkan Özellikler

• 2 Loops with 300 mA per loop and Fire Brigade & Fire Protection controls
• Up to 256 devices, 512 zones and 300 output groups
• Up to 24 LED Zone indicators for Fire and Fault with space for a 4 digit number
• Auto configuration, setup wizards and default regional setup modes
• Ethernet port with TCP/IP for remote diagnostics, maintenance and programming
• EN54 compliant graphical LCD with icons and up to 256 zones
• Improved Jog Dial with 4 soft buttons for simple and intuitive user control
• Aesthetic pleasing design with robust painted steel door
• Easy removable door and chassis for quick and clean installation
• All pluggable connectors
• Auxiliary 24 VDC supply output with reset support
• 3 USB ports with memory stick support and RS232 for printer support
• Integration in management software ATS8600, allowing integration with security systems and CMS
• 3 operator level menu structure (20 usernames and passwords)
• History log memory for 9999 events

Nerelerde kullanılır?

Binadaki dedektör, buton ve sirenleri yöneten yangın algılama sisteminin merkezidir; alarmın yerini gösterir, tahliye uyarısını başlatır ve diğer sistemlerle (asansör, havalandırma, kapılar) entegre çalışır.

Kurulum ve uyumluluk

Yangın algılama sistemleri; Binaların Yangından Korunması Hakkında Yönetmelik ve TS EN 54 standardına uygun olarak projelendirilmeli ve yetkili ekiplerce devreye alınmalıdır.

Tüm özellikler

• Addressable fire panel with fire brigade controls, 2 loop, small cabinet - Wireless EMS
• 2 Loops with 300 mA per loop and Fire Brigade & Fire Protection controls
• Up to 256 devices, 512 zones and 300 output groups
• Up to 24 LED Zone indicators for Fire and Fault with space for a 4 digit number
• Auto configuration, setup wizards and default regional setup modes
• Ethernet port with TCP/IP for remote diagnostics, maintenance and programming
• EN54 compliant graphical LCD with icons and up to 256 zones
• Improved Jog Dial with 4 soft buttons for simple and intuitive user control
• Aesthetic pleasing design with robust painted steel door
• Easy removable door and chassis for quick and clean installation
• All pluggable connectors
• Auxiliary 24 VDC supply output with reset support
