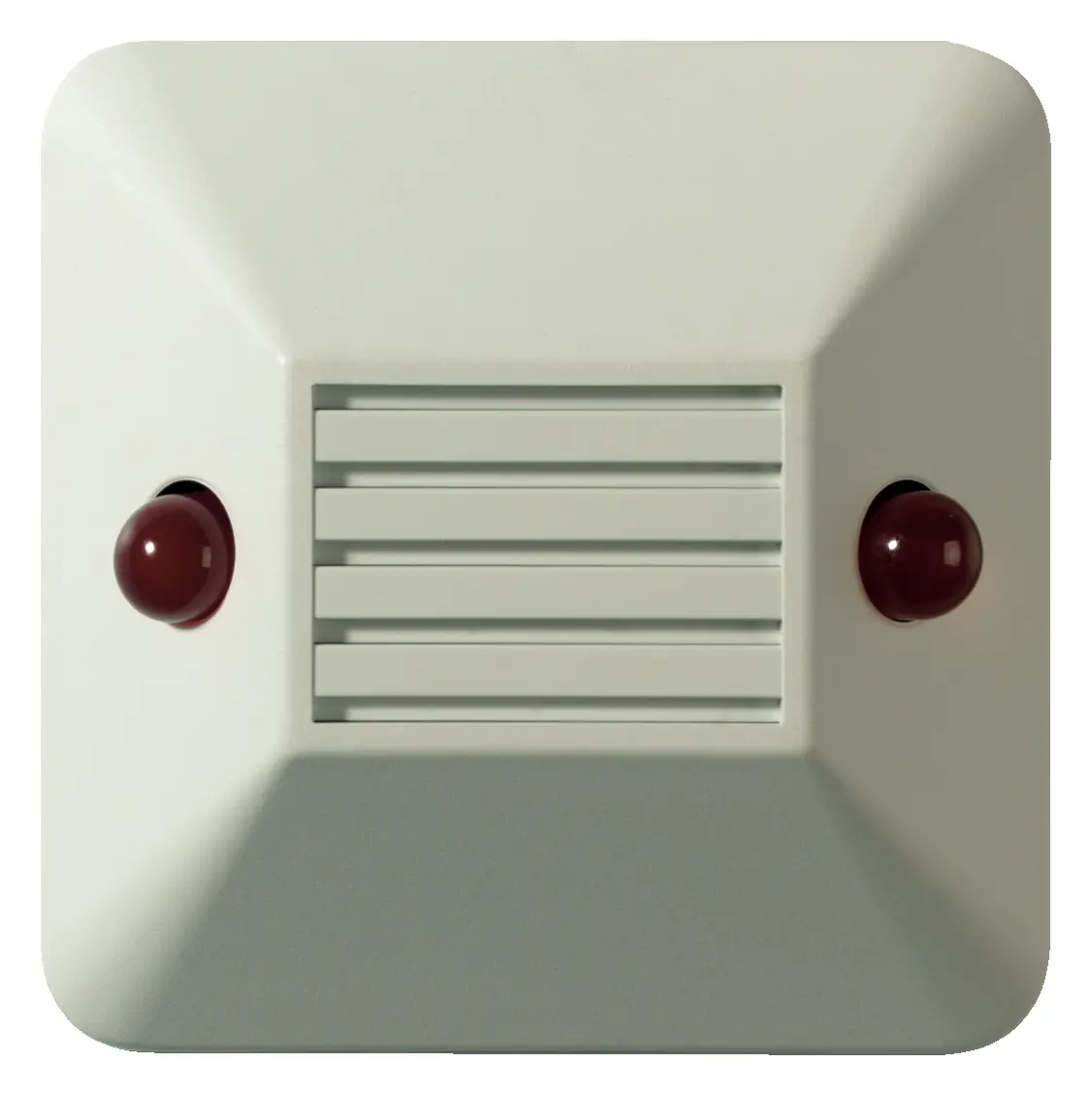

Aritech AI673 Konvansiyonel Paralel İhbar Lambası

Aritech AI673 (Conventional Remote Indicators ailesi), konvansiyonel paralel ihbar lambası ürünüdür. CE standart/onaylarına uygundur.

General

The stylish Aritech AI673 optical/acoustic alarm indicators are designed for use with most types of addressable and conventional alarm detectors. The AI670 series is used in a 'conventional' mode and simply require DC power for operation.

Versions

These alarm indicators are available in two versions, each of which have the same modern housing design suitable for indoor environments.

The AI672 is an optical alarm indicator and has two, clearly visible, 10 mm red LEDs to communicate alarms. The AI673 is the optical and acoustic version, providing both visible and audible signals that are required in some applications.

Installation

The indicators may be mounted onto most types of mounting boxes using their universal mounting plate.

Cable insertion is made through the back of the indicator or via the knockouts at the sides of the polycarbonate housing. The wiring terminals have entrance diodes that allow connection of up to four detectors to the indicator if required. Alternatively, it is possible to create an alarm sequence with a series of indicators linked to one detector.

Two switches allow the installer to select the most suitable LED operation - flashing or continuously on. The unique design of the units allows a very low power consumption averaging at only 4 mA nominal. The alarm indicators are protected against accidental polarity reversal.

Öne Çıkan Özellikler

• Wide operating voltage
• Low current consumption
• Universal mounting plate
• Low profile
• Clearly visible, large LEDs
• Protected against polarity reversal
• Connects to up to 4 detectors
• Blinking or fixed LED configurable
• High sound output

Nerelerde kullanılır?

Yangın anında manuel ihbar ve binadaki kişilerin sesli/ışıklı uyarılması için kaçış yolları ve kat koridorlarında kullanılır.

Kurulum ve uyumluluk

Yangın algılama sistemleri; Binaların Yangından Korunması Hakkında Yönetmelik ve TS EN 54 standardına uygun olarak projelendirilmeli ve yetkili ekiplerce devreye alınmalıdır.

Tüm özellikler

• Conventional remote indicator with buzzer
• Wide operating voltage
• Low current consumption
• Universal mounting plate
• Low profile
• Clearly visible, large LEDs
• Protected against polarity reversal
• Connects to up to 4 detectors
• Blinking or fixed LED configurable
• High sound output
