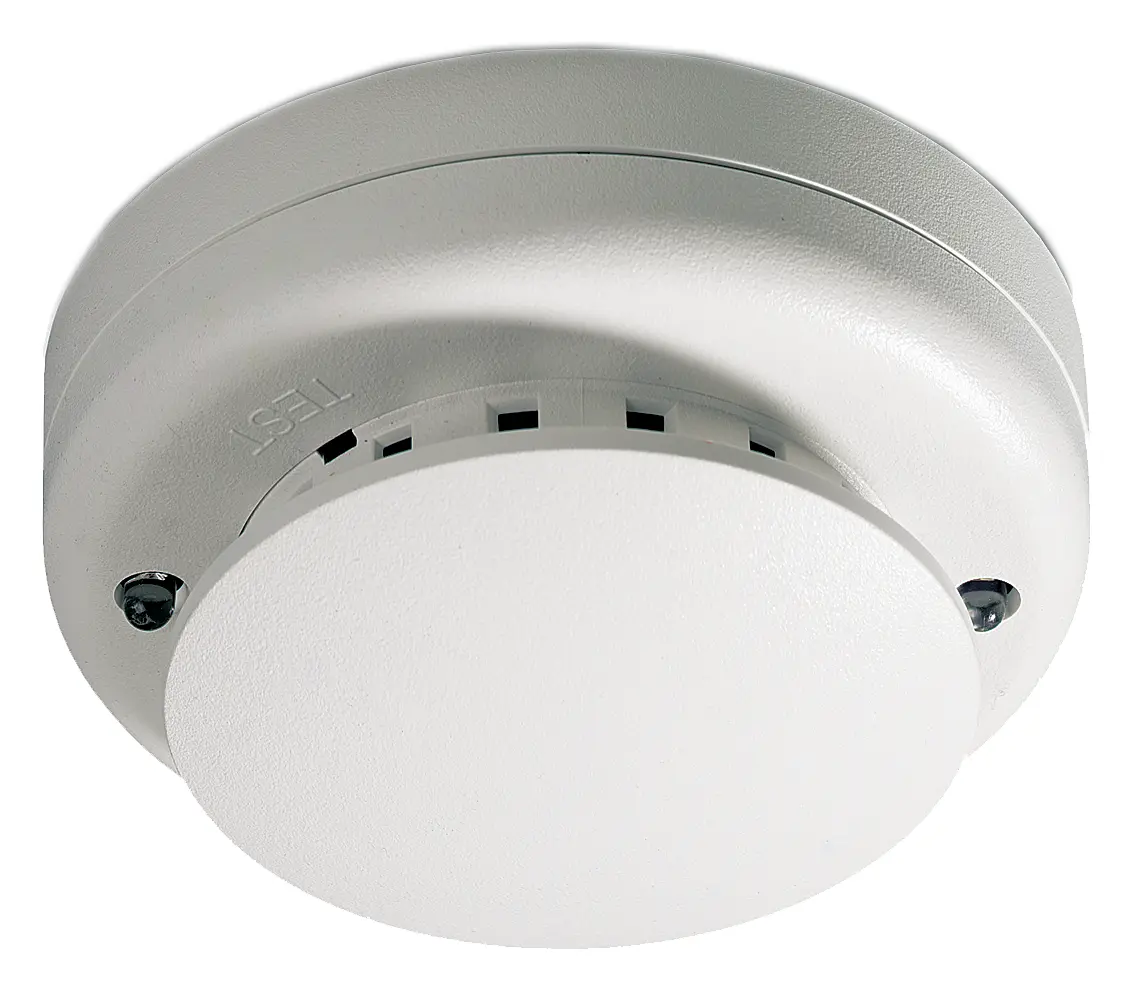

Aritech DP721R Konvansiyonel Duman Dedektörü

Aritech DP721R (700 Series Conv. Optical Det. ailesi), konvansiyonel duman dedektörü ürünüdür. CPR standart/onaylarına uygundur.

Preventing false alarms with self diagnostics

All Aritech 700 series smoke detectors continuously monitor their sensitivity and operational status. Background drift is daily compensated to maintain the original calibrated sensitivity within the required limits.

Once a day the detector performs a full diagnostic test that includes dynamically testing the sensing chamber and internal electronics. If a detector drifts out of sensitivity range or fails the internal diagnostics test, this is reported back to the panel and indicated on the detector with a yellow fault LED.

Maintenance friendly sensitivity level test mode

The 700 Series photoelectric detectors include a sensitivity test mode that may be activated by simply holding a magnet near the detector's test point. This initiates a self-diagnostic routine and provides visual indication if service is required. This test mode allows field sensitivity testing without the requirement for external meters or test gas.

Field cleaning and service

The photoelectric sensing chamber unclips from the detector for easy field cleaning and service. During regular maintenance the detector cover can be removed, the optical chamber removed and replaced by a low cost, new chamber. On power up the detector auto-calibrates and returns to normal operating mode without any further intervention.

The right detector for the right job

For a truly fast and broad-spectrum detection the DP721RTA offers both optical and heat sensors. The interaction of both the smoke and heat algorithms ensure a quick response to both flaming and smouldering fires.

All bases are provided with an integral locking tab for extra security if required. Bases are equipped with a shorting bar between IN and OUT that opens when the head is installed and that may be manually restored when removing the head. This simplifies cable continuity testing.

Note

The DP721RTA must not be used in applications requiring compliance with commercial or residential fire standards such as EN54-5/EN54-7/EN54-29/CEA4021/EN14604. Always ensure compliance with local codes and standards.

Öne Çıkan Özellikler

• Automatic self diagnostics with dynamic full detector and sensitivity test
• High false alarm immunity with floating background with drift compensation
• Separate fire and fault LEDs for unambiguous alarm reporting
• Wide operating voltage for use on most conventional systems
• Polarity insensitive for carefree installation
• Manual self diagnostic with visual sensitivity indication
• Field exchangeable and disposable optical chamber
• COM/NO/NC contacts for easy supervision on any system

Nerelerde kullanılır?

Yangını duman veya ısı artışıyla en erken aşamada algılayarak yangın alarm paneline bildirir; tahliye için kritik zaman kazandırır.

Kurulum ve uyumluluk

Yangın algılama sistemleri; Binaların Yangından Korunması Hakkında Yönetmelik ve TS EN 54 standardına uygun olarak projelendirilmeli ve yetkili ekiplerce devreye alınmalıdır.

Tüm özellikler

• ARITECH Dx700 Series conventional optical smoke detector with relay
• Automatic self diagnostics with dynamic full detector and sensitivity test
• High false alarm immunity with floating background with drift compensation
• Separate fire and fault LEDs for unambiguous alarm reporting
• Wide operating voltage for use on most conventional systems
• Polarity insensitive for carefree installation
• Manual self diagnostic with visual sensitivity indication
• Field exchangeable and disposable optical chamber
• COM/NO/NC contacts for easy supervision on any system
