Aritech FE230 Yangın Kapı Tutucu Mıknatısı

Aritech FE230 (Door Holder Standard ailesi), yangın kapı tutucu mıknatısı ürünüdür.

General

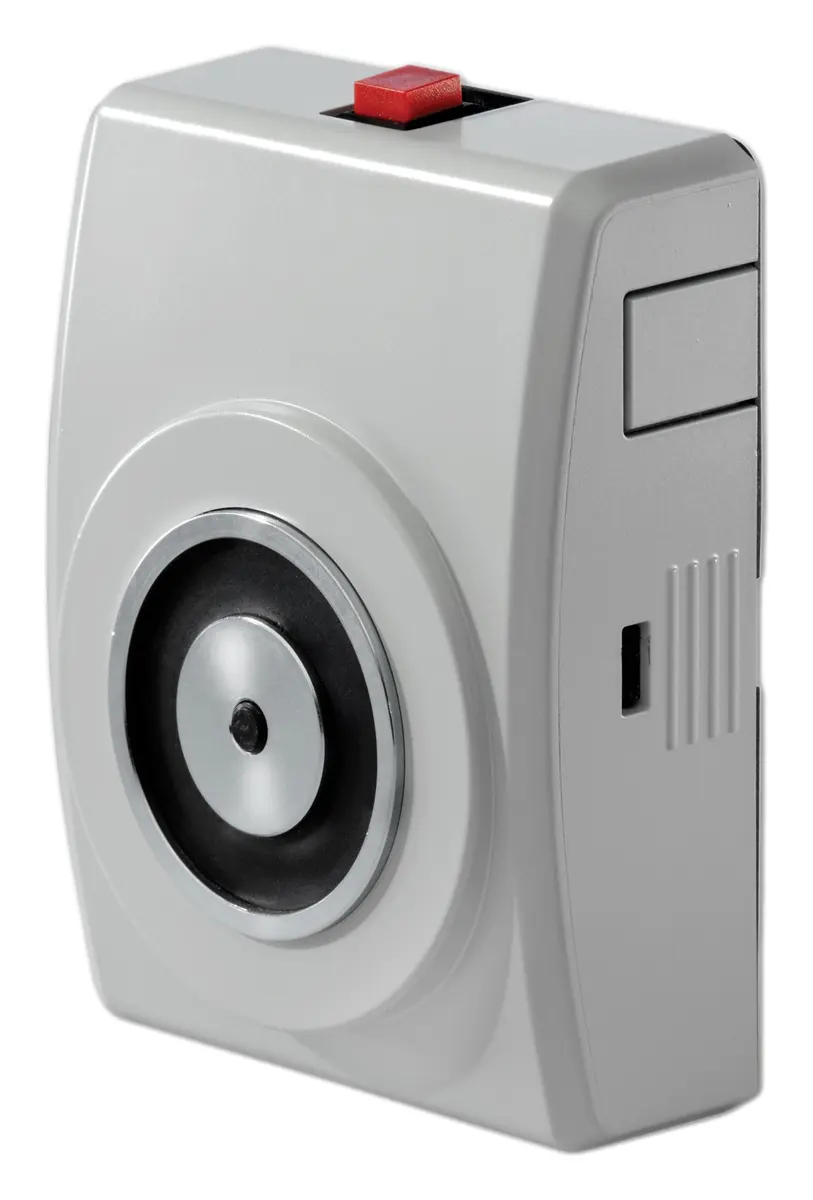

The FE230 is a surface mount door holder, in a Bayblend housing, which offers a 400 N holding force and a release button. Cable entry is possible from the back or from the sides, and the release button can be located at the top, or one of the sides.

Magnet construction

The magnet is constructed with a pressed coil and anti-remenance pin, giving it a protection of IP54. The protection diodes are integrated into this construction.

Housing

The plastic housing is manufactured from Bayblend and contains 30% PA6 glass fiber, which makes it much stronger than standard ABS. Bayblend offers high heat resistance, high impact and notched impact strength, and high stiffness and dimensional stability.

Installer friendly

For practical ease of installation, the door holder comes complete with electrical screw terminals.

The housing is predrilled in a practical, standard format for rapid mounting.

The door holder is supplied complete with a keeper plate, which offer angular adjustment.

The release button can be position in three different locations: top, left or right.

Cable entry can be done in four different locations: back, top, left or right.

Approvals

The FE230 is fully approved according to EN1155.

Öne Çıkan Özellikler

• Low power - 1.6 W
• 400 N holding force
• Anti-remnant ejector
• Spark suppression diode and reverse polarity protection
• Release button
• EN1155 approved
• Keeper plate included

Nerelerde kullanılır?

Yangın algılama sisteminde giriş/çıkış kontrolü, loop izolasyonu veya kurulum aksesuarı olarak kullanılır.

Kurulum ve uyumluluk

Yangın algılama sistemleri; Binaların Yangından Korunması Hakkında Yönetmelik ve TS EN 54 standardına uygun olarak projelendirilmeli ve yetkili ekiplerce devreye alınmalıdır.
