Aritech FE535 Yangın Kapı Tutucu Mıknatısı

Aritech FE535 (Door Holder Magnet - 490N ailesi), yangın kapı tutucu mıknatısı ürünüdür. VdS standart/onaylarına uygundur.

General

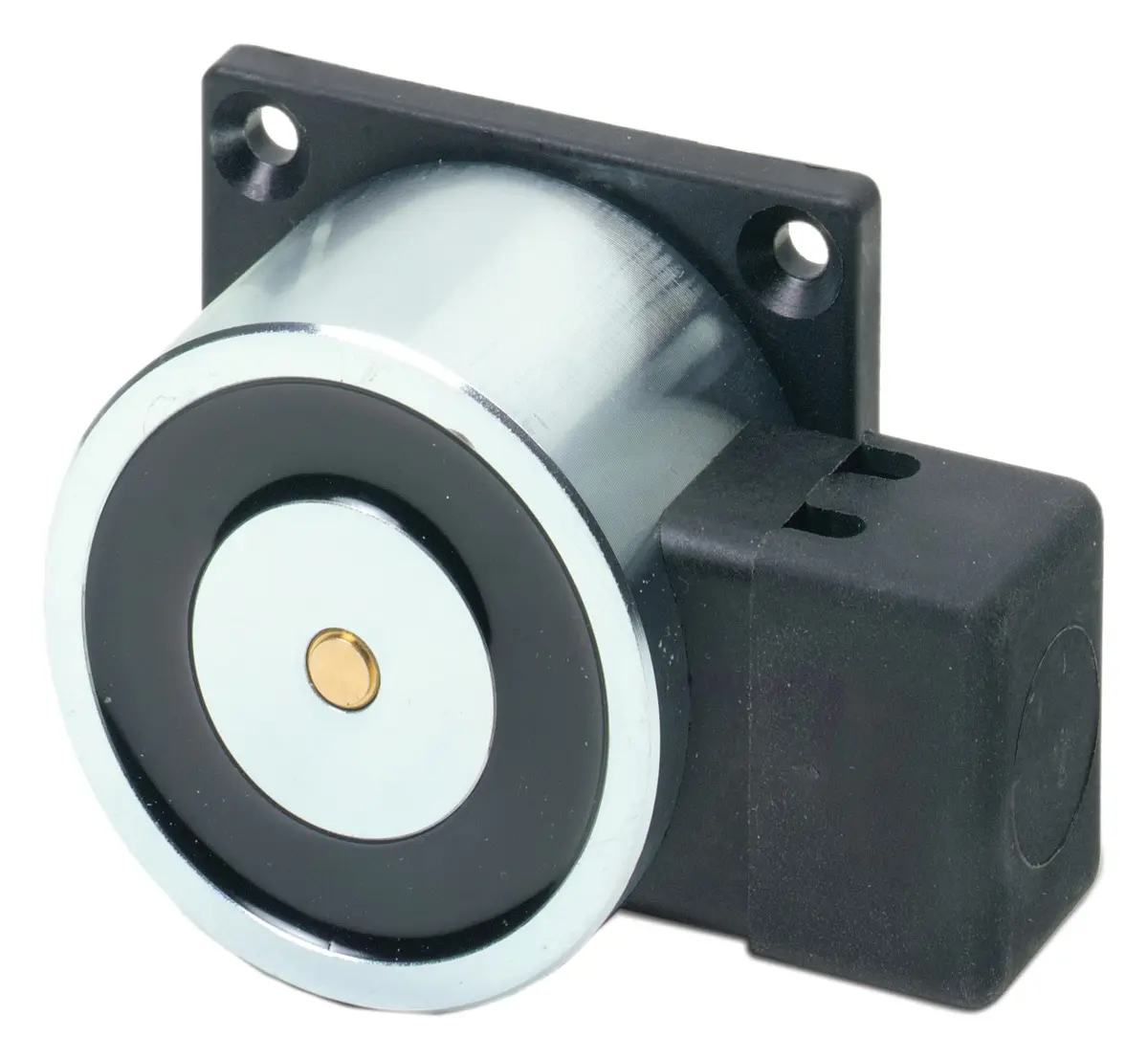

The FE535 is a VdS approved magnetic door holder with a steel, square base.

A magnet for all occasions

The 500 series door holding magnets are the result of years of specialised development. With low power consumption the manets are still abel to bruduce very high holding forces. All magnets have a spring-loaded pin to ensure ejection against remnant magnetism.

Application friendly

This square steel base model offers a cost effective solution without sacrificing performance. The FE535 is supplied without keeper plate. This may be ordered separately depending on the application.

Installer friendly

For practical ease of installation, all units are complete with electrical termination. Protection diodes prevent electromagnetic pulses, and reverse polarity protection speeds up installation. The boxes are predrilled in a practical, standard format for rapid mounting.

Approvals

All models are VdS approved. (Refer to the specific device specifications)

Öne Çıkan Özellikler

• Wall mount
• Low power
• 490 N holding power
• 100% duty cycle
• Anti-remnant ejector
• Protection diode and reverse polarity protection
• VdS approved

Nerelerde kullanılır?

Yangın algılama sisteminde giriş/çıkış kontrolü, loop izolasyonu veya kurulum aksesuarı olarak kullanılır.

Kurulum ve uyumluluk

Yangın algılama sistemleri; Binaların Yangından Korunması Hakkında Yönetmelik ve TS EN 54 standardına uygun olarak projelendirilmeli ve yetkili ekiplerce devreye alınmalıdır.
