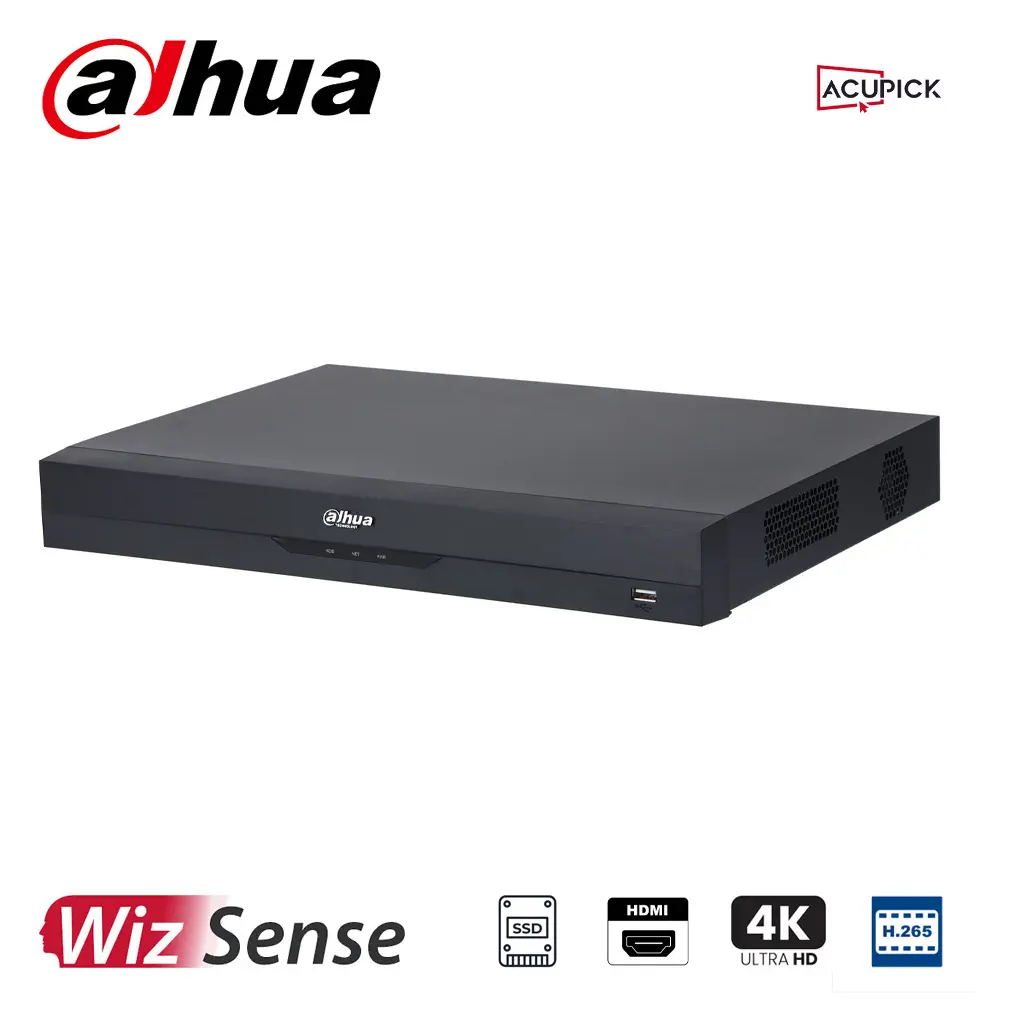

Dahua NVR5208-EI 8 Kanal 2 Diskli NVR Kayıt Cihazı

ModelNVR5208-EI

Dahua NVR5208-EI, 8 kanala kadar kamera bağlanabilen bir NVR kayıt cihazıdır. 2 adet SATA disk yuvasıyla kayıt süresi ihtiyaca göre ölçeklenebilir. 32 MP çözünürlüğe kadar kamera kaydını destekler.

Kanal sayısı: 8 kanal
PoE: PoE yok

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

8 Kanal 32MP' e Kadar IP Kamera Desteği
384 Bant Genişliği
H-265 Sıkıştırma Desteği
8 Kanalda AcuPick Desteği
2 Adet 20TB HDD Desteği
1x HDMI + 1x VGA Monitör Çıkışı
P2P ile Uzaktan İzleme Desteği
Çift Yönlü Sesli Kameralar ile Uyumlu

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Genel 5 satır

Resmi Ürün Tanımı	Dahua 8CH 2HDD 1U NETWORK VIDEO RECORDER
Ana İşlemci	Industrial-grade processor
İşletim Sistemi	Embedded Linux
Kullanım Arayüzü	Web; Local GUI
Sertifikalar	FCC: 47 CFR FCC Part15, SubpartB, Class A; CE-EMC: EN 55032:2015+A1:2020, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, EN 55035:2017+A11:2020, EN 50130-4:2011+A1:2014; CE-LVD: EN 62368-1:2014

Akıllı Özellikler 46 satır

Kayıt Cihazı ile AI	Face detection; face recognition; perimeter protection; SMD Plus
Kamera ile AI	Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map; PPE detection; smart object detection; smart sound detection
AcuPick Performansı (Kamera AI)	All channels (32 targets/s)
IVS (Çevre Koruma)	1. AI by Camera: Yes; 2. AI by Recorder: Supports human and vehicle (attribute is not supported); Supports setting up to 10 intrusion and tripwire rules; record linkage, snapshot (panoramic), local external alarm output, IPC external alarm output, audio, buzzer, and log
Çevre Koruma Performansı (Kayıt Cihazı AI)	4 channels, 10 IVS rules for each channel
Çevre Koruma Performansı (Kamera AI)	All channels (8 targets/s)
Canlı İzleme (Çevre Koruma)	1. Detection box: Configure rule box and object detection box; 2. Intelligent panel: Displays objects categories (human or vehicle), event type, time, and cutout (attribute is not supported); 3. Statistics: calculates the total number of people in Peopletotal and vehicles in Vehicle. It also displays up to 50 snapshot records, supports recording playback (10 seconds before/after the event), and exporting a single record
Oynatma (Çevre Koruma)	1. Search conditions: Search for image by channel, time, event type, and target type; 2. Functions: Supports recording playback (20 seconds before/after the event), and exporting search results to Excel, video and image (cutout and panoramic) format; 3. Snapshot database capacity: 300,000 entries
Yüz Algılama	1. AI by Camera: Yes; 2. AI by Recorder: Yes; Supports setting detection regions, record linkage, snapshot (panoramic), local external alarm output, IPC external alarm output, audio, buzzer, and log
Yüz Öznitelikleri	6 attributes
Yüz Algılama Performansı (Kayıt Cihazı AI)	2 channels (up to 12 face images/s each channel)
Yüz Algılama Performansı (Kamera AI)	8 channels
Canlı İzleme (Yüz Algılama)	1. Detection box: Can be enabled and disabled; 2. Intelligent panel: Displays event type, time, and face snapshot; 3. Facetotal: calculates the number of face snapshots taken in a 24 hour period. It also displays up to 50 snapshot records, supports recording playback (10 seconds before/after the event) and exporting; fast add to database; 4. Panel filtering: Filter by panel type and attribute
Oynatma (Yüz Algılama)	1. Search conditions: Search for image by channel, time, and face attribute; 2. Search by image: Sets the similarity (50–100%) through face databases and external images to search for images, and supports setting secondary filters to also search by attributes; Sort results by date and similarity (top 1,000 images displayed); Upload 30 images to a single client and search for 8 images at a time; 3. Functions: Supports recording playback (10 seconds before/after the event), fast adding snapshots t
Yüz Veritabanı Yönetimi	1. Import method: Imports face images through USB flash disk, PCAPP and web client (one by one or in batches) and the importing speed 60 images/s; 2. Copy face images (one by one or in batches) to another face database; 3. Face information: Name, gender, birthday, province, city, ID card type and ID card number. Custom is also available; 4. Image format: JPG, 4M per image, 100 × 100 to 3840 × 2160 pixels
Yüz Veritabanı Kapasitesi	Up to 20 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image
Yüz Tanıma	1. Recognition mode: FD (by camera) + FR (by camera); FD (by camera) + FR (by recorder); FD (by recorder) + FR (by recorder); 2. AI by Camera: Yes; 3. AI by Recorder: Yes; Functions: Ordinary/stranger mode; arming multiple face databases and setting separate similarity threshold; Sends alarm messages in the client when the similarity threshold is reached or not reached; Support record linkage, snapshot (panoramic), local external alarm output, IPC external alarm output, audio, buzzer, log, prese
Yüz Tanıma Performansı (Kayıt Cihazı AI)	1. 8-channel FD (by camera) + FR (by recorder), image stream: 16 face images/s; 2. 2-channel FD (by recorder) + FR (by recorder), video stream: 12 face images/s
Yüz Tanıma Performansı (Kamera AI)	8 channels
Canlı İzleme (Yüz Tanıma)	1. Detection box: Can be enabled and disabled; the rule box color can be changed according to face recognition results; 2. Intelligent panel: Displays event type, time, face snapshot, similarity and database name; 3. Facetotal: calculates the number of face snapshots taken in a 24 hour period. It also displays up to 50 snapshot records, supports recording playback (10 seconds before/after the event) and exporting; fast add to database; 4. Panel filtering: Filter by panel type and attribute
Oynatma (Yüz Tanıma)	1. Search condition: Search for images by channel, time, face attribute, similarity and recognition mode (stranger/normal mode); 2. Functions: Supports recording playback (10 seconds before/after the event), fast adding snapshots to face database, and exporting search results to Excel, video and image format; 3. Database capacity: 300,000 entries
IVS	1. AI by Camera: Supports 8 channels; 2. AI by Recorder: No; 3. Supports abandoned/missing object, parking detection, people gathering, fast moving, loitering detection, fence-crossing; 4. Detection rule: Supports recording linkage, capture, local alarm output, audio, buzzer, and log
Canlı İzleme (Genel IVS Analizi)	Video overlay: Rule lines and detection rectangles
Oynatma (Genel IVS Analizi)	1. Search conditions: Search for image by channels, type, and start/end time; 2. Functions: Supports recording playback (10 seconds before/after the event), exporting search results to excel, video and image format; 3. Database capacity: 300,000 entries
SMD Plus (Kayıt Cihazı)	8 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change
SMD (Kamera)	All channels (16 targets/s)
Canlı İzleme (SMD)	Video overlay of detection rectangles
Oynatma (SMD)	1. Search conditions: Search for image by channels, type (human, vehicle), and start/end time; 2. Functions: Supports recording playback (10 seconds before/after the event) and exporting search results of videos; 3. Database capacity: 100,000
Metadata Performansı (Kamera AI)	8 channels
İnsan Algılama	1. AI by Camera: Yes; 2. AI by Recorder: No; Supports setting detection region and object size; record linkage, log, and snapshot cannot be configured by default
Human Öznitelikleri	Top color, top type, bottom color, bottom type, hat, bag, age, gender and umbrella
Canlı İzleme (İnsan Algılama)	1. Detection box: Can be enabled and disabled; 2. Intelligent panel: Displays event type, time, and human body snapshot; 3. Statistics: calculates the number of snapshot taken in a 24 hour period in Peopletotal. It also displays up to 50 snapshot records, supports recording playback (10 seconds before/after the event) and exporting; fast add to database; 4. Panel filtering: Filter by panel type and attribute
Oynatma (İnsan Algılama)	1. Search condition: Search for images by channel, time and 9 human body attributes; 2. Function: Fast add images in the human body panel to the list database; supports recording playback (10 seconds before/after the event), and exporting search results to Excel, video and image format
Motorlu Araç Algılama	1. AI by Camera: Yes; 2. AI by Recorder: No; Supports setting detection region and object size; record linkage, log, and snapshot cannot be configured by default
Motorlu Araç Öznitelikleri	License plate, plate color, vehicle body, vehicle model, vehicle logo, calling, seatbelt, vehicle interior, vehicle registration location
Canlı İzleme (Motorlu Araç Algılama)	1. Detection box: Can be enabled and disabled; 2. Intelligent panel: Displays event type, time, and vehicle body cutout, and plate cutout; 3. Statistics: calculates the number of snapshot taken in a 24 hour period in Vehicletotal. It also displays up to 50 snapshot records; supports recording playback (10 seconds before/after the event) and exporting; 4. Panel filtering: Filter by panel type and attribute
Oynatma (Motorlu Araç Algılama)	1. Search condition: Search for images by channel, time and 9 motor vehicle attributes; 2. Function: Supports recording playback (10 seconds before/after the event), and exporting search results as Excel, video and image (cutout and panoramic) format
Motorsuz Araç Algılama	1. AI by Camera: Yes; 2. AI by Recorder: No; Set detection region and object size; record linkage, log, and snapshot cannot be configured by default
Motorsuz Araç Öznitelikleri	4 attributes
Canlı İzleme (Motorsuz Araç)	1. Detection box: Can be enabled and disabled; 2. Intelligent panel: Displays event type, time, and vehicle body cutout; 3. Statistics: calculates the number of snapshot taken in a 24 hour period in Nonmotortotal. It also displays up to 50 snapshot records; supports recording playback (10 seconds before/after the event) and exporting; 4. Panel filtering: Filter by panel type and attribute
Oynatma (Motorsuz Araç)	1. Search condition: Search for image by channel, time and non-motor 4 vehicle attributes; 2. Function: Supports recording playback (10 seconds before/after the event), and exporting search results to Excel, video and image (cutout and panoramic) format
Araç Tanıma	1. AI by Camera: Yes; 2. AI by Recorder: No
Plaka Karşılaştırma	1. ANPR by Camera+ License Plate Comparison by Recorder; 2. Functions: Alarm prompts in client when plate number is consistent with the license plate databases (blocklist/allowlist); Support record linkage, snapshot (panorama), local external alarm output, IPC external alarm output, audio, buzzer, log, preset, and email
ANPR (Kamera)	All channels (8 targets/s)
Plaka Veritabanı Yönetimi	1. Import method: Import a single license plate after exporting the Excel template to fill in the license plate information; 2. License plate information: Country/region, plate number, name, vehicle logo, driver's license, vehicle color, plate color, mobile phone, email, and address
Plaka Veritabanı Kapasitesi	1. Create up to 20,000 plate numbers; 2. Blocklist and allowlist

Video 9 satır

Kanal Sayısı	8 channels
Çözünürlük	32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 720p; 960p; D1; CIF; QCIF
Kod Çözme Kapasitesi	AI disabled: 2-channel 32 MP@25 fps; 2-channel 24 MP@25 fps; 4-channel 16 MP@30 fps; 5-channel 12 MP@30 fps; 8-channel 8 MP@30 fps; AI enabled: 1-channel 32 MP@25 fps; 1-channel 24 MP@25 fps; 2-channel 16 MP@30 fps; 4-channel 12 MP@30 fps; 6-channel 8 MP@30 fps; 8-channel 6 MP@30 fps; 8-channel 5 MP@30 fps
Video Çıkışı	1 VGA, 1 HDMI; VGA: 1920 × 1080, 1280 × 1024, 1280 × 720; HDMI: 7680 × 4320, 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; Heterogeneous video source output for HDMI and VGA
Çoklu Ekran Gösterimi	Main Screen: 1/4/8/9; Sub Screen: 1/4/8/9
Üçüncü Taraf Kamera Desteği	ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha
Video Sıkıştırma	Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
Çoklu Kanal Oynatma	Up to 8 channels
Oynatma Modu	Instant playback; general playback; event playback; target video; video clip; tag playback; smart playback (face and motion detection)

Ağ 6 satır

Ağ Bant Genişliği	AI disabled: 384 Mbps incoming, 384 Mbps recording and 384 Mbps outgoing; AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing
Ağ Protokolleri	HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.); iSCSI
Mobil Erişim	iOS; Android
Uyumluluk	ONVIF 25.06 (Profile T; Profile S; Profile G; Profile M); CGI; SDK
Tarayıcı	Chrome; Firefox; IE; Safari; Edge
Ağ Portu	1 (10/100/1000 Mbps Ethernet port, RJ-45)

Ses 1 satır

Ses Sıkıştırma	G.711a; G.711u; PCM; G726

Depolama 4 satır

Kayıt Modu	General, motion detection; intelligent; alarm; POS
Yedekleme Yöntemi	USB device and network
Disk Grubu	Var
Disk Arayüzü	2 SATA ports, each disk can contain up to 20 TB. This limit varies depending on the environment temperature

Alarm 4 satır

Genel Alarm	Motion detection; local alarm; alarm box; camera external alarm; network alarm; scene changing; PIR alarm; thermal alarm
Anormallik Alarmı	Error (no disk; disk error; low space; low quota space; abnormal disk health; network disconnection; IP conflict; MAC conflict; abnormal fan speed); video loss; video tampering; camera offline; audio detection
Akıllı Alarm	Face detection; perimeter protection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map; PPE detection; smart object detection; smart sound detection
Alarm Bağlantısı	Record; snapshot (panoramic); local alarm output; IPC external alarm output; audio; buzzer; log, preset; email

Arayüz 9 satır

Ses Girişi	1-channel RCA
Ses Çıkışı	1-channel RCA
Alarm Girişi	4 channels
Alarm Çıkışı	2 channels
RS-232	1
RS-485	1
USB	2 (1 front USB 2.0 port, 1 rear USB 3.0 port)
HDMI	1
VGA	1

Güç 2 satır

Güç Kaynağı	12 VDC, 4 A
Güç Tüketimi	≤10 W (without HDD)

Yapı 5 satır

Net Ağırlık	1.57 kg (3.46 lb)
Brüt Ağırlık	2.73 kg (6.02 lb)
Ürün Boyutları	375.0 mm × 284.4 mm × 56.0 mm (14.76" × 11.20" × 2.20") (W × D × H)
Ambalaj Boyutları	433.0 mm × 141.0 mm × 366.0 mm (17.04" × 5.55" × 14.41") (W × D × H)
Montaj	Rack mount or desktop mount

Çalışma Ortamı 4 satır

Çalışma Sıcaklığı	–10 °C to +55 °C (+14 °F to +131 °F)
Depolama Sıcaklığı	–20 °C to +60 °C (–4 °F to +140 °F)
Çalışma Nemi	10%–93% (RH), non-condensing
Çalışma Rakımı	3,000 m (9,842.52 ft)

Kayıt 1 satır

Sata HDD Girişi	2x Sata

Genel bakış

Dahua NVR5208-EI kullanım alanları ve özellikleri.

Nerelerde kullanılır?

IP kamera sistemlerinin merkezidir; görüntüleri disk üzerinde saklar, mobil uygulama ve bilgisayar üzerinden canlı izleme ile kayıt izleme imkânı verir.

Kurulum ve uyumluluk

Sürekli kayıt için gözetim diski (Seagate SkyHawk veya WD Purple) önerilir. Cep telefonundan izleme DMSS uygulamasıyla yapılır.

Tüm özellikler

8 Kanal 32MP' e Kadar IP Kamera Desteği
384 Bant Genişliği
H-265 Sıkıştırma Desteği
8 Kanalda AcuPick Desteği
2 Adet 20TB HDD Desteği
1x HDMI + 1x VGA Monitör Çıkışı
P2P ile Uzaktan İzleme Desteği
Çift Yönlü Sesli Kameralar ile Uyumlu
İnsan ve Araç Ayrımı Yapan SMD+ Kamera ile Uyumlu
Yüz Algılama
Isı Haritası ve Kişi Sayma
Plaka Tanıma ve AI Kameraları ile Uyumlu

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

DatasheetPDF · NVR5208-EI

Sık sorulanlar

NVR5208-EI hakkında kısa yanıtlar.

NVR5208-EI kaç kamera destekler?

NVR5208-EI 8 kanallıdır; 8 kameraya kadar kayıt yapabilir.

NVR5208-EI kaç disk takılır?

NVR5208-EI üzerinde 2 adet SATA disk yuvası bulunur. 7/24 kayıt için gözetim diskleri önerilir.

NVR5208-EI için hangi disk önerilir?

Sürekli yazma yüküne göre tasarlanmış Seagate SkyHawk veya WD Purple gözetim diskleri önerilir. Kapasite; kamera sayısı, çözünürlük ve istenen kayıt gün sayısına göre hesaplanmalıdır.

NVR5208-EI cep telefonundan nasıl izlenir?

Dahua cihazları DMSS mobil uygulamasıyla izlenir. Cihaz uygulamaya eklendikten sonra canlı izleme, kayıt izleme ve bildirim alma yapılabilir.

NVR5208-EI fiyatı ne kadar?

NVR5208-EI için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
