Dahua

NVR Kayıt Cihazı WizMind

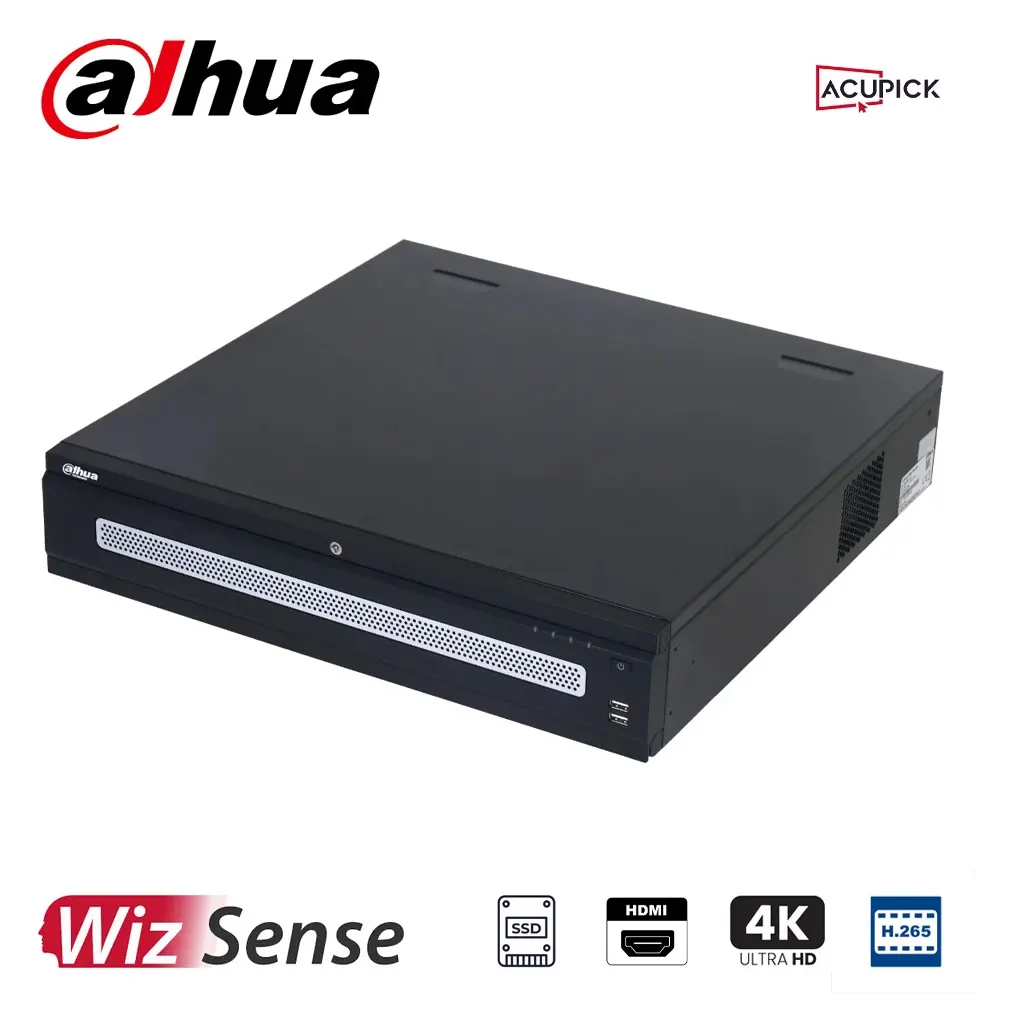

Dahua NVR608H-32-XI 32 Kanal 8 Diskli NVR Kayıt Cihazı

ModelNVR608H-32-XI

Dahua NVR608H-32-XI, 32 kanala kadar kamera bağlanabilen bir NVR kayıt cihazıdır. 8 adet SATA disk yuvasıyla kayıt süresi ihtiyaca göre ölçeklenebilir. Yapay zekâ destekli insan/araç filtrelemesiyle kayıtlarda hızlı arama yapılabilir. 32 MP çözünürlüğe kadar kamera kaydını destekler.

Kanal sayısı: 32 kanal
PoE: PoE yok
Teknoloji: WizMind

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

32 Kanal 32MP' e Kadar IP Kamera Desteği
AI Devre Dışıyken Gelen 1.280Mbps Giden 1.024 Bant Genişliği
AI Devredeyken Gelen 640Mbps Giden 512Mbps
32 Kanal AcuPick Desteği
H-265 Sıkıştırma Desteği
8 Adet 16TB HDD Desteği
1x e-Sata Desteği
2x 10/100/1.000/2.5GB RJ45 Ethernet Portu

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Genel 5 satır

Resmi Ürün Tanımı	32CH 2U 8HDDs WizMind Network Video Recorder
Ana İşlemci	Industrial-grade processor
İşletim Sistemi	Embedded Linux
Kullanım Arayüzü	Web; Local GUI
Sertifikalar	FCC: 47 CFR FCC Part15, SubpartB, Class A; CE-EMC: EN 55032:2020, Class A, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55024:2010+A1:2015, EN 55035:2020, EN 50130-4:2011+A1:2014; CE-LVD: EN 62368-1:2014+A11:2017

Akıllı Özellikler 51 satır

Kayıt Cihazı ile AI	Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD Plus; AcuPick; PPE Detection
Kamera ile AI	Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD; stereo analysis; crowd distribution; people counting; ANPR; heat map; PPE detection; AcuPick
IVS (Çevre Koruma)	1. AI by Camera: Yes; 2. AI by Recorder: Supports human and vehicle (attribute is not supported); Supports setting up to 10 intrusion and tripwire rules; record linkage, snapshot (panoramic), local external alarm output, audio, buzzer, and log
Çevre Koruma Performansı (Kayıt Cihazı AI)	Simultaneous mode: 32 channels, 10 IVS rules for each channel; Heterogeneous mode: 24 channels, 10 IVS rules for each channel; Refer to the information on video output for details on the mode
Çevre Koruma Performansı (Kamera AI)	All channels (64 targets/s)
Canlı İzleme (Çevre Koruma)	1. Detection box: Configure rule box and object detection box; 2. Intelligent panel: Displays objects categories (human or vehicle), event type, time, and cutout (attribute is not supported); 3. Statistics: calculates the total number of people in Peopletotal and vehicles in Vehicle. It also displays up to 50 snapshot records, supports recording playback (20 seconds before/after the event); 4. Panel filtering: Filter by panel type
Oynatma (Çevre Koruma)	1. Search conditions: Search for image by channel, time, event type, and target type; 2. Functions: Supports recording playback (20 seconds before/after the event), and exporting search results to Excel and image (panoramic), backing up video and image (panoramic); 3. Snapshot database capacity: 1,500,000 entries
Yüz Algılama	1. AI by Camera: Yes; 2. AI by Recorder: Yes; Supports setting detection regions, record linkage, snapshot (panoramic and face), local external alarm output, IPC external alarm output, audio, buzzer, and log
Yüz Öznitelikleri	6 attributes
Yüz Algılama Performansı (Kayıt Cihazı AI)	Simultaneous mode: 8 channels (up to 12 face images/s each channel); Heterogeneous mode: 5 channels (up to 12 face images/s each channel); Refer to the information on video output for details on the mode
Yüz Algılama Performansı (Kamera AI)	All channels (64 targets/s)
Canlı İzleme (Yüz Algılama)	1. Detection box: Can be enabled and disabled; 2. Intelligent panel: Displays event type, time, and face snapshot; 3. Facetotal: calculates the number of face snapshots taken in a 24 hour period. It also displays up to 50 snapshot records, supports recording playback (20 seconds before/after the event) and exporting; fast add to database; 4. Panel filtering: Filter by panel type and attribute
Oynatma (Yüz Algılama)	1. Search conditions: Search for image by channel, time, and face attribute; 2. Sort results by date and similarity (top 1,000 images displayed); 3. Functions: Supports recording playback (20 seconds before/after the event), fast adding snapshots to face database, and exporting search results to Excel and image, backing up to video and image; 4. Database capacity: 1,500,000 entries
Fotoğrafla Yüz Arama	1. Set the channel, time, similarity (50–100%) through the face databases and external images to search images; 2. Upload 30 images to a single client and search for 8 images at a time; 3. Sort results by date and similarity (top 1,000 images displayed); 4. Supports recording playback (20 seconds before/after the event), backing up video and image format. (search results can't be exported to Excel)
Yüz Veritabanı Yönetimi	1. Import method: Imports face images through USB flash dsk and web client (one by one or in batches) , the importing speed from local USB is 49 images/s and the importing speed from web client is 36 images/s; 2. Face information: Name, gender, birthday, region, address, credential type and credential No.; 4. Image format: JPG, max. 4M per image, 100 × 100 to 3840×2160 pixels
Yüz Veritabanı Kapasitesi	Up to 40 face databases with 300,000 images, with a total capacity of 48 G
Yüz Tanıma	1. Recognition mode: FR (by camera); FD (by camera) + FR (by recorder); FR (by camera) + FR (by recorder); FD (by recorder) + FR (by recorder); 2. AI by Camera: Yes; 3. AI by Recorder: Yes; Functions: Ordinary/stranger mode; arming multiple face databases and setting separate similarity threshold; Sends alarm messages in the client when the similiarity threshold is reached or not reached. Support record linkage, snapshot (panoramaic), local external alarm output, IPC external alarm output, audio
Yüz Tanıma Performansı (Kayıt Cihazı AI)	Simultaneous mode: 32-channel FD (by camera) + FR (by recorder),image stream: 32 face images/s; 8-channel FD (by recorder) + FR (by recorder), video stream: 16 face images/s; Heterogeneous mode: 16-channel FD (by camera) + FR (by recorder),image stream: 16 face images/s; 5-channel FD (by recorder) + FR (by recorder), video stream: 10 face images/s; Refer to the information on video output for details on the mode
Yüz Tanıma Performansı (Kamera AI)	All channels (64 targets/s)
Canlı İzleme (Yüz Tanıma)	1. Detection box: Can be enabled and disabled; 2. Intelligent panel: Displays event type, time, face snapshot, similarity and database name; 3. Facetotal: calculates the number of face snapshots taken in a 24 hour period. It also displays up to 50 snapshot records, supports recording playback (20 seconds before/after the event), fast add to database; 4. Panel filtering: Filter by panel type and attribute
Oynatma (Yüz Tanıma)	1. Search condition: Search for images by channel, time, face attribute, similarity; 2. Functions: Supports recording playback (20 seconds before/after the event), and exporting search results to Excel and image, backing up to video and image; 3. Database capacity: 1,500,000 entries
IVS	1. AI by Camera: Supports 32 channels; 2. Detection rule: Supports recording and PTZ linkage, snapshot (panoramaic), local external alarm output, audio, buzzer, and log
Canlı İzleme (Genel IVS Analizi)	Video overlay: Rule lines and detection rectangles
Oynatma (Genel IVS Analizi)	1. Search conditions: Search for image by channels, type, and start/end time; 2. Functions: Supports recording playback (10 seconds before/after the event), exporting search results to excel, video and image; 3. Database capacity: 1,500,000 entries
SMD Plus (Kayıt Cihazı)	32-channel: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change
Metadata Performansı (Kayıt Cihazı AI)	8 channels
Metadata Performansı (Kamera AI)	All channels (64 targets/s)
Motorlu Araç Algılama	1. AI by Camera: Yes; 2. AI by Recorder: Yes
Motorlu Araç Öznitelikleri	License plate, plate color, vehicle model, vehicle logo, plate color, ornament, calling
Canlı İzleme (Motorlu Araç Algılama)	1. Detection box: Can be enabled and disabled; 2. Intelligent panel: Displays event type, time, and snapshot, and attribute; 3. Statistics: calculates the number of snapshot taken in a 24 hour period in Vehicletotal. It also displays up to 50 snapshot records; supports recording playback (20 seconds before/after the event); 4. Panel filtering: Filter by panel type and attribute
Oynatma (Motorlu Araç Algılama)	1. Search condition: Search for images by channel, time and attributes; 2. Function: supports recording playback (20 seconds before/after the event), and and exporting search results to Excel and image, backing up video and image; 3. Database capacity: 1,500,000
Motorsuz Araç Algılama	1. AI by Camera: Yes; 2. AI by Recorder: non-motor vehicle and face detection
Motorsuz Araç Öznitelikleri	4 attributes
Canlı İzleme (Motorsuz Araç)	1. Detection box: Can be enabled and disabled; 2. Intelligent panel: Displays event type, time, and snapshot, and attribute; 3. Statistics: calculates the number of snapshot taken in a 24 hour period in Vehicletotal. It also displays up to 50 snapshot records; supports recording playback (20 seconds before/after the event); 4. Panel filtering: Filter by panel type and attribute
Oynatma (Motorsuz Araç)	1. Search condition: Search for images by channel, time and attributes; 2. Function: supports recording playback (20 seconds before/after the event), and and exporting search results to Excel and image, backing up video and image; 3. Database capacity: 1,500,000
Plaka Karşılaştırma	1. AI by Camera: Yes; AI by Recorder: No; 2. Functions: Arming plan and linkage settings
ANPR (Kamera)	All channels (64 targets/s)
Plaka Veritabanı Yönetimi	1. License plate and driver blocklist/allowlist importing; 2. Search for license plate
Plaka Veritabanı Kapasitesi	Blocklist and allowlist: 20,000
KKD Algılama Performansı (Kayıt Cihazı AI)	4 channels
KKD Algılama Performansı (Kamera AI)	All channels (64 targets/s)
KKD Algılama	1. AI by Camera: Yes; 2. AI by Recorder: Yes; Supports setting detection regions, record linkage, snapshot (panoramic), local external alarm output, IPC external alarm output, audio, buzzer, and log
Oynatma (SMD)	1. Search conditions: Search for image by channels, type (human, vehicle), and start/end time; 2. Functions: Supports recording playback and backing up search results of videos; 3. Database capacity: 100,000
SMD (Kamera)	All channels (128 targets/s)
Canlı İzleme (SMD)	Video overlay of human and vehicle detection rectangles
AcuPick Performansı (Kamera AI)	All channels (64 targets/s)
AcuPick Performansı (Kayıt Cihazı AI)	8 channels
Oynatma (İnsan Algılama)	1. Search condition: Search for images by channel, time and human body attributes; 2. Function: Fast add images in the human body panel to the list database; supports recording playback (10 seconds before/after the event), and exporting search results to Excel, video and image format
Canlı İzleme (İnsan Algılama)	1. Rule box and object detection : Configure rule box and object detection box; 2. Intelligent panel: Displays event type, time, and human body snapshot; 3. Statistics: calculates the number of snapshot taken in a 24 hour period in Peopletotal. It also displays up to 50 snapshot records, supports recording playback (10 seconds before/after the event) and exporting; fast add to database; 4. Panel filtering: Filter by panel type and attribute
İnsan Algılama	1. AI by Camera: Yes; 2. AI by Recorder: Yes; Supports setting detection region and object size; record linkage, log, and snapshot cannot be configured by default
İnsan Öznitelikleri	9 human body attributes

Video 9 satır

Kanal Sayısı	32 channels
Çözünürlük	32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 720p; 960p; D1; CIF
Kod Çözme Kapasitesi	AI disabled: 2-channel 32 MP@30 fps; 3-channel 24 MP@30 fps; 5-channel 16 MP@30 fps; 6-channel 12 MP@30 fps; 10-channel 8 MP@30 fps; 13-channel 6 MP@30 fps; 16-channel 5 MP@30 fps; 20-channel 4 MP@30 fps; 32-channel 1080p@30 fps; AI enabled: 1-channel 32 MP@30 fps; 1-channel 24 MP@30 fps; 2-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 4-channel 8 MP@30 fps; 5-channel 6 MP@30 fps; 6-channel 5 MP@30 fps; 8-channel 4 MP@30 fps; 16-channel 1080p@30 fps; 32-channel 720p@30 fps
Video Çıkışı	2 VGA, 4 HDMI; VGA: 1920 × 1080, 1280 × 1024, 1280 × 720; HDMI1&2: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; HDMI3: 7680 × 4320, 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; HDMI4: 1920 × 1080, 1280 × 1024, 1280 × 720; Simultaneous mode (simultaneously outputs video sources for all the HDMI1-4 and VGA1-2 ports); Max. resolution of VGA1 and VGA2 is 1080p; max. resolution of HDMI1 and HDMI2 is 4K; max. resolution of HDMI3 is 8K; max. resolution of HDMI4 is 1080p; Heterogeneous mode
Çoklu Ekran Gösterimi	Main Screen: 1/4/8/9/16/25/36; Sub Screen: 1/4/8/9/16/25/36
Üçüncü Taraf Kamera Desteği	ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha
Video Sıkıştırma	Smart H.265+; H.265; Smart H.264+; H.264; MPEG4; MJPEG
Çoklu Kanal Oynatma	Up to 16 channels
Oynatma Modu	1. Play, pause, stop, fast forward, fast backward, rewind, play by frame; 2. Full screen, backup (cut/file), partially enlarge, audio on/off

Ağ 7 satır

Ağ Bant Genişliği	AI disabled: 1280 Mbps incoming, 1280 Mbps recording and 1024 Mbps outgoing; AI enabled: 640 Mbps incoming, 640 Mbps recording and 512 Mbps outgoing
Ağ Protokolleri	HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; SNMP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; PPPoE; FTP; DDNS; Alarm Server; IP Search (Supports IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration; iSCSI
Mobil Erişim	iOS; Android
Uyumluluk	ONVIF 21.12 (Profile T; Profile S; Profile G); CGI; SDK
Tarayıcı	Chrome; Firefox; IE9 or later
Ağ Modu	Multi-address mode; Load balance; Fault-tolerance
Ağ Portu	2 (10/100/1000/2500 Mbps Ethernet port, RJ-45)

Ses 1 satır

Ses Sıkıştırma	G.711a; G.711u; PCM; G726

Depolama 7 satır

Kayıt Modu	Manual; alarm; motion detection; scheduled
Yedekleme Yöntemi	USB device and network
Disk Grubu	Var
RAID	RAID 0/1/5/6/10
Sıcak Değiştirme (Hot Swap)	Var
Disk Arayüzü	8 SATA ports. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature
eSATA	1

Alarm 4 satır

Genel Alarm	Motion detection; video tampering; video loss; scene changing, PIR alarm, IPC external alarm
Anormallik Alarmı	Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; abnormal behavior of fan
Akıllı Alarm	Face detection; face recognition; perimeter protection (intrusion and tripwire); SMD Plus alarms; ANPR; people counting; stereo analysis; crowd distribution; heat map
Alarm Bağlantısı	Record; snapshot; IPC external alarm output; buzzer; log, preset; email

Arayüz 9 satır

Ses Girişi	1-channel RCA
Ses Çıkışı	2-channel RCA
Alarm Girişi	16 channels
Alarm Çıkışı	8 channels
RS-232	1
RS-485	1
USB	4 (2 front USB 2.0 ports, 2 rear USB 3.0 ports)
HDMI	4
VGA	2

Güç 1 satır

Güç Kaynağı	100–240 VAC, 50/60 Hz

Yapı 5 satır

Net Ağırlık	6.40 kg (14.11 lb) (without HDD)
Brüt Ağırlık	10.35 kg (22.82 lb) (without HDD)
Ürün Boyutları	444.0 mm × 456.6 mm × 95.0 mm (17.48" × 17.98" × 3.74") (W × D × H)
Ambalaj Boyutları	570.0 mm × 570.0 mm × 226.0 mm (22.44" × 22.44" × 8.90") (W × D × H)
Montaj	Rack mount or desktop mount

Çalışma Ortamı 5 satır

Çalışma Sıcaklığı	–10 °C to +55 °C (+14 °F to +131 °F)
Depolama Sıcaklığı	0 °C to +40 °C (+32 °F to +104 °F)
Çalışma Nemi	10%–93% (RH), non-condensing
Depolama Nemi	30%–85% (RH), non-condensing
Çalışma Rakımı	3,000 m (9,842.52 ft)

Kayıt 1 satır

Sata HDD Girişi	8x Sata

Genel bakış

Dahua NVR608H-32-XI kullanım alanları ve özellikleri.

Nerelerde kullanılır?

IP kamera sistemlerinin merkezidir; görüntüleri disk üzerinde saklar, mobil uygulama ve bilgisayar üzerinden canlı izleme ile kayıt izleme imkânı verir.

Kurulum ve uyumluluk

Sürekli kayıt için gözetim diski (Seagate SkyHawk veya WD Purple) önerilir. Cep telefonundan izleme DMSS uygulamasıyla yapılır.

Tüm özellikler

32 Kanal 32MP' e Kadar IP Kamera Desteği
AI Devre Dışıyken Gelen 1.280Mbps Giden 1.024 Bant Genişliği
AI Devredeyken Gelen 640Mbps Giden 512Mbps
32 Kanal AcuPick Desteği
H-265 Sıkıştırma Desteği
8 Adet 16TB HDD Desteği
1x e-Sata Desteği
2x 10/100/1.000/2.5GB RJ45 Ethernet Portu
4x HDMI + 2x VGA Monitör Çıkışı
P2P ile Uzaktan İzleme Desteği
Çift Yönlü Sesli Kameralar ile Uyumlu
İnsan ve Araç Ayrımı Yapan SMD+ Kamera ile Uyumlu
Yüz Algılama
Isı Haritası ve Kişi Sayma Kameraları ile Uyumlu
Raid Desteği
8 Kanalda yüz algılama ve tanıma
40 adede kadar yüz veritabanı ve 300.000 yüz görüntüsü desteği
220V AC Çalışma Gerilimi

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

DatasheetPDF · NVR608H-32-XI

Sık sorulanlar

NVR608H-32-XI hakkında kısa yanıtlar.

NVR608H-32-XI kaç kamera destekler?

NVR608H-32-XI 32 kanallıdır; 32 kameraya kadar kayıt yapabilir.

NVR608H-32-XI kaç disk takılır?

NVR608H-32-XI üzerinde 8 adet SATA disk yuvası bulunur. 7/24 kayıt için gözetim diskleri önerilir.

NVR608H-32-XI için hangi disk önerilir?

Sürekli yazma yüküne göre tasarlanmış Seagate SkyHawk veya WD Purple gözetim diskleri önerilir. Kapasite; kamera sayısı, çözünürlük ve istenen kayıt gün sayısına göre hesaplanmalıdır.

NVR608H-32-XI cep telefonundan nasıl izlenir?

Dahua cihazları DMSS mobil uygulamasıyla izlenir. Cihaz uygulamaya eklendikten sonra canlı izleme, kayıt izleme ve bildirim alma yapılabilir.

NVR608H-32-XI fiyatı ne kadar?

NVR608H-32-XI için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
