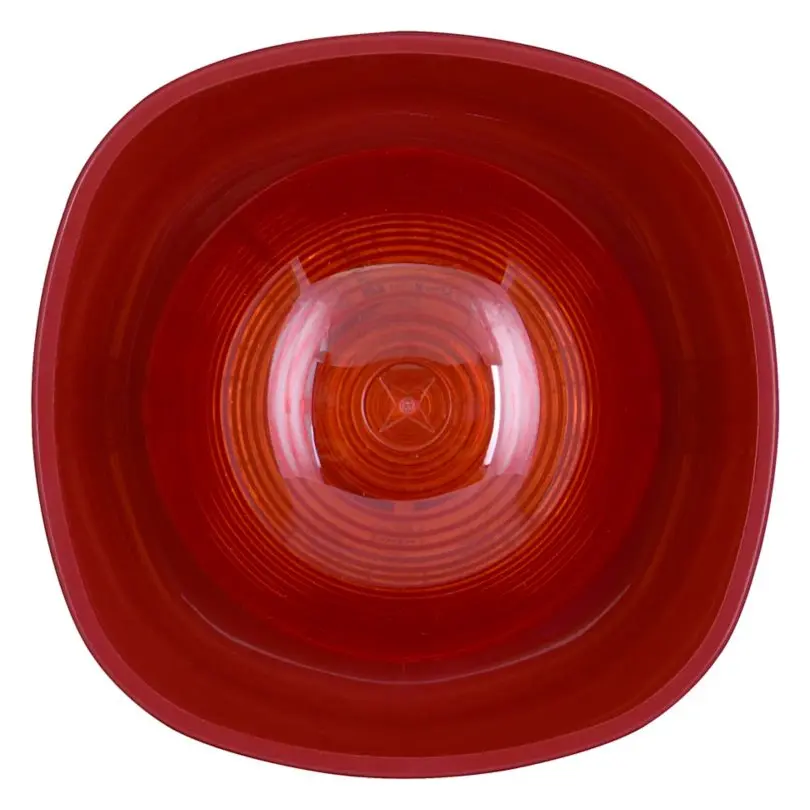

Eaton 680001FULL-0001 Symphoni Kırmızı Lens Kırmızı Flaş Kırmızı Gövde Yangın Sireni / Flaşör

Eaton Fulleon 680001FULL-0001, Symphoni Fire alarm sounder ailesine ait yangın sireni / flaşör modelidir. Öne çıkanlar: IP21 koruma sınıfı.

Eaton, Alarms & signalling devices, Fulleon, Symphoni Voice Plus sounder beacon, Red lens, Red flash, Red housing, Set to tone 7, Voice message set VP001ASY, Set to Tone 7

The Fulleon Symphoni is a highly adaptable conventional fire alarm sounder. Cost-effective and supremely efficient due to its innovative piezoelectric electric charge technology, it delivers current consumption as low as 5mA.Used widely by OEM platforms and global manufacturers for this very reason, the fire certified sounder is available in a number of options dependent on the environment, application and country. The range is based around three types, standard, high output and Voice +, all available with the choice of red or white and standard or weatherproof IP66 housing. The standard version comes with UK alarm tones and an “E” version that has tones including German Din and Netherlands Slow Whoop. While the high output variant produces up to 120dB(A) for open areas and situations where usual background noise is high. The Symphoni Voice + range comes preloaded with 3 commonly used messages and is easily customised from Eaton’s large bank of voice messages to store up to 16. French versions of all three are available in respective Class B and Class C categories.

Safer, smarter evacuation of people with pre-recorded voice messages

Allowing phased fire evacuation, the Voice + is capable of storing up to 16 discreet EN54 approved voice messages, in a variety of languages. With its ability to be project customised, and available in VdS German and NF French Class B variants, the Symphoni Voice + versatility is unmatched.

'Loud and clear' wide area fire notification

A high output fire certified Symphoni, capable of achieving 120dB, enables alerting across large open spaces, minimising the use of multiple sounders, or areas of high ambient noise, such as metal fabrication and processing plants. It is also available as a Class C French NF approved variant allowing complete local compliance.

Tough. Resistant. Dependable.

Rated to Ingress Protection of IP66, the housing on the outdoor Symphoni enables it to be located in areas subject to high levels of dust or strong jets of water. This when combined with its wide operating temperature of -25° to +70° suits a variety of outdoor conditions and high intensity indoor applications such as food processing wash down areas, sediment processing and manufacturing plants.

Products that work in harmony to complete your required fire system

The Symphoni fire sounder can also be used with the innovative LX VAD to create an EN54 certified sounder and visual alarm device. View our EN54-23 Symphoni LX

A history built on innovation and engineering excellence

From its inception in 1980, Fulleon’s core competency has been the development of cost effective fire notification devices, providing maximum output with minimum power consumption. From the original Roshni sounder, with its rocking armature transducer, to the piezoelectric Symphoni sounder, and the unique LED LX beacon, we have developed a solid reputation for innovative design and engineering excellence.

One Eaton – the world’s leading manufacturer of fire notification devices

*(IHS Markit, 2018).

Nerelerde kullanılır?

Yangın anında manuel ihbar ve binadaki kişilerin sesli/ışıklı uyarılması için kaçış yolları ve kat koridorlarında kullanılır.

Kurulum ve uyumluluk

Yangın algılama sistemleri; Binaların Yangından Korunması Hakkında Yönetmelik ve TS EN 54 standardına uygun olarak projelendirilmeli ve yetkili ekiplerce devreye alınmalıdır.

Tüm özellikler

• Symphoni Voice Plus sounder beacon
• Safer, smarter evacuation of people with pre-recorded voice messages
• 'Loud and clear' wide area fire notification
• Tough. Resistant. Dependable.
• Products that work in harmony to complete your required fire system
• A history built on innovation and engineering excellence
• One Eaton – the world’s leading manufacturer of fire notification devices
• Kırmızı Lens
• Kırmızı Flaş
• Kırmızı Gövde
