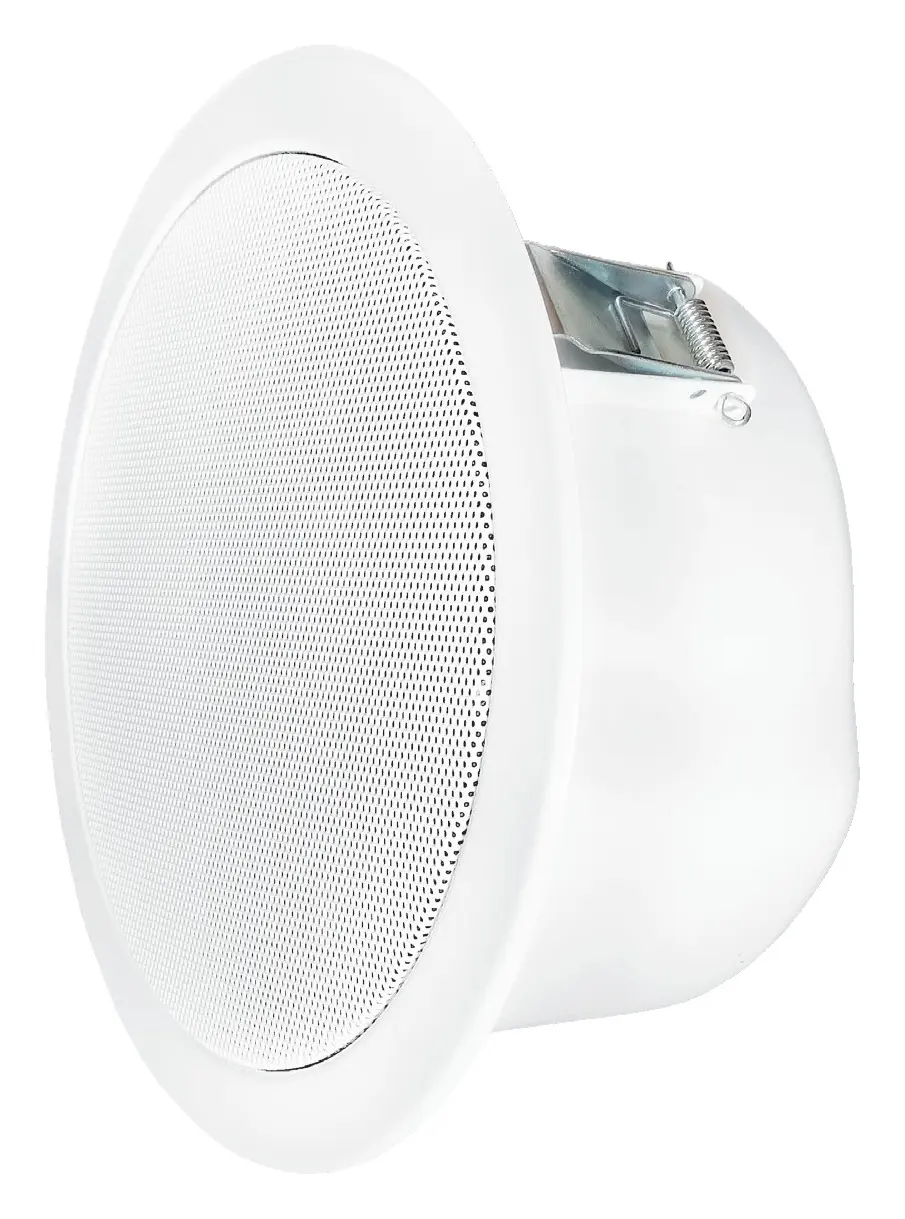

Edwards EST-S186 Acil Anons Hoparlörü
Model
EST-S186Edwards EST-S186 acil anons hoparlörü: Ceiling-mounted Prompt Installation Loudspeakers, Compliance with EN 54-24, Certificate of Conformity: 1438-CPR-0671, Compliance with BS5839-8 standard (Thermal protection), The highest level of verbal communication understanding.
Fiyat ve stok bilgisi alınAynı gün dönüş
Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.
Distribütör garantili
81 ile sevkiyat
Teknik destek
- Ceiling-mounted Prompt Installation Loudspeakers
- Compliance with EN 54-24
- Certificate of Conformity: 1438-CPR-0671
- Compliance with BS5839-8 standard (Thermal protection)
- The highest level of verbal communication understanding
- Elegant looks
- 6 W transformer allowing a precise selection of loudspeaker output power
- 100% protection of line from breaks and short-circuits
Teknik özellikler
Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
Elektriksel 11 satır
| Güç Tüketimi | 6 W |
|---|---|
| Tappings 100 V line according to EN 54-24, W | 6 / 3 / 1.5 / 0.75 |
| Tappings 70 V line, W | 3 / 1.5 / 0.75 / 0.375 |
| Transformer impedance, Ω 100 V | 1667 / 3333 / 6667 / 13333 |
| Driver impedance | 8 Ω |

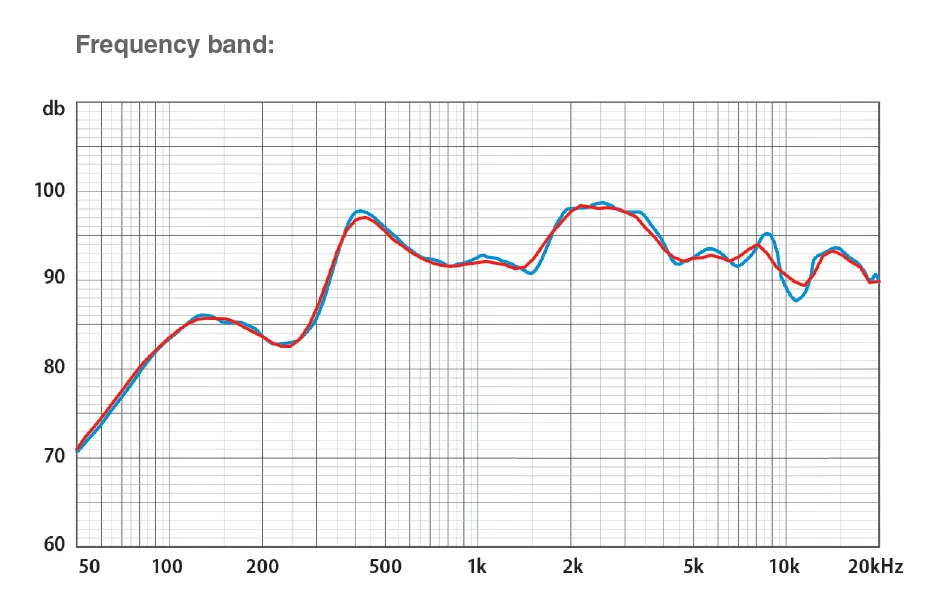

| Effective frequency range | 120 to 20000 Hz |
| Sensitivity @ 4 m, 1 W | 79 dB |
| SPL @ 4 m, Rated power | 86 dB |
| SPL @ 1 m, 1 W, Test signal bandwidth 300 Hz – 6 kHz | 91 dB |
| SPL @ 1 m, Rated power, Test signal bandwidth 300 Hz – 6 kHz | 99 dB |
| Dispersion at 500 Hz / 1 kHz / 2 kHz / 4 kHz, [°] | 180 / 180 / 150 / 90 |
Fiziksel 6 satır
| Boyutlar | 175 x 75 mm (Ø x H); Ø 150 mm (Cut-out) |
|---|---|
| Net Ağırlık | 0.66 kg |
| Renk | White (RAL 9003) |
| Montaj Tipi | Spring clamp |
| Montaj Konumu | Ceiling |
| Gövde Malzemesi | ABS |
Çevresel 3 satır
| Çalışma Sıcaklığı | -10 to +55°C |
|---|---|
| IP Koruma Sınıfı | IP32C |
| Environmental type / IP Rating according to EN 54-24 | A / IP21C |
Sertifikalar ve Uyumluluk 1 satır
| Standartlar | EN54-24 |
|---|
Genel bakış
Edwards EST-S186 kullanım alanları ve özellikleri.
Edwards EST-S186 (PAVA EST Ceiling speaker ailesi), acil anons hoparlörü ürünüdür.
Overview
Ceiling mounted fire alarm EST-S186 loudspeaker is designed for operations at high acoustic levels. Actual wide band high efficiency ensures the best understanding of verbal messages. Its parameters have been carefully selected to comply with suspended ceiling applications.
Thanks to the most advanced technologies EST-S186 loudspeaker combines excellent acoustic parameters and high aesthetics. It is distinguished by easy and quick installation.
Quality standards and audio characteristics have been confirmed through tests and trials in an anechoic chamber, resistance and integrity testing equipment, as well as chambers for resistance to weather and air humidity testing.
The EST-S186 loudspeaker ensure a balanced sound which is extremely important in emission of highly understandable speech. EST-S186 is equipped with a standardized fire dome made of ABS and supplied with two cable penetrations with rubber glands.
The individual power rating is selected by means of connection with applicable transformer branch.
EST-S186 loudspeaker equipped with fire dome, ceramic block and thermal protections entirely comply with EN 54-24 Standard. In order to ensure 100% consistency with the highest quality standards we test our loudspeakers following the most meticulous procedures that warrant high parameters of sound emission, safety, and reliability.
In spite of the fact our loudspeaker is designed for the highest reliability under fire conditions, their acoustic parameters and attractive low prices make them successful in any and all public address systems.
Öne Çıkan Özellikler
- Compliance with EN 54-24
- Certificate of Conformity: 1438-CPR-0671
- Compliance with BS5839-8 standard (Thermal protection)
- The highest level of verbal communication understanding
- Elegant looks
- 6 W transformer allowing a precise selection of loudspeaker output power
- 100% protection of line from breaks and short-circuits
Nerelerde kullanılır?
Yangın ve acil durumlarda yangın algılama sistemiyle entegre çalışarak kayıtlı tahliye mesajlarını bölge bazında otomatik olarak yayınlar.
