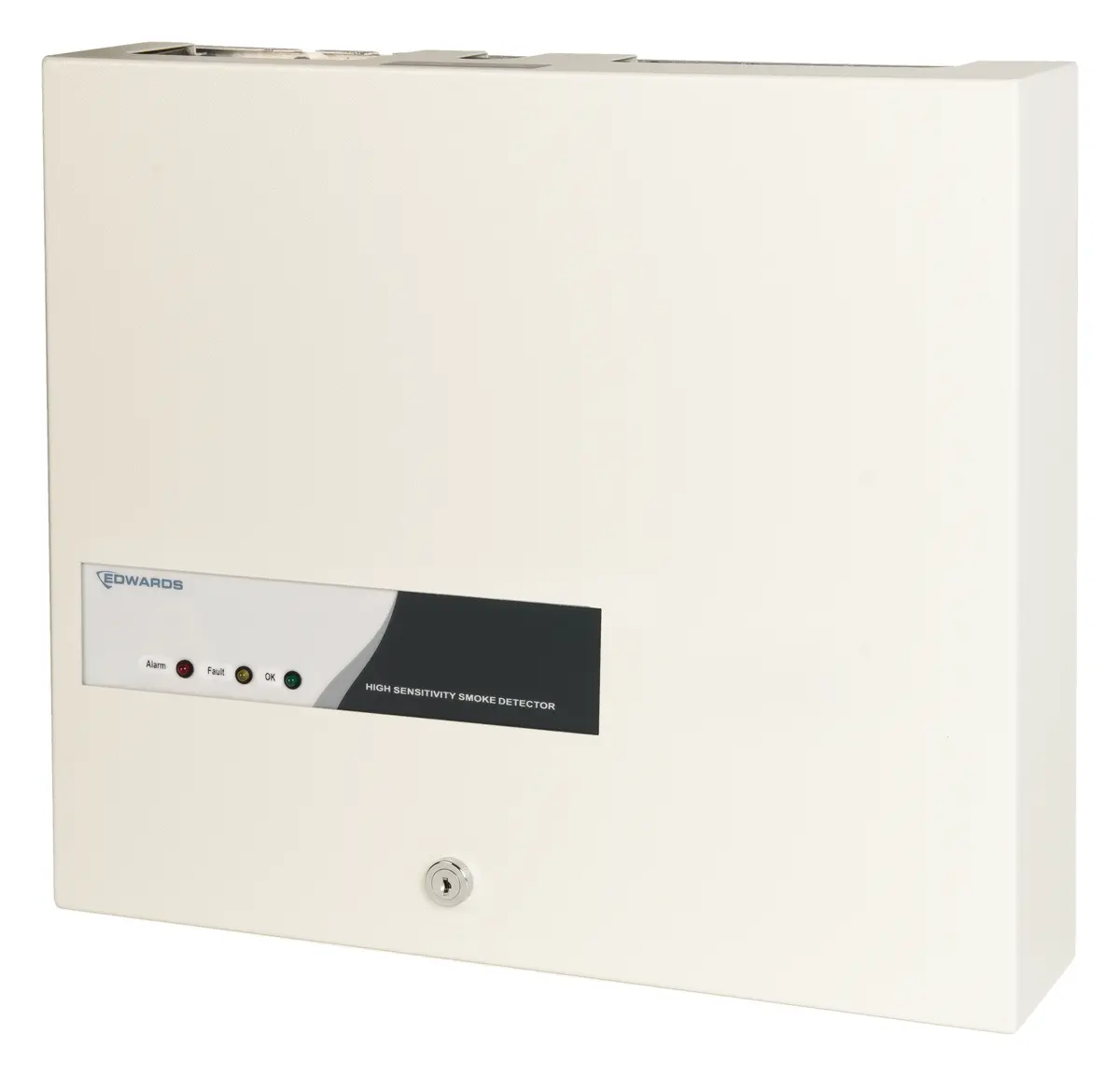

Edwards FHSD8210-99 Hava Örneklemeli Duman Dedektörü

Edwards FHSD8210-99 (LaserSense HSSD2 ailesi), hava örneklemeli duman dedektörü ürünüdür. EN54-20 standart/onaylarına uygundur.

Description

LaserSense HSSD2 is designed to provide very high sensitivity smoke detection, ensuring the very earliest warning of incipient fire with minimum rate of nuisance alarms.

ClassiFire Perceptive Artificial Intelligence ensures that the detector operates at optimum sensitivity for the protected environment, without the need for complex setup. This means the product will configure itself to provide high sensitivity in a computer room or reduced sensitivity in a smoky area.

Upgradable volt-free Fire and Fault relay outputs are available for remote monitoring by local fire detection or BMS systems.

Typical Applications

• Data storage units • Prison cells • Plant rooms • Air conditioning units • Equipment racks • Computer rooms • Air duct protection • Heritage property protection • Critical equipment • Anti-smoking enforcement • Motor rooms

Options Available

• Addressable Protocol Interface Cards APIC™ available for Ziton protocol • Command Module available for central monitoring and display • SenseNet compatible - up to 127 detectors per loop • Remote Display units available • Suitable for MatrixScan, a patented software system which provides virtual addressable location detection - e.g. 10 physical detectors would provide up to 45 unique addressable locations.

Öne Çıkan Özellikler

• High sensitivity provided by laser based forward light scatter for reliable early warning
• Combined sampling pipe up to 200m in length (still air)
• Unique ClassiFire® Perceptive Artificial Intelligence system that dynamically adjusts the detector’s operating parameters, allowing for day to day changes in the protected environment and dust separation system contamination
• Unwanted alarms from dust are avoided using patented Dual Technology LDD 3D3 Laser Dust Discrimination and elimination system
• RS485 communications built in as standard for networking and remote communications

Nerelerde kullanılır?

Konut, ofis, otel ve endüstriyel alanlarda yangının ilk belirtilerini algılamak için tavana monte edilir.

Kurulum ve uyumluluk

Yangın algılama sistemleri; Binaların Yangından Korunması Hakkında Yönetmelik ve TS EN 54 standardına uygun olarak projelendirilmeli ve yetkili ekiplerce devreye alınmalıdır.
