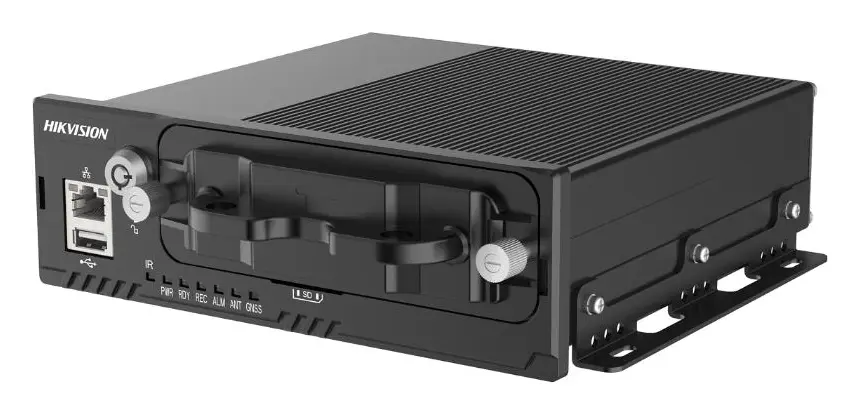

Hikvision AE-MD5043 4 Kanal Mobil DVR Kayıt Cihazı

ModelAE-MD5043

Hikvision AE-MD5043, 4 kanala kadar kamera bağlanabilen bir mobil DVR kayıt cihazıdır. 2 MP çözünürlüğe kadar kamera kaydını destekler.

Kanal sayısı: 4 kanal
PoE: PoE yok

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Access of 4 HD TVI cameras with up to 1080P resolution.
Pluggable 2 × 2.5 inch HDD/SSD, SSD up to 4 TB,HDD up to 2TB
User-friendly GUI providing easy and flexible operations.
Pluggable 4G module and Wi-Fi module providing flexible data transmission solutions.
Built-in GPS module precisely positioning the vehicle via the satellite and recording the location information in the video stream.
Information collection interfaces collecting driving information such as left/right turn, braking, reversing, etc.
Specialized aviation connectors ensuring signal stability.
Shutdown delay (0 h to 6 h) and 24-hour scheduled startup/shutdown.

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Video/Ses Girişi 2 satır

Analog Camera	4-ch HIK wiring sequence analog camera, Max. 1080P
Çift Yönlü Ses	1, integrated in EXT.DEV interface

Video/Ses Çıkışı 2 satır

Ses Çıkışı	1
Video Çıkışı	Main output: 1, integrated in EXT.DEV interface

Kodlama / Kod Çözme Parametreleri 7 satır

Video Sıkıştırma	H.265/H.264
Ses Sıkıştırma	G.711a/G.711u/G.722.1/G.726
Ses Bit Hızı	16 Kbps
Akış Tipi	Video, video & audio
Çift Akış	Destekleniyor
Kare Hızı	PAL: 1 to 25 fps; NTSC: 1 to 30 fps
Kodlama Çözünürlüğü	Main stream: 1080P/720P/WD1/4CIF; Sub-stream: 720P/WD1/4CIF/2CIF/CIF

Kablosuz Ağ 2 satır

Wi-Fi	WI2.4G model: 1 × 2.4 G Wi-Fi antenna; WI5.8G model: 2 × 5.8 G Wi-Fi antenna
3G/4G Dialing	1 × 4G card slot, 1 ×FAKRA antenna; 5G module(optional); Warning: Industrial SIM cards should be used for the devices. We will not be responsible for any issue caused by using general SIM cards.

Depolama 2 satır

SD Card Storage	1 × SD card, up to 512 GB（not for baseline. Note the SD card capacity when ordering）
HDD/SDD	2 × 2.5 inch HDD/SSD, SSD up to 4 TB, HDD up to 2TB; HDD/SSD data can be exported locally via this converter (optional); Hard Disk Case with heating function (optional)

Yardımcı Arayüz 6 satır

Ağ Arayüzü	Front panel :1 ×10M/100M RJ45; Rear panel: 1 × 10M/100M 6-pin aviation connector; Note: The front and rear network ports are at different network segments and the 6-pin aviation network cable female head to RJ45 is optional.
Alarm Girişi	4 high/low level signal inputs, 1 pulse signal input, 1 BUTTON input
Alarm Çıkışı	2 relay signal outputs
Sensör Girişi	4 high/low level signal inputs
Seri Port	2 × RS-232(harness is optional), 1 × RS-422 (integrated in EXT.DEV interface)
USB Arayüzü	Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0 (5-pin aviation connector)

Konumlandırma 1 satır

GNSS (Global Navigation Satellite System)	GPS (Global Positioning System) & GLONASS (Global Navigation Satellite System), 1 ×FAKRA antenna

Sensör 1 satır

G-Sensor	Built-in

Akıllı Fonksiyonlar 4 satır

Advanced Driving Assistance System (ADAS)	Supports detection and alerts for FCW/LDW/SLW/HMW/PCW/TSR
Driving Status Monitoring (DSM)	Supports detection and alerts for distraction/fatigue/calling/smoking/unfastened seat belt/yawning/absence from post/IR-blocking sunglasses/occlusion, with switchable A-pillar algorithm and formal attire algorithm
Blind Spot Detection (Right)	Supports right blind spot detection and alerts
driver identification	Supports driver modeling, driver detection & comparison, driver change alerts, abnormal identity detection & reporting, and attendance tracking

Genel 7 satır

Güç Kaynağı	+9 to +36 VDC
Ürün Boyutları	206 mm × 225.4 mm × 60.1 mm (8.1" × 8.87" × 2.37")
Güç Tüketimi	Standby: ≤ 0.5 W; Full load: ≤ 45 W; Note: Without peripheral and storage media ≤ 20 W
Çalışma Sıcaklığı	-25 °C to +70 °C (-13 °F to +158°F)
Çalışma Nemi	10% to 95% (non-condensing)
Kullanım Yöntemi	Mouse, IR remote control, Web control, and touchscreen
Weight (Without Storage Media)	1.7 kg (3.75 lb.)

Onaylar 4 satır

EMC	FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 50498: 2010); CE-EMC (EN 55032: 2015+A1:2020, EN 50130-4: 2011+A1:2014; EN IEC 61000-3-2: 2019+A1:2021, EN 61000-3-3: 2013+A1:2019)
Güvenlik	CB (IEC 62368-1:2018); CE-LVD (EN IEC 62368-1:2020 + A11:2020)
Çevre	CE-RoHS (2011/65/EU and amendment 2015/863/EU)
Otomotiv ve Demiryolu	EN50155(EN 50155:2017 clause 13, EN 50121-3-2:2016+A1:2019, EN50153:2014+A1:2017+A2:2020; BS EN ISO:13732-1:2008;EN61373:2010); EN45545 (EN 45545-2:2020 hl3); E-MARK (ECE R10)

Genel bakış

Hikvision AE-MD5043 kullanım alanları ve özellikleri.

Hikvision AE-MD5043, 4 kanal kayıt sunan bir Mobil DVR Kayıt Cihazı modelidir.

4-ch , H.264/H.265, 2xHDD/SSD Mobile DVR

Access of 4 HD TVI cameras with up to 1080P resolution.
Pluggable 2 × 2.5 inch HDD/SSD, SSD up to 4 TB,HDD up to 2TB
User-friendly GUI providing easy and flexible operations.
Pluggable 4G module and Wi-Fi module providing flexible data transmission solutions.
Built-in GPS module precisely positioning the vehicle via the satellite and recording the location information in the video stream.
Information collection interfaces collecting driving information such as left/right turn, braking, reversing, etc.
Specialized aviation connectors ensuring signal stability.
Shutdown delay (0 h to 6 h) and 24-hour scheduled startup/shutdown.
Build-in super-capacitor prevents the mobile DVR from damage caused by sudden power outage.
Wide-range power input (+9 VDC to +36 VDC).
Power-off protection prevents key data loss.
Aluminum die-cast chassis with no fan design well adaptable to working environment.
Software-based firewall supported.
Support accessing via WEB browser.
Support Driving Status Monitoring and Adcanced Driving Asistance System.
Support recording backup on redundant HDD/SSDs.
Up to 3 AI features can be run at the same time，and the default combination is ADAS+DSM+DI

Kurulum ve uyumluluk

Sürekli kayıt için gözetim diski (Seagate SkyHawk veya WD Purple) önerilir. Cep telefonundan izleme Hik-Connect uygulamasıyla yapılır.

Tüm özellikler

Access of 4 HD TVI cameras with up to 1080P resolution.
Pluggable 2 × 2.5 inch HDD/SSD, SSD up to 4 TB,HDD up to 2TB
User-friendly GUI providing easy and flexible operations.
Pluggable 4G module and Wi-Fi module providing flexible data transmission solutions.
Built-in GPS module precisely positioning the vehicle via the satellite and recording the location information in the video stream.
Information collection interfaces collecting driving information such as left/right turn, braking, reversing, etc.
Specialized aviation connectors ensuring signal stability.
Shutdown delay (0 h to 6 h) and 24-hour scheduled startup/shutdown.
Build-in super-capacitor prevents the mobile DVR from damage caused by sudden power outage.
Wide-range power input (+9 VDC to +36 VDC).
Power-off protection prevents key data loss.
Aluminum die-cast chassis with no fan design well adaptable to working environment.
Software-based firewall supported.
Support accessing via WEB browser.
Support Driving Status Monitoring and Adcanced Driving Asistance System.
Support recording backup on redundant HDD/SSDs.
Up to 3 AI features can be run at the same time，and the default combination is ADAS+DSM+DI

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Hızlı Başlangıç KılavuzuPDF · AE-MD5043 Kullanım KılavuzuPDF · AE-MD5043 Firmware (V5.8.1_241121) - indirme sayfasıPDF · AE-MD5043

Sık sorulanlar

AE-MD5043 hakkında kısa yanıtlar.

AE-MD5043 kaç kamera destekler?

AE-MD5043 4 kanallıdır; 4 kameraya kadar kayıt yapabilir.

AE-MD5043 için hangi disk önerilir?

Sürekli yazma yüküne göre tasarlanmış Seagate SkyHawk veya WD Purple gözetim diskleri önerilir. Kapasite; kamera sayısı, çözünürlük ve istenen kayıt gün sayısına göre hesaplanmalıdır.

AE-MD5043 cep telefonundan nasıl izlenir?

Hikvision cihazları Hik-Connect mobil uygulamasıyla izlenir. Cihaz uygulamaya eklendikten sonra canlı izleme, kayıt izleme ve bildirim alma yapılabilir.

AE-MD5043 fiyatı ne kadar?

AE-MD5043 için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
