IP Box Kamera DeepinView

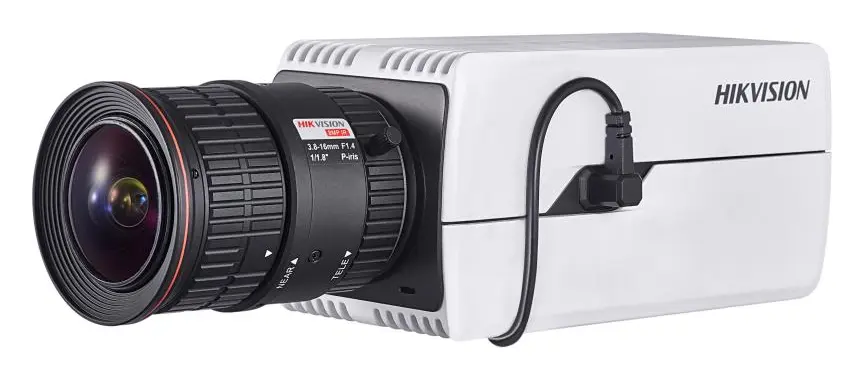

Hikvision DS-2CD7026G0-(AP) 2 MP DeepinView Varifocal IP Box Kamera

ModelDS-2CD7026G0-(AP)

Hikvision DS-2CD7026G0-(AP), 2 MP çözünürlüklü, 68 mm lensli bir IP box kameradır. DeepinView teknolojisiyle insan ve araç hareketlerini ayırt ederek yanlış alarmları azaltır. Dahili mikrofonuyla sesli kayıt yapabilir.

Sinyal tipi: IP
Çözünürlük: 2 MP
Gece görüşü: IR (siyah-beyaz)
Lens: 68 mm
Teknoloji: DeepinView, DarkFighter

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

High quality imaging with 4 MP resolution
Excellent low-light performance via DarkFighter technology
Clear imaging against strong back light due to LightFighter technology
Intelligent functions based on deep learning
Efficient H.265+ compression technology to save bandwidth and storage
Advanced streaming technology enables smooth live view and data self-correction in poor networks
5 streams and up to 5 custom streams to meet a wide variety of applications
6 behavior analyses, 3 exception detection, and face detection.

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Kamera 12 satır

Görüntü Sensörü	1/1.8ʺ Progressive Scan CMOS
Min. Aydınlatma	Color: 0.002 Lux @ (F1.2, AGC ON); B/W: 0.0002 Lux @ (F1.2, AGC ON)
Enstantane Hızı	1 s to 1/100,000 s
Yavaş Enstantane	Evet
Geniş Dinamik Aralık (WDR)	140 dB
Gece/Gündüz	IR cut filter
Sinyal Sistemi	PAL/NTSC
Minimum Aydınlatma	Color: 0.002 Lux @ (F1.2, AGC ON), B/W: 0.0002 Lux @ (F1.2, AGC ON)
Lens Montajı	CS
Auto Iris	DC drive(-P: support P-Iris)
Gündüz/Gece	IR Cut Filter
Odaklama	ABF(-A model)

Lens 2 satır

Lens Yuvası	CS mount
Otomatik İris	P-iris

Video 15 satır

Maks. Çözünürlük	1920 × 1080
Video Stream	5 defined streams and up to 5 custom stream
Ana Akış	50Hz: 50fps (1920 × 1080, 1280 × 960, 1280 × 720) ,60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
Alt Akış	50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
Üçüncü Akış	50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480)
Dördüncü Akış	50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Beşinci Akış	50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
Custom Stream	50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Video Sıkıştırma	Main stream: H.265+/H.265/H.264+/H.264 Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG
Video Bit Hızı	32 Kbps to 16 Mbps
H.264 Tipi	Baseline Profile/Main Profile/High Profile
H.265 Tipi	Main Profile
H.264+	Main stream support
H.265+	Main stream support
Ölçeklenebilir Video Kodlama (SVC)	H.264 and H.265 encoding

Ses 4 satır

Ortam Gürültüsü Filtreleme	Evet
Ses Örnekleme Hızı	8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Ses Sıkıştırma	G.711/G.722.1/G.726/MP2L2/PCM
Ses Bit Hızı	64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)

Ağ 11 satır

Eşzamanlı Canlı İzleme	Up to 20 channels
API	ONVIF (PROFILE S, PROFILE G), ISAPI, SDK
Protokoller	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
Akıcı Yayın (Smooth Streaming)	Evet
Kullanıcı/Host	Up to 32 users. 3 user levels: administrator, operator and user
Güvenlik	Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2
Ağ Depolama	microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS, SMB/CIFS), ANR , Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
İstemci	iVMS-4200, Hik-Connect, Hik-Central
Web Tarayıcı	Plug-in required live view: IE8+, Chrome 41.0-44, Mozilla Firefox30.0-51, Safari8.0-11 Plug-in free live view: Chrome 45+, Mozilla Firefox52+
Alarm Tetikleme	Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Sistem Uyumluluğu	ONVIF (PROFILE S, PROFILE G), ISAPI, SDK

Görüntü 8 satır

Gece/Gündüz Geçişi	Day/Night/Auto/Schedule/Triggered by Alarm In
Hedef Kırpma	Evet
Görüntü Bindirme	LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format
Görüntü İyileştirme	BLC, HLC, 3D DNR, Defog, EIS
Görüntü Ayarları	Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
Maks. Görüntü Çözünürlüğü	1920 x 1080
Kare Hızı	50Hz: 50fps (1920 × 1080, 1280 × 960, 1280 × 720); 60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
3D DNR	Support

Arayüz 9 satır

Ses	1 input (line in), 1 output (line out), 2-core terminal block, mono sound
Alarm	2 inputs, 2 outputs (max. 24 VDC/VAC, 1A max.)
Video Çıkışı	1Vp-p composite output (75 Ω/CVBS), only for adjustment
Dahili Depolama	Built-in microSD/SDHC/SDXC slot, up to 256 GB
Donanım Sıfırlama	Reset via reset button on camera body, web browser and client software
İletişim Arayüzü	1 RJ45 10M/100M/1000M Ethernet port ,1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Güç Çıkışı	12 VDC, max. 200 mA
Arayüz Tipi	Socket style interface
Reset Butonu	Yes

Olay 2 satır

Temel Olaylar	Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Akıllı Olaylar	Line crossing detection, up to 4 lines configurable , Intrusion detection, up to 4 regions configurable , Region entrance detection, up to 4 regions configurable , Region exiting detection, up to 4 regions configurable , Unattended baggage detection, up to 4 regions configurable , Object removal detection, up to 4 regions configurable , Face detection: detects faces and upload images , Scene change detection, defocus detection

Temel Olaylar

Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

Akıllı Olaylar

Line crossing detection, up to 4 lines configurable , Intrusion detection, up to 4 regions configurable , Region entrance detection, up to 4 regions configurable , Region exiting detection, up to 4 regions configurable , Unattended baggage detection, up to 4 regions configurable , Object removal detection, up to 4 regions configurable , Face detection: detects faces and upload images , Scene change detection, defocus detection

Derin Öğrenme Fonksiyonları 1 satır

Premier Protection	Line crossing, intrusion, region entrance, region exiting , Support alarm triggering by specified target types (human and vehicle) , Filtering out false alarm caused by target types such as leaf, light, animal, and flag, etc.

Genel 12 satır

Yazılım Sürümü	V5.5.90
Web İstemci Dili	32 languages , English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Genel Fonksiyonlar	Anti-flicker, 5 streams and up to 5 custom streams, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
Başlangıç ve Çalışma Koşulları	-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Güç Kaynağı	12 VDC is recommended, 10 to 48 VDC; reverse polarity protection; 24 VAC is recommended, 15 to 36 VAC; PoE (802.3af, class 3)
Güç Tüketimi ve Akım	With extra load: 12 VDC, 1 A, max. 12 W; 24 VAC, 0.9 A, max. 12 W; PoE (802.3af, 36 V to 57 V), 0.1 A to 0.3 A, class 3, 12 W , Without extra load: 12 VDC, 0.8 A, max. 9.6 W; 24 VAC, 0.7 A, max. 9.6 W; PoE (802.3af, 36 V to 57 V), 0.1 A to 0.3 A, class 3, 9.6 W
Kamera Boyutları	Camera: 142.6 × 69.8 × 68 mm (5.61″ × 2.75″ × 2.68″) , Package: 315 × 140 × 140 mm (12.4″ × 5.51″ × 5.51″)
Kamera Ağırlığı	-AP: approx. 730 g (1.61 lb.), 1020 g (2.25 lb.) with packageNon-AP: approx. 690 g (1.52 lb.), 975 g (2.15 lb.) with package
Operation Condition	-30 °C to 60 °C (-22 °F to 140 °F), -H: -40 °C to 60 °C (-40 °F to 140 °F); Humidity 95% or less (non-condensing)
Güç Tüketimi	12 VDC, 0.8A, 24 VAC, 0.4A, 50/60Hz, 8.5W; PoE (802.3af, 36 V to 57 V), 0.3 A to 0.2 A
Boyutlar	Camera: 142.6 × 69.8 × 68 mm (5.61ʺ × 2.75ʺ × 2.68ʺ); With package: 315 × 140 × 140 mm (12.4ʺ × 5.51ʺ × 5.51ʺ)
Ağırlık	-AP: approx. 750 g (1.65 lb.), 1050 g (2.31 lb.) with package; Non-AP: approx. 700 g (1.54 lb.), 1000 g (2.20 lb.) with package

Onaylar 3 satır

EMC	47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015
Güvenlik	UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015
Çevre	2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006

Özet 3 satır

Depolama	Var
Çözünürlük	2MP (1080P)
IR LED	Var

Sıkıştırma Standardı 1 satır

H.264 code profile	Baseline Profile/ Main Profile/High Profile

Intelligent 2 satır

Davranış Analizi	Line crossing, intrusion, region entrance, region exiting. Support alarm triggering by specified target types (human and vehicle).Filtering out mistaken alarm caused by target types such as leaf, light, animal, and flag,etc.
Face Capture	Face detection performance: up to 30 faces per frame; Detectable face position:͗ supports swing left and right from -65° to 65°, tilt up and down from -45° to 45

Akıllı Özellikler 9 satır

Davranış Analizi	Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal
Çizgi Geçiş Algılama	Cross a pre-defined virtual line
Alan İhlali Algılama	Enter and loiter in a pre-defined virtual region
Region Entrance	Enter a pre-defined virtual region from the outside place
Region Exiting	Exit from a pre-defined virtual region
Sahipsiz Bagaj	Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Nesne Kaldırma	Objects removed from the pre-defined region, such as the exhibits on display.
İstisna Algılama	Scene change detection, defocus detection
Statistics	Object Counting (Entrance and Exit object number is accounted and showed on screen in real time)

Genel bakış

Hikvision DS-2CD7026G0-(AP) kullanım alanları ve özellikleri.

Hikvision DS-2CD7026G0-(AP), 2 MP çözünürlük sunan bir IP Box Kamera modelidir. DeepinView serisi gelişmiş derin öğrenme analizleri sunar.

2 MP DeepinView Moto Varifocal Box Camera

High quality imaging with 4 MP resolution
Excellent low-light performance via DarkFighter technology
Clear imaging against strong back light due to LightFighter technology
Intelligent functions based on deep learning
Efficient H.265+ compression technology to save bandwidth and storage
Advanced streaming technology enables smooth live view and data self-correction in poor networks
5 streams and up to 5 custom streams to meet a wide variety of applications
6 behavior analyses, 3 exception detection, and face detection.

Kurulum ve uyumluluk

DS-2CD7026G0-(AP) PoE destekli bir NVR veya PoE switch üzerinden tek ağ kablosuyla beslenebilir; ONVIF desteği olan kayıt cihazlarıyla da çalışır. Uzaktan izleme için Hik-Connect mobil uygulaması kullanılır.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Hızlı Başlangıç KılavuzuPDF · DS-2CD7026G0-(AP) Firmware (V5.6.12_200729) - indirme sayfasıPDF · DS-2CD7026G0-(AP)

Sık sorulanlar

DS-2CD7026G0-(AP) hakkında kısa yanıtlar.

DS-2CD7026G0-(AP) hangi kayıt cihazıyla çalışır?

IP kamera olduğu için NVR kayıt cihazlarıyla çalışır. Tüm akıllı özellikler için Hikvision NVR, temel kayıt için ONVIF destekli NVR'lar kullanılabilir.

DS-2CD7026G0-(AP) kaç megapiksel?

DS-2CD7026G0-(AP) 2 MP çözünürlüğe sahiptir ve 68 mm lens kullanır.

DS-2CD7026G0-(AP) cep telefonundan nasıl izlenir?

Hikvision cihazları Hik-Connect mobil uygulamasıyla izlenir. Cihaz uygulamaya eklendikten sonra canlı izleme, kayıt izleme ve bildirim alma yapılabilir.

DS-2CD7026G0-(AP) fiyatı ne kadar?

DS-2CD7026G0-(AP) için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
