Hikvision

IP PTZ / Speed Dome Kamera DeepinView

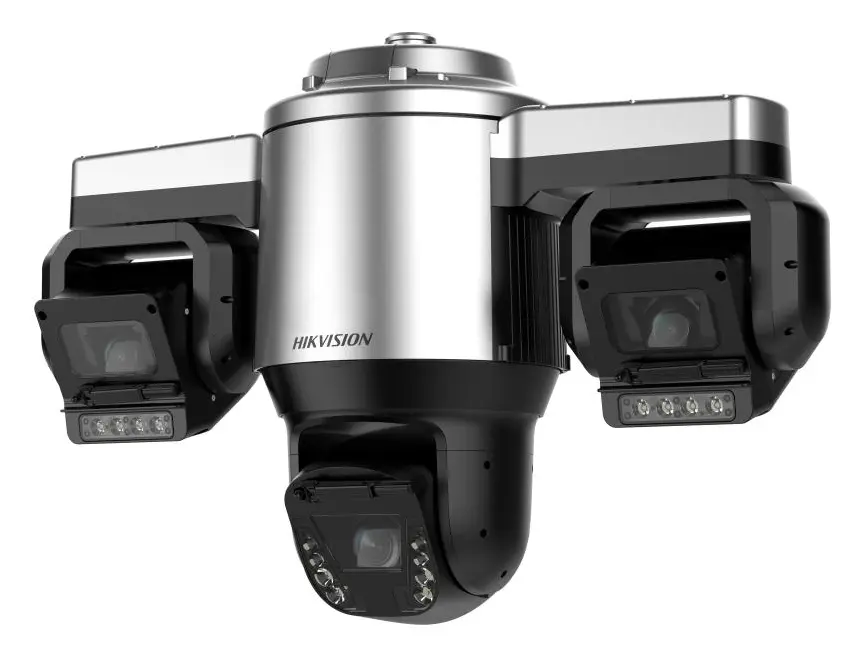

Hikvision DS-2SK8C440MXG1-LWF/28(25X25X) 4 MP 40x Zoom DeepinView DarkFighter PTZ Kamera

ModelDS-2SK8C440MXG1-LWF/28(25X25X)

Hikvision DS-2SK8C440MXG1-LWF/28(25X25X), 4 MP çözünürlüklü, 6–150 mm motorize lensli bir IP PTZ kameradır. IR LED'leri sayesinde gece 150 metreye kadar görüş sağlar. DeepinView teknolojisiyle insan ve araç hareketlerini ayırt ederek yanlış alarmları azaltır. IP67 su ve toz koruması ve IK10 darbe dayanımı ile dış ortam kurulumlarına uygundur.

Çözünürlük: 4 MP
Gece görüşü: IR (siyah-beyaz)
Koruma sınıfı: IP67
Lens: Motorize
Teknoloji: DeepinView, DarkFighter

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

With an integrated design, it features 3 built-in independent PTZ to accommodate multiple scenarios
High quality imaging with 4 MP resolution for all channels
Excellent low-light performance with DarkFighter 2.0 technology
PTZ channel 2/3 pan adjustable from 0° to 360°, tilt adjustable from -33° to 90°
PTZ channel 1 secures an expansive area with 40 × optical zoom and 16 × digital zoom
Expansive night view with up to 80 m white light distance and 350 m IR distance for PTZ channel 1, and 150 m IR distance for PTZ channel 2/3
Supports deep learning functions including ITS
Water and dust resistant (IP67) and vandal resistant (IK10) excluding glass window

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Kamera 6 satır

Görüntü Sensörü	[PTZ channel 2/3]1/1.8" Progressive Scan CMOS, [PTZ channel 1] 1/1.8" Progressive Scan CMOS
Min. Aydınlatma	[PTZ channel 2/3]Color: 0.0005 Lux @ (F1.5, AGC ON), B/W: 0.0001 Lux @ (F1.5, AGC ON), 0 Lux with light; [PTZ channel 1] Color: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 lux with IR
Enstantane Hızı	1/25 s to 1/30000 s
Yavaş Enstantane	Evet
Gece/Gündüz	[PTZ channel 2/3]Auto, Night, Schedule, Day, [PTZ channel 1] Auto, Night, Schedule, Day
Zoom	[PTZ channel 2/3]25 × optical, 16 × digital, [PTZ channel 1] 40 × optical, 16 × digital

Lens 4 satır

Görüş Açısı	[PTZ channel 2/3]; horizontal field of view: 58.8° to 3.1°, vertical field of view: 34.4° to 1.7°, diagonal field of view: 66° to 3.5°; [PTZ channel 1]; horizontal field of view: 59.1° to 2°, vertical field of view: 34.1° to 1.1°, diagonal field of view: 67.1° to 2.3°
Odak	Auto, semi-auto, manual, rapid focus
Odak Uzaklığı	[PTZ channel 2/3]6 to 150 mm, [PTZ channel 1] 6 to 240 mm
Diyafram	[PTZ channel 2/3]F1.5, [PTZ channel 1] F1.2

Aydınlatma 2 satır

Aydınlatma Mesafesi	[PTZ channel 2/3]IR up to 150 m; [PTZ channel 1] white light: up to 80 m; IR up to 350 m
Akıllı Aydınlatma	Evet

PTZ 14 satır

Hareket Aralığı (Pan)	[Base] 0° to 280° ,（Max.5000cycles）,[PTZ channel 2/3]0° to 360°, [PTZ channel 1] 0° to 360°
Hareket Aralığı (Tilt)	[PTZ channel 2/3]-33° to 90°, [PTZ channel 1] -20° to 90°
Pan Hızı	[PTZ channel 2/3]pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s,[PTZ channel 1] pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s
Tilt Hızı	[PTZ channel 2/3]tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s,[PTZ channel 1] tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
Orantılı Pan	Evet
Önayarlar	300
Devriye Tarama	8 patrols, up to 32 presets for each patrol
Desen Tarama	4 pattern scans, record time over 10 minutes for each scan
Güç Kesintisi Hafızası	Evet
Park Eylemi	Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
3D Konumlandırma	Evet
PTZ Durum Gösterimi	Evet
Önayar Dondurma	Evet
Zamanlanmış Görev	Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output

Video 8 satır

Ana Akış	[PTZ channel 2/3]50Hz:25fps (2688×1520,2560x1440,1920×1080,1280×960,1280x720) 60Hz:30fps （2688x1520, 2560x1440,1920x1080,1280x960,1280x720); [PTZ channel 1] 50Hz:25fps (2688×1520,2560x1440,1920×1080,1280×960,1280x720) 60Hz:30fps （2688x1520, 2560x1440,1920x1080,1280x960,1280x720)
Alt Akış	[PTZ channel 1] 50 Hz: 25 fps (704x576,640x480,352x288), 60 Hz: 30 fps (704x480,640x480,352x240),[PTZ channel 2/3]50 Hz: 25 fps (1200 × 536、960x432), 60 Hz: 30 fps (1200 × 536、960x432)
Üçüncü Akış	[PTZ channel 1] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288),[PTZ channel 2/3]No
Video Sıkıştırma	Main stream: H.265+/H.265/H.264+/H.264; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264/MJPEG
Video Bit Hızı	32 Kbps to 16 Mbps
H.264 Tipi	Baseline profile, Main profile, High profile
H.265 Tipi	Main profile
Ölçeklenebilir Video Kodlama (SVC)	H.264 and H.265 encoding

Ses 2 satır

Ses Sıkıştırma	G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC, MP3
Ses Örnekleme Hızı	8 kHz,16 kHz,32 kHz,48 kHz

Ağ 8 satır

API	ISAPI, SDK, ISUP
Ağ Depolama	NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Protokoller	RTP, IGMP, IPv4, UDP, SFTP, RTCP, WebSocket, SSL/TLS, ICMP, HTTPS, QoS, HTTP, SMTP, SNMP, RTSP, NTP, FTP, DDNS, TCP/IP, DNS,802.1X, IPv6, DHCP, PPPoE, UPnP, WebSockets
Eşzamanlı Canlı İzleme	Up to 20 channels
Kullanıcı/Host	Up to 32 users. 3 user levels: administrator, operator, and user
Güvenlik	Password protection, complicated password, HTTPS encryption, IP address filter,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, host authentication (MAC address), TPM 2.0 (FIPS 140-2 level 2)
İstemci	iVMS-4200, HikCentral Pro, Hik-Connect
Web Tarayıcı	Plug-in required live view: IE8+; Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+; Local service: Chrome 41.0+, Firefox 30.0+

Görüntü 11 satır

Geniş Dinamik Aralık (WDR)	120 dB
Gece/Gündüz Geçişi	Day, night, auto, schedule
Görüntü İyileştirme	HLC,3D DNR
Mahremiyet Maskesi	[PTZ channel 2/3]8 programmable polygon privacy masks, [PTZ channel 1] 24 programmable polygon privacy masks; mask color or mosaic configurable
Sis Giderme	Optical defog
Görüntü Sabitleme	EIS (Built-in gyroscope to improve EIS performance)
Bölgesel Pozlama	Evet
Bölgesel Odak	[PTZ channel 2/3]No, [PTZ channel 1] Yes
Görüntü Ayarları	Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Görüntü Parametresi Geçişi	Evet
S/N Oranı	≥ 52 dB

Ek Algılama 3 satır

Uydu Konumlandırma	Hayır
Jiroskop	Evet
Pusula	Hayır

Arayüz 7 satır

Fiber Optik	1 FC interface, built-in fiber module, 1000M, TX1310/RX1550 nm wavelength, single module fiber, up to 20 km transmission distance
Ethernet Arayüzü	1 RJ45 1000M self-adaptive Ethernet port
Dahili Depolama	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Alarm	7 input(s), 2 output(s)
Ses	1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
RS-485	1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Sıfırlama	Evet

Büyük Modeller (AI) 1 satır

Akıllı Ulaşım Sistemi	Road incident detection: Support road incident detection for highways and elevated roads: fallen object detection, pedestrian detection

Olay 2 satır

Temel Olaylar	[PTZ channel 1 & PTZ channel 2/3] alarm input and output, exception,[PTZ channel 1] motion detection, video tampering alarm
Bağlantı (Linkage)	Upload to FTP/NAS/memory card, send email, trigger alarm output, trigger recording, audible warning, notify surveillance center, and PTZ actions (such as preset)

Derin Öğrenme Fonksiyonları 5 satır

Çevre Koruma	Line crossing detection, intrusion detection, region entrance detection, region exiting detection, loitering detection, people gathering detection, fast moving detection, parking detectionSupport alarm triggering by specified target types (human and vehicle)
Metadata	Intrusion detection, line crossing detection, region entrance detection, region exiting detection
Akıllı Ulaşım Sistemi	Traffic Violation Evidence Collection: illegal parking, reverse driving, over lane line detection, continuous lane change, motor vehicle on non-motor vehicle lane, U-turn, slalom driving, illegal lane change, and queue jumping.; Traffic Data Collection: Traffic Flow.; Road incident detection: (1) Road incident detection for highways and elevated roads: fallen object detection, pedestrian detection, congestion detection, roadblock detection, construction detection, traffic accident detection, fog
AcuSeek	Support search for humans, vehicles, non-motorized vehicles, and animals (large animals (cattles, horses, sheep, pigs), small animals (cats, dogs), poultry (chicken, ducks, geese)). This function requires use with AcuSeek NVR/Servers.
Çoklu Hedef Tipi Algılama	[PTZ channel] Supports simultaneous detection and capture of human body, face and vehicle, Supports counting the number of line crossing targets by type, including human body, non-motor vehicle, motor vehicle, Supports dynamic mosaic mask

Bağlantı ve Takip 3 satır

Akıllı Takip	Manual tracking, auto-tracking
Akıllı Bağlantı (Linkage)	manual tracking, tracking takeover, linked tracking capture, track in turn, panorama linkage
Nesne Takibi	Support person arming. When the device detects the armed face or human body in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.Support vehicle arming. When the device detects the armed vehicles in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.

Genel 9 satır

Genel Fonksiyonlar	mirror, password protection
Güç	36 VDC± 25%, Max. 120 W, including max. 22.6 W for IR and max. 13W for heater
Çalışma Koşulları	-40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing), For speaker: -30 °C to 55°C (-22°F to 131°F)
Silecek	Evet
Buğu Giderme	Evet
Malzeme	ADC12
Boyutlar	779 mm × 277 mm × 523 mm (31" × 11" × 21")
Ağırlık	Approx. 20.8 kg (45.76 lb.)
Dil	33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Onaylar 4 satır

EMC	CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014), RCM (AS/NZS CISPR 32: 2015), IC (ICES-003: Issue 7)
Güvenlik	CB (IEC 62368-1: 2014 + A11), CE-LVD (EN 62368-1: 2014/A11: 2017)
Çevre	CE-RoHS (2011/65/EU), WEEE (2012/19/EU), Reach (Regulation (EC) No 1907/2006)
Koruma	IP67 (IEC 60529-2013), TVS 6000 V lightning protection, surge protection and voltage transient protection, IK10 (IEC 62262:2002, excluding glass window)

Genel bakış

Hikvision DS-2SK8C440MXG1-LWF/28(25X25X) kullanım alanları ve özellikleri.

Hikvision DS-2SK8C440MXG1-LWF/28(25X25X), 4 MP çözünürlük, 6–150 mm varifocal lens, 150 m gece görüş mesafesi ve IP67/IK10 koruma sunan bir PTZ Kamera modelidir. DeepinView serisi gelişmiş derin öğrenme analizleri sunar.

DeepinView Omni PTZ 8C Series 4 MP 40X DarkFighter Network Speed Dome

With an integrated design, it features 3 built-in independent PTZ to accommodate multiple scenarios
High quality imaging with 4 MP resolution for all channels
Excellent low-light performance with DarkFighter 2.0 technology
PTZ channel 2/3 pan adjustable from 0° to 360°, tilt adjustable from -33° to 90°
PTZ channel 1 secures an expansive area with 40 × optical zoom and 16 × digital zoom
Expansive night view with up to 80 m white light distance and 350 m IR distance for PTZ channel 1, and 150 m IR distance for PTZ channel 2/3
Supports deep learning functions including ITS
Water and dust resistant (IP67) and vandal resistant (IK10) excluding glass window
Support 0° to 280° unit base pan for all PTZ channels at the same time

Nerelerde kullanılır?

Otopark, site ortak alanı, fabrika sahası ve meydan gibi geniş alanlarda tek kamerayla devriye, yakınlaştırma ve otomatik takip için kullanılır.

Kurulum ve uyumluluk

DS-2SK8C440MXG1-LWF/28(25X25X) PoE destekli bir NVR veya PoE switch üzerinden tek ağ kablosuyla beslenebilir; ONVIF desteği olan kayıt cihazlarıyla da çalışır. Uzaktan izleme için Hik-Connect mobil uygulaması kullanılır.

Tüm özellikler

With an integrated design, it features 3 built-in independent PTZ to accommodate multiple scenarios
High quality imaging with 4 MP resolution for all channels
Excellent low-light performance with DarkFighter 2.0 technology
PTZ channel 2/3 pan adjustable from 0° to 360°, tilt adjustable from -33° to 90°
PTZ channel 1 secures an expansive area with 40 × optical zoom and 16 × digital zoom
Expansive night view with up to 80 m white light distance and 350 m IR distance for PTZ channel 1, and 150 m IR distance for PTZ channel 2/3
Supports deep learning functions including ITS
Water and dust resistant (IP67) and vandal resistant (IK10) excluding glass window
Support 0° to 280° unit base pan for all PTZ channels at the same time

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

DatasheetPDF · DS-2SK8C440MXG1-LWF/28(25X25X) Hızlı Başlangıç KılavuzuPDF · DS-2SK8C440MXG1-LWF/28(25X25X) Kullanım KılavuzuPDF · DS-2SK8C440MXG1-LWF/28(25X25X) Firmware (V5.9.32_260617) - indirme sayfasıPDF · DS-2SK8C440MXG1-LWF/28(25X25X)

Sık sorulanlar

DS-2SK8C440MXG1-LWF/28(25X25X) hakkında kısa yanıtlar.

DS-2SK8C440MXG1-LWF/28(25X25X) gece görüş mesafesi kaç metre?

DS-2SK8C440MXG1-LWF/28(25X25X), IR aydınlatmayla yaklaşık 150 metreye kadar gece görüşü sağlar. Gerçek mesafe ortam ışığına ve yansıtıcı yüzeylere göre değişebilir.

DS-2SK8C440MXG1-LWF/28(25X25X) dış ortamda kullanılabilir mi?

Evet. IP67 koruma sınıfı sayesinde yağmur ve toza karşı dayanıklıdır; IK10 gövdesi darbelere karşı da korumalıdır.

DS-2SK8C440MXG1-LWF/28(25X25X) hangi kayıt cihazıyla çalışır?

IP kamera olduğu için NVR kayıt cihazlarıyla çalışır. Tüm akıllı özellikler için Hikvision NVR, temel kayıt için ONVIF destekli NVR'lar kullanılabilir.

DS-2SK8C440MXG1-LWF/28(25X25X) kaç megapiksel?

DS-2SK8C440MXG1-LWF/28(25X25X) 4 MP çözünürlüğe sahiptir ve 6–150 mm lens kullanır.

DS-2SK8C440MXG1-LWF/28(25X25X) fiyatı ne kadar?

DS-2SK8C440MXG1-LWF/28(25X25X) için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
