Hikvision
Hikvision DS-A72024R-CVS Depolama Ünitesi
Depolama Sunucusu (NAS / IP SAN)

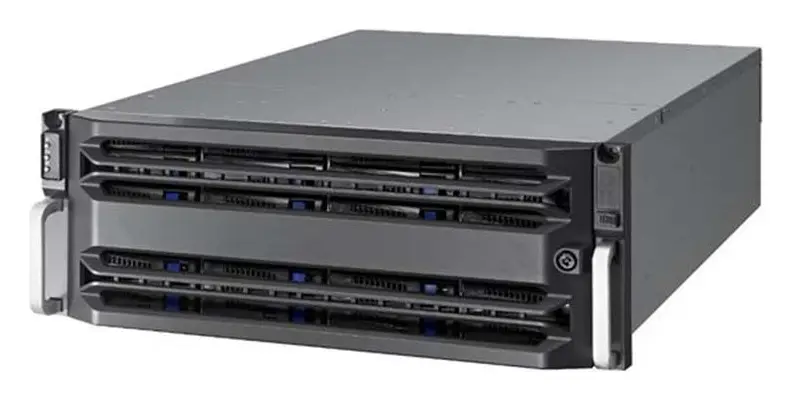

Hikvision DS-A72024R-CVS Depolama Ünitesi

ModelDS-A72024R-CVS

Hikvision DS-A72024R-CVS depolama ünitesi: The cloud backup fuction stores multiple copies of a single video within the cloud storage system; supports internal cloud backup and multiple-cloud backup., Redundancy design for key parts; modular drawer design., Based on virtualization technology, all stora.

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara
Distribütör garantili
81 ile sevkiyat
Teknik destek
  • The cloud backup fuction stores multiple copies of a single video within the cloud storage system; supports internal cloud backup and multiple-cloud backup.
  • Redundancy design for key parts; modular drawer design.
  • Based on virtualization technology, all storage nodes are virtualized as a unified resource which is accessible through specified port.
  • Supports direct video storage. No stream media server is required.
  • Supports stream forwarding. No media switch server is required.
  • Increase storage space and performance by stacking and cascading without interrupting services. Easily and quickly expand your storage capacity at TB or even PB level.
  • Supports RAID 0, 1, 3, 5, 6, 10, 50.
  • Provides complete API interfaces for third-party cloud storage system connection.

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Software module 3 satır
CVSVideo access service, storage space management, data read/write
CVADevice access management, recording schedule, stream forwarding, VCA
storage managementStorOS storage system, RAID management, HDD detection and restoration, alarm
Performans 1 satır
Video recording + playback (2Mbps)300-ch + 64-ch
Controller 3 satır
SSD64 GB
Önbellek16 GB (extendable to 64 GB)
Processor2 × Xeon hexa-core processor
Genel 6 satır
Boyutlar (W x H x D)430 × 730 × 180 mm (16.9 × 28.7 × 7.1 inch)
Güç Tüketimi (with HDD)Operating: ≤ 410 W; Rated: ≤ 875 W
Güç KaynağıRedundant power supply
NemOperating: 20% to 80% RH (non-condensing/frozen); Storing: 5% to 90% RH (non-condensing/frozen)
TemperatureOperating: 5 °C to 35 °C (41 °F to 95 °F); Storing: -20 °C to +70 °C (-4 °F to +158 °F)
Ağırlık (without HDD)≤ 40 kg (88.2 lb)
Depolama 5 satır
Hot-pluggingSupported
HDD slot24
Kapasite1 TB, 2 TB, 3 TB, 4 TB, 6 TB
RAIDRAID 0, 1, 3, 5, 6, 10, 50, JBOD, hot spare
ArayüzSATA (SSD optional)
External Interfaces 5 satır
Data4, 1000M Ethernet interface, extendable to 4 × GE or 2 × 10GE
VGA1
Yönetim1, 100M Ethernet interface
COM1
USB4

Genel bakış

Hikvision DS-A72024R-CVS kullanım alanları ve özellikleri.

Tüm özellikler

  • The cloud backup fuction stores multiple copies of a single video within the cloud storage system; supports internal cloud backup and multiple-cloud backup.
  • Redundancy design for key parts; modular drawer design.
  • Based on virtualization technology, all storage nodes are virtualized as a unified resource which is accessible through specified port.
  • Supports direct video storage. No stream media server is required.
  • Supports stream forwarding. No media switch server is required.
  • Increase storage space and performance by stacking and cascading without interrupting services. Easily and quickly expand your storage capacity at TB or even PB level.
  • Supports RAID 0, 1, 3, 5, 6, 10, 50.
  • Provides complete API interfaces for third-party cloud storage system connection.
  • Supports standard ONVIF access.
  • Supports Smart IPC access.
  • Cloud Video Access (CVA): Recording task management, recording service and device status management, etc.
  • Cloud Video Storage (CVS): Video data read/write operation.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

DatasheetPDF · DS-A72024R-CVS

Sık sorulanlar

DS-A72024R-CVS hakkında kısa yanıtlar.

DS-A72024R-CVS fiyatı ne kadar?
DS-A72024R-CVS için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
