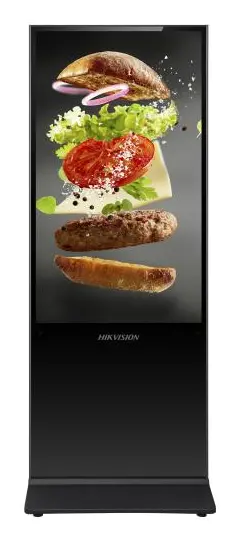

Hikvision DS-D6043UL-B/S 43 inç Dijital Tabela (Signage)

ModelDS-D6043UL-B/S

Hikvision DS-D6043UL-B/S dijital tabela (signage): Metallic Appearance Light weight body with integrative design. The front high-transmittance tempered glass provides reliable protection., Exquisite Image Industrial A+ interface, auto-coloring and image-enhancing engine., Variable Materials Static and dynamic.

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Metallic Appearance Light weight body with integrative design. The front high-transmittance tempered glass provides reliable protection.
Exquisite Image Industrial A+ interface, auto-coloring and image-enhancing engine.
Variable Materials Static and dynamic materials, including pictures, audio, video, scrolling subtitle, PDF, webpage, live video, number calling, pop-up pictures, etc.
Flexible Program Schedule Free schedule and district display of multiple materials. Multiple play modes with customization support.
Centralized Management Remotely control and manage one or more screens, such as timed startup/shutdown, quick startup/shutdown, brightness/volume timed adjustment, and screenshot preview. Remote program release and local
Organization Permission 5-level organization available for managing materials, programs, terminals, and users. Create custom user with precise permission assignment. Multiple permission templates available.
Multiple Security Safeguards 3-level check of materials, programs, and schedules to prevent mistake release. Screensaver password to protect displaying. Encryption of data storage and transmission to avoid data tampering

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Ekran 13 satır

Görüş Açısı	178°(H) /178°(V)
Kontrast Oranı	5000:1
Ekran Boyutu	42.5 inch
Active Display Area	941.184(H)mm x 529.416(V)mm
Arka Işık	D-LED
Piksel Aralığı	0.2451(H) mm x 0.2451(V)mm
Çözünürlük	3840 × 2160
Parlaklık	500 cd/m²
Renk Derinliği	8bit+FRC
Tepki Süresi	6.5 ms
Color Gamut	72% NTSC
Reliability	7 × 24 H
Yenileme Hızı	60 Hz

Built-in System 4 satır

İşletim Sistemi	Android 8.1.0
İşlemci	Cortex-A17, 4-core, main frequency 1.6 GHz
Bellek	2 GB
Built-in Storage	16 GB EMMC

Internal Function 1 satır

Hoparlör	2 × built-in speaker, 8 Ω 5 W

Arayüz 4 satır

Video & Audio Input	AUDIO IN × 1, HDMI IN × 2, VGA IN × 1
Video & Audio Output	AUDIO OUT × 1
Ağ Arayüzü	LAN × 1, Wi-Fi
Data Transmission Interface	USB 2.0 × 2, BT 4.2 × 1, TF card x1

Çalışma Ortamı 2 satır

Depolama Sıcaklığı	10% to 80%
Depolama Nemi	5% to 90% RH

Genel 10 satır

Material Type	DAT, MPG, VOB, TS, AVI, MKV, MP4, MOV, 3GP, TS, FLV, WEBM, ASF, MP1, MP2, MP3, WMA, WAV, OGG, OGA, FLAC, ACC, M4A, XMF, MXMF, RTTTL, RTX, OTA, IMY, JPG, JPEG, BMP, GIF, PNG
Güç Kaynağı	100 to 240 VAC, 50/60 Hz
Güç Tüketimi	≤ 150W
Çalışma Sıcaklığı	0 ℃ to 40 ℃ (32℉ to 104 ℉)
Çalışma Nemi	10%~80% RH
Ürün Boyutları (G × Y × D)	Without base: 585.14 mm × 1705.79 mm × 55 mm (23.05'' × 67.21'' × 2.17''); With base: 585.14 mm × 1767.29 mm × 450 mm (23.05'' × 69.63'' × 17.73'').
Package Dimensions (W × H × D)	1935 mm× 765 mm × 303 mm (76.18'' × 30.12'' × 11.93'')
Net Ağırlık	48.46 kg (106.84 lb.)
Brüt Ağırlık	63.46 kg (139.91 lb.)
Paket İçeriği	Screen, Base, Key, Screw Kit, Installation Manual

Genel bakış

Hikvision DS-D6043UL-B/S kullanım alanları ve özellikleri.

Hikvision DS-D6043UL-B/S, 43 inç ekran sunan bir Dijital Tabela (Signage) modelidir.

43-inch Floor Standing Digital Signage

Metallic Appearance Light weight body with integrative design. The front high-transmittance tempered glass provides reliable protection.
Exquisite Image Industrial A+ interface, auto-coloring and image-enhancing engine.
Variable Materials Static and dynamic materials, including pictures, audio, video, scrolling subtitle, PDF, webpage, live video, number calling, pop-up pictures, etc.
Flexible Program Schedule Free schedule and district display of multiple materials. Multiple play modes with customization support.
Centralized Management Remotely control and manage one or more screens, such as timed startup/shutdown, quick startup/shutdown, brightness/volume timed adjustment, and screenshot preview. Remote program release and local (USB) program update.
Organization Permission 5-level organization available for managing materials, programs, terminals, and users. Create custom user with precise permission assignment. Multiple permission templates available.
Multiple Security Safeguards 3-level check of materials, programs, and schedules to prevent mistake release. Screensaver password to protect displaying. Encryption of data storage and transmission to avoid data tampering. With no default password, users can activate and set initial password to guarantee the password safety.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

DatasheetPDF · DS-D6043UL-B/S Kullanım KılavuzuPDF · DS-D6043UL-B/S Communication MatrixPDF · DS-D6043UL-B/S Firmware (V1.9.0000_260116) - indirme sayfasıPDF · DS-D6043UL-B/S

Sık sorulanlar

DS-D6043UL-B/S hakkında kısa yanıtlar.

DS-D6043UL-B/S fiyatı ne kadar?

DS-D6043UL-B/S için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
