Hikvision DS-DT60C-01HI04NO LED Ekran Kontrolcüsü

Hikvision DS-DT60C-01HI04NO bir LED Ekran Kontrolcüsü modelidir.

4 Ports LED Controller

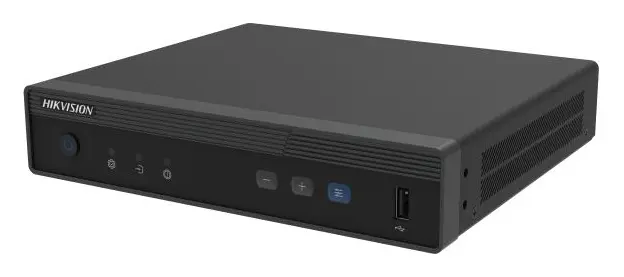

• Adopts the rackmount chassis of 1 U height and half width and industrial grade chassis system.

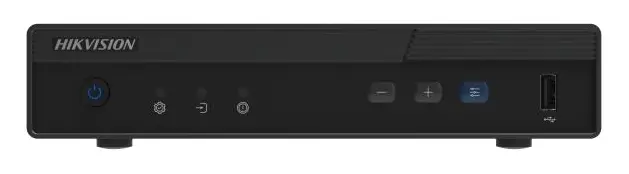

• Provides buttons on the front panel for brightness adjustment and signal source switching.
• Provides indicators on the front panel to indicate the power status, signal access status, and running status.
• Supports 1 channel of HDMI 1.4 video signal input. The resolution is 1920 × 1200@60 Hz.
• Supports frame rate self-adaption ranging from 25 Hz to 60 Hz for image collection.
• Supports the RGB 444 image loading output without image quality loss.
• Supports 4 channels of loading output with the maximum loading capacity of 2.6 MP. The maximum width is 5120 pixels and maximum height is 5120 pixels for a single device and the maximum loading capacity of each network port is 0.65 MP.
• Supports input of mixed HDMI audio and video stream, and 3.5 mm audio output.
• Supports full-screen zoom and custom zoom for video signal input.
• Supports the video wall configuration and window visualization.
• Supports cascading management and unified control of multiple LED controllers through the network.
• Supports high-bandwidth digital content protection technology of HDCP 2.2 protocol.
• Supports custom EDID settings.
• Supports hot backup and backup between devices and network ports.
• Supports custom cable alignment without rectangular frame limit.
• Supports the operation through the client or the LED controller web page.
• Supports displaying the last frame when the signal is lost.
• Supports configuring and changing the background.
• Supports configuring the screen saver and startup logo.
• Supports configuring the screen dehumidification.
• Supports using the remote control to control the screen to display the remote UI menu.
• Supports adjusting the brightness, contrast, hue, and other parameters of the output image.
• Supports pixel-level screen correction to effectively eliminate color difference and improve the quality of the display
• Supports changing the display mode, including general, text, advertisement, video, cinema, security, and etc.
• Supports the HDR output to greatly enhance the image quality of the display, make the picture color more real and vivid, and make the details clearer.
• Supports selecting the color temperature adjustment mode such as standard, warm color, and cold color and customizing color temperature.
• Supports eye protection mode to protect the vision of the viewer.
• Supports high refresh rate output at 3840 Hz, nanosecond response time, and smooth video picture.
• Supports viewing the loading relationship between the device and LED screen.
• Supports viewing abnormal screen positioning during running.
• Supports checking parameters such as device running status, device memory, CPU usage, device running temperature, and network port usage.
• Supports abnormal screen voltage detection, screen temperature detection, and device temperature detection
• Supports connecting to the central control device and IoT device through RS-485 port.
• Supports docking device command and managing device by using the control network port and the protocols such as OTAP.
• Supports using the control network port to connect to the multi-functional card to realize environment temperature detection, environment humidity detection, and the cooperation between the human body temperature monitoring and screen control.

Nerelerde kullanılır?

Güvenlik odası ve resepsiyonda kamera görüntülerinin 7/24 izlenmesi için kullanılır.

Tüm özellikler

• Adopts the rackmount chassis of 1 U height and half width and industrial grade chassis system.
• Provides buttons on the front panel for brightness adjustment and signal source switching.
• Provides indicators on the front panel to indicate the power status, signal access status, and running status.
• Supports 1 channel of HDMI 1.4 video signal input. The resolution is 1920 × 1200@60 Hz.
• Supports frame rate self-adaption ranging from 25 Hz to 60 Hz for image collection.
• Supports the RGB 444 image loading output without image quality loss.
• Supports 4 channels of loading output with the maximum loading capacity of 2.6 MP. The maximum width is 5120 pixels and maximum height is 5120 pixels for a single device and the maximum loading capacity of each network p
• Supports input of mixed HDMI audio and video stream, and 3.5 mm audio output.
• Supports full-screen zoom and custom zoom for video signal input.
• Supports the video wall configuration and window visualization.
• Supports cascading management and unified control of multiple LED controllers through the network.
• Supports high-bandwidth digital content protection technology of HDCP 2.2 protocol.
• Supports custom EDID settings.
• Supports hot backup and backup between devices and network ports.
• Supports custom cable alignment without rectangular frame limit.
• Supports the operation through the client or the LED controller web page.
• Supports displaying the last frame when the signal is lost.
• Supports configuring and changing the background.
• Supports configuring the screen saver and startup logo.
• Supports configuring the screen dehumidification.
• Supports using the remote control to control the screen to display the remote UI menu.
• Supports adjusting the brightness, contrast, hue, and other parameters of the output image.
• Supports pixel-level screen correction to effectively eliminate color difference and improve the quality of the display
• Supports changing the display mode, including general, text, advertisement, video, cinema, security, and etc.
• Supports the HDR output to greatly enhance the image quality of the display, make the picture color more real and vivid, and make the details clearer.
• Supports selecting the color temperature adjustment mode such as standard, warm color, and cold color and customizing color temperature.
• Supports eye protection mode to protect the vision of the viewer.
• Supports high refresh rate output at 3840 Hz, nanosecond response time, and smooth video picture.
• Supports viewing the loading relationship between the device and LED screen.
• Supports viewing abnormal screen positioning during running.
• Supports checking parameters such as device running status, device memory, CPU usage, device running temperature, and network port usage.
• Supports abnormal screen voltage detection, screen temperature detection, and device temperature detection
• Supports connecting to the central control device and IoT device through RS-485 port.
• Supports docking device command and managing device by using the control network port and the protocols such as OTAP.
• Supports using the control network port to connect to the multi-functional card to realize environment temperature detection, environment humidity detection, and the cooperation between the human body temperature monitor
