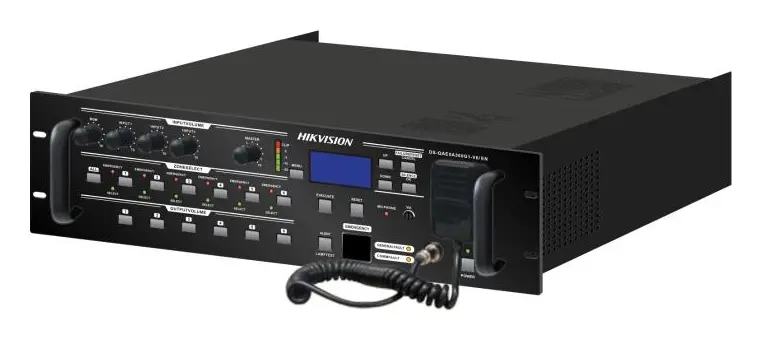

Hikvision DS-QAE0A360G1-V6/EN Amplifikatör
Model
DS-QAE0A360G1-V6/ENHikvision DS-QAE0A360G1-V6/EN amplifikatör: DS-QAE0A360G1-V6/EN used as the system host which owns the function to manage the system. One host must be equipped for each system., Up to 42 zones can be extended by single system DS-QAE0A360G1-V6/EN. Total 6 extension ports built to connect with extension a.
Fiyat ve stok bilgisi alınAynı gün dönüş
Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.
Distribütör garantili
81 ile sevkiyat
Teknik destek
- DS-QAE0A360G1-V6/EN used as the system host which owns the function to manage the system. One host must be equipped for each system.
- Up to 42 zones can be extended by single system DS-QAE0A360G1-V6/EN. Total 6 extension ports built to connect with extension amplifier. When connected to DS-QAE0A system extension amplifier, each extension port can link
- Built-in 16M Flash can be used to save various prompt voices.
- It can control the play and stop of the built-in voice through timing control or GPIO control.
- 2-way RD port used to connect wth the remote MIC, Up to 4 paging or emergency microphones can be connected.
- 3-way MIC/LINE inputs.
- Equipped with 6-way emergency control inputs and general control input.
- Fault detection function for the speaker or related circuits; faults in devices connected to each port can be automatically detected.
Teknik özellikler
Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
Ses 21 satır
| Frekans Tepkisi | 50 Hz-16 KHz,+/-3 dB |
|---|---|
| THD and SNR | THD: ≤0.7% (1KHz); SNR: ≥85 dB |
| Ses Girişi | 1.Input 1-3:-50dBx(MIC)/-10dB x(LINE); 2. 600ΩBGM 1-2:10dBx10KΩ |
| Ses Çıkışı | The total output power applied on CH1-6 no more than 360W, The MAX Mono output power =180W . |
| Remote Control Port | Connected to the DS-QAE0MP0G1/EN EVAC Paging Microphone and DS-QAE0MP0G2/EN Remote Paging Microphone.; The distance between the unit and paging microphone can reach 100 meters, recommended to use (CAT5E-FTP). |
| Backup Connection | Connected to DS-QAE0A360G1-V6/ENB backup amplifier, Recommended to use CAT5E-STP. |
| Extension Port | Total 6 ports which can be used to connect with the device DS-QAE0A360G1-V6/ENEX / DS-QAE0A150G1-V/; EN/300G1-V/EN/450G1-V/EN. |
| Emergency Control Input | 2-way input, Available to connect with the fire center and process message control. |
| General Emergency Control | Input 1-6: No-voltage contact input, short-circuit current below 2mA; Output 1-6: operation current: 10mA below. |
| External Volume Intrusion Control | 6 ways of DC outputs, the voltage used to connect with the device which can be forcibly switched |
| BGM1/2 | 2 sets of lotus connectors, External audio source analog signal input. |
| Common Control Input | 6 groups of terminal ports; Switching quantity signal input; None-voltage contace input; Short-circuit current below 2mA. |
| Common Control Output | 6 groups of terminal ports; Switching quantity signal output (relay isolation); Operating current less than 10mA. |

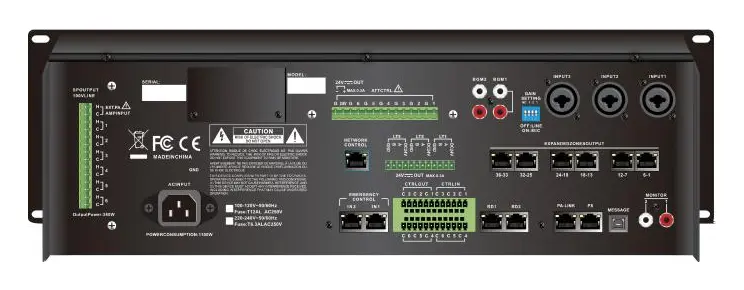

| Remote Control Device Port | 2 RJ45 ports used to connect with remote emergency microphone (DS-QAE0MP0G1/EN). |
| Backup Output | 1 RJ45 port used to connect with DS-QAE0A360G1-V6/ENB backup amplifier.Recommended to use (CAT5E-STP) |
| Backup Power Status Input | 1 RJ45 port used to the switching-quantity signal based on backup power status. |
| Voice Message | 1 Type-B port used to connect with PC to place the voice files, only support MP3 format. |
| Monitor | 2 lotus connector used to output all audio analog signal from the host. |
| Zone Expansion | 6 ways of RJ45 ports. Connected to the multiple-zone expansion: DS-QAE0A360G1-V6/ENEX/; Single-zone expansion AMP: DS-QAE0A150G1-V/EN/300G1-V/EN/450G1-V/EN |
| LT Port | LT1 and LT2 used to connect/communicate with signal collector (DS-QASIGNAL/EN).; LT3 used to connect with fire controller. |
| Network Control Port | RJ45, 1000M bandwith. Used to connect with PC software to upgrade firmware or control system; configuration. |
Genel 6 satır
| Güç | 220-240VAC, 50/60 Hz ,360 W |
|---|---|
| Boyutlar | 440x402x130 mm |
| Ağırlık | 17 kg |
| Paket İçeriği | Extension Amplifier x1; Instructions x3; Power Line x1; Terminal 7pin x4; Terminal 2pin x3 |
| Çalışma Sıcaklığı | -5 °C-+45 °C |
| Güç Tüketimi | 1100 W MAX |
Genel bakış
Hikvision DS-QAE0A360G1-V6/EN kullanım alanları ve özellikleri.
Hikvision DS-QAE0A360G1-V6/EN bir Amplifikatör modelidir.
360W 6-Zone EVAC Amplifier
- DS-QAE0A360G1-V6/EN used as the system host which owns the function to manage the system. One host must be equipped for each system.
- Up to 42 zones can be extended by single system DS-QAE0A360G1-V6/EN. Total 6 extension ports built to connect with extension amplifier. When connected to DS-QAE0A system extension amplifier, each extension port can link with 2 DS-QAE0A system amplifiers.
- Built-in 16M Flash can be used to save various prompt voices.
- It can control the play and stop of the built-in voice through timing control or GPIO control.
- 2-way RD port used to connect wth the remote MIC, Up to 4 paging or emergency microphones can be connected.
- 3-way MIC/LINE inputs.
- Equipped with 6-way emergency control inputs and general control input.
- Fault detection function for the speaker or related circuits; faults in devices connected to each port can be automatically detected.
- The system can be easily configured using PC software
Nerelerde kullanılır?
Okul, cami, fabrika, otel ve AVM seslendirme sistemlerinde hoparlör hatlarını besler; bölge seçimi ile alanlara ayrı anons ve müzik yayını yapılabilir.
Tüm özellikler
- DS-QAE0A360G1-V6/EN used as the system host which owns the function to manage the system. One host must be equipped for each system.
- Up to 42 zones can be extended by single system DS-QAE0A360G1-V6/EN. Total 6 extension ports built to connect with extension amplifier. When connected to DS-QAE0A system extension amplifier, each extension port can link
- Built-in 16M Flash can be used to save various prompt voices.
- It can control the play and stop of the built-in voice through timing control or GPIO control.
- 2-way RD port used to connect wth the remote MIC, Up to 4 paging or emergency microphones can be connected.
- 3-way MIC/LINE inputs.
- Equipped with 6-way emergency control inputs and general control input.
- Fault detection function for the speaker or related circuits; faults in devices connected to each port can be automatically detected.
- The system can be easily configured using PC software
Dokümanlar
Veri sayfası ve kullanım kılavuzları.
Sık sorulanlar
DS-QAE0A360G1-V6/EN hakkında kısa yanıtlar.
DS-QAE0A360G1-V6/EN fiyatı ne kadar?
DS-QAE0A360G1-V6/EN için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
