Hikvision

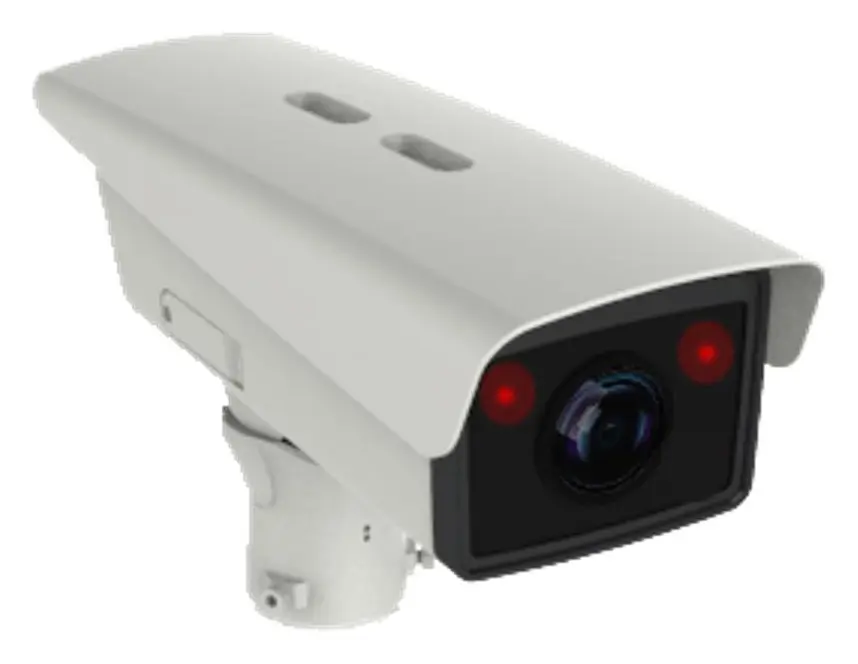

Hikvision DS-TCG405-E(S) Geçiş Kontrol Aksesuarı
Model
DS-TCG405-E(S)Hikvision DS-TCG405-E(S) geçiş kontrol aksesuarı: 1/1.8" Progressive Scan CMOS, Up to 2688 × 1520 resolution with real-time video, 2x pics high-performance LEDs (integrated white light and IR), 2.8 to 12 mm motorized vari-focal lens, Support relay output to control vehicle barrier.
Fiyat ve stok bilgisi alınAynı gün dönüş
Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.
Distribütör garantili
81 ile sevkiyat
Teknik destek
- 1/1.8" Progressive Scan CMOS
- Up to 2688 × 1520 resolution with real-time video
- 2x pics high-performance LEDs (integrated white light and IR)
- 2.8 to 12 mm motorized vari-focal lens
- Support relay output to control vehicle barrier
- Support loop triggering or radar triggering
- Support multi-frame LPR
- Support quick pass of multiple vehicles
Teknik özellikler
Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
Lens 3 satır
| Diyafram | 2.8 to 12 mm: F1.2 to F2.5 |
|---|---|
| Odak Uzaklığı ve Görüş Açısı | 2.8 to 12 mm, horizontal FoV: 113.5° to 39°, vertical FoV: 58.4° to 22.7°, diagonal FoV: 141.3° to 44.3° |
| Odak | Auto, Vari-focal lens, motor-driven lens |
Ek Işık 3 satır
| Aydınlatma Tipi | IR Light, Warm White Light |
|---|---|
| Aydınlatma Mesafesi | Video: 2.8 mm to 12 mm: 20 m; Vehicle License Plate: 2.8 mm to 12 mm: 10 m |
| IR Dalga Boyu | Warm White Light 3000 K, IR Light 850 nm |
Yakalama Modu 4 satır
| Trigger Type | Video Detection, I/O Coil, Radar Mixed Traffic |
|---|---|
| Picture Type | Scene Picture, Scene Picture + Close-up Picture |
| Sahne Modu | Entrance & Exit Toll Gate, Underground Parking Entrance & Exit |
| Capture Type | Strobe Light Mode |
Yakalama Parametreleri 6 satır
| Görüntü Formatı | JPEG |
|---|---|
| Yakalama Çözünürlüğü | 2688 × 1520 |
| License Plate Recognition | Forward, Backward, Bidirection |
| LED Control | Supports automatic light control/time control of LEDs |
| Akıllı Tanıma | ANPR, Motor Vehicle Feature, Vehicle Color Recognition, Enable Vehicle Manufacturer Recognition |
| Yakalanan Görüntüye Bindirme | Location, Capture Time, Plate Number, Capture No., Vehicle Color Vehicle Type |
Görüntü 7 satır
| WDR | 140 dB |
|---|---|
| Ana Akış | 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720); 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Alt Akış | 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480); 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) |
| Görüntü Ayarları | Saturation: 0 to 100; Brightness: 0 to 100; Contrast: 0 to 100; Gain: 0 to 100; 3D DNR: Off, Normal, and Expert modes are selectable.; White balance: White Balance 1 and White Balance 2 are selectable. |
| Görüntü Parametresi Geçişi | Evet |
| WDR Geçişi | On, Time, Brightness |
| Kare Hızı | 25 fps (P)/30 fps (N) |
Giriş ve Çıkış 6 satır
| Barrier Gate Control Mode | By Camera/Platform/Mixed |
|---|---|
| Keep Boom Pole Open for Following Vehicle | Enable/Disable |
| Lock Barrier Gate for Large-Sized Vehicle | Evet |
| Röle Çıkışı | 2-ch relay output, supporting opening and closing of barrier gates |
| Barrier Gate Status | None, Barrier Gate Close In Place, Barrier Gate Open In Place, Remote Control Open In Place |
| Allowlist and Blocklist | Up to 100,000 allowlist and blocklist totally |
Video 6 satır
| ROI | 8 regions respectively for main stream and sub-stream, 6 levels for each region. |
|---|---|
| Video Sıkıştırma | Main stream: H.265/H.264/MJPEG; Sub-stream: H.265/H.264/MJPEG |
| H.264 Tipi | Low profile; Medium profile; High Profile |
| Video Bit Hızı | 32 Kbps to 16 Mbps |
| Bit Hızı Tipi | Constant, Variable |
| Ölçeklenebilir Video Kodlama (SVC) | H.265 and H.264 encoding |
Ağ 6 satır
| Ağ Depolama | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
|---|---|
| Protokol | TCP/IP, ICMP, HTTP, HTTPS, FTP Upload Picture, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SNMP, IGMP, QoS, IPv6, UDP, SSL/TLS, WebSocket |
| API | Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP, Otap, Guarding Vision Platform |
| İstemci | Hik-Central, SDKdemo, PMS |
| Web Tarayıcı | Plug-in required live view: IE10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local service: Chrome 41.0+, Firefox 30.0+ |
| Güvenlik | Password protection, complicated password, HTTPS encryption, watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2 |
Kamera 6 satır
| Sensör Tipi | 1/1.8" Progressive Scan CMOS |
|---|---|
| Maks. Çözünürlük | 2688 × 1520 |
| Min. Aydınlatma | Color: 0.0005Lux@(F1.47, AGC ON); B/W: 0.0001Lux@(F1.47, AGC ON) |
| Enstantane | 1/30 s to 1/100,000 s |
| Gece/Gündüz Geçişi | Destekleniyor |
| IR Cut Filtre | IR cut filter; Blue glass module to reduce ghost phenomenon |
Arayüz 9 satır
| Ses | 1 input (line in), 1 output (line out) |
|---|---|
| Communication Mode | 1 RJ45 10M/100M Ethernet port |
| Alarm Girişi | 3-ch triggered inputs |
| Alarm Çıkışı | 1-ch alarm output |
| Wiegand | Not support |
| RS-232 | 1-ch RS-232 serial port |
| RS-485 | 1-ch RS-485 serial port |
| Ağ Arayüzü | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Memory Card Slot | 1 TF card slot, up to 1 TB |
Akıllı Fonksiyonlar 5 satır
| LPR Accuracy | Accuracy (Under recommended installation and lighting conditions): License plate recognition rate ≥98.5%; Capture rate ≥99%; Driving direction accuracy rate ≥98% |
|---|---|
| Vehicle Type Recognition | Car/Van/Bus/Truck/Light Truck/SUV_MPV/Pickup/Pedestrian/Motorcycle/Tricycle |
| Araç Rengi | Red, Yellow (including orange, golden), Green, Cyan, Blue, Purple, Pink, Brown, White, Gray (including silver), Black |
| Vehicle Brand | 84 manufacturers: Hyundai, Toyota, KIA, Honda, Volkswagen, Benz, Nissan, Ford, Isuzu, BMW, Chevrolet, Mitsubishi, Renault, Opel, Suzuki, Skoda, Daewoo, Audi, Mazda, GAC HINO, Peugeot, SsangYong, Citroen, Fiat, Scania, MAN, Volvo, Lexus, Seat, Land Rover, Daihatsu, Dongwo, Subaru, Iveco, MINI, JEEP, Porsche, Chery, Dodge, Chrysler, Acura, Alfa Romeo, Great Wall, Infiniti, Smart, Saic Maxus, JAC, Jaguar, GMC, Lincoln, JMC, SAAB, FAW, Yutong, Guangzhou Yunbao, Joylong, Geely, Cadillac, JBC, An‘kai, |
| ANPR Desteklenen Ülke/Bölge | 6 areas ( Asia, Africa, America, Europe, Oceania, Russian-Speaking Regions) and more than 130+ countries/regions （Statistical quantity includes baseline version and customized version.）; Asia: Hong Kong( China), Macau( China), Taiwan( China), Japan, South Korea, Mongolia, Indonesia, Myanmar, Vietnam, the Philippines, Thailand, Laos, Cambodia, Malaysia, Singapore, Pakistan, Sri Lanka, Nepal, India, Bangladesh, Qatar, Kuwait, Oman, Saudi Arabia, Bahrain, Lebanon, Jordan, Iraq, United Arab Emirat |
Onaylar 3 satır
| EMC | CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EEN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014); KC (KN 32: 2015, KN 35: 2015) |
|---|---|
| Güvenlik | CB (IEC 62368-1: 2014 + A11); CE-LVD (EN 62368-1: 2014/A11: 2017); BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005) |
| Çevre | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
Genel 10 satır
| Working Temperature & Humidity | -25°C to 70°C (-13°F to 158°F); 90% or less (non-condensing) |
|---|---|
| Güç Kaynağı | 12 VDC/PoE (802.3af, 44 V to 57 V), 220 VAC |
| Working Consumption | 10 W Max. |
| Boyutlar | 415 mm × 145 mm × 145 mm (16.34 × 5.71 × 5.71 inch) |
| Ağırlık | 3.25 kg (7.17 lb.) |
| Ağırlık (Paketli) | 4.3 kg (9.48 lb.) |
| Boyutlar (Paketli) | 480 × 435 × 205 mm (18.90× 17.13 × 8.07 inch) |
| Depolama Koşulları | Temperature: -20 °C to 70 °C (- 4°F to 158 °F); Humidity: 95% (non-condensing) |
| Başlangıç ve Çalışma Koşulları | Temperature: -30 °C to 70 °C (-22 °F to 158 °F); Humidity: 95% (non-condensing) |
| Dil | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
Genel bakış
Hikvision DS-TCG405-E(S) kullanım alanları ve özellikleri.
Tüm özellikler
- 1/1.8" Progressive Scan CMOS
- Up to 2688 × 1520 resolution with real-time video
- 2x pics high-performance LEDs (integrated white light and IR)
- 2.8 to 12 mm motorized vari-focal lens
- Support relay output to control vehicle barrier
- Support loop triggering or radar triggering
- Support multi-frame LPR
- Support quick pass of multiple vehicles
- Support vehicle type, vehicle color and vehicle brand recognition
- Integrated shield, lights, TF Card (up to 1 T)
- Up to 100,000 allowlists and blocklists
- Offline control
- PoE (802.3af)
- One-touch focus
- Manual capture and ANPR
Dokümanlar
Veri sayfası ve kullanım kılavuzları.
Sık sorulanlar
DS-TCG405-E(S) hakkında kısa yanıtlar.
DS-TCG405-E(S) fiyatı ne kadar?
DS-TCG405-E(S) için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
Hızlı teklif
Formu doldurun, DS-TCG405-E(S) için fiyat ve teslim süresini iletelim.
