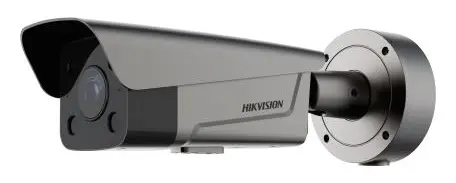

Hikvision DS-TCG406-E(ES) Plaka Tanıma Kamerası

ModelDS-TCG406-E(ES)

Hikvision DS-TCG406-E(ES), 2.8–12 mm motorize lensli bir plaka tanıma kamerasıdır. IR LED'leri sayesinde gece 25 metreye kadar görüş sağlar. IP67 su ve toz koruması ve IK10 darbe dayanımı ile dış ortam kurulumlarına uygundur.

Gece görüşü: IR (siyah-beyaz)
Koruma sınıfı: IP67
Lens: Motorize

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

1/1.8" progressive scan CMOS.
Up to 2688 × 1520 resolution with real-time video.
4 built-in high-performance LEDs (integrated white light and IR).
2.8 to 12 mm/8 to 32 mm motorized vari-focal lens.
Supports relay output to control vehicle barrier gate.
Supports Wiegand, connectable with access control system.
Supports loop triggering, radar triggering, and video triggering LPR.
Supports multi-frame LPR, improving LPR rate.

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Hoparlör 1 satır

Loudspeaker Power	2W

Lens 4 satır

Lens Tipi	2.8 to 12 mm; 8 to 32 mm
Diyafram	2.8 to 12 mm: F1.2 to F2.5; 8 to 32 mm: F1.7 to F1.73
Odak Uzaklığı ve Görüş Açısı	2.8 to 12 mm, horizontal FoV: 114.5° to 41.8°, vertical FoV: 59.3° to 23.6°, diagonal FoV: 141.1° to 48°; 8 to 32 mm, horizontal FoV: 42.5° to 15.1°, vertical FoV: 23.3° to 8.64°, diagonal FoV: 49.6° to 17.3°
Odak	Auto, Vari-focal lens, motor-driven lens

Ek Işık 3 satır

Aydınlatma Tipi	IR Light, Warm White Light
Aydınlatma Mesafesi	Video: 2.8 mm to 12 mm: 25 m; 8 mm to 32 mm: 50 m; Vehicle License Plate: 2.8 mm to 12 mm: 10 m; 8 mm to 32 mm: 20 m
IR Dalga Boyu	Warm White Light 3000 K, IR Light 850 nm

Yakalama Modu 4 satır

Trigger Type	Video Detection, I/O Coil, Radar Mixed Traffic
Picture Type	Scene Picture, Scene Picture + Close-up Picture
Sahne Modu	Entrance & Exit Toll Gate, Underground Parking Entrance & Exit
Capture Type	Strobe Light Mode

Yakalama Parametreleri 6 satır

Görüntü Formatı	JPEG
Yakalama Çözünürlüğü	2688 × 1520
License Plate Recognition	Forward, Backward, Bidirection
LED Control	Supports automatic light control/time control of LEDs
Akıllı Tanıma	ANPR, Motor Vehicle Feature, Vehicle Color Recognition, Enable Vehicle Manufacturer Recognition
Yakalanan Görüntüye Bindirme	Location, Capture Time, Plate Number, Capture No., Vehicle Color Vehicle Type

Görüntü 7 satır

WDR	140 dB
Ana Akış	50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720); 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Alt Akış	50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480); 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Görüntü Ayarları	Saturation: 0 to 100; Brightness: 0 to 100; Contrast: 0 to 100; Gain: 0 to 100; 3D DNR: Off, Normal, and Expert modes are selectable.; White balance: White Balance 1 and White Balance 2 are selectable.
Görüntü Parametresi Geçişi	Evet
WDR Geçişi	On, Time, Brightness
Kare Hızı	25 fps (P)/30 fps (N)

Giriş ve Çıkış 6 satır

Barrier Gate Control Mode	By Camera/Platform/Mixed
Keep Boom Pole Open for Following Vehicle	Enable/Disable
Lock Barrier Gate for Large-Sized Vehicle	Evet
Röle Çıkışı	2-ch relay output, supporting opening and closing of barrier gates
Barrier Gate Status	None, Barrier Gate Close In Place, Barrier Gate Open In Place, Remote Control Open In Place
Allowlist and Blocklist	Up to 100,000 allowlist and blocklist totally

Video 6 satır

ROI	8 regions respectively for main stream and sub-stream, 6 levels for each region.
Video Sıkıştırma	Main stream: H.265/H.264/MJPEG; Sub-stream: H.265/H.264/MJPEG
H.264 Tipi	Low profile; Medium profile; High Profile
Video Bit Hızı	32 Kbps to 16 Mbps
Bit Hızı Tipi	Constant, Variable
Ölçeklenebilir Video Kodlama (SVC)	H.265 and H.264 encoding

Ağ 6 satır

Ağ Depolama	NAS (NFS, SMB/CIFS), auto network replenishment (ANR) together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Protokol	TCP/IP, ICMP, HTTP, HTTPS, FTP Upload Picture, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SNMP, IGMP, QoS, IPv6, UDP, SSL/TLS, WebSocket
API	Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP, Otap, Guarding Vision Platform
İstemci	Hik-Connect, Hik-Central, SDKdemo, PMS
Web Tarayıcı	Plug-in required live view: IE10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local service: Chrome 41.0+, Firefox 30.0+
Güvenlik	Password protection, complicated password, HTTPS encryption, watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2

Kamera 6 satır

Maks. Çözünürlük	2688 × 1520
Sensör Tipi	1/1.8" Progressive Scan CMOS
Min. Aydınlatma	Color: 0.0005 Lux @ (F1.2, AGC ON); B/W: 0.0001 Lux @ (F1.2, AGC ON); 0 Lux with IR
Enstantane	1/30 s to 1/100,000 s
Gece/Gündüz Geçişi	Destekleniyor
IR Cut Filtre	IR cut filter; Blue glass module to reduce ghost phenomenon

Arayüz 8 satır

Ses	1 input (line in), 1 output (line out)
Alarm Girişi	3-ch triggered inputs
Alarm Çıkışı	1-ch alarm output
Wiegand	Supported: CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72bit
RS-232	1-ch RS-485 serial port
RS-485	1-ch RS-232 serial port
Ağ Arayüzü	1 RJ45 10M/100M self-adaptive Ethernet port
Memory Card Slot	1 TF card slot, up to 1 TB

Akıllı Fonksiyonlar 5 satır

LPR Accuracy	Accuracy (Under recommended installation and lighting conditions): License plate recognition rate ≥98.5%; Capture rate ≥99%; Driving direction accuracy rate ≥98%
Vehicle Type Recognition	Car/Van/Bus/Truck/Light Truck/SUV_MPV/Pickup/Pedestrian/Motorcycle/Tricycle
Araç Rengi	Red, Yellow (including orange, golden), Green, Cyan, Blue, Purple, Pink, Brown, White, Gray (including silver), Black
Vehicle Brand	84 manufacturers: Hyundai, Toyota, KIA, Honda, Volkswagen, Benz, Nissan, Ford, Isuzu, BMW, Chevrolet, Mitsubishi, Renault, Opel, Suzuki, Skoda, Daewoo, Audi, Mazda, GAC HINO, Peugeot, SsangYong, Citroen, Fiat, Scania, MAN, Volvo, Lexus, Seat, Land Rover, Daihatsu, Dongwo, Subaru, Iveco, MINI, JEEP, Porsche, Chery, Dodge, Chrysler, Acura, Alfa Romeo, Great Wall, Infiniti, Smart, Saic Maxus, JAC, Jaguar, GMC, Lincoln, JMC, SAAB, FAW, Yutong, Guangzhou Yunbao, Joylong, Geely, Cadillac, JBC, An‘kai,
ANPR Desteklenen Ülke/Bölge	6 areas ( Asia, Africa, America, Europe, Oceania, Russian-Speaking Regions) and more than 130+ countries/regions （Statistical quantity includes baseline version and customized version.）; Asia: Hong Kong( China), Macau( China), Taiwan( China), Japan, South Korea, Mongolia, Indonesia, Myanmar, Vietnam, the Philippines, Thailand, Laos, Cambodia, Malaysia, Singapore, Pakistan, Sri Lanka, Nepal, India, Bangladesh, Qatar, Kuwait, Oman, Saudi Arabia, Bahrain, Lebanon, Jordan, Iraq, United Arab Emirat

Onaylar 3 satır

EMC	CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EEN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014); KC (KN 32: 2015, KN 35: 2015)
Güvenlik	CB (IEC 62368-1: 2014 + A11); CE-LVD (EN 62368-1: 2014/A11: 2017); BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005)
Çevre	CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Genel 10 satır

Güç Kaynağı	12 to 24 VDC/PoE (802.3af, 44 V to 57 V), 300 mA to 230 mA
Working Consumption	10 W Max.
Boyutlar	415 mm × 145 mm × 145 mm (16.34 × 5.71 × 5.71 inch)
Koruma	IK10 (IEC 62262: 2002), IP67 (IEC 60529-2013)
Ağırlık	3.25 kg (7.17 lb.)
Ağırlık (Paketli)	4.3 kg (9.48 lb.)
Paket Boyutları	465 mm × 200 mm × 198 mm (18.31 × 7.87 × 7.80 inch)
Depolama Koşulları	Temperature: -20 °C to 70 °C (- 4°F to 158 °F); Humidity: 95% (non-condensing)
Başlangıç ve Çalışma Koşulları	Temperature: -30 °C to 70 °C (-22 °F to 158 °F); Humidity: 95% (non-condensing)
Dil	33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Genel bakış

Hikvision DS-TCG406-E(ES) kullanım alanları ve özellikleri.

Hikvision DS-TCG406-E(ES), 2688 × 1520 çözünürlük, 2.8–12 mm varifocal lens, 25 m gece görüş mesafesi ve IK10/IP67 koruma sunan bir Plaka Tanıma Kamerası modelidir.

ANPR Camera

1/1.8" progressive scan CMOS.
Up to 2688 × 1520 resolution with real-time video.
4 built-in high-performance LEDs (integrated white light and IR).
2.8 to 12 mm/8 to 32 mm motorized vari-focal lens.
Supports relay output to control vehicle barrier gate.
Supports Wiegand, connectable with access control system.
Supports loop triggering, radar triggering, and video triggering LPR.
Supports multi-frame LPR, improving LPR rate.
Supports dirty license plate recognition.
Equipped with vehicles passing detection algorithm to realize auto switch of barrier gate normally open mode during continuous vehicles passing and improve passing efficiency.
Supports vehicle type, vehicle color, and vehicle brand recognition.
Integrated shield, lights, and TF card slot (up to 1 TB).
Up to 100,000 blocklist and allowlist.
Supports offline control of barrier gate under allowlist mode.
Supports a variety of installation methods: pole mounting, wall mounting, pendant mounting, and universal joint installation. Equipped with concealed wire box.
Adopts entrance and exit dedicated exposure algorithm to adapt to the front/back light and inconsistent front and rear license plates scenes to improve LPR accuracy.
E(ES): Built-in speaker serve as reminders and support Custom audio file import.

Nerelerde kullanılır?

Site, otopark ve tesis girişlerinde plaka okuma, beyaz liste ile bariyer açma ve araç giriş-çıkış raporlaması için kullanılır.

Kurulum ve uyumluluk

DS-TCG406-E(ES) PoE destekli bir NVR veya PoE switch üzerinden tek ağ kablosuyla beslenebilir; ONVIF desteği olan kayıt cihazlarıyla da çalışır. Uzaktan izleme için Hik-Connect mobil uygulaması kullanılır.

Tüm özellikler

1/1.8" progressive scan CMOS.
Up to 2688 × 1520 resolution with real-time video.
4 built-in high-performance LEDs (integrated white light and IR).
2.8 to 12 mm/8 to 32 mm motorized vari-focal lens.
Supports relay output to control vehicle barrier gate.
Supports Wiegand, connectable with access control system.
Supports loop triggering, radar triggering, and video triggering LPR.
Supports multi-frame LPR, improving LPR rate.
Supports dirty license plate recognition.
Equipped with vehicles passing detection algorithm to realize auto switch of barrier gate normally open mode during continuous vehicles passing and improve passing efficiency.
Supports vehicle type, vehicle color, and vehicle brand recognition.
Integrated shield, lights, and TF card slot (up to 1 TB).
Up to 100,000 blocklist and allowlist.
Supports offline control of barrier gate under allowlist mode.
Supports a variety of installation methods: pole mounting, wall mounting, pendant mounting, and universal joint installation. Equipped with concealed wire box.
Adopts entrance and exit dedicated exposure algorithm to adapt to the front/back light and inconsistent front and rear license plates scenes to improve LPR accuracy.
E(ES): Built-in speaker serve as reminders and support Custom audio file import.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

DatasheetPDF · DS-TCG406-E(ES) Hızlı Başlangıç KılavuzuPDF · DS-TCG406-E(ES) Kullanım KılavuzuPDF · DS-TCG406-E(ES) Firmware (V5.5.2_260910) - indirme sayfasıPDF · DS-TCG406-E(ES)

Sık sorulanlar

DS-TCG406-E(ES) hakkında kısa yanıtlar.

DS-TCG406-E(ES) gece görüş mesafesi kaç metre?

DS-TCG406-E(ES), IR aydınlatmayla yaklaşık 25 metreye kadar gece görüşü sağlar. Gerçek mesafe ortam ışığına ve yansıtıcı yüzeylere göre değişebilir.

DS-TCG406-E(ES) dış ortamda kullanılabilir mi?

Evet. IP67 koruma sınıfı sayesinde yağmur ve toza karşı dayanıklıdır; IK10 gövdesi darbelere karşı da korumalıdır.

DS-TCG406-E(ES) hangi kayıt cihazıyla çalışır?

IP kamera olduğu için NVR kayıt cihazlarıyla çalışır. Tüm akıllı özellikler için Hikvision NVR, temel kayıt için ONVIF destekli NVR'lar kullanılabilir.

DS-TCG406-E(ES) cep telefonundan nasıl izlenir?

Hikvision cihazları Hik-Connect mobil uygulamasıyla izlenir. Cihaz uygulamaya eklendikten sonra canlı izleme, kayıt izleme ve bildirim alma yapılabilir.

DS-TCG406-E(ES) fiyatı ne kadar?

DS-TCG406-E(ES) için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
