Hikvision

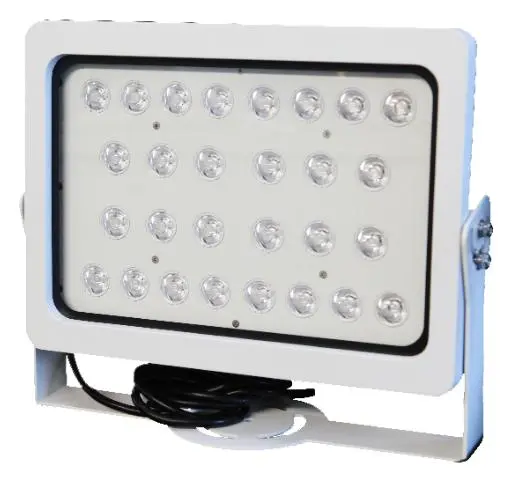

Hikvision DS-TL2002C Trafik Aydınlatma Ünitesi
Model
DS-TL2002CHikvision DS-TL2002C trafik aydınlatma ünitesi: Continuous light, high beam LED light source, 28 lamp beads, Aluminum alloy light body, fin-type radiator, and high light transmission with tempering glass, High beam LED chips with long lifespan, good stability and high luminous efficiency, Professional optic.
Fiyat ve stok bilgisi alınAynı gün dönüş
Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.
Distribütör garantili
81 ile sevkiyat
Teknik destek
- Continuous light, high beam LED light source, 28 lamp beads
- Aluminum alloy light body, fin-type radiator, and high light transmission with tempering glass
- High beam LED chips with long lifespan, good stability and high luminous efficiency
- Professional optical design, light uniformity and distinct target spot
- High beam light design with built-in automatic light control, open at low illumination
- Two grades of brightness control, adjust to different application conditions
- Novelty design( small size, light weight), easy for installation and adjustment
- Water and dust resistant (IP66)
Teknik özellikler
Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
Ek Işık 8 satır
| Light Type | White light |
|---|---|
| LED Lamp Beads | 28 |
| Center Illuminance | 50 lx |
| Angle of Light | 30° |
| Effective Distance | 16 to 50 m |
| Color Temperature | 2800 K to 3200 K |
| Service Life | ≥ 50000 Hours |
| Kapsama | 3 lane(s) |
Fonksiyon 3 satır
| Day and Night Function | Support ambient brightness detection, automatic start-up at low illumination |
|---|---|
| Brightness Control | Two grades of brightness control |
| Remote Control | Adopt remote start-up the supplement light via a control line |
Genel 8 satır
| Güç | 200 VAC to 240 VAC, 0.3 A, max. 56.8 W, three wires |
|---|---|
| Malzeme | Aluminium alloy |
| Boyutlar | 270.5 mm × 314 mm × 119.8 mm (10.65" × 12.36" × 4.72") (L × W × H) |
| Paket Boyutları | 430 mm × 380 mm × 215 mm (16.93" × 14.96" × 8.46") (L × W × H) |
| Ağırlık | Approx. 5.2 kg (11.40 lb.) |
| Paketli Ağırlık | Approx. 6.3 kg (13.87 lb.) |
| Çalışma Koşulları | -40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing) |
| Depolama Koşulları | -40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (Non-condensing) |
Onaylar 4 satır
| EMC | EN 50130-4:2011+A1:2014, EN 55032:2015+A11:2020+A1:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021 |
|---|---|
| Güvenlik | CB: IEC 60598-1:2020, IEC 60598-2-5:2015; CE-LVD: EN IEC 60598-1:2021+A11:2022, EN 60598-2-5:2015, EN IEC 62031:2020+A11:2022 |
| Çevre | CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006 |
| Koruma | IP66: IEC 60529: 1989+A1: 1999+A2: 2013 |
Genel bakış
Hikvision DS-TL2002C kullanım alanları ve özellikleri.
Hikvision DS-TL2002C bir Trafik Aydınlatma Ünitesi modelidir.
LED Continuous Supplement Light
- Continuous light, high beam LED light source, 28 lamp beads
- Aluminum alloy light body, fin-type radiator, and high light transmission with tempering glass
- High beam LED chips with long lifespan, good stability and high luminous efficiency
- Professional optical design, light uniformity and distinct target spot
- High beam light design with built-in automatic light control, open at low illumination
- Two grades of brightness control, adjust to different application conditions
- Novelty design( small size, light weight), easy for installation and adjustment
- Water and dust resistant (IP66)
- Green environmental protection without harmful metal such as mercury and lead
Tüm özellikler
- Continuous light, high beam LED light source, 28 lamp beads
- Aluminum alloy light body, fin-type radiator, and high light transmission with tempering glass
- High beam LED chips with long lifespan, good stability and high luminous efficiency
- Professional optical design, light uniformity and distinct target spot
- High beam light design with built-in automatic light control, open at low illumination
- Two grades of brightness control, adjust to different application conditions
- Novelty design( small size, light weight), easy for installation and adjustment
- Water and dust resistant (IP66)
- Green environmental protection without harmful metal such as mercury and lead
Dokümanlar
Veri sayfası ve kullanım kılavuzları.
Sık sorulanlar
DS-TL2002C hakkında kısa yanıtlar.
DS-TL2002C fiyatı ne kadar?
DS-TL2002C için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
Hızlı teklif
Formu doldurun, DS-TL2002C için fiyat ve teslim süresini iletelim.
