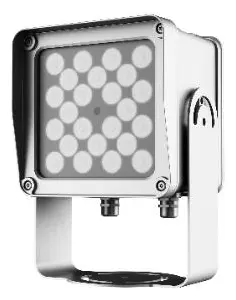

Hikvision DS-TL2024A Trafik Aydınlatma Ünitesi
Model
DS-TL2024AHikvision DS-TL2024A trafik aydınlatma ünitesi: Adopt aluminum alloy light body, fin-type radiator, and high light transmission with tempering glass., High beam LED chips with long lifespan, good stability and high luminous efficiency., Professional optical design, light uniformity and target spot distinct.
Fiyat ve stok bilgisi alınAynı gün dönüş
Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.
Distribütör garantili
81 ile sevkiyat
Teknik destek
- Adopt aluminum alloy light body, fin-type radiator, and high light transmission with tempering glass.
- High beam LED chips with long lifespan, good stability and high luminous efficiency.
- Professional optical design, light uniformity and target spot distinct.
- Adopt advanced constant current drive technology, which make the current control accurate and stable, enhance the product reliability and reduce the light attenuation effectively.
- Support camera false triggering protection, automatic protection initiation at the abnormal triggering signal and automatic recovery.
- The novelty design of the light, such as small size, light weight and high adaptability, make it quite easy for installation and adjustment.
- The IP66 design make it waterproof and dustproof unfailingly
- LED strobe light, PWM follow-up trigger, with frequency and duty cycle protection function, light-emitting angle of 10°, can cover three lanes with bracket for side mounting, and one lane for center mounting.
Teknik özellikler
Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
Ek Işık 13 satır
| Light Type | White light |
|---|---|
| LED Lamp Beads | 24 |
| Center Illuminance | 180 lx@50m |
| Angle of Light | 8° |
| Effective Distance | 24 to 50 m |
| Tepki Süresi | ≤ 20 us |
| Trigger Manner | TTL level (switch trigger optional) |
| Trigger Level | 5 to 6 V (High level trigger) |
| Trigger Frequency | 50 Hz |
| Trigger Duty Ratio | 5% (Enter the protection state at Duty Radio ≥ 6%) |
| Service Life | ≥ 50000 Hours |
| Kapsama | 1 lane(s) |
| Color Temperature | 5500 K to 5900 K |
Genel 8 satır
| Güç | AC 220 V ± 20% , 0.29 A, 63 W, three wires |
|---|---|
| Malzeme | Aluminum alloy |
| Boyutlar | 215.25 mm × 151 mm × 127.5 mm (8.47" × 5.94" × 5.02") (L × W × H) |
| Paket Boyutları | 290 mm × 247 mm × 230 mm (11.42" × 9.72" × 9.06") (L × W × H) |
| Ağırlık | Approx. 2.73 kg (6.02 lb.) |
| Paketli Ağırlık | Approx. 3.4 kg (7.5 lb.) |
| Çalışma Koşulları | -40 °C to 70 °C (-40 °F to 158 °F). Humidity: 10% to 90% (non-condensing) |
| Depolama Koşulları | -40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (Non-condensing) |
Onaylar 4 satır
| EMC | EN 50130-4:2011+A1:2014, EN 55032:2015+A11:2020+A1:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021 |
|---|---|
| Güvenlik | CB: IEC 60598-1:2020, IEC 60598-2-5:2015, IEC 62031:2018, IEC TR 62778:2014; CE-LVD: EN 60598-1, EN 60598-2-5, EN 62031 |
| Çevre | CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006 |
| Koruma | IP66: IEC 60529: 1989+A1: 1999+A2: 2013 |
Genel bakış
Hikvision DS-TL2024A kullanım alanları ve özellikleri.
Hikvision DS-TL2024A bir Trafik Aydınlatma Ünitesi modelidir.
LED Strobe Supplement Light
- Adopt aluminum alloy light body, fin-type radiator, and high light transmission with tempering glass.
- High beam LED chips with long lifespan, good stability and high luminous efficiency.
- Professional optical design, light uniformity and target spot distinct.
- Adopt advanced constant current drive technology, which make the current control accurate and stable, enhance the product reliability and reduce the light attenuation effectively.
- Support camera false triggering protection, automatic protection initiation at the abnormal triggering signal and automatic recovery.
- The novelty design of the light, such as small size, light weight and high adaptability, make it quite easy for installation and adjustment.
- The IP66 design make it waterproof and dustproof unfailingly
- LED strobe light, PWM follow-up trigger, with frequency and duty cycle protection function, light-emitting angle of 10°, can cover three lanes with bracket for side mounting, and one lane for center mounting.
Dokümanlar
Veri sayfası ve kullanım kılavuzları.
Sık sorulanlar
DS-TL2024A hakkında kısa yanıtlar.
DS-TL2024A fiyatı ne kadar?
DS-TL2024A için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
Hızlı teklif
Formu doldurun, DS-TL2024A için fiyat ve teslim süresini iletelim.
