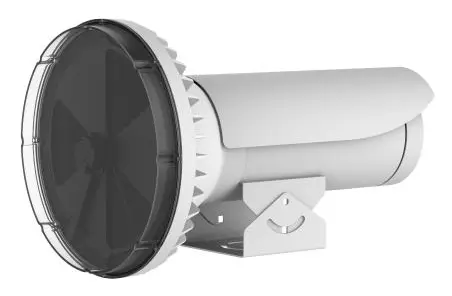

Hikvision DS-TL3000B-I Trafik Aydınlatma Ünitesi
Model
DS-TL3000B-IHikvision DS-TL3000B-I trafik aydınlatma ünitesi: 24 imported high brightness LED chips, long service life, good stability, high luminous efficiency, German Hyman lamp, reliable quality, long service life, Via professional optical design, effectively reduce light pollution, Adopt stepper motor function, to re.
Fiyat ve stok bilgisi alınAynı gün dönüş
Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.
Distribütör garantili
81 ile sevkiyat
Teknik destek
- 24 imported high brightness LED chips, long service life, good stability, high luminous efficiency
- German Hyman lamp, reliable quality, long service life
- Via professional optical design, effectively reduce light pollution
- Adopt stepper motor function, to realize IR filter switch
- LED control adopts advanced constant current drive technology
- Gas flashback time is less than 67 ms, support overspeed shoot
- Gas filling light control with peak inhibition function
- Support IR light LED strobe, white light gas flash, IR gas flash
Teknik özellikler
Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
Ek Işık 15 satır
| Light Type | IR light LED strobe, Hyman white & IR double xenon lamp |
|---|---|
| IR Dalga Boyu | ≥ 700nm |
| LED Lamp Beads | 24 |
| Center Illuminance | 450 lx |
| Angle of Light | 10° |
| Effective Distance | 16 to 30 m |
| Tepki Süresi | ≤ 20 us |
| Color Temperature | 3000K(strobe light); 7000K(flash light) |
| Trigger Manner | TTL level (switch trigger optional) |
| Trigger Level | 5 to 9 V (High level trigger) |
| Trigger Frequency | 0 to 250 Hz |
| Trigger Duty Ratio | 1% to 6% (Enter the protection state at Duty Radio ≥ 7%) |
| Flash Energy | 200 J |
| Service Life | ≥ 50000 Hours (Strobe light),≥ 20 million Times (Flash light) |
| Kapsama | 1 lane(s) |
Arayüz 2 satır
| Flash Trigger Input | 1 Flash trigger input |
|---|---|
| Strobe Trigger Input | 1 Strobe trigger input |
Fonksiyon 2 satır
| Day and Night Function | Destekleniyor |
|---|---|
| Brightness Control | Opsiyonel |
Genel 8 satır
| Güç | AC 220 V ±20%, 3.5 A, three wires |
|---|---|
| Malzeme | Aluminium alloy |
| Boyutlar | Ø305 mm × 497.16 mm (Ø12.01" × 19.57") |
| Paket Boyutları | 568 mm × 380 mm × 390 mm (22.4" × 15.0" × 15.4") (L × W × H) |
| Ağırlık | Approx. 7.1 kg (15.56 lb.) |
| Paketli Ağırlık | Approx. 8.4 kg (18.61 lb.) |
| Çalışma Koşulları | -40 °C to 60 °C (-40 °F to 140 °F). Humidity: 10% to 90% (non-condensing) |
| Depolama Koşulları | -40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (Non-condensing) |
Onaylar 4 satır
| EMC | EN 50130-4:2011+A1:2014, EN 55032:2015+A11:2020+A1:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021 |
|---|---|
| Güvenlik | CB: IEC 60598-1:2020, IEC 60598-2-5:2015, IEC 62031:2018, IEC TR 62778:2014; CE-LVD: EN 60598-1, EN 60598-2-5, EN 62031 |
| Çevre | CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006 |
| Koruma | IP66: IEC 60529: 1989+A1: 1999+A2: 2013 |
Genel bakış
Hikvision DS-TL3000B-I kullanım alanları ve özellikleri.
Hikvision DS-TL3000B-I bir Trafik Aydınlatma Ünitesi modelidir.
Multifunctional Supplement Light
- 24 imported high brightness LED chips, long service life, good stability, high luminous efficiency
- German Hyman lamp, reliable quality, long service life
- Via professional optical design, effectively reduce light pollution
- Adopt stepper motor function, to realize IR filter switch
- LED control adopts advanced constant current drive technology
- Gas flashback time is less than 67 ms, support overspeed shoot
- Gas filling light control with peak inhibition function
- Support IR light LED strobe, white light gas flash, IR gas flash
- Support camera misfire protection function
- IP66 design structure
Tüm özellikler
- 24 imported high brightness LED chips, long service life, good stability, high luminous efficiency
- German Hyman lamp, reliable quality, long service life
- Via professional optical design, effectively reduce light pollution
- Adopt stepper motor function, to realize IR filter switch
- LED control adopts advanced constant current drive technology
- Gas flashback time is less than 67 ms, support overspeed shoot
- Gas filling light control with peak inhibition function
- Support IR light LED strobe, white light gas flash, IR gas flash
- Support camera misfire protection function
- IP66 design structure
Dokümanlar
Veri sayfası ve kullanım kılavuzları.
Sık sorulanlar
DS-TL3000B-I hakkında kısa yanıtlar.
DS-TL3000B-I fiyatı ne kadar?
DS-TL3000B-I için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
