Hikvision

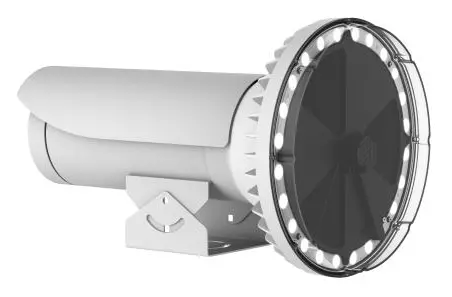

Hikvision DS-TL3000B Trafik Aydınlatma Ünitesi
Model
DS-TL3000BHikvision DS-TL3000B trafik aydınlatma ünitesi: Aluminum alloy lamp body, fin type heat radiator structure. Mask use of high temperature resistant PC material, 24 imported high brightness LED chips, long service life, good stability, high luminous efficiency, German Hyman lamp, reliable quality, long servic.
Fiyat ve stok bilgisi alınAynı gün dönüş
Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.
Distribütör garantili
81 ile sevkiyat
Teknik destek
- Aluminum alloy lamp body, fin type heat radiator structure. Mask use of high temperature resistant PC material
- 24 imported high brightness LED chips, long service life, good stability, high luminous efficiency
- German Hyman lamp, reliable quality, long service life
- Via professional optical design, effectively reduce light pollution
- Adopt stepper motor function, to realize IR filter switch
- LED control adopts advanced constant current drive technology
- Gas flashback time is less than 67 ms, support overspeed shoot
- Gas filling light control with peak inhibition function
Teknik özellikler
Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
Ek Işık 15 satır
| Light Type | Warm light strobe LED, Hyman white & IR double xenon lamp |
|---|---|
| IR Dalga Boyu | ≥ 700nm |
| LED Lamp Beads | 24 |
| Center Illuminance | 350 lx |
| Angle of Light | 10° |
| Effective Distance | 16 to 30 m |
| Tepki Süresi | ≤ 20 us |
| Color Temperature | 3000K(strobe light); 7000K(flash light) |
| Trigger Manner | TTL level (switch trigger optional) |
| Trigger Level | 5 to 9 V (High level trigger) |
| Trigger Frequency | 0 to 250 Hz |
| Trigger Duty Ratio | 1% to 6% (Enter the protection state at Duty Radio ≥ 7%) |
| Flash Energy | 200 J |
| Service Life | ≥ 50000 Hours (Strobe light),≥ 20 million Times (Flash light) |
| Kapsama | 1 lane(s) |
Arayüz 2 satır
| Flash Trigger Input | 1 Flash trigger input |
|---|---|
| Strobe Trigger Input | 1 Strobe trigger input |
Fonksiyon 2 satır
| Day and Night Function | Destekleniyor |
|---|---|
| Brightness Control | Opsiyonel |
Genel 8 satır
| Güç | AC 220 V ±20%, 3.5 A, three wires |
|---|---|
| Malzeme | Aluminium alloy |
| Boyutlar | Ø305 mm × 497.16 mm (Ø12.01" × 19.57") |
| Paket Boyutları | 568 mm × 380 mm × 390 mm (22.4" × 15.0" × 15.4") (L × W × H) |
| Ağırlık | Approx. 7.1 kg (15.56 lb.) |
| Paketli Ağırlık | Approx. 8.4 kg (18.61 lb.) |
| Çalışma Koşulları | -40 °C to 60 °C (-40 °F to 140 °F). Humidity: 10% to 90% (non-condensing) |
| Depolama Koşulları | -40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (Non-condensing) |
Onaylar 4 satır
| EMC | EN 50130-4:2011+A1:2014, EN 55032:2015+A11:2020+A1:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021 |
|---|---|
| Güvenlik | CB: IEC 60598-1:2020, IEC 60598-2-5:2015, IEC 62031:2018, IEC TR 62778:2014; CE-LVD: EN 60598-1, EN 60598-2-5, EN 62031 |
| Çevre | CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006 |
| Koruma | IP66: IEC 60529: 1989+A1: 1999+A2: 2013 |
Genel bakış
Hikvision DS-TL3000B kullanım alanları ve özellikleri.
Hikvision DS-TL3000B bir Trafik Aydınlatma Ünitesi modelidir.
Multifunctional Supplement Light
- Aluminum alloy lamp body, fin type heat radiator structure. Mask use of high temperature resistant PC material
- 24 imported high brightness LED chips, long service life, good stability, high luminous efficiency
- German Hyman lamp, reliable quality, long service life
- Via professional optical design, effectively reduce light pollution
- Adopt stepper motor function, to realize IR filter switch
- LED control adopts advanced constant current drive technology
- Gas flashback time is less than 67 ms, support overspeed shoot
- Gas filling light control with peak inhibition function
- Support warm light LED strobe, white light gas flash, IR gas flash
- Support camera misfire protection function
- IP66 design structure
Tüm özellikler
- Aluminum alloy lamp body, fin type heat radiator structure. Mask use of high temperature resistant PC material
- 24 imported high brightness LED chips, long service life, good stability, high luminous efficiency
- German Hyman lamp, reliable quality, long service life
- Via professional optical design, effectively reduce light pollution
- Adopt stepper motor function, to realize IR filter switch
- LED control adopts advanced constant current drive technology
- Gas flashback time is less than 67 ms, support overspeed shoot
- Gas filling light control with peak inhibition function
- Support warm light LED strobe, white light gas flash, IR gas flash
- Support camera misfire protection function
- IP66 design structure
Dokümanlar
Veri sayfası ve kullanım kılavuzları.
Sık sorulanlar
DS-TL3000B hakkında kısa yanıtlar.
DS-TL3000B fiyatı ne kadar?
DS-TL3000B için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
Hızlı teklif
Formu doldurun, DS-TL3000B için fiyat ve teslim süresini iletelim.
