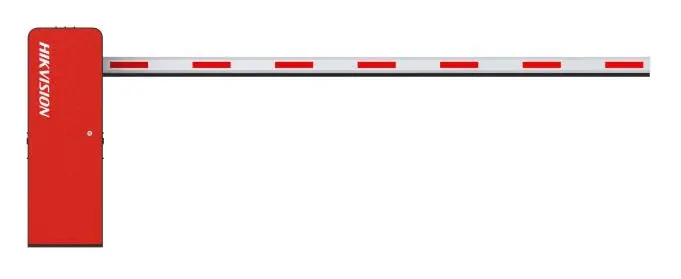

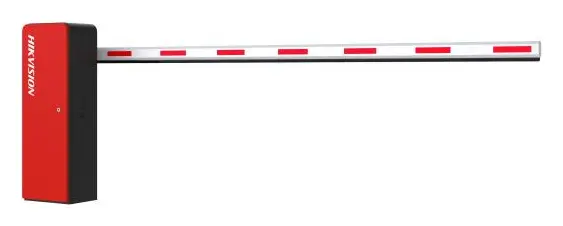

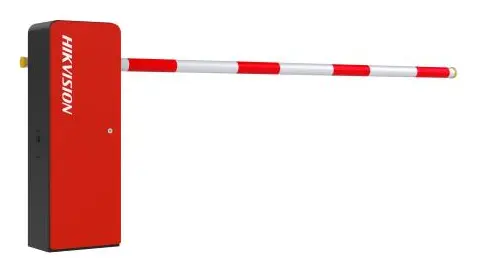

Hikvision DS-TMG420 Otopark Bariyeri
Model
DS-TMG420Hikvision DS-TMG420 otopark bariyeri: Adopts integrated machine core. Parallel gear decelerates linkage arm transmission to ensure stability and efficiency., Supports convenient side installation with compact structure., Adopts quenching process for carbon steel gear to realize wear-resistant and.
Fiyat ve stok bilgisi alınAynı gün dönüş
Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.
Distribütör garantili
81 ile sevkiyat
Teknik destek
- Adopts integrated machine core. Parallel gear decelerates linkage arm transmission to ensure stability and efficiency.
- Supports convenient side installation with compact structure.
- Adopts quenching process for carbon steel gear to realize wear-resistant and impact-resistant functions and extend product life.
- Adopts small DC brushless motor with low noise to increase output torque and realize precise intelligent control.
- Supports rebound for obstacle and opening priority.
- Adopts DC variable frequency control to enable smooth operation with fast boom pole opening and slow boom pole closing.
- Supports event log to enable convenient monitoring.
- Supports multiple anti-fall modes such as IR, vehicle detectors, and radars.
Teknik özellikler
Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
Barrier Housing 7 satır
| Barrier Housing Material | SGCC |
|---|---|
| Barrier Housing Thickness | 1.5 mm |
| Barrier Housing Door Thickness | 1.2 mm |
| Barrier Housing Color | Iron gray |
| Barrier Housing Door Color | Orange red |
| Boom Pole Installation Height | 885 mm |
| Body Indicators | DS-TMG420, DS-TMG420-L, DS-TMG420-R: no body indicator; DS-TMG420/B, DS-TMG420-L/B, DS-TMG420-R/B, DS-TMG420/A/B, DS-TMG420-L/A/B, DS-TMG420-R/A/B: with body indicator. Green: arrow indicator. Red: prohibition indicator |
Bariyer Genel 11 satır
| Rising Speed | 3m octagonal and 3m anti-collusion round: 2s, 4m octagonal and 4m anti-collusion round: 3s, 6m octagonal: 5s |
|---|---|
| Falling Speed | 3m octagonal and 3m anti-collusion round: 2s, 4m octagonal and 4m anti-collusion round: 3s, 6m octagonal: 5s |
| Boom Pole Direction | DS-TMG420, DS-TMG420/B, DS-TMG420/A/B: right by default; DS-TMG420-L/B, DS-TMG420-L/A/B: Left; DS-TMG420-R/B, DS-TMG420-R/A/B: Right |
| Motor Type | DC brushless motor |
| Matched Boom Pole Type | Cylinder boom pole: 1 to 4 m, anti-collision; Octagonal boom pole: 1 to 6 m; Octagonal telescopic boom pole: 4 to 6 m; Boom pole ≥ 5 m: with spindle rod |
| Boom Pole Falling Delay | 10 s by default (configurable), min. 2 s (every 2 s followed a gap) |
| Number of Cycles | 5,000,000 |
| Tüketim | DS-TMG420, DS-TMG420-L, DS-TMG420-R: Max. 125 W; DS-TMG420/B, DS-TMG420-L/B, DS-TMG420-R/B: Max. 139 W; DS-TMG420/A/B, DS-TMG420-L/A/B, DS-TMG420-R/A/B: Max. 155 W |
| Temperature and Humidity | Temperature: -30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 90% |
| Rising Boom Pole for Poweroff | Optional, not supported by default |
| Çalışma Gerilimi | 100-120VAC / 200-240VAC (default 220-240V, switchable) |
Barrier Gate 1 satır
| Duty Cycle | 100% |
|---|
Arayüz 8 satır
| RS-485 | 1 group |
|---|---|
| Rising to Limit | 1 group |
| Falling to Limit | 1 group |
| Open | 1 group |
| Close | 1 group |
| Stop | 1 group |
| IR/Vehicle Detector/Radar | 1 group |
| Traffic Signal Light | 1 group, external power supply required, max. 220 VAC supported |
Boom Pole 7 satır
| Boom Pole Color | White background with red bar |
|---|---|
| Boom Pole Weight | 2 m octagonal boom pole: 2.5 ± 0.3 kg (5.51 ± 0.66 lb.); 3 m octagonal boom pole: 2.8 ± 0.3 kg (6.17 ± 0.66 lb.); 4 m octagonal boom pole: 3.45 ± 0.3 kg (7.60 ± 0.66 lb.); 5 m octagonal boom pole: 5.9 ± 0.3 kg (13.00 ± 0.66 lb.); 6 m octagonal boom pole: 6.8 ± 0.3 kg (15.21 ± 0.66 lb.); 3 m boom pole with LED strip light: 3.4 ± 0.3 kg (7.50 ± 0.66 lb.); 4 m boom pole with LED strip light: 4.4 ± 0.3 kg (9.70 ± 0.66 lb.); 4 m octagonal telescopic boom pole: 4.42 ± 0.3 kg (9.74 ± 0.66 lb.); 5 m oct |
| Boom Pole Dimensions (with Package) | 2 m octagonal boom pole: 115 × 60 × 2020 mm (4.53 × 2.36 × 79.53 inch); 3 m octagonal boom pole: 115 × 60 × 3020 mm (4.53 × 2.36 × 118.90 inch); 4 m octagonal boom pole: 115 × 60 × 4020 mm (4.53 × 2.36 × 158.27 inch); 5 m octagonal boom pole: 140 × 65 × 5030 mm (5.51 × 2.56 × 198.03 inch); 6 m octagonal boom pole: 140 × 65 × 6030 mm (5.51 × 2.56 × 237.40 inch); 3 m boom pole with LED strip light: 100 × 60 × 3035 mm (3.94 × 2.36 × 120.07 inch); 4 m boom pole with LED strip light: 100 × 60 × 4035 |
| Boom Pole Weight (with Package) | 2 m octagonal boom pole: 2.37 ± 0.3 kg (5.22 ± 0.66 lb.); 3 m octagonal boom pole: 3.11 ± 0.3 kg (6.86 ± 0.66 lb.); 4 m octagonal boom pole: 3.965 ± 0.3 kg (8.74 ± 0.66 lb.); 5 m octagonal boom pole: 7.01 ± 0.3 kg (15.45 ± 0.66 lb.); 6 m octagonal boom pole: 8.245 ± 0.3 kg (18.18 ± 0.66 lb.); 3 m boom pole with LED strip light: 4.0 ± 0.3 kg (8.82 ± 0.66 lb.); 4 m boom pole with LED strip light: 5.2 ± 0.3 kg (11.46 ± 0.66 lb.); 4 m octagonal telescopic boom pole: 5.11 ± 0.3 kg (11.27 ± 0.66 lb.); |
| Color of Boom Pole with LED Strip Light | DS-TMG420, DS-TMG420-L, DS-TMG420-R, DS-TMG420/B, DS-TMG420-L/B, DS-TMG420-R/B: no boom pole with LED strip light; DS-TMG420/A/B, DS-TMG420-L/A/B, DS-TMG420-R/A/B: with boom pole with LED strip light, green indicator for boom pole opening status; Boom pole other status: red indicator; Photometric parameters: Red: luminous flux 39.44 lm, light effect 17.86 lm/W; Green: luminous flux 107.56 lm, light effect 45.65 lm/W; Working life (lighting time): 5800 h |
| Boom Pole Dimensions | 2 m octagonal boom pole: 98 × 45 × 2000 mm (3.86 × 1.77 × 78.74 inch); 3 m octagonal boom pole: 98 × 45 × 3000 mm (3.86 × 1.77 × 118.11 inch); 4 m octagonal boom pole: 98 × 45 × 4000 mm (3.86 × 1.77 × 157.48 inch); 5 m octagonal boom pole: 119 × 55 × 5000 mm (4.69 × 2.17 × 196.85 inch); 6 m octagonal boom pole: 119 × 55 × 6000 mm (4.69 × 2.17 × 236.22 inch); 3 m boom pole with LED strip light: 95 × 49 × 3013 mm (3.74 × 1.93 × 118.62 inch); 4 m boom pole with LED strip light: 95 × 49 × 4013 mm (3 |
| Boom Pole Material | AL6061 |
Onaylar 5 satır
| RF | CE-RED; EN 300220-1 V3.1.1; EN 300220-2 V3.1.1; EN 301489-1 V2.2.3; EN 301489-3 V2.1.1; EN IEC 62311: 2020 |
|---|---|
| EMC | CE-EMC: ; EN 55032: 2015/A11: 2020 + A1: 2020; EN IEC 61000-3-2: 2019/A1: 2021; EN 61000-3-3: 2013 + A1: 2019/A2: 2021; EN 50130-4: 2011 + A1: 2014 |
| Güvenlik | CE-LVD: EN 62368-1: 2014/A11: 2017; CB: IEC 62368-1: 2014; IEC 62368-1: 2018 |
| Çevre | ROHS |
| Koruma | IP54, IK09 |
Paket 4 satır
| Barrier Housing Dimensions (L × W × H) | 1060 × 370 × 262 mm (41.73 × 14.57 × 10.31 inch) |
|---|---|
| Body Weight | 43 ± 3 kg (94.8 ± 6.61 lb.) |
| Body Dimensions (with Package, Without Boom Pole) (L × W × H) | 1266 × 504 × 626 mm (49.84 × 19.84 × 24.65 inch) |
| Body Weight (with Package, Without Boom Pole) | 47 ± 3 kg (103.61 ± 6.61 lb.) |
Genel bakış
Hikvision DS-TMG420 kullanım alanları ve özellikleri.
Hikvision DS-TMG420, 4 series Barrier Gates ürün ailesinden bir Otopark Bariyeri modelidir.
Barrier gates with straight boom pole
- Adopts integrated machine core. Parallel gear decelerates linkage arm transmission to ensure stability and efficiency.
- Supports convenient side installation with compact structure.
- Adopts quenching process for carbon steel gear to realize wear-resistant and impact-resistant functions and extend product life.
- Adopts small DC brushless motor with low noise to increase output torque and realize precise intelligent control.
- Supports rebound for obstacle and opening priority.
- Adopts DC variable frequency control to enable smooth operation with fast boom pole opening and slow boom pole closing.
- Supports event log to enable convenient monitoring.
- Supports multiple anti-fall modes such as IR, vehicle detectors, and radars.
- Supports fault code detection on the nixie tube, log record, and abundant status indicating. Based on the fault code displayed on the nixie tube, you can realize quickly problems locating and maintenance.
- Supports manually opening boom pole. You can turn hand wheel to keep barrier gate opening during power cutoff.
- Delayed boom pole closing (10 s delay time by default). Supports 99 shifts (initial status 2 s, 2 s gap between each shift).
- Supports auto boom pole opening during power cutoff. The barrier gate can open automatically to allow fire trucks in (optional components required).
Nerelerde kullanılır?
Site, otopark ve tesis girişlerinde araç trafiğini kontrol eder; plaka tanıma, kart okuyucu veya uzaktan kumandayla entegre çalışır.
Kurulum ve uyumluluk
Kurulum ve kullanıcı yönetimi Hik-Connect uygulaması veya web arayüzü üzerinden yapılır.
Tüm özellikler
- Adopts integrated machine core. Parallel gear decelerates linkage arm transmission to ensure stability and efficiency.
- Supports convenient side installation with compact structure.
- Adopts quenching process for carbon steel gear to realize wear-resistant and impact-resistant functions and extend product life.
- Adopts small DC brushless motor with low noise to increase output torque and realize precise intelligent control.
- Supports rebound for obstacle and opening priority.
- Adopts DC variable frequency control to enable smooth operation with fast boom pole opening and slow boom pole closing.
- Supports event log to enable convenient monitoring.
- Supports multiple anti-fall modes such as IR, vehicle detectors, and radars.
- Supports fault code detection on the nixie tube, log record, and abundant status indicating. Based on the fault code displayed on the nixie tube, you can realize quickly problems locating and maintenance.
- Supports manually opening boom pole. You can turn hand wheel to keep barrier gate opening during power cutoff.
- Delayed boom pole closing (10 s delay time by default). Supports 99 shifts (initial status 2 s, 2 s gap between each shift).
- Supports auto boom pole opening during power cutoff. The barrier gate can open automatically to allow fire trucks in (optional components required).
Dokümanlar
Veri sayfası ve kullanım kılavuzları.
Sık sorulanlar
DS-TMG420 hakkında kısa yanıtlar.
DS-TMG420 fiyatı ne kadar?
DS-TMG420 için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
