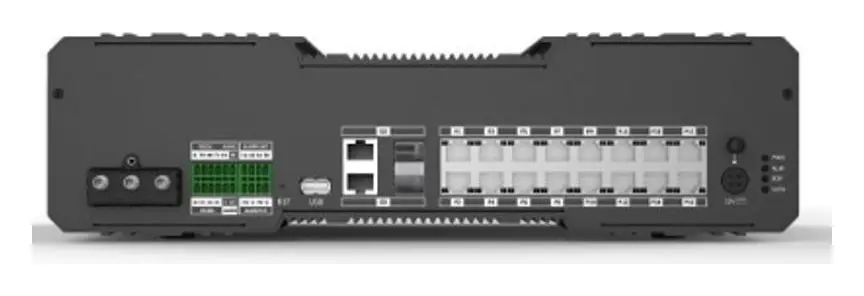

Hikvision DS-TP50-16E Trafik Kontrol Cihazı
Model
DS-TP50-16EHikvision DS-TP50-16E trafik kontrol cihazı: Up to 16 cameras can be connected for video/audio storage, picture saving and uploading., Supports OSD function and image composition function., Convenient HDD design for easy installation/uninstallation and maintenance., Low power consumption design, and the.
Fiyat ve stok bilgisi alınAynı gün dönüş
Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.
Distribütör garantili
81 ile sevkiyat
Teknik destek
- Up to 16 cameras can be connected for video/audio storage, picture saving and uploading.
- Supports OSD function and image composition function.
- Convenient HDD design for easy installation/uninstallation and maintenance.
- Low power consumption design, and the working temperature is from -40°C to 70°C.
- Audio alarm is triggered when opening the cabinet door, and the alarm will be uploaded to the center.
- (Optional) Equipped with GPS module.
- At least 2 remote hosts and 2 FTP hosts can be linked for data uploading.
- Web operation is supported.
Teknik özellikler
Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
Arayüz 8 satır
| Ağ Arayüzü | 16 x 1000 M Ethernet interface, 1 x internal 10/100/1000 M self-adaptive Ethernet interface, 1 x external 10/100/1000 M self-adaptive Ethernet interface, 1 x internal 1000 M fiber interface, 1 x external 1000 M fiber interface |
|---|---|
| Ses Girişi | 2 |
| Ses Çıkışı | 2 |
| Alarm Girişi | 2 |
| Alarm Çıkışı | 2 |
| RS-232 Interface | 2 |
| RS-485 Arayüzü | 2 |
| USB | 1 |
Fonksiyon 4 satır
| Data Storage | Vehicle information (passing records and pictures) storage |
|---|---|
| Video Recording | Video recording function. Recording duration is determined by the stream size and the HDD capacity. |
| Data Uploading | ANPR and manual uploading |
| Network Settings | Able to set two-segment IP address |
Sistem 6 satır
| İşlemci | High-performance ARM A17 processor |
|---|---|
| İşletim Sistemi | Embedded Linux operating system |
| Operating GUI | WEB |
| HDD Storage | 4 x SATA (Each SATA interface supports up to 6TB HDD.) |
| Sıfırlama | 1 x RESET button |
| Gösterge | 4 x indicator (1 x Power Indicator, 1 x Alarm Indicator, 1 x HDD Indicator, 1 x Ready Indicator) |
Genel 4 satır
| Çalışma Sıcaklığı | -40 °C to +70 °C (-40 °F to +158 °F) |
|---|---|
| Çalışma Nemi | 10% to 90% |
| Güç Kaynağı | 12 VDC/12.5 A |
| Dimension(L × W × H) | 370 × 273 × 102.5 mm (14.6 × 10.7 × 4.03 inch) |
Genel bakış
Hikvision DS-TP50-16E kullanım alanları ve özellikleri.
Hikvision DS-TP50-16E bir Trafik Kontrol Cihazı modelidir.
Traffic Management Server
- Up to 16 cameras can be connected for video/audio storage, picture saving and uploading.
- Supports OSD function and image composition function.
- Convenient HDD design for easy installation/uninstallation and maintenance.
- Low power consumption design, and the working temperature is from -40°C to 70°C.
- Audio alarm is triggered when opening the cabinet door, and the alarm will be uploaded to the center.
- (Optional) Equipped with GPS module.
- At least 2 remote hosts and 2 FTP hosts can be linked for data uploading.
- Web operation is supported.
- SDK
Tüm özellikler
- Up to 16 cameras can be connected for video/audio storage, picture saving and uploading.
- Supports OSD function and image composition function.
- Convenient HDD design for easy installation/uninstallation and maintenance.
- Low power consumption design, and the working temperature is from -40°C to 70°C.
- Audio alarm is triggered when opening the cabinet door, and the alarm will be uploaded to the center.
- (Optional) Equipped with GPS module.
- At least 2 remote hosts and 2 FTP hosts can be linked for data uploading.
- Web operation is supported.
- SDK
Dokümanlar
Veri sayfası ve kullanım kılavuzları.
Sık sorulanlar
DS-TP50-16E hakkında kısa yanıtlar.
DS-TP50-16E fiyatı ne kadar?
DS-TP50-16E için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
