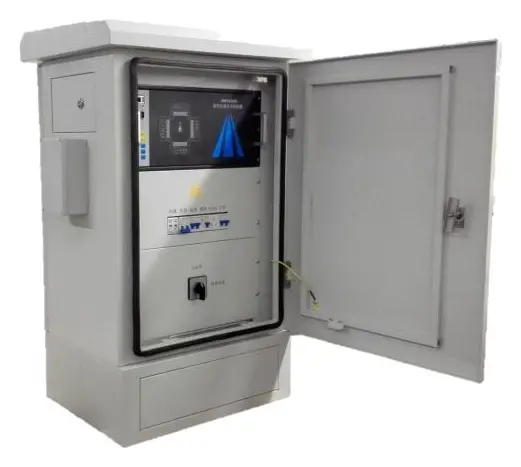

Hikvision DS-TSC300-44H/HK3 Trafik Kontrol Cihazı
Model
DS-TSC300-44H/HK3Hikvision DS-TSC300-44H/HK3 trafik kontrol cihazı: Modular design method，easy to install and maintain, Using controllable silicon to control the signal light，keeping the device stable, Using open, standard communication protocol, easy to extend, Equipped with display and control panel, which can real-time mo.
Fiyat ve stok bilgisi alınAynı gün dönüş
Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.
Distribütör garantili
81 ile sevkiyat
Teknik destek
- Modular design method，easy to install and maintain
- Using controllable silicon to control the signal light，keeping the device stable
- Using open, standard communication protocol, easy to extend
- Equipped with display and control panel, which can real-time monitor and manually adjust the signal status
- Auto-monitoring system for the communication modules and lights. It will automatically alert and react to any problems that arise
- Equipped with independent yellow flash controller，enhancing the security；
- Manually control the on and off of a channel/a light separately, which is convenient for wiring inspection during debugging and lamp status inspection during maintenance
- Support online upgrades without interrupting the running of the scheme
Teknik özellikler
Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
Fonksiyon 9 satır
| Signal Control Board and Channel | 4 output board(s), supporting 44 channel(s) and 16 group(s) signal lights (12 groups for vehicle + 4 groups for pedestrian) |
|---|---|
| Timing Strategy | Supporting 64 phases, 255 patterns, 64 plans, 255 Schemes(Adjustable on demand) |
| Signal Control Mode | •Fixed Cycle: A preset time is given to each movement every cycle, Multiple phase/cycle parameters can be set in different time periods.; •Full-Actuated: Real-time optimization of green light timing based on traffic data, such as lane flow, in all lanes at the intersection.; •Semi-Actuated: Based on traffic data in certain lanes, such as flow, it provides real-time optimization of the green light duration for the main lanes and reduces the unnecessary green light duration for the secondary lanes |
| Control Type | Local mode, web control, HCM control, manual key control, third-party platform control |
| Manual Control | Auto, Manual, Step-to-Step, Yellow Flash, All Red and Special Directional control |
| Web Yapılandırma | Supports web browser configuration, 3D interface display of the real-time status of the intersection |
| Zaman Senkronizasyonu | Supports NTP time synchronization, satellite time synchronization (GPS antenna installation required), manual time configuration, and third-party platform time synchronization |
| Countdown Timer Access | Self-learning mode, Pulse countdown, Chinese standard 2014/2004 |
| Upgrade | Supports silent and restart upgrades |
Ağ 5 satır
| Ağ Protokolü | TCP/IP, HTTP, NTP, IPv4,802.1X, UDP |
|---|---|
| İstemci | HikCentral Master Lite, Hik-Central Master |
| Web Tarayıcı | chrome 100+ |
| API | connect to the HCM through the OpenAPI, or connect the device throught NTCIP |
| Güvenlik | Password protection, Complicated password,802.1X authentication (EAP-PEAP, EAP-LEAP, EAP-MD5), IP address filter, Host authentication (MAC address), Security audit log, Basic and digest authentication for HTTP/HTTPS |
Arayüz 8 satır
| Ethernet Arayüzü | 1 RJ45 10M/100M self-adaptive Ethernet interface |
|---|---|
| RS-485 | 2 × RS-485 interface(s) |
| RS-232 | 1 × RS-232 interface(s) |
| USB | 1 × USB 2.0 |
| Alarm | Supports 8-ch pedestrian button input(s) |
| Control Panel | 13 buttons: auto, manual, step-to-step, yellow flash, all red and special directional control buttons |
| Wireless Controller (Optional) | 5 buttons: Auto, manual, all red, yellow flash, and step-by-step control, or button customization |
| GPS (Optional) | ( Optional ) Support GPS Satellite Signal Real-time Timing |
Genel 14 satır
| Güç Çıkışı | AC 100 V to 240 V,50/60 Hz |
|---|---|
| Power Input | AC 100 V to 240 V,50/60 Hz |
| Overall Power Consumption | ≤ 35 W (no load) |
| Signal Channel Consumption | ≤400W@AC220V;≤200W@AC110V |
| Insulation Resistance | ≥ 100 MΩ |
| Backup Power Supply | Supports manual switching of main and backup power supply |
| Çalışma Koşulları | -40 °C to 70 °C (-40 °F to 158 °F). Humidity: 95% or less (non-condensing) |
| Depolama Koşulları | -40 °C to 70 °C (-40 °F to 158 °F). Humidity: 95% or less (non-condensing) |
| Montaj Şekli | Floor-standing |
| Net Ağırlık | Approx. 86.1 kg (189.82 lb.) |
| Brüt Ağırlık | Approx. 93 kg (205.03 lb.) |
| Dimensions (Without Package) | 680 mm × 500 mm × 1081.8 mm (26.77" × 19.69" × 42.59") (L × W × H) |
| Boyutlar (Paketli) | 870 mm × 670 mm × 1270 mm (34.25" × 26.38" × 50.00") (L × W × H) |
| Kabin Malzemesi | SECC |
Onaylar 4 satır
| EMC | EN 50293:2012 |
|---|---|
| Güvenlik | EN IEC:62311-1:2021, EN IEC:62311-2:2021 |
| Çevre | CE-RoHS: 2011/65/EU |
| Koruma | IK10: IEC 62262:2002, IP54: IEC 60529-2013 |
Genel bakış
Hikvision DS-TSC300-44H/HK3 kullanım alanları ve özellikleri.
Hikvision DS-TSC300-44H/HK3 bir Trafik Kontrol Cihazı modelidir.
Traffic Signal Controller
- Modular design method，easy to install and maintain
- Using controllable silicon to control the signal light，keeping the device stable
- Using open, standard communication protocol, easy to extend
- Equipped with display and control panel, which can real-time monitor and manually adjust the signal status
- Auto-monitoring system for the communication modules and lights. It will automatically alert and react to any problems that arise
- Equipped with independent yellow flash controller，enhancing the security；
- Manually control the on and off of a channel/a light separately, which is convenient for wiring inspection during debugging and lamp status inspection during maintenance
- Support online upgrades without interrupting the running of the scheme
- Log level: debug, info, warning, error, fault
Tüm özellikler
- Modular design method，easy to install and maintain
- Using controllable silicon to control the signal light，keeping the device stable
- Using open, standard communication protocol, easy to extend
- Equipped with display and control panel, which can real-time monitor and manually adjust the signal status
- Auto-monitoring system for the communication modules and lights. It will automatically alert and react to any problems that arise
- Equipped with independent yellow flash controller，enhancing the security；
- Manually control the on and off of a channel/a light separately, which is convenient for wiring inspection during debugging and lamp status inspection during maintenance
- Support online upgrades without interrupting the running of the scheme
- Log level: debug, info, warning, error, fault
Sık sorulanlar
DS-TSC300-44H/HK3 hakkında kısa yanıtlar.
DS-TSC300-44H/HK3 fiyatı ne kadar?
DS-TSC300-44H/HK3 için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
