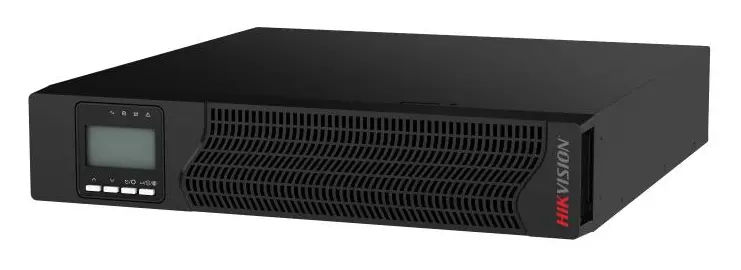

Hikvision DS-UPS10K-R/TJL UPS Güç Kaynağı
Model
DS-UPS10K-R/TJLHikvision DS-UPS10K-R/TJL UPS güç kaynağı: Double conversion on-line design with input power factor correction (PFC) technology, achieving an input power factor of up to 0.99., Digital control system for enhanced stability and reliability., ECO operation mode for improved energy efficiency and reduced.
Fiyat ve stok bilgisi alınAynı gün dönüş
Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.
Distribütör garantili
81 ile sevkiyat
Teknik destek
- Double conversion on-line design with input power factor correction (PFC) technology, achieving an input power factor of up to 0.99.
- Digital control system for enhanced stability and reliability.
- ECO operation mode for improved energy efficiency and reduced user costs.
- Three-stage charging: constant current charging, constant voltage charging, and floating charging stages are intelligently managed.
- Wide voltage input and frequency range for stable operation with different electrical scenario, and suit with various fuel generators.
- Comprehensive protections including output overload, output short-circuit, over-temperature, battery under-voltage warning, battery over-charging protection, and power-on self-diagnostic function;
Teknik özellikler
Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
Güç 1 satır
| UPS Capacity | 10000 VA / 10000 W |
|---|
Giriş 5 satır
| Nominal Voltage | 208/220/230/240Vac |
|---|---|
| Phase | Single Phase |
| Input Voltage Range | 110~300Vac (110~300Vac@50% load/176~300Vac@100% load) |
| Input Frequency | 40~70Hz (50/60Hz Auto-Sensing) |
| Power factor | ≥0.99 |
Çıkış 8 satır
| Çıkış Gerilimi | 208/220/230/240Vac |
|---|---|
| Crest factor | 3:1 |
| Power factor | 1 |
| Output Sockets | IEC version: Connecting terminal +IEC socket; US version: Connecting terminal+US socket panel |
| Output Frequency | Online mode: ±1%/±2%/±4%/±5%/±10% of the rated frequency (Optional) Battery mode: (50/60±0.1%)Hz |
| Harmonic distortion (THDv) | ≤1% Linear load; ≤3% Non linear load |
| Transfer Time | AC mode to Bat.mode: 0ms Inverter to Bypass: 0ms |
| Output Waveform | Pure Sinewave |
Pil 5 satır
| Pil Tipi | Valve Regulated Lead Acid (VRLA) |
|---|---|
| DC System Voltage (VDC) | 192/240Vdc (Settable) |
| Charging Current (Max.) | 15A |
| Expandable Runtime | Yes, External battery pack: DS-UPSB09192A-R/TJ, or DS-UPSB09240A-R/TJ |
| Typical Backup Time | View Runtime Graph |
Gösterge 2 satır
| Alarm | Battery mode/Battery low voltage/Overload/Fault |
|---|---|
| LCD display | Input voltage, Input frequency, Output voltage, Output frequency, Load percentage, Battery voltage, Inner temperature & Remaining battery backup time |
Verimlilik 2 satır
| AC Mode | Up to 95.5% |
|---|---|
| Battery Mode | Up to 93.5% |
Ortam 5 satır
| Çalışma Sıcaklığı | 0℃~40℃ |
|---|---|
| Depolama Sıcaklığı | -25℃~55℃ |
| Humidity Range | 0~95% (Non - condensing) |
| Altitude | 0~3000m (1000~3000m derating required) |
| Noise Level | ≤50dB |
Fiziksel 2 satır
| Dimension W x D x H (mm) | 440×681.5×131 |
|---|---|
| Net weight (kg) | 17 |
Standartlar 2 satır
| Güvenlik | CE-LVD IEC/EN 62040-1, IEC/EN 62477-1 |
|---|---|
| EMC | CE-EMC IEC/EN 62040-2 (IEC61000-4-2, IEC61000-4-3, IEC61000-4-4, IEC61000-4-5, IEC61000-4-6, IEC61000-4-8, IEC61000-4-11, IEC61000-2-2) |
Genel bakış
Hikvision DS-UPS10K-R/TJL kullanım alanları ve özellikleri.
Hikvision DS-UPS10K-R/TJL bir UPS Güç Kaynağı modelidir.
10000VA/10000W Uninterruptible Power Supply (Without built-in battery)
- Double conversion on-line design with input power factor correction (PFC) technology, achieving an input power factor of up to 0.99.
- Digital control system for enhanced stability and reliability.
- ECO operation mode for improved energy efficiency and reduced user costs.
- Three-stage charging: constant current charging, constant voltage charging, and floating charging stages are intelligently managed.
- Wide voltage input and frequency range for stable operation with different electrical scenario, and suit with various fuel generators.
- Comprehensive protections including output overload, output short-circuit, over-temperature, battery under-voltage warning, battery over-charging protection, and power-on self-diagnostic function;
Dokümanlar
Veri sayfası ve kullanım kılavuzları.
Sık sorulanlar
DS-UPS10K-R/TJL hakkında kısa yanıtlar.
DS-UPS10K-R/TJL fiyatı ne kadar?
DS-UPS10K-R/TJL için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
