Panoramik & Fisheye Kamera DeepinView

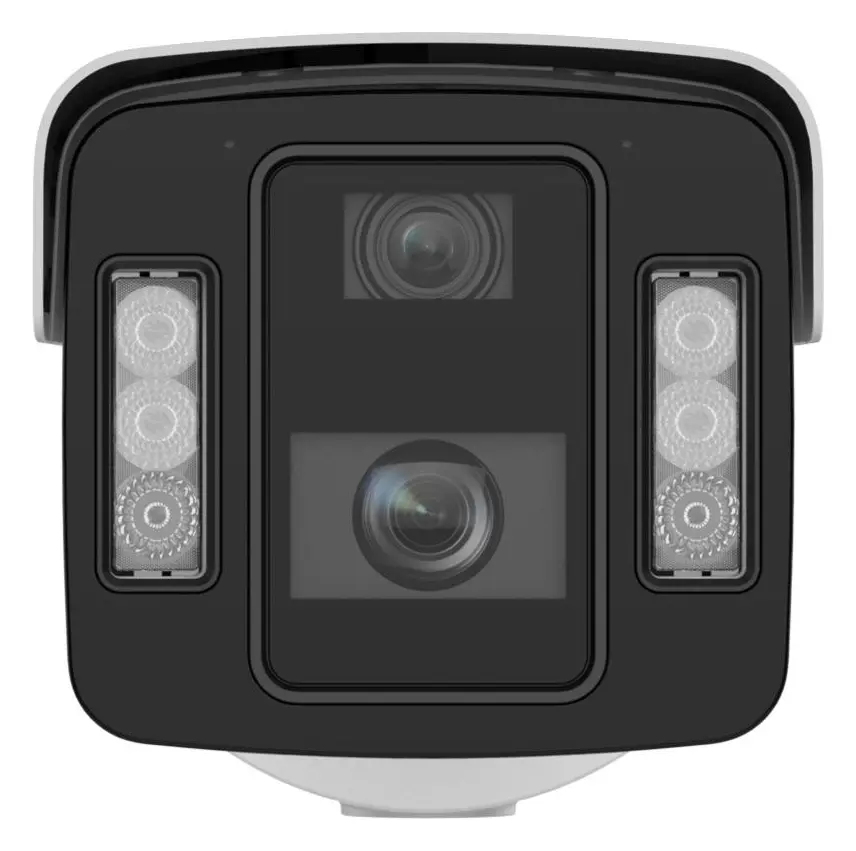

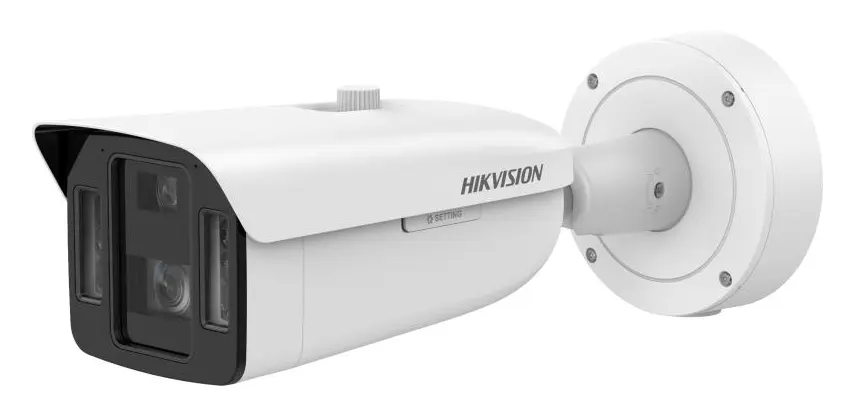

Hikvision IDS-2CD8A86G2-XZHS 8 MP DeepinView IP Panoramik Kamera

ModelIDS-2CD8A86G2-XZHS

Hikvision IDS-2CD8A86G2-XZHS, 8 MP çözünürlüklü, 10–50 mm değişken odaklı lensli bir panoramik kameradır. IR LED'leri sayesinde gece 120 metreye kadar görüş sağlar. DeepinView teknolojisiyle insan ve araç hareketlerini ayırt ederek yanlış alarmları azaltır. IP67 su ve toz koruması ve IK10 darbe dayanımı ile dış ortam kurulumlarına uygundur. Dahili mikrofonuyla sesli kayıt yapabilir.

Sinyal tipi: IP
Çözünürlük: 8 MP (4K)
Gece görüşü: IR (siyah-beyaz)
Koruma sınıfı: IP67
Lens: Varifocal
Teknoloji: DeepinView, DarkFighter

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

High quality imaging with 8 MP resolution in channel 1 and 4 MP resolution in channel 2
Adopt dual-channel design so you can get details in channel 1 and panorama view in channel 2
Excellent low-light performance via DarkFighter 2.0 technology
Clear imaging against strong back light due to 140 dB AWDR technology;
Efficient H.265+ compression technology to save bandwidth and storage
5 streams to meet a wide variety of applications
Water and dust resistant (IP67) and vandal proof (IK10)
Built-in heater to ensure clear image under rainy or snowy weather;

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Kamera 6 satır

Görüntü Sensörü	Channel 1: 1/1.2" Progressive Scan CMOS; Channel 2: 1/1.8" Progressive Scan CMOS
Maks. Çözünürlük	Channel 1: 3840 × 2160, channel 2: 2688 × 1520
Min. Aydınlatma	Channel 1: Color: 0.0005 Lux @ (F1.2, AGC ON), 0 Lux with Light, B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR; Channel 2: Color: 0.0003 Lux @ (F1.0, AGC ON), 0 Lux with Light, B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with IR
Enstantane Süresi	1 s to 1/100,000 s
Gece/Gündüz	IR cut filter; Blue glass module (less ghost phenomenon)
Açı Ayarı	Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°

Lens 4 satır

Odak Uzaklığı ve Görüş Açısı	Channel 1: 10 to 50 mm: horizontal FOV 36° to 13.1°, vertical FOV: 20.4° to 7.4°, diagonal FOV 41.8° to 14.9°; Channel 2: 4 mm: horizontal FOV: 89°, vertical FOV: 45°, diagonal FOV: 107°
Odak	Channel 1: Auto, semi-auto, manual
İris Tipi	Channel 1: P-iris; Channel 2: Fixed
Diyafram	Channel 1: Constant F1.6 throughout the zoom range; Channel 2: F1.0

Piksel Yoğunluğu (DORI) 1 satır

DORI	Channel 1: Wide: D:241.4 m, O: 95.8 m, R: 48.3 m, I: 24.1 m; Tele: D: 620.7 m, O: 246.3 m, R:124.1 m, I: 62.1 m; Channel 2: D:77 m, O: 30.5 m, R: 15.4 m, I: 7.7 m

Aydınlatma 4 satır

Aydınlatma Tipi	Hybrid (IR and White Light)
Aydınlatma Mesafesi	Channel 1: up to 120 m; Channel 2: up to 30 m
Akıllı Aydınlatma	Evet
IR Dalga Boyu	850 nm

AI Açık Platform 1 satır

Model Özellikleri	1. Up to 3 models. Model type: detection model, classification model, mixed model (detection model and classification model).; 2. Supports video analysis (detection, classification, mixed, OCR, segmentation, comparison) and scheduled capture analysis (classification).; (1) Detection: Region target exception status detection, line crossing target detection, line crossing target counting, region target number counting, full analysis rule, combined rule, area overlap ratio counting, area overlap ra

Model Özellikleri

1. Up to 3 models. Model type: detection model, classification model, mixed model (detection model and classification model).; 2. Supports video analysis (detection, classification, mixed, OCR, segmentation, comparison) and scheduled capture analysis (classification).; (1) Detection: Region target exception status detection, line crossing target detection, line crossing target counting, region target number counting, full analysis rule, combined rule, area overlap ratio counting, area overlap ra

Video 14 satır

Ana Akış	Channel 1: 50 Hz: 25 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720); 60 Hz: 30 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720); Channel 2: 50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720); 60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
Alt Akış	Channel 1: 50 Hz: 25 fps (704 × 576, 640 × 480); 60 Hz: 30 fps (704 × 480, 640 × 480); Channel 2: 50 Hz: 25 fps (704 × 576, 640 × 480); 60 Hz: 30 fps (704 × 480, 640 × 480)
Üçüncü Akış	Channel 1: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480); 60 Hz: 15 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480); Channel 2: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480); 60 Hz: 15 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Dördüncü Akış	Channel 1: 50 Hz: 25 fps (704 × 576, 640 × 480); 60 Hz: 30 fps (704 × 480, 640 × 480); Channel 2: 50 Hz: 25 fps (704 × 576, 640 × 480); 60 Hz: 30 fps (704 × 480, 640 × 480)
Beşinci Akış	Channel 1: 50 Hz: 25 fps (704 × 576, 640 × 480); 60 Hz: 30 fps (704 × 480, 640 × 480); Channel 2: 50 Hz: 25 fps (704 × 576, 640 × 480); 60 Hz: 30 fps (704 × 480, 640 × 480)
Video Sıkıştırma	Main stream: H.265+/H.265/H.264+/H.264; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264; Fourth stream: H.265/H.264/MJPEG; Fifth stream: H.265/H.264/MJPEG
Video Bit Hızı	32 Kbps to 16 Mbps
H.264 Tipi	Baseline Profile, Main Profile, High Profile
H.265 Tipi	Main Profile
Bit Hızı Kontrolü	CBR, VBR
Ölçeklenebilir Video Kodlama (SVC)	H.264 and H.265 encoding
İlgi Bölgesi (ROI)	4 fixed regions for each stream
Hedef Kırpma	Evet
Guanlan AI Kodlama	Evet

Ses 5 satır

Ses Tipi	Mono sound
Ses Sıkıştırma	G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Ses Bit Hızı	64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 48 Kbps (PCM)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Ses Örnekleme Hızı	8 kHz/16 kHz/32 kHz/48 kHz
Ortam Gürültüsü Filtreleme	Evet

Ağ 8 satır

Protokoller	TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
Eşzamanlı Canlı İzleme	Up to 20 channels
API	Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
Kullanıcı/Host	Up to 32 users; 3 user levels: administrator, operator, and user
Güvenlik	Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3
Ağ Depolama	NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR); Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
İstemci	iVMS-4200, Hik-Connect
Web Tarayıcı	Plug-in required live view: IE 10, IE11; Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+; Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Görüntü 7 satır

Görüntü Parametresi Geçişi	Evet
Görüntü Ayarları	Saturation, brightness, contrast, sharpness, AGC, white balance, adjustable by client software or web browser
Gece/Gündüz Geçişi	Channel 1: Day, Night, Auto, Schedule, Alarm Trigger; Channel 2: Day, Night, Auto, Schedule, Alarm Trigger
Geniş Dinamik Aralık (WDR)	140 dB
Görüntü İyileştirme	Channel 1: BLC, HLC, 3D DNR, Defog, EIS; Channel 2: BLC, HLC, 3D DNR, Defog
Mahremiyet Maskesi	8 programmable polygon privacy masks
Görüntü Bindirme	LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.

Arayüz 11 satır

Video Çıkışı	1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
Ethernet Arayüzü	1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
Dahili Depolama	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Ses	1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
Dahili Mikrofon	2 built-in microphones
Alarm	2 inputs, 2 outputs (max. 24 VDC, 1 A)
Dahili Hoparlör	1 built-in speaker
RS-485	1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset Tuşu	Evet
Güç Çıkışı	12 VDC, max. 50 mA
Wiegand	1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72 bit)

Olay 3 satır

Temel Olaylar	Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), video quality diagnosis, vibration detection
Akıllı Olaylar	Unattended baggage detection, object removal detection, scene change detection, audio exception detection, defocus detection
Bağlantı (Linkage)	Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture

Derin Öğrenme Fonksiyonları 8 satır

Çoklu Hedef Tipi Algılama	Channel 1; Detects up to 60 targets simultaneously; Supports simultaneous detection and capture of human body, face, motor vehicle, non-motor vehicle; Gets 7 face features; Gets 13 human body features; Gets 2 vehicle features; Supports license plate recognition
Yüz Yakalama	Channel 1; Detects up to 120 faces simultaneously; Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°; Uploads face with background and closed-up face pictures
Yüz Karşılaştırma	Channel 1; Up to 10 face libraries. 30,000 faces for each library. 150,000 faces in total.; Recognizes face identity via face modeling, grading and comparing to those in face library; Supports face library encryption
Kişi Sayma	Supports Multi-Dimension People Counting; Supports counting, displaying and exporting the people flow data of entering, exiting and passing by (The data is stored in the flash.); Supports real-time uploading and uploading by statistic cycle; Supports generating daily, weekly, monthly or annually reports; Supports dynamic deduplication based on face picture comparison, and can filter out the target with the same custom face pictures, same attributes, or filter out repeated invalid targets within
Çevre Koruma	Channel 1; Line crossing, intrusion, region entrance, region exiting; Support alarm triggering by specified target types (human and vehicle); Channel 2; Line crossing, intrusion, region entrance, region exiting; Support alarm triggering by specified target types (human and vehicle)
Yol Trafiği ve Araç Algılama	Smart Function: Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario); Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc.; Support vehicle and non-vehicle counting; Blocklist and allowlist: up to 50,000 records; LPR Countries/Regions: 4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regions; Accuracy (Under recommended installation and lighting conditions): License plate recogniti
Araç Olay Algılama	Supports Parking Detection and Congestion Detection; Supports Vehicle Statistics to count the number of vehicles staying within the detection area. Suppots real-time upload data, and OSD overlay.
Genel	Supports scheduled-switch of smart applications.; Supports enabling 2 smart applications at the same time.

Genel 13 satır

Güç	Three-core terminal block; 12 VDC ± 20%, 1.89A, max. 22.6 W; 24 VAC ± 20%, 1.48 A, max. 22.2 W; PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.57 A to 0.43 A, max. 24 W
Malzeme	Aluminum alloy body
Boyutlar	Ø140 mm × 410.1 mm (Ø5.5" × 16.1")
Paket Boyutları	462 mm × 197 mm × 195 mm (18.2" × 7.76" × 7.68")
Ağırlık	Approx. 2630 g (5.80 lb.)
Paketli Ağırlık	Approx. 3300 g (7.28 lb.)
Başlangıç ve Çalışma Koşulları	-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Genel Fonksiyonlar	Heartbeat, one-key reset, mirror, password protection, flash log, anti-banding
Dil	33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Isıtıcı	Evet
Buğu Giderme	Evet
Depolama Koşulları	-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Entegre Konnektör Paneli	-Y: No

Onaylar 8 satır

EMC	CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021; RCM: AS/NZS CISPR 32: 2015; IC: ICES-003: Issue 7; KC: KN32: 2015, KN35: 2015
Güvenlik	CB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017; LOA: IEC/EN 60950-1
Çevre	CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006
Koruma	IP67: IEC 60529-2013, IK10: IEC 62262:2002
Korozyon Koruması	-Y model: NEMA 4X (NEMA 250-2018)
Otomotiv ve Demiryolu	EN50121-4
Diğer	PVC FREE
Siber Güvenlik	IEC62443-4-1 ML2; EUCC; CC: EAL3

Genel bakış

Hikvision IDS-2CD8A86G2-XZHS kullanım alanları ve özellikleri.

Hikvision IDS-2CD8A86G2-XZHS, 8 MP çözünürlük, 10–50 mm varifocal lens, 120 m gece görüş mesafesi ve IP67/IK10 koruma sunan bir IP Panoramik Kamera modelidir. DeepinView serisi gelişmiş derin öğrenme analizleri sunar.

8MP DeepinView Multi-Sensor Bullet Camera

High quality imaging with 8 MP resolution in channel 1 and 4 MP resolution in channel 2
Adopt dual-channel design so you can get details in channel 1 and panorama view in channel 2
Excellent low-light performance via DarkFighter 2.0 technology
Clear imaging against strong back light due to 140 dB AWDR technology;
Efficient H.265+ compression technology to save bandwidth and storage
5 streams to meet a wide variety of applications
Water and dust resistant (IP67) and vandal proof (IK10)
Built-in heater to ensure clear image under rainy or snowy weather;
Built-in G-sensor for vibration detection;
Built-in power meter for historical power statistics;

Nerelerde kullanılır?

Mağaza katı, lobi, depo ve kavşak gibi geniş alanları tek cihazla kör nokta bırakmadan izlemek için tasarlanmıştır.

Kurulum ve uyumluluk

IDS-2CD8A86G2-XZHS PoE destekli bir NVR veya PoE switch üzerinden tek ağ kablosuyla beslenebilir; ONVIF desteği olan kayıt cihazlarıyla da çalışır. Uzaktan izleme için Hik-Connect mobil uygulaması kullanılır.

Tüm özellikler

High quality imaging with 8 MP resolution in channel 1 and 4 MP resolution in channel 2
Adopt dual-channel design so you can get details in channel 1 and panorama view in channel 2
Excellent low-light performance via DarkFighter 2.0 technology
Clear imaging against strong back light due to 140 dB AWDR technology;
Efficient H.265+ compression technology to save bandwidth and storage
5 streams to meet a wide variety of applications
Water and dust resistant (IP67) and vandal proof (IK10)
Built-in heater to ensure clear image under rainy or snowy weather;
Built-in G-sensor for vibration detection;
Built-in power meter for historical power statistics;

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

DatasheetPDF · IDS-2CD8A86G2-XZHS Hızlı Başlangıç KılavuzuPDF · IDS-2CD8A86G2-XZHS Kullanım KılavuzuPDF · IDS-2CD8A86G2-XZHS Firmware (V5.9.24_260901) - indirme sayfasıPDF · IDS-2CD8A86G2-XZHS

Sık sorulanlar

IDS-2CD8A86G2-XZHS hakkında kısa yanıtlar.

IDS-2CD8A86G2-XZHS gece görüş mesafesi kaç metre?

IDS-2CD8A86G2-XZHS, IR aydınlatmayla yaklaşık 120 metreye kadar gece görüşü sağlar. Gerçek mesafe ortam ışığına ve yansıtıcı yüzeylere göre değişebilir.

IDS-2CD8A86G2-XZHS dış ortamda kullanılabilir mi?

Evet. IP67 koruma sınıfı sayesinde yağmur ve toza karşı dayanıklıdır; IK10 gövdesi darbelere karşı da korumalıdır.

IDS-2CD8A86G2-XZHS hangi kayıt cihazıyla çalışır?

IP kamera olduğu için NVR kayıt cihazlarıyla çalışır. Tüm akıllı özellikler için Hikvision NVR, temel kayıt için ONVIF destekli NVR'lar kullanılabilir.

IDS-2CD8A86G2-XZHS kaç megapiksel?

IDS-2CD8A86G2-XZHS 8 MP çözünürlüğe sahiptir ve 10–50 mm lens kullanır.

IDS-2CD8A86G2-XZHS fiyatı ne kadar?

IDS-2CD8A86G2-XZHS için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
