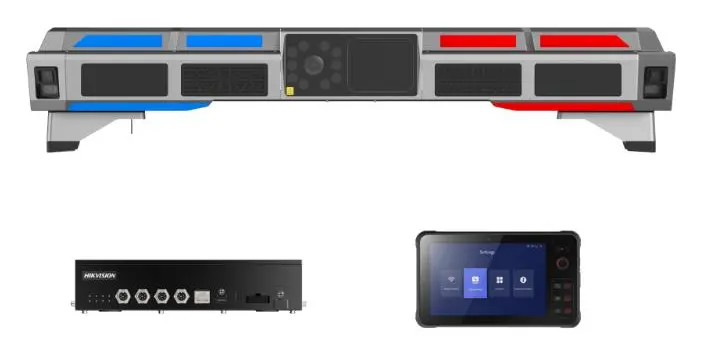

Hikvision IDS-TVJ860-GIR Trafik Aydınlatma Ünitesi
Model
IDS-TVJ860-GIRHikvision IDS-TVJ860-GIR trafik aydınlatma ünitesi: Adopts 6 cameras, 1/1.8" CMOS, Resolution: 3840 × 2160., 2 Left Cameras and 2 Right Cameras: Adopts 1/3" CMOS, Resolution: 2688 × 1944, Adopts red and blue LED lights., Adopts supplement light for the front camera., Supports license plate recognition, radar sp.
Fiyat ve stok bilgisi alınAynı gün dönüş
Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.
Distribütör garantili
81 ile sevkiyat
Teknik destek
- Adopts 6 cameras, 1/1.8" CMOS, Resolution: 3840 × 2160.
- 2 Left Cameras and 2 Right Cameras: Adopts 1/3" CMOS, Resolution: 2688 × 1944
- Adopts red and blue LED lights.
- Adopts supplement light for the front camera.
- Supports license plate recognition, radar speeding capture for vehicle, motorcycle, two-wheeler, etc.
- Supports sending captured picture to mobile enforcement video recorder.
- Meets mobile device anti-vibration requirements.
Teknik özellikler
Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
Kamera 5 satır
| Görüntü Sensörü | Front Camera and Rear Camera:1/1.8'' Progressive Scan CMOS, Left Camera and Right Camera:1/3'' Progressive Scan CMOS |
|---|---|
| Maks. Çözünürlük | Front Camera and Rear Camera:3840×2160, Left Camera and Right Camera:2688×1944 |
| Min. Aydınlatma | Front Camera and Rear Camera: Color: 0.001 Lux @ (F1.2, AGC ON); Left Camera and Right Camera: Color: 0.005 Lux @ (F1.5, AGC ON) |
| Enstantane Süresi | 1/25 s to 1/30000 s |
| Gece/Gündüz | IR cut filter |
Lens 4 satır
| Odak Uzaklığı ve Görüş Açısı | Front Camera and Rear Camera: 8 mm, horizontal FOV: 37.3°, vertical FOV: 20.9°, diagonal FOV: 42.8°, Left Camera and Right Camera: 4 mm, horizontal FOV: 79.6°, vertical FOV: 43.7°, diagonal FOV:93.8° |
|---|---|
| Odak | Fixed |
| İris Tipi | Fixed iris |
| Diyafram | Front Camera and Rear Camera: F1.6, Left Camera and Right Camera: F2.0 |
Aydınlatma 3 satır
| Dahili Aydınlatma Tipi | IR light(only Front Camera and Rear Camera) |
|---|---|
| Dahili Aydınlatma Mesafesi | Front Camera and Rear Camera: Up to 30 m |
| IR Dalga Boyu | 850 nm |
Radar 10 satır
| Çalışma Frekansı | 76 to 77 GHz |
|---|---|
| Modülasyon Dalga Formu | FMCW |
| Horizontal Detection Angle | ±60° |
| Vertical Detection Angle | ± 7° |
| Algılama Mesafesi | 120 m |
| Mesafe Ölçüm Doğruluğu | ≤ ±0.4 m |
| Hız Ölçüm Aralığı | up to 250 km/h |
| Hız Ölçüm Doğruluğu | ± 2 km/h |
| Maks. Algılanabilir Hedef | Up to 64 |
| Angle Resolution | ±0.5° |
Video 7 satır
| Ana Akış | Front Camera and Rear Camera: 50Hz(25fps)/60Hz(30fps):3840×2160,3392×2008,3072×1728,2688×1520,1920×1200,1920×1080,1280×720,704×576,352×288; Left Camera and Right Camera: 50Hz(25fps)/60Hz(30fps):2688×1944,1920×1080,1280×720,704×576,352×288 |
|---|---|
| Alt Akış | Front Camera and Rear Camera: 50Hz(25fps)/60Hz(30fps):1920×1080,1280×720,704×576,352×288; Left Camera and Right Camera: 50Hz(25fps)/60Hz(30fps):1920×1080,1280×720,704×576,352×288 |
| Üçüncü Akış | Front Camera and Rear Camera: 50Hz(25fps)/60Hz(30fps):1280×720,704×576,352×288; Left Camera and Right Camera: None |
| Video Sıkıştırma | Main stream: H.264/ H.265/MJPEG; Sub-stream: H.264/ H.265/MJPEG; Third stream: H.264/ H.265/MJPEG |
| Video Bit Hızı | 32 Kbps to 16 Mbps |
| H.264 Tipi | Baseline Profile, Main Profile, High Profile |
| H.265 Tipi | Main Profile |
Ağ 6 satır
| Protokoller | TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SMTP, SNMP, IGMP, QoS, IPv4/IPv6, UDP, SSL/TLS, ISUP, ARP,802.1X |
|---|---|
| API | ISAPI, SDK, ISUP |
| Kullanıcı/Host | Up to 32 users |
| Güvenlik | Password protection, Complicated password, HTTPS encryption,802.1X authentication (EAP-PEAP, EAP-LEAP, EAP-MD5), Watermark, IP address filter, Basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, Control timeout settings, Security audit log, TLS 1.1, Host authentication (MAC address) |
| Ağ Depolama | Local storage, CVR, ANR |
| Web Tarayıcı | Chrome 89.0+, Edge |
Kablosuz (Wi-Fi) 4 satır
| Şifreleme Modu | WPA-PSK/WPA2-PSK |
|---|---|
| Wi-Fi Protokolü | 802.11ac |
| Frekans Aralığı | 5 GHz |
| Aktarım Hızı | 11ac: up to 300 Mbps |
Kablosuz (Mobil İletişim) 3 satır
| Frekans | LTE FDD: Band 1/3/5/8 LTE TDD: Band 38/39/40/41 WCDMA/HSPA+: Band 1/8 TD-SCDMA: Band 34/39 GSM/GPRS/EDGE: 900/1800MHz;LTE FDD: Band 1/3/5/7/8/20/28; LTE TDD: Band 38/40/41; WCDMA/HSPA+: Band 1/5/8; GSM/GPRS/EDGE: 850/900/1800MHz |
|---|---|
| Standart | LTE-TDD, LTE-FDD, EVDO, GPRS, CDMA, GSM, EDGE |
| SIM Kart Tipi | Nano SIM |
Görüntü 4 satır
| Görüntü Ayarları | Saturation, Brightness, Contrast, Sharpness, Gain, White balance, Adjustable by client software or web browser. |
|---|---|
| Gece/Gündüz Geçişi | Auto, Schedule, Alarm Trigger |
| Geniş Dinamik Aralık (WDR) | 140 dB |
| Görüntü İyileştirme | 3D DNR |
Ek Algılama (Uydu Konumlandırma) 1 satır
| Uydu Konumlandırma | GPS |
|---|
Arayüz 3 satır
| Ethernet Arayüzü | 1 RJ45 10M/100M/1000M self-adaptive Ethernet port(s) |
|---|---|
| Alarm | 1 input(s),1 output(s) |
| USB | 1 × USB 3.0 (5.0 V, 1.0 A) |
Olay 1 satır
| Temel Olaylar | HDD error, Network disconnected, IP address conflict |
|---|
Yol Trafiği ve Araç Algılama 18 satır
| Tetikleme Modu | Video trigger |
|---|---|
| Plaka Tanıma Ülke/Bölgeleri | Middle East: The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain; Africa: Nigeria, Kenya, Ivory Coast , South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria; Asia-Pacific: Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Hong |
| Hız İhlali | Destekleniyor |
| Emniyet Şeridi İhlali | Supported (Only the front and rear cameras support in static mode) |
| Ters Yön Algılama | Supported (Only the front and rear cameras support in static mode) |
| Şerit Çizgisi Üzerinde Sürüş Algılama | Supported (Only the front and rear cameras support in static mode) |
| Plakasız Araç Algılama | Destekleniyor |
| Motosiklet Plaka Tanıma | Destekleniyor |
| Kasksız Sürüş | Customized to support |
| Yolcu Taşıyan Motorsuz Araç | Customized to support |
| Kapsama | Up to 3 lane(s) |
| Blocklist and Allowlist | Max. 500,000 records |
| Akıllı Fonksiyon | Front Camera and Rear Camera: License plate recognition, Vehicle type classification, color identification, no-plate vehicle capture, vehicle driving direction detection; Left Camera and Right Camera: License plate recognition; Motorcycle helmet detection and Manned motorcycle detection ( Optional ) |
| Doğruluk (önerilen montaj ve ışık koşullarında) | Capture rate > 95%; Vehicle moving direction recognition accuracy > 98.5%; LPR accuracy > 95%; Mistaken capture rate < 5% |
| Araç Tipi | Car, Van, Bus, Truck, Light Truck, SUV(MPV), Pickup, Motorcycle, Tricycle; (Only the front and rear cameras support) |
| Araç Rengi | Red, yellow, green, blue, pink, purple, cyan, brown, white, grey, black; Recognizable at daytime only.; (Only the front and rear cameras support) |
| Araç Markası | 212 Manufacturers: AC SCHNITZER, AITO, APOLLO, Ashok Leyland, Audi, Aston Martin, Acura, Ankai, Ayvip, Alfa Romeo, Asiastar, Artega, ARCFOX, BAIC, Beiben Truck, BLUECAR, Bedford, Benz, BMW, BYD , Bufori, Buick, Bently, Brabus, Bugatti, Borgward, BONLUCK, Besturn, CADILLAC, Celis, Chevrolet, Citroen, Chery, Chrysler, Chang an, CNHTC, CHTC, Caterham, Conquest, C&C Trucks, CAMC, DAIHATSU, DMC, DS, Dacia, Dongnan, Dodge, Dongwo, Denza, Dongfeng, Daewoo, Dima, Denway, DORCEN, Eicher, Emgrand, Equss, |
| Yakalama Hız Aralığı | up to 250 km/h (Only the front and rear cameras support) |
Yüz Algılama 2 satır
| Yüz Yakalama | Detects up to 40 faces simultaneously; Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°; Uploads face with background and closed-up face pictures |
|---|---|
| Yüz Karşılaştırma | Front Camera and Rear Camera:Up to 10 face libraries. Up to 10,000 faces for each library. 100,000 faces in total, Left Camera and Right Camera:Up to 1 face libraries. Up to 5,000 faces for each library. 5,000 faces in total, Supports face library encryption |
Genel 11 satır
| İşletim Sistemi | Linux |
|---|---|
| Güç | DC12V~DC14V, 18.3A, max. 220W, bare wire |
| Malzeme | Aluminum alloy, PC plastics |
| Boyutlar | 1128.7 mm × 360 mm × 232 mm (44.4" × 14.2" × 9.1") (L × W × H) |
| Paket Boyutları | 1338 mm × 492 mm × 443 mm (52.7" × 19.4" × 17.5") (L × W × H) |
| Ağırlık | Approx. 34.5 kg (76.1 lb.) |
| Paketli Ağırlık | Approx. 36.7 kg (80.9 lb.) |
| Çalışma Koşulları | -30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing) |
| Depolama Koşulları | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (Non-condensing) |
| Genel Fonksiyonlar | Password protection, One-key reset, Heartbeat |
| Depolama | 1TB SSD (Supports up to 2*2TB 2.5-inch SSD) |
Onaylar 4 satır
| RF | CE-RED: EN 301 091-1 V2.1.1;301 489-1 V2.2.3;301 489-51 V2.1.1 ;50130-4:2011+A1:2014;55032:2015+A1:2020+A11:2020; 55035:2017+A11:2020;61010-1:2010+A1:2019;IEC 61326-1:2021;IEC 62311:2020 |
|---|---|
| EMC | CE-EMC: EN 50130-4:2011+A1:2014;55032:2015+A11:2020+A1:2020;55035:2017+A11:2020;IEC 61326-1:2021 |
| Güvenlik | CB: IEC 61010-1:2010;IEC 61010-1:2010/AMD1:2016;CE-LVD: EN 61010-1:2010+A1:2019 |
| Çevre | CE-RoHS: EN IEC 63000:2018, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
Genel bakış
Hikvision IDS-TVJ860-GIR kullanım alanları ve özellikleri.
Hikvision IDS-TVJ860-GIR bir Trafik Aydınlatma Ünitesi modelidir.
Intelligent Light Bar
- Adopts 6 cameras, 1/1.8" CMOS, Resolution: 3840 × 2160.
- 2 Left Cameras and 2 Right Cameras: Adopts 1/3" CMOS, Resolution: 2688 × 1944
- Adopts red and blue LED lights.
- Adopts supplement light for the front camera.
- Supports license plate recognition, radar speeding capture for vehicle, motorcycle, two-wheeler, etc.
- Supports sending captured picture to mobile enforcement video recorder.
- Meets mobile device anti-vibration requirements.
Dokümanlar
Veri sayfası ve kullanım kılavuzları.
Sık sorulanlar
IDS-TVJ860-GIR hakkında kısa yanıtlar.
IDS-TVJ860-GIR fiyatı ne kadar?
IDS-TVJ860-GIR için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
