Hikvision

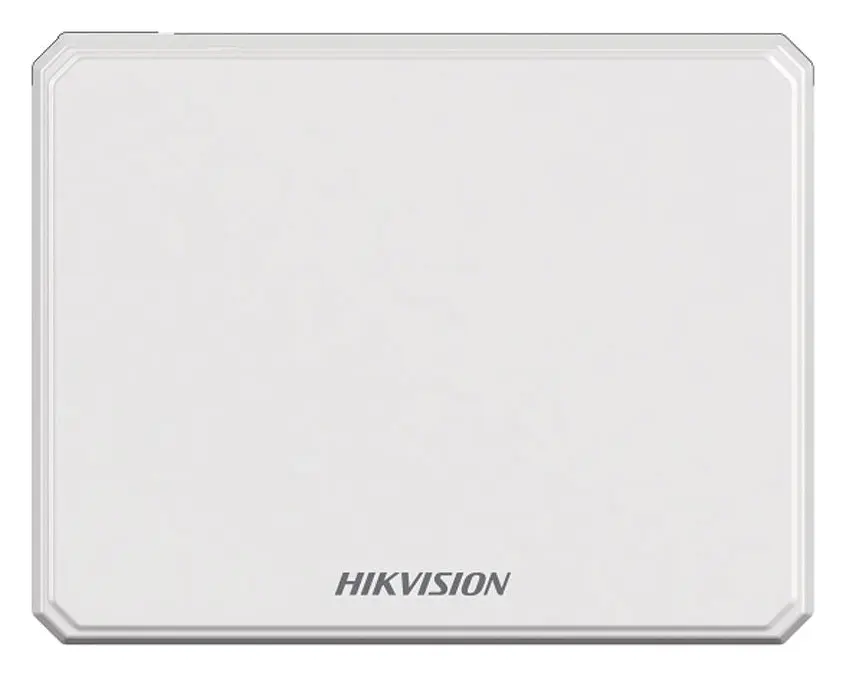

Hikvision STS-BG32X-L5/P Güvenlik Radarı
Model
STS-BG32X-L5/PHikvision STS-BG32X-L5/P güvenlik radarı: Utilizes phased electronic scanning, covering a 100° range in 1.8 seconds, Intelligent clutter filtering technology to suppress environmental noise and interference, Employs MHT (Multiple Hypothesis Tracking) algorithm for real-time multi-target tracking and p.
Fiyat ve stok bilgisi alınAynı gün dönüş
Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.
Distribütör garantili
81 ile sevkiyat
Teknik destek
- Utilizes phased electronic scanning, covering a 100° range in 1.8 seconds
- Intelligent clutter filtering technology to suppress environmental noise and interference
- Employs MHT (Multiple Hypothesis Tracking) algorithm for real-time multi-target tracking and prediction, suitable for target crossing and highly maneuverable targets
- AI-powered intelligent classification of human and vehicle targets
- Supports getting information such as the distance, speed, and angle of the object
- Supports target locating and trace following
- Multi-target locking and multi-dimensional videos linkage
- Multi-scene modes selectable. Sensitivity configurable
Teknik özellikler
Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
Radar 18 satır
| Çalışma Frekansı | X band (9.3GHz~9.5GHz) |
|---|---|
| Modülasyon Dalga Formu | Linear Frequency Modulation (LFM) Pulse System |
| Sweep Bandwidth | 10MHz |
| Cycle Time | 1.8s |
| Horizontal Scanning Angle | -50° ~ +50° |
| Vertical Scanning Angle | -6° ~ +6° |
| Maks. Algılanabilir Hedef | ≥500 |
| Max. Detection Trigger Lines | Up to 4 trigger line(s) |
| Max. Detectable Zones | Up to 16 zone(s) |
| Detection Target Type | Human, Vehicle |
| Range Measurement | 200m~11km |
| Algılama Mesafesi | Detection range ≥ 5km, Human: 1.8m (RCS ≈ 1m²); Detection range ≥ 10km, Vehicle: 4m (RCS ≈ 10m²) |
| Distance Resolution | 15m |
| Angle Resolution | 3.5° |
| Azimuth Angle Accuracy | ≤0.3° |
| Hız Ölçüm Aralığı | ±0.5m/s ~ ±50m/s |
| Speed Resolution | 0.1m/s |
| Hız Ölçüm Doğruluğu | 0.3 m/s |
Fonksiyon 5 satır
| Radar + PTZ Smart Tracking | Destekleniyor |
|---|---|
| Zone Settings | Warning zone, Early warning zone, Disable zone |
| Tracking Mode | Time priority, Range priority, Multi-target auto switch, Target trigger priorit |
| Sahne Modu | Expert mode, Open mode, Shrub mode |
| Map Management | Destekleniyor |
Ağ 7 satır
| Protokoller | TCP/IP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, NTP, IPv4/IPv6, UDP, SSL/TLS, ARP |
|---|---|
| Eşzamanlı Canlı İzleme | Up to 32 channel(s) |
| API | SDK, ISAPI |
| Kullanıcı/Host | Up to 16 users, 3 user levels: administrator, operator, and user |
| Güvenlik | Authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, Control timeout settings, TLS1.2, Host authentication (MAC address) |
| İstemci | Hik-Central Pro |
| Web Tarayıcı | Chrome V61+, IE9 to IE11, Firefox V41+, Edge |
Arayüz 5 satır
| Ağ Arayüzü | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port(s) |
|---|---|
| Dahili Depolama | Built-in 128 G memory card |
| Alarm | 1 input, 1 Relay output (max. 1A@30 VDC, 0.3A@125 VAC) |
| RS-232 | 2 RS-232 |
| Gösterge | Destekleniyor |
Genel 7 satır
| Voltage Range | 36V DC±33%（3.3A MAX) |
|---|---|
| Güç Tüketimi | ≤85W |
| Çalışma Sıcaklığı | -40℃ ~ +65℃, |
| Koruma | IP66 |
| Boyutlar | 630mm×495mm×80mm |
| Ağırlık | 22kg |
| Montaj Yüksekliği | ≥10m |
Onaylar 6 satır
| EMC | CE-EMC: EN IEC 61326-1:2021 |
|---|---|
| Güvenlik | CB: IEC 61010-2-201:2017, IEC 61010-1:2010/AMD1:2016; CE-LVD: EN 61010-1:2010+A1:2019; Satety of laser products: IEC 60825-1:2014, EN 60825-1:2014, EN 60825-1:2014/A1:2017, EN 60825-1:2014/A11:2021; LOA: SANS IEC 61010-1 |
| RF | CE-RED: EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021+A2:2024, EN IEC 62311:2020, ETSI EN 301 489-1 V2.2.3, ETSI EN 301 489-19 V2.2.1, ETSI EN 303 413 V1.2.1 |
| Çevre | CE-RoHS: EN IEC 63000:2018 |
| Koruma | IP66: IEC 60529:2013 |
| Korozyon Koruması | NEMA 4X: ASTM B117-2019, ANSI/NEMA 250-2020 Section 5.6, ANSI/NEMA 250-2020 Section 5.7 & IEC 60529:1989/AMD2:2013/COR1:2019 |
Genel bakış
Hikvision STS-BG32X-L5/P kullanım alanları ve özellikleri.
Hikvision STS-BG32X-L5/P bir Güvenlik Radarı modelidir.
STS-BG32X-L5/P,Security radar
- Utilizes phased electronic scanning, covering a 100° range in 1.8 seconds
- Intelligent clutter filtering technology to suppress environmental noise and interference
- Employs MHT (Multiple Hypothesis Tracking) algorithm for real-time multi-target tracking and prediction, suitable for target crossing and highly maneuverable targets
- AI-powered intelligent classification of human and vehicle targets
- Supports getting information such as the distance, speed, and angle of the object
- Supports target locating and trace following
- Multi-target locking and multi-dimensional videos linkage
- Multi-scene modes selectable. Sensitivity configurable
- Local videos analysis recheck and pictures capture to filter the false alarms such as the swaying trees and pets
- Supports 500 targets detection, 16 detection zones, and 4 warning lines
- Compatible with HCP access
- Built-in GPS and north-seeking functionality, providing real-time output of target absolute positions
- Strong environment adaptability with 24/7 all-weather working properly
- Supports water and dust resistant (IP66)
- Supports corrosion resistance NEMA 4X.
Tüm özellikler
- Utilizes phased electronic scanning, covering a 100° range in 1.8 seconds
- Intelligent clutter filtering technology to suppress environmental noise and interference
- Employs MHT (Multiple Hypothesis Tracking) algorithm for real-time multi-target tracking and prediction, suitable for target crossing and highly maneuverable targets
- AI-powered intelligent classification of human and vehicle targets
- Supports getting information such as the distance, speed, and angle of the object
- Supports target locating and trace following
- Multi-target locking and multi-dimensional videos linkage
- Multi-scene modes selectable. Sensitivity configurable
- Local videos analysis recheck and pictures capture to filter the false alarms such as the swaying trees and pets
- Supports 500 targets detection, 16 detection zones, and 4 warning lines
- Compatible with HCP access
- Built-in GPS and north-seeking functionality, providing real-time output of target absolute positions
- Strong environment adaptability with 24/7 all-weather working properly
- Supports water and dust resistant (IP66)
- Supports corrosion resistance NEMA 4X.
