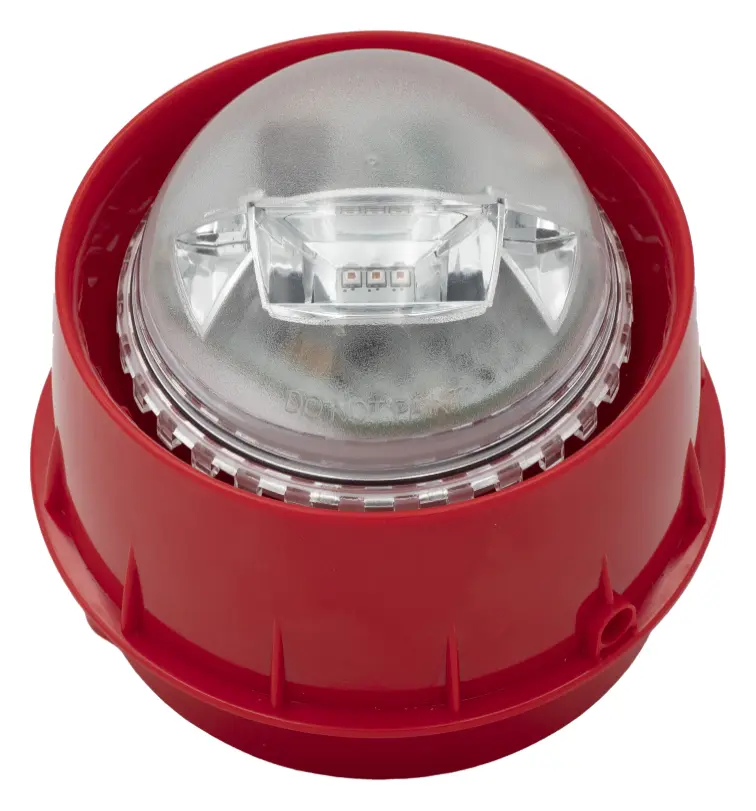

Honeywell System Sensor WSF-WR-RF Kablosuz Yangın Sireni / Flaşör

Honeywell System Sensor WSF-WR-RF, System Sensor A/V Alarm Devices ailesine ait kablosuz yangın sireni / flaşör.

• EN 54-23 uyumlu
• Döner anahtarlarla adresleme
• Kablosuz (radyo) haberleşme
• Görsel uyarı (flaşör)
• Yedekli (redundant) yapı
• IP21 koruma sınıfı
• 100 dB ses çıkışı

The Agile™ Wireless Sounder Strobe forms part of the Agile range of products that cover a wide range of applications where wiring is undesired.

The Agile™ Wireless Fire Detection System is a newly designed platform of wireless fire devices suitable for all applications where wired fire devices cannot be installed for economic or aesthetic reasons. The new wireless platform is powered by robust MESH network technology providing REDUNDANT communication paths to each wireless device. This makes the network highly reliable, protecting against broken communication links. All operations for the design, configuration and diagnostics of the systems are greatly simplified thanks to the AgileIQ™ software suite specifically designed to support AGILE through out the whole lifecycle of the product.

Features

• Mesh multiple communication paths for increased reliability
• EN54-23 VAD approved Light coverage W-3.5-10
• 0,5 Hz Red Flashing VAD with up to 350mc of coverage
• Consistent sound performance like wired sounder 100dBA max SPL
• 32 user selectable tones, through Agile IQ
• Dynamic tone selection through Advanced protocol commands
• IP21 protection from water and dust entrance
• 18RF channels at 868MHz – provides greater tolerance to interference
• 2 integrated antennas on each wireless fire device – easier positioning of devices
• Up to 400 m free air communication range – providing good coverage levels
• Average 5 year battery service life – reducing maintenance requirements
• Addresses set using rotary switches – reduced commissioning time
• Tamper-resist locking mechanism to prevent unauthorised removal of device from its base
• Wired fire devices look and feel – easier installation and visual integration

Nerelerde kullanılır?

Konut, ofis, otel ve endüstriyel alanlarda yangının ilk belirtilerini algılamak için tavana monte edilir.

Kurulum ve uyumluluk

Yangın algılama sistemleri; Binaların Yangından Korunması Hakkında Yönetmelik ve TS EN 54 standardına uygun olarak projelendirilmeli ve yetkili ekiplerce devreye alınmalıdır.

Tüm özellikler

• EN 54-23 uyumlu
• Döner anahtarlarla adresleme
• Kablosuz (radyo) haberleşme
• Görsel uyarı (flaşör)
• Yedekli (redundant) yapı
• IP21 koruma sınıfı
• 100 dB ses çıkışı
• Mesh multiple communication paths for increased reliability
• EN54-23 VAD approved Light coverage W-3.5-10
• 0,5 Hz Red Flashing VAD with up to 350mc of coverage
• Consistent sound performance like wired sounder 100dBA max SPL
• 32 user selectable tones, through Agile IQ
• Dynamic tone selection through Advanced protocol commands
• IP21 protection from water and dust entrance
• 18RF channels at 868MHz – provides greater tolerance to interference
• 2 integrated antennas on each wireless fire device – easier positioning of devices
