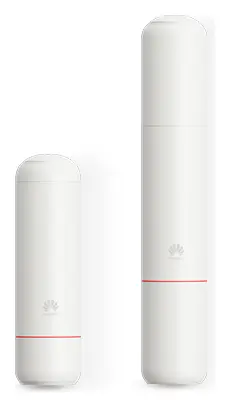

Huawei AirEngine 8760R-X1E Dış Ortam Access Point

AirEngine 8760R-X1 and AirEngine 8760R-X1E are next generation, flagship, outdoor Access Points (APs) that fully comply with Wi-Fi 6 (802.11ax) standards. Available with either built-in (AirEngine 8760R-X1) or external (AirEngine 8760R-X1E) antennas, each offers 16 spatial streams, achieving a device rate of up to 10.75 Gbit/s, as well as supporting 8T8R on the 2.4 GHz frequency band.

Both APs provide uninterrupted outdoor coverage performance, are rated IP68 — indicating water, dust, dirt, and sand resistance — and have 6 kV/6 kA surge protection capabilities. As such, the APs fulfill all network requirements for outdoor coverage in high-density stadiums, town squares, pedestrian streets, amusement parks, and more.

View AirEngine 8760R-X1 3D model

Powerful Performance

16x16 MU-MIMO plus 16 spatial streams achieve an air interface rate of up to 10.75 Gbit/s. OFDMA and MU-MIMO joint scheduling allows the implementation of ordered and efficient data transmission.

Extensive Coverage

Exclusive to Huawei, 8T8R (supported on the 2.4 GHz frequency band) significantly improves Wi-Fi signal transmission and reception capabilities, increasing coverage by 40%.

Resilient Design

Surge protection on antenna ports, 6 kA or 6 kV surge protection capabilities on Ethernet interfaces, a IP68 waterproof and dustproof design, support efficient functioning even in harsh environments.

Nerelerde kullanılır?

Ofis, otel, okul ve mağazalarda kesintisiz kablosuz kapsama ve dolaşım (roaming) için tavan veya duvar montajıyla kullanılır.
