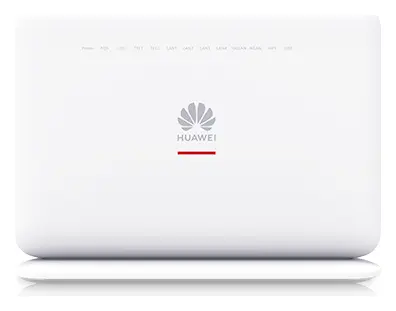

Huawei EN8255X6s-8X XGS-PON ONT

ModelEN8255X6s-8X

Huawei EN8255X6s-8X XGS-PON ONT: Smart interconnection, Smart service, Smart O&M.

Kablosuz standart: Wi-Fi 6

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Smart interconnection
Smart service
Smart O&M

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Teknik Özellikler 21 satır

NNI (Uplink)	XGS-PON
UNI (Kullanıcı Portları)	1x10GE+4xGE+2xPOTS+1xUSB2.0+2.4GHz&5GHz Wi-Fi 6
Optical connector	SC/APC
Dimensions(H x W x D)	176mm x 250mm x 35mm(excluding base); 186mm x 250mm x 52mm(including base)
Ağırlık	About 705 g
Çalışma Sıcaklığı	0°C to 40°C
Çalışma Nemi	5% RH to 95% RH (noncondensing)
Power adapter input	100–240 V AC, 50/60 Hz
System power supply	12 V DC, 3 A
Static power consumption	12.5 W
Maks. Güç Tüketimi	30 W
XGS-PON port	• Class N1/N2/E1; • Receiver sensitivity: -28 dBm; • Wavelengths: US 1260-1280 nm, DS 1575-1580 nm; • Upstream and downlink rate: 9.953 Gbit/s upstream,9.953 Gbit/s downstream; • Wavelength blocking filter (WBF); • Flexible mapping between GEM Port and TCONT; • SN/Password/SN+Password/Bi-directional authentication based on OMCI; • Upstream and downstream FEC; • SR-DBA and NSR-DBA
POTS port	• Maximum ringer equivalence number (REN): 4; • G.711A/μ, G.729a/b and G.722 encoding/decoding; • T.30/T.38/G.711 fax mode; • DTMF; • Emergency calls (with the SIP protocol)
Ethernet port	• 1x10GE+4xGE; • Ethernet port-based VLAN tags and tag removal; • 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission; • QinQ VLAN; • Limit on the number of learned MAC addresses; • MAC address learning; • GE port supports auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s; • 10GE port supports auto-adaptive 100 Mbit/s, 1000Mbit/s, 2500 Mbit/s, 5000 Mbit/s or 10000 Mbit/s
USB Portu	• USB2.0; • FTP-based network storage; • File/Print sharing based on SAMBA; • DLNA function
Wi-Fi	• IEEE 802.11 b/g/n/ax (2.4GHz); • IEEE 802.11 a/n/ac/ax (5GHz); • 4 ×4 MIMO (2.4GHz); • 4 × 4 MIMO (5GHz); • 2.4GHz&5GHz concurrent; • Antenna gain: 2 dBi; • Air interface rate: 1147 Mbit/s (2.4GHz), 4804 Mbit/s(5GHz); • 4096 QAM; • 160 MHz frequency bandwidth; • OFDMA; • UL/DL MU-MIMO; • DCM; • BSS Coloring; • Beamforming; • Band steering; • WPA3; • WMM/Multiple SSIDs/WPS; • Zero-DFS
Wi-Fi	• IEEE 802.11 b/g/n/ax (2.4GHz); • IEEE 802.11 a/n/ac/ax (5GHz); • 4 ×4 MIMO (2.4GHz); • 4 × 4 MIMO (5GHz); • 2.4GHz&5GHz concurrent; • Antenna gain: 2 dBi; • Air interface rate: 1147 Mbit/s (2.4GHz), 4804 Mbit/s(5GHz); • 4096 QAM; • 160 MHz frequency bandwidth; • OFDMA; • UL/DL MU-MIMO; • DCM; • BSS Coloring; • Beamforming; • Band steering; • WPA3; • WMM/Multiple SSIDs/WPS; • Zero-DFS
Wi-Fi	• IEEE 802.11 b/g/n/ax (2.4GHz); • IEEE 802.11 a/n/ac/ax (5GHz); • 4 ×4 MIMO (2.4GHz); • 4 × 4 MIMO (5GHz); • 2.4GHz&5GHz concurrent; • Antenna gain: 2 dBi; • Air interface rate: 1147 Mbit/s (2.4GHz), 4804 Mbit/s(5GHz); • 4096 QAM; • 160 MHz frequency bandwidth; • OFDMA; • UL/DL MU-MIMO; • DCM; • BSS Coloring; • Beamforming; • Band steering; • WPA3; • WMM/Multiple SSIDs/WPS; • Zero-DFS
Wi-Fi	• IEEE 802.11 b/g/n/ax (2.4GHz); • IEEE 802.11 a/n/ac/ax (5GHz); • 4 ×4 MIMO (2.4GHz); • 4 × 4 MIMO (5GHz); • 2.4GHz&5GHz concurrent; • Antenna gain: 2 dBi; • Air interface rate: 1147 Mbit/s (2.4GHz), 4804 Mbit/s(5GHz); • 4096 QAM; • 160 MHz frequency bandwidth; • OFDMA; • UL/DL MU-MIMO; • DCM; • BSS Coloring; • Beamforming; • Band steering; • WPA3; • WMM/Multiple SSIDs/WPS; • Zero-DFS
Wi-Fi	• IEEE 802.11 b/g/n/ax (2.4GHz); • IEEE 802.11 a/n/ac/ax (5GHz); • 4 ×4 MIMO (2.4GHz); • 4 × 4 MIMO (5GHz); • 2.4GHz&5GHz concurrent; • Antenna gain: 2 dBi; • Air interface rate: 1147 Mbit/s (2.4GHz), 4804 Mbit/s(5GHz); • 4096 QAM; • 160 MHz frequency bandwidth; • OFDMA; • UL/DL MU-MIMO; • DCM; • BSS Coloring; • Beamforming; • Band steering; • WPA3; • WMM/Multiple SSIDs/WPS; • Zero-DFS
Wi-Fi	• IEEE 802.11 b/g/n/ax (2.4GHz); • IEEE 802.11 a/n/ac/ax (5GHz); • 4 ×4 MIMO (2.4GHz); • 4 × 4 MIMO (5GHz); • 2.4GHz&5GHz concurrent; • Antenna gain: 2 dBi; • Air interface rate: 1147 Mbit/s (2.4GHz), 4804 Mbit/s(5GHz); • 4096 QAM; • 160 MHz frequency bandwidth; • OFDMA; • UL/DL MU-MIMO; • DCM; • BSS Coloring; • Beamforming; • Band steering; • WPA3; • WMM/Multiple SSIDs/WPS; • Zero-DFS

Genel bakış

Huawei EN8255X6s-8X kullanım alanları ve özellikleri.

Huawei OptiXstar EN8255X6s-8X is an XGS-PON and Wi-Fi 6 routing-type ONT. It uses the XGS-PON and Wi-Fi 6 technologies to implement ultra-broadband access, high performance and wide coverage for users.

The high forwarding performance ensures the user experience of voice and data services, and provides customers with an ideal all-optical access solution and future-oriented service support capability.

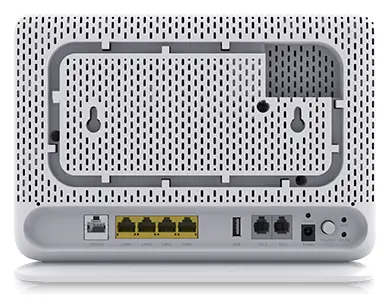

It provides one 10GE port, four GE ports, two POTS ports, one USB port and 2.4GHz&5GHz Wi-Fi 6 function.

Smart interconnection

Smart service

Smart O&M

Nerelerde kullanılır?

FTTH ve site/kampüs fiber projelerinde fiber üzerinden yüksek hızlı erişim dağıtımı için kullanılır.

Sık sorulanlar

EN8255X6s-8X hakkında kısa yanıtlar.

EN8255X6s-8X fiyatı ne kadar?

EN8255X6s-8X için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
