ORing IGCS-E140 EN50155 PCIe Yönetilemez Ethernet Switch Card ve 4FE EN50155 Demiryolu Switch

ORing IGCS-E140 – EN50155 PCIe Unmanaged Ethernet Switch Card with 4FE. Bu ürün ORing Industrial Networking'in EN50155 Demiryolu Switch ailesinde yer alır.

Öne Çıkan Teknik Özellikler

• Güç Tüketimi (Tipik): 4.2 watts
• Kasa: Open-Type
• Ethernet Standartları: IEEE 802.3 for 10Base-T; IEEE 802.3u for 100Base-TX; IEEE 802.3ab for 1000Base-TX; IEEE 802.3x for Flow control
• MAC Adres Tablosu: 1K
• Jumbo Frame: 10K Bytes
• Çalışma Sıcaklığı: -10 to 60oC (14 to 140oF)
• Garanti: 5 years
• MTBF: 1,323,026 hrs.

Temel Özellikler (Features)

• 4x 10/100/1000Base-T(X) Ethernet ports
• Supports PCIe x1 bus and compatible x4, x8 and x16 PCIe slots
• Compliant with PCIe Rev.1.1 Interface
• Supports 10K Bytes Jumbo Frame
• Supports auto-negotiation and auto-MDI/MDI-X
• Supports store and forward transmission
• Supports flow control

Genel Bakış (Description)

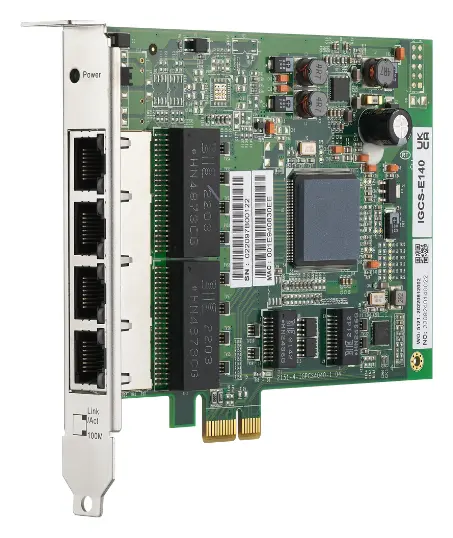

IGCS-E140 is an PCI-Express unmanaged Gigabit Ethernet switch card. The Ethernet switch card is a high-performance LAN controller. IGCS-E140 provided 4x10/100/1000Base-T(X) auto MDI/MDIX Ethernet ports. IGCS-E140 could be installed on any IPC motherboard with PCIe socket to make the IPC/embedded system able to communication with other Ethernet devices. The IGCS-E140's full bandwidth capability boasts a robust 1000Mbps capability through the PCI Express bus architecture. IGCS-E140 no need to purchase a new switch or broadband router because the auto-negotiation feature works with your existing switch, broadband router, or hub to provide the highest network speed available. The automatic full duplex capability further increases bandwidth and eliminates packet collisions by allowing data to flow in both directions at the same time. Therefore, IGCS-E140 is the best solution to IPC/embedded system to feature Ethernet network.

Nerelerde kullanılır?

Fabrika sahası, trafik dolapları ve açık alan panolarında geniş sıcaklık aralığında kesintisiz çalışacak şekilde tasarlanmıştır.
