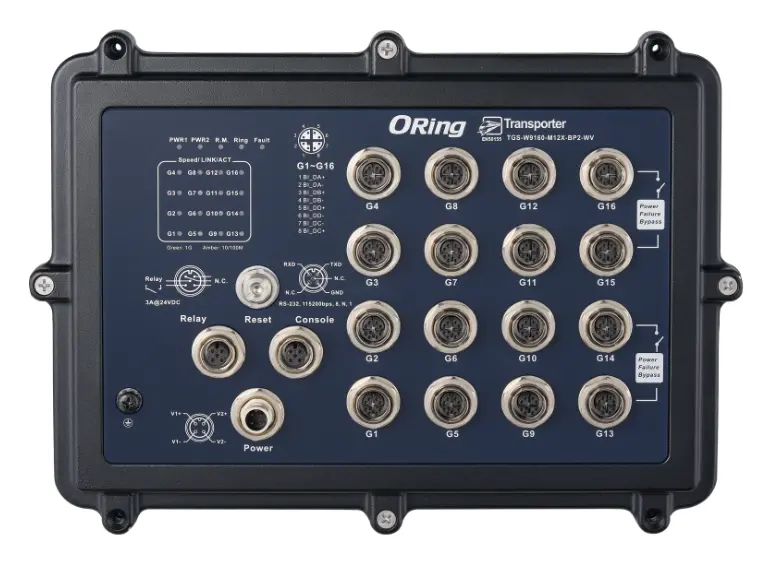

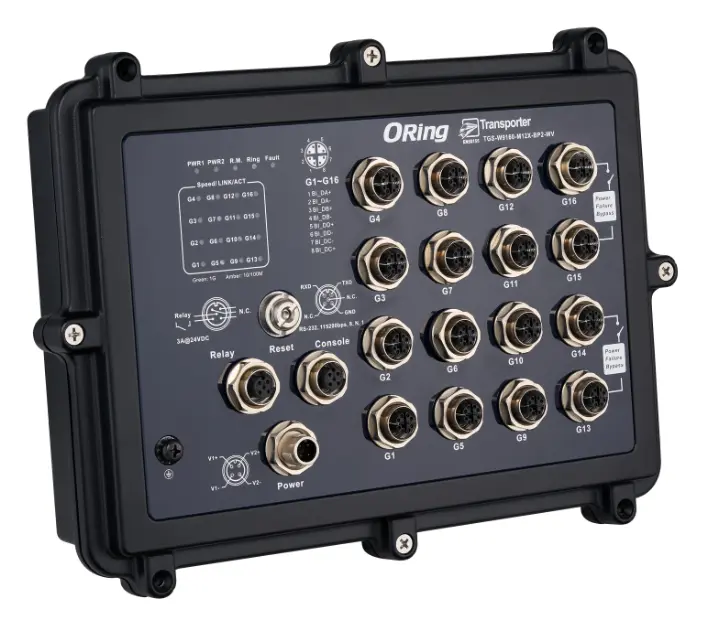

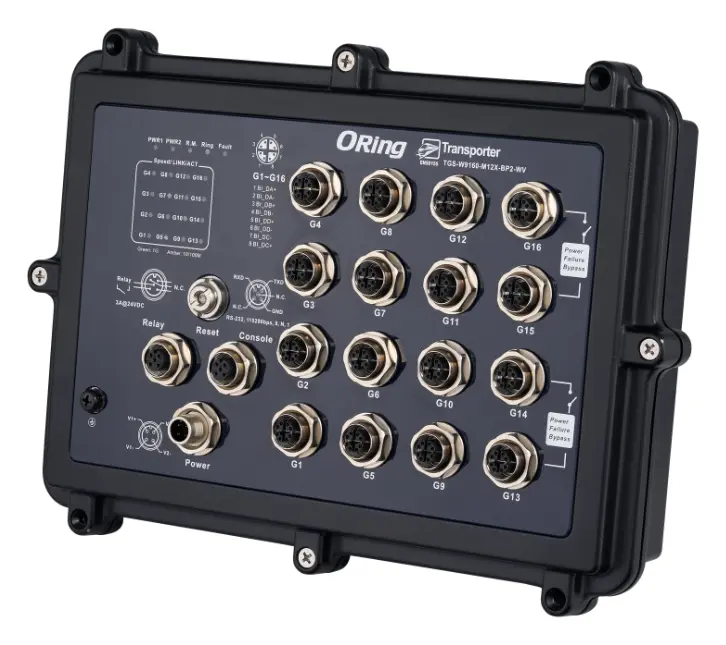

ORing TGS-W9160-M12X-BP2-WV-IP54 EN50155 16 Port Yönetilebilir Gigabit Ethernet switch ve 16x10/100/1000Base-T(X) EN50155 Demiryolu Switch

ORing TGS-W9160-M12X-BP2-WV-IP54 – EN50155 16-port managed Gigabit Ethernet switch with 16x10/100/1000Base-T(X), X-coded M12 connector and 2xbypass included, wide-range power inputs, IP-54 grade. Bu ürün ORing Industrial Networking'in EN50155 Demiryolu Switch ailesinde yer alır.

Öne Çıkan Teknik Özellikler

• Güç Tüketimi (Tipik): 24VDC@17 Watts / 110VDC@16 Watts
• Yedekli Güç Girişi: Dual 24-110VDC on 4-pin male A-coding connector
• Kasa: IP-54
• MAC Adres Tablosu: 8K
• Jumbo Frame: Up to 9.6K Bytes
• Çalışma Sıcaklığı: Recommended ambient temperature: no more than -40~60°C; Maximum operating temperature: -40~75°C
• Garanti: 5 years
• MTBF: 203,099 hrs. (Category: Telcordia SR-332 Issue 2)

Temel Özellikler (Features)

• Leading EN50155-compliant Ethernet switch for rolling stock application
• Supports O-Ring, O-Chain, IEC 62439-2 MRP and RSTP/MSTP for Ethernet Redundancy
• Supports standard ITU-T G.8032 ERPS v1/v2 for Ethernet Redundancy
• Supports isolated power protection
• Supports IEEE 1588v2 clock synchronization
• Supports IPV6 new internet protocol version
• Supports Modbus TCP protocol
• Supports IEEE 802.3az Energy-Efficient Ethernet technology
• Provided HTTPS/SSH protocol to enhance network security
• Supports IP-based bandwidth management
• Supports application-based QoS management
• Supports Device Binding security function
• Supports DoS/DDoS auto prevention
• IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
• Supports SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management

Genel Bakış (Description)

TGS-W9160-M12X-BP2-WV-IP54 is a managed Gigabit Ethernet switch designed for rolling stock, vehicle, and railway applications, fully compliant with EN50155 requirements and rated IP54 for waterproof protection. It provides 16x10/100/1000Base-T(X) ports with support for O-Ring redundancy (recovery time < 30ms), O-Chain, MRP, ERPS v1/v2, and MSTP/RSTP/STP to protect mission-critical applications from network interruptions. The switch features 2 bypass port sets for network continuity during power loss, wide operating temperature from -40°C to 60°C, and dual wide power inputs from 24-110VDC. Centralized management is available via Open-Vision, Web interface, Telnet, and CLI.

Nerelerde kullanılır?

Fabrika sahası, trafik dolapları ve açık alan panolarında geniş sıcaklık aralığında kesintisiz çalışacak şekilde tasarlanmıştır.

Tüm özellikler

• Leading EN50155-compliant Ethernet switch for rolling stock application
• Supports O-Ring, O-Chain, IEC 62439-2 MRP and RSTP/MSTP for Ethernet Redundancy
• Supports standard ITU-T G.8032 ERPS v1/v2 for Ethernet Redundancy
• Supports isolated power protection
• Supports IEEE 1588v2 clock synchronization
• Supports IPV6 new internet protocol version
• Supports Modbus TCP protocol
• Supports IEEE 802.3az Energy-Efficient Ethernet technology
• Provided HTTPS/SSH protocol to enhance network security
• Supports IP-based bandwidth management
• Supports application-based QoS management
• Supports Device Binding security function
• Supports DoS/DDoS auto prevention
• IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
• Supports SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
• Supports ACL, TACACS+ and 802.1x User Authentication for security
• Multiple notification for warning of unexpected event
• Web-based, Telnet, Console (CLI), and Windows utility (Open-Vision) configuration
• Supports LLDP Protocol
• Wall mounting enabled
• IP54 grade waterproof design
