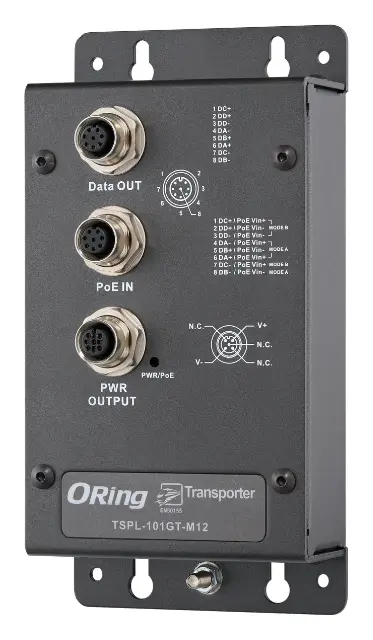

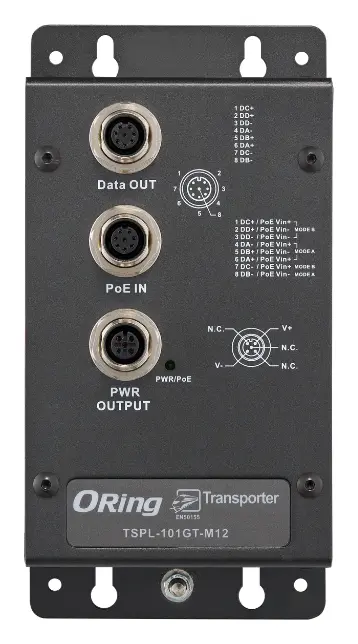

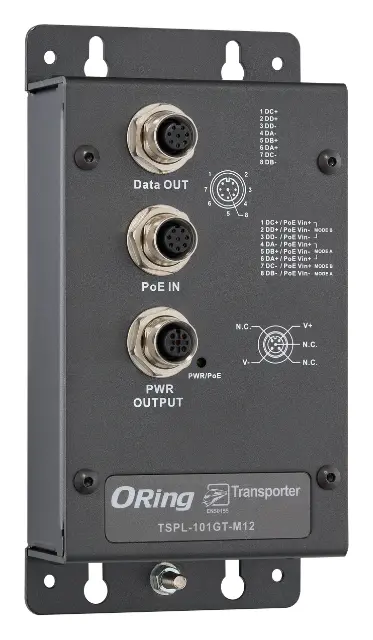

ORing TSPL-101GT-M12-24V EN50155 1 Port Gigabit PoE Splitter, M12 konnektör, IEEE 802.3af/at, 24VDC Endüstriyel PoE Splitter

ORing TSPL-101GT-M12-24V – EN50155 1-port Gigabit PoE Splitter, M12 connector, IEEE 802.3af/at, 24VDC. Bu ürün ORing Industrial Networking'in Endüstriyel PoE Splitter ailesinde yer alır.

Öne Çıkan Teknik Özellikler

• Kasa: IP-40, Iron
• Çalışma Sıcaklığı: -40 to 75℃ (-40 to 167℉)
• Garanti: 5 years
• MTBF: 2397243 hrs.

Temel Özellikler (Features)

• Leading EN50155-compliant Ethernet switch for rolling stock application
• Fully compliant with IEEE802.3at standard
• Supports 10/100/1000Base-T(X) for PoE In and Data Out
• Power short circuit protection for power output
• Auto protection for over voltage power input
• Supports power outputs up to 25Watts max.
• Ultra-rugged enclosure M12 connector for toughest industrial usages
• Wall Mounting enabled

Genel Bakış (Description)

ORing TSPL-101GT-M12 is a high-power PoE splitter from ORing's Transporter™ series, fully compliant with the EN50155 standard for railway and transportation applications including rolling stock and in-vehicle networks. It features M12 industrial-grade connectors and is built to withstand vibration and shock in harsh environments. The device accepts a single Ethernet input carrying both data and power, then splits the power from the connection and outputs data only, converting PoE power to up to 24VDC/1.125A or 12VDC/1.6A for power-hungry devices such as wireless access points, security cameras, and IP phones. Internal current limiting, short-circuit protection, and overload protection are incorporated for safe use as a DC power supply.
