Rosslare

Tuş Takımı & Kumanda PIN Code Readers

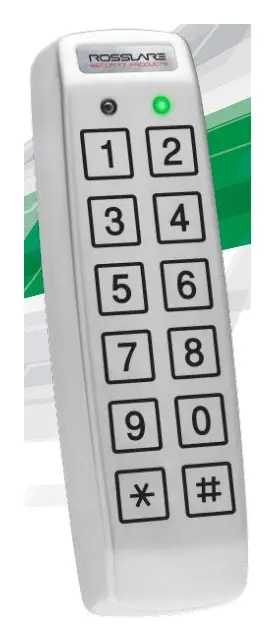

Rosslare AY-S55 Anti-Vandal Piezoelectric PIN Reader Tuş Takımı (PIN Okuyucu)

ModelAY-S55

Rosslare AY-S55 tuş takımı (pin okuyucu) (Anti-Vandal Piezoelectric 2x6 PIN Reader). Öne çıkanlar — çalışma gerilimi aralığı: 5–16 VDC, from a regulated power supply; kullanım ortamı: Suitable for outdoor use (meets IP65).

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Supports 4-digit to 8-digit PIN credentials
Smooth, attractive design, with all-weather indoor and outdoor operation
Large metallic piezoelectric keypad with highly sensitive keys Reader metal construction with piezoelectric environments where PIN code credentials designed to withstand extremely harsh programming options. This elegant
2 tri-colored LEDs and an integral sounder for programming and operation
User-friendly menu system based on keypad, LED and sounder indicators
Back optical tamper detection output
Door bell feature ('*' key), when operated with Rosslare controllers
8 Selectable PIN transmission modes

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Elektriksel Özellikler 5 satır

Çalışma Gerilimi Aralığı	5–16 VDC, from a regulated power supply
Bekleme Akımı	30 mA
Maksimum Giriş Akımı	120 mA
LED Kontrol Girişi	Dry Contact, N.O.
Tamper Çıkışı	Open collector, active low, max. sink current 32 mA

Çalışma Özellikleri 5 satır

Tuş Takımı	2x6 Keys for PIN codes entry and local programming Doorbell key ('*') function (with Rosslare controllers only)
Tesis Kodu (Facility Code)	Programmable 8 selectable formats, from single-digit to 8-digit PIN codes, including: - Wiegand 6-Bit and 8-Bit, nibble and parity bit options, optional
PIN Kod Formatları	Rosslare format - 1–5 keys, fixed 4 keys and 6 keys BCD with Facility code, Wiegand 26-Bit - 2x6 matrix single key - 1 to 8 keys BCD, Clock & Data
Sesli / Görsel Gösterge	Two tri-color LED indicators, Built-in sounder Epoxy-potted, fully-sealed in a rugged metal slim enclosure, high
Tasarım	strength construction, high-sensitive piezoelectric metal keys, no moving parts. Highly suitable for extremely harsh environments.

Çevresel Özellikler 4 satır

Kullanım Ortamı	Suitable for outdoor use (meets IP65)
Çalışma Sıcaklığı	-31ºC to 63ºC (-25ºF to 145º F)
Çalışma Nemi	0% to 95% (non-condensing)
RFI Protection	> 10 V/m up to 1000 MHz

Fiziksel Özellikler 2 satır

Boyutlar (Y x G x D)	150 x 42 x 27 mm (5.9 x 1.7 x 1.1 in.)
Ağırlık	400 g (14.1 oz)

Genel 2 satır

Sistem Bileşenleri	The AY-S55 is compatible with a variety of Rosslare's access controllers, as well as with many third party access control systems.
Garanti	5-Year Limited Product Warranty

Genel bakış

Rosslare AY-S55 kullanım alanları ve özellikleri.

The AY-S55 has a mullion style rugged metal construction with piezoelectric keys, ideal for high traffic and harsh environments where PIN code credentials are needed. This model is epoxy-filled, designed to withstand extremely harsh outdoor environment, and has advanced programming options. This elegant yet robust model can easily interface with Rosslare’s or most third-party controllers.

This sturdy access control unit provides a rugged reader with advanced access control features, in an aesthetically-designed housing.

The AY-S55 offers 8 selectable PIN transmission formats, LED control, and tamper detection to provide extra security and flexibility.

Multi-format settings are programmed entirely through the piezoelectric keypad interface.

The unit has an attractive slim profile, free from sharp edges, ideal for installations where style and rigidity are important.

Main Features

Supports 4-digit to 8-digit PIN credentials
Smooth, attractive design, with all-weather indoor and outdoor operation
Large metallic piezoelectric keypad with highly sensitive keys Reader metal construction with piezoelectric environments where PIN code credentials designed to withstand extremely harsh programming options. This elegant with Rosslare’s or most third-party
2 tri-colored LEDs and an integral sounder for programming and operation
User-friendly menu system based on keypad, LED and sounder indicators
Back optical tamper detection output
Door bell feature ('*' key), when operated with Rosslare controllers
8 Selectable PIN transmission modes
LED control
Programmable Facility code
Comes with a mounting and drilling label, security screw, and tool set to prevent unauthorized opening

Nerelerde kullanılır?

Alarm sistemini kurmak, devreden çıkarmak ve acil durumda panik alarmı vermek için kapı girişlerine veya kullanıcının yanına konumlandırılır.

Tüm özellikler

Supports 4-digit to 8-digit PIN credentials
Smooth, attractive design, with all-weather indoor and outdoor operation
Large metallic piezoelectric keypad with highly sensitive keys Reader metal construction with piezoelectric environments where PIN code credentials designed to withstand extremely harsh programming options. This elegant
2 tri-colored LEDs and an integral sounder for programming and operation
User-friendly menu system based on keypad, LED and sounder indicators
Back optical tamper detection output
Door bell feature ('*' key), when operated with Rosslare controllers
8 Selectable PIN transmission modes
LED control
Programmable Facility code
Comes with a mounting and drilling label, security screw, and tool set to prevent unauthorized opening

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet (PDF)PDF · AY-S55

Sık sorulanlar

AY-S55 hakkında kısa yanıtlar.

AY-S55 fiyatı ne kadar?

AY-S55 için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.

Hızlı teklif

Formu doldurun, AY-S55 için fiyat ve teslim süresini iletelim.
