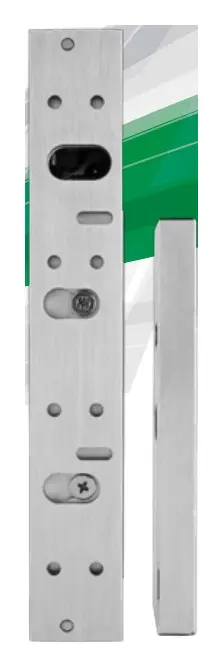

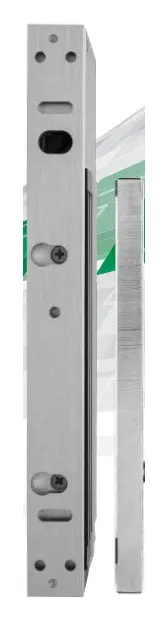

Rosslare LK-M12L M06L/M12L Electro magnetic locks & Brackets Manyetik Kilit

ModelLK-M12L

Rosslare LK-M12L manyetik kilit: Dual voltage (12 VDC or 24 VDC) by changing a jumper setting, Built-in voltage spike suppressor, Compatible with EN55011:1998 class B,EN60601-1-2:2002,EN61000-4-:1995, EN61000-4-3:2002 & UL-S5351 magnetic locks are ideal for secure such as office buildings, ho.

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Dual voltage (12 VDC or 24 VDC) by changing a jumper setting
Built-in voltage spike suppressor
Compatible with EN55011:1998 class B,EN60601-1-2:2002,EN61000-4-:1995, EN61000-4-3:2002 & UL-S5351 magnetic locks are ideal for secure such as office buildings, hospitals, and 300/600/1200 pounds, respectively, and Maglo

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Elektriksel Özellikler 2 satır

Voltage	Dual Voltage 12/24 VDC
12 VDC: 360 mA Current 24 VDC: 180 mA	12 VDC: 500 mA 12 VDC: 500 mA 24 VDC: 250 mA 24 VDC: 250 mA

Teknik Özellikler 12 satır

Kullanım Ortamı	Suitable for indoor use
136 kg (300 lb) Holding Force Main: 166 x 38.6 x 21.5 mm	272 kg (600 lb ) 544 kg (1200 lb) Main: Main: 250 x 47.2 x 26.6 mm 266 x 73 x 40 mm
Weight Contact: 0.25 kg (0.55 lb)	Contact: Contact: 0.66 kg (1.45 lb) 1.39 kg (3.06 lb)
La-L03	LA-L06 LA-L12
166 x 30 x 42 mm Dimensions (L x W x D) (6.54 x 1.18 x 1.65 in.)	250 x 30 x 48 mm 266 x 38 x 76 mm (9.8 x 1.18 x 1.89 in.) (10.5 x 1.5 x 2.99 in.)
Weight 145 g (0.32 lb)	233 g (0.51 lb) 474 g (1.05 lb)
La-Z03	LA-Z06 LA-Z12
166 x 38 x 38 mm Dimensions (L x W x D) (6.54 x 1.50 x 1.50 in.)	185 x 50 x 50 mm 185 x 63.8 x 63.8 mm (7.3 x 1.97 x 1.97 in.) (7.3 x 2.5 x 2.5 in.)
Weight 376 g (0.83 lb)	457g (1 lb) 746 g (1.64 lb)
La-U03	LA-U12
130 x 62 x 33.6 mm Dimensions (L x W x D) (5.12 x 2.44 x 1.32 in.)	185 x 62 x 33.6 mm (7.28 x 2.44 x 1.32 in.)
Weight 378 g (0.83 lb)	550 g (1.21 lb)

Genel bakış

Rosslare LK-M12L kullanım alanları ve özellikleri.

Rosslare’s LK-M03/M06L/M12L high quality magnetic locks are ideal for secure applications where access is restricted, such as office buildings, hospitals, and airports. They have a holding force of 300/600/1200 pounds, respectively, and are easy to install. The attractively designed Maglocks are surface mounted, operate on dual voltage, 12 VDC or 24 VDC, and have low current consumption. These Maglocks are compatible with EN and UL standards.

The LK-M03/M06L/M12L are a series of surface mounted magnetic locks with anodized aluminum housing with 300/600/1200 lbs of holding force, respectively.

LK-M03/M06L/M12L operates on dual voltage (12 VDC or 24 VDC) and low current consumption. In addition, they have built-in voltage spike suppressor and no residual magnetism.

Different types and sizes of brackets and housings are available to fit various mounting conditions.

Main Features

Dual voltage (12 VDC or 24 VDC) by changing a jumper setting
Built-in voltage spike suppressor
Compatible with EN55011:1998 class B,EN60601-1-2:2002,EN61000-4-:1995, EN61000-4-3:2002 & UL-S5351 magnetic locks are ideal for secure such as office buildings, hospitals, and 300/600/1200 pounds, respectively, and Maglocks are surface mounted, VDC, and have low current with EN and UL standards.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet (PDF)PDF · LK-M12L

Sık sorulanlar

LK-M12L hakkında kısa yanıtlar.

LK-M12L fiyatı ne kadar?

LK-M12L için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.

Hızlı teklif

Formu doldurun, LK-M12L için fiyat ve teslim süresini iletelim.
