Ruijie
RG-WALL 1600-Z5100-S
Ruijie RG-WALL 1600-Z5100-S 6 Port Yeni Nesil Firewall
6 port
İncele ve teklif al →
Ruijie
1 / 6

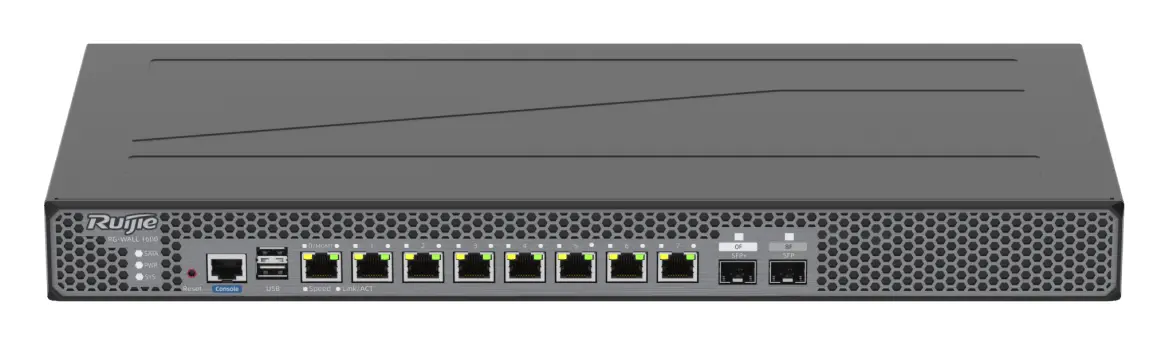

Ruijie RG-WALL 1600-Z3200-S 2 Port Yeni Nesil Firewall
Model
RG-WALL 1600-Z3200-SRuijie RG-WALL 1600-Z3200-S firewall: Port scan + traffic learning, intelligent policy recommendation, simple deployment, Policy execution after simulation, policy optimization anytime, One-click fault locating in the intelligent diagnostic center, Cloud, make your business easy.
Fiyat ve stok bilgisi alınAynı gün dönüş
Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.
Distribütör garantili
81 ile sevkiyat
Teknik destek
- Port scan + traffic learning, intelligent policy recommendation, simple deployment
- Policy execution after simulation, policy optimization anytime
- One-click fault locating in the intelligent diagnostic center
- Cloud, make your business easy
Teknik özellikler
Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
Product Performance 14 satır
| Firewall Throughput4 - Firewall (Traffic Mix) | IPS1; NGFW1,2; Threat Protection1,3 |
|---|---|
| 10 Gbps - 1 Gbps | 900 Mbps; 850 Mbps; 800 Mbps |
| 10 Gbps - 2 Gbps | 1.6 Gbps; 1.2 Gbps; 900 Mbps |
| 10 Gbps - 3 Gbps | 2 Gbps; 1.6 Gbps; 1 Gbps |
| Firewall throughput of IPv4 packets (1518-byte UDP packets)4 | 10 Gbps |
| Firewall throughput (packets per second) | 1.8 Mpps |
| Concurrent sessions (TCP) | 500000 |
| New sessions/second (TCP) | 50000 |
| Firewall policies | 3000 |
| SSL VPN throughput(1392-byte) | 1.7 Gbps |
| Concurrent SSL VPN users (recommended maximum, tunnel mode) | 500 |
| Application control throughput (HTTP 64K)2 | 3 Gbps |
| IPsec VPN throughput (512-byte) | 2.6 Gbps |
| Gateway-to-gateway IPsec VPN tunnels | 1000 |
Donanım Özellikleri 19 satır
| Ürün Boyutları (G x D x Y) | 440 mm x 200 mm x 43.6 mm (17.32 in. x 7.87 in. x 1.72 in.; without rubber pads) |
|---|---|
| Kutu Boyutları (G x D x Y) | 520 mm x 345 mm x 106 mm (20.47 in. x 13.58 in. x 4.17 in.) |
| Ürün Ağırlığı | 2.9 kg (6.39 lbs) |
| Kutulu Ağırlık | 4.0 kg (8.82 lbs) |
| Form Faktörü | 1 RU rack |
| Sabit Servis Portları | 8 x 10/100/1000BASE-T ports; 1 x GE SFP port; 1 x 10GE SFP+ port |
| Sabit Yönetim Portu | 1 x RJ45 MGMT port (reusing Ge0/0); 1 x RJ45 console port (RS-232) |
| USB Portu | 2 x USB 2.0 ports |
| Disk | No hard disk for factory delivery. A 1 TB SATA hard drive can be added. |
| Boyutlar (G x D x Y) | 130 mm x 102 mm x 27 mm (5.12 in. x 4.02 in. x 1.06 in.) |
| Ağırlık | 0.300 kg (0.661 lbs.) |
| Konnektör Tipi | SATA |
| Memory Capacity | 1 TB |
| Hard Disk Type | Hard disk drive |
| Maks. Güç Tüketimi | 14 W |
| Sıcaklık | l Operating temperature: 0°C to 60°C (32°F to 140°F); l Storage temperature: –40°C to +65 °C (–40°F to +149°F) |
| Nem | l Operating humidity: 5% to 95% RH (non-condensing); l Storage humidity: 8% to 90% RH (non-condensing) |
| Rakım | Operating altitude: 0 m to 3,000 m (0 ft. to 9,843 ft.) |
| Hot Swapping of Hard Disk | Desteklenmiyor |
Güç Kaynağı ve Tüketim 2 satır
| Güç Kaynağı | Built-in single power module:; l Rated input voltage: 100–240 V; 50–60 Hz; l Rated input current: 0.65 A |
|---|---|
| Maks. Güç Tüketimi | < 25 W |
Ortam ve Güvenilirlik 7 satır
| Çalışma Sıcaklığı | 0°C to 45°C (32°F to 113°F) |
|---|---|
| Depolama Sıcaklığı | –40°C to +70°C (–40°F to +158°F) |
| Çalışma Nemi | 5% RH to 95% RH (non-condensing) |
| Depolama Nemi | 5% RH to 95% RH (non-condensing) |
| Gürültü Seviyesi | 43.7 dB |
| Çalışma Rakımı | 0–5000 m (0–16404 ft.) |
| Uyumluluk | EMC SZEM2302000974ATV; LVD SZES2302001034AT |
Yazılım Özellikleri 25 satır
| Physical interface | Configuring interfaces as LAN/WAN interfaces; three IP address assignment modes for WAN interfaces: PPPoE, DHCP, and static IP modes; Configuring routing or transparent mode for interfaces; configuring secondary IP addresses for LAN interfaces in routing mode |
|---|---|
| Sub-interface | Configuring sub-interfaces and VLAN IDs |
| Bridge interface | Configuring interfaces in transparent mode as bridge interfaces |
| Static route | Configuring IPv4 static routes |
| PBR | Configuring policy-based routing (PBR) |
| Yönlendirme Tablosu | Overall routing information of a device |
| DHCP server | DHCP server; configuring DHCP address pools |
| Address management list | Assigned DHCP address list |
| DNS server | Configuring DNS addresses for devices |
| Link detection | Link detection and link detection logs |
| VPN | SSL VPN, IPsec VPN, PPTP, and L2TP |
| VRRP | VRRP functions |
| High availability | Deployment with redundancy to achieve automatic switchover between active and passive devices, ensuring service continuity |
| Address/Address group | Configuring address objects in IP address/range format |
| Zone | Configuring security zones |
| Application and application group | Configuring application types in application/application group mode |
| Service/Service group | Configuring service objects; common default port services supported |
| Time plan | Configuring time objects; one-off time plans and cyclic time plans supported |
| Virus protection template | Configuring content object templates; predefined virus protection templates supported; Configuring virus protection templates; configuring quick scan or deep scan; configuring templates based on protocols and directions; setting excluded viruses |
| Intrusion prevention template | Configuring content object templates; predefined intrusion prevention templates supported; Configuring intrusion prevention templates; configuring rule filters based on objects, severity, protocols, and threat types; setting excluded rules |
| SSL proxy certificate | Adding, importing, deleting, viewing, and downloading SSL proxy certificates; configuring a global SSL proxy certificate |
| Server certificate | Importing, deleting, viewing, and downloading server certificates |
| Security rule base | Viewing default security rules in the IPS library |
| Content identification | URL category and keyword configuration |
| User authentication | User management, user import, authentication server configuration, real-name user information synchronization, and authentication policy configuration |
Policy 20 satır
| Traffic learning | Traffic learning to record destination IP addresses and port numbers as well as abnormal traffic; Export of traffic learning logs |
|---|---|
| NAT | NAT and NAT policies |
| Policy import | Batch import of NAT policies |
| ALG | Common NAT ALG services in NAT policy |
| Server mapping | Server port mapping in NAT policy |
| Address pool | NAT address pool status display in NAT policy |
| Security policy | Configuring security policies; customizing policies based on parameters including objects, contents, and zones; policy list; Batch import of security policies |
| Simulation policy | Simulating policy execution in the simulation space to check whether uncertain security policies can achieve expected effects |
| Policy configuration wizard | Security policy configuration wizard for conducting port scan, performing configurations, testing configurations, and other steps to generate security policies |
| Policy optimization | Sorting out configured security policies and analyzing policies to identify redundant, expired, and conflicting policies |
| Policy lifecycle | Full lifecycle display of security policies, including detailed records of policy changes |
| Port scan | Port scan of configured IP ranges for all ports or selected ports; policy creation prompt for scan results |
| DoS/DDoS attack defense | Different DDoS attack defense policies in security defense |
| ARP attack defense | Anti-ARP spoofing, ARP flooding suppression, and other functions in security defense |
| Local defense | Configuring local defense policies in security defense |
| Blocklist/Allowlist | Configuring global blocklists and allowlists |
| SSL proxy policy | Configuring SSL proxy policies; customizing policies based on parameters including objects, contents, and zones; policy list |
| SSL proxy template | Configuring SSL proxy templates; setting the template type to protecting client or server |
| Allowlist | Configuring domain name allowlists and application allowlists |
| Behavior analysis | Configuring analysis policies, templates, and allowlists |
Sistem 22 satır
| Administrator | Creating device administrators, including account names, passwords, and description |
|---|---|
| Administrator role | Setting multiple administrator roles and assigning different permissions |
| Clock configuration | Configuring system time; NTP service configuration supported |
| Service parameter | Configuring service ports for a device, including web (HTTPS), SSH, and other ports |
| SD-WAN | SD-WAN networking on Ruijie Cloud |
| Authorization management | Managing licenses of devices, including license import and activation |
| Device information | Viewing device information, including the product name, SN, and MAC address, version information, running time, and license information |
| System restart | Restarting the system on the web UI |
| System upgrade | Upgrading the system |
| Patch installation | Downloading and installing patches for upgrade |
| Configuration backup | Import and export of configurations |
| Factory settings restoration | Restoring factory settings on the web UI |
| Signature library upgrade | Automatic signature library upgrades based on the latest versions on the cloud |
| Cloud management platform | Enabling or disabling unified management on the cloud management platform |
| Device binding | Adding devices to the cloud management platform by scanning a QR code |
| Ping | Ping for troubleshooting |
| Tracert | Tracert for troubleshooting |
| Packet obtaining tool | Tool for obtaining packets and exporting results |
| One-click collection | Collecting fault information with one click |
| Device health | Device health diagnosis |
| Service diagnosis | Service continuity diagnosis |
| Breakdown record | Breakdown information records |
Device log retention 1 satır
| Factory settings restoration | Restoring factory settings on the web UI |
|---|
Genel bakış
Ruijie RG-WALL 1600-Z3200-S kullanım alanları ve özellikleri.
Suitable for hotels, enterprises, schools, factories, and hospitals for security defense
PPPoE/DHCP/Private line access
Quick onboarding wizard
Security policy configuration wizard
Conflicting policy optimization
Redundant policy optimization
Expired policy optimization
Policy lifecycle management
Intrusion detection and prevention
DDoS attack defense
ARP attack defense
Virus protection templates
Online game service identification
Online shopping service identification
Internet financial service identification
Instant messaging service identification
Visualized service security
Device status display on the cloud
Policy delivery on the cloud
Security analysis on the cloud
Easy Deployment and Simple O&M, Fully Unleashing Security Defense Value
Fit for hotels, enterprises, schools, factories, and hospitals for security defense

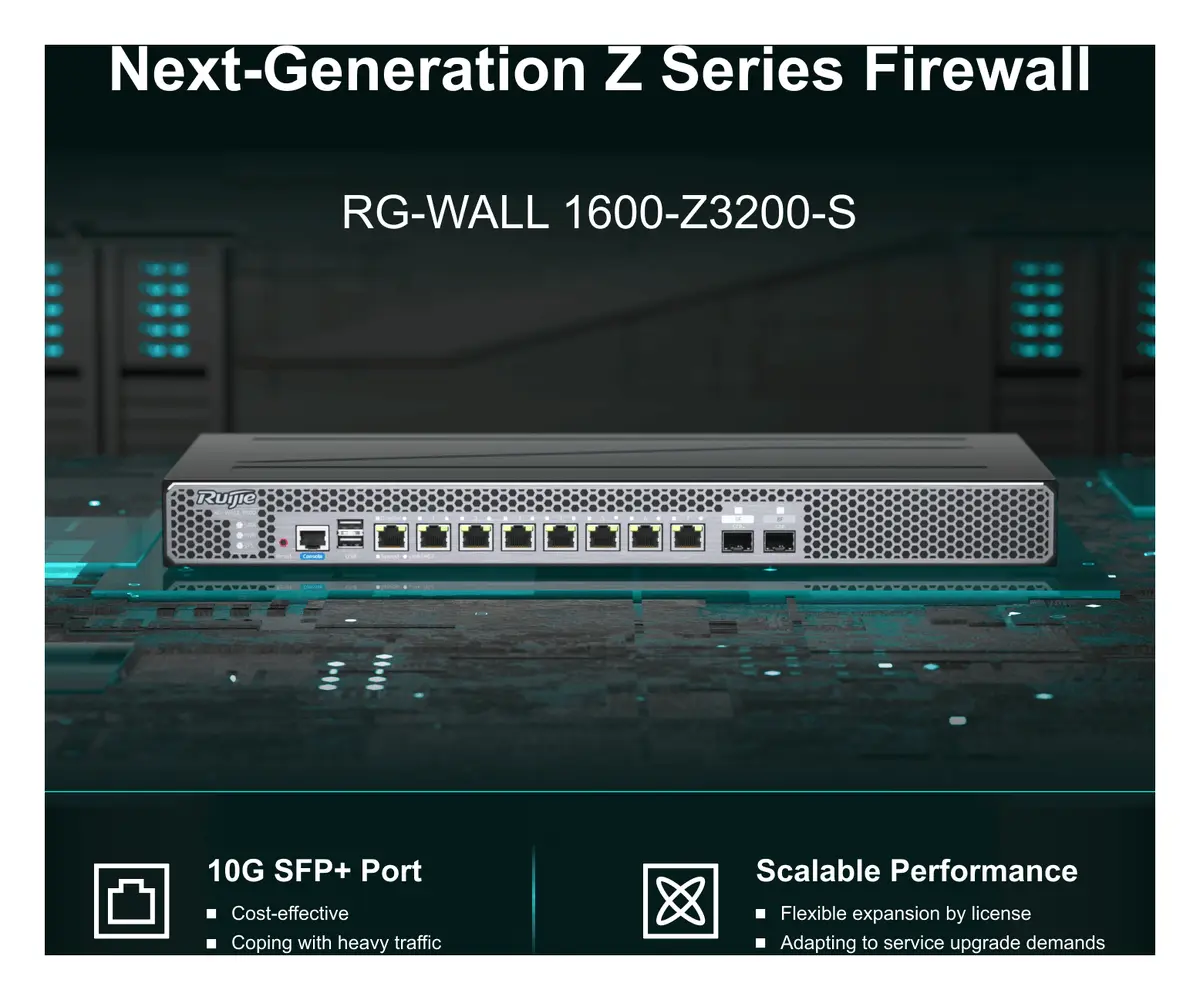

10G SFP+ Port
Cost-effective
Coping with heavy traffic
Ruijie Cloud Management
Network-Wide SON, easy to set up
Remote maintenance, saving efforts and costs
Flexible expansion by license
Adapting to service upgrade demands

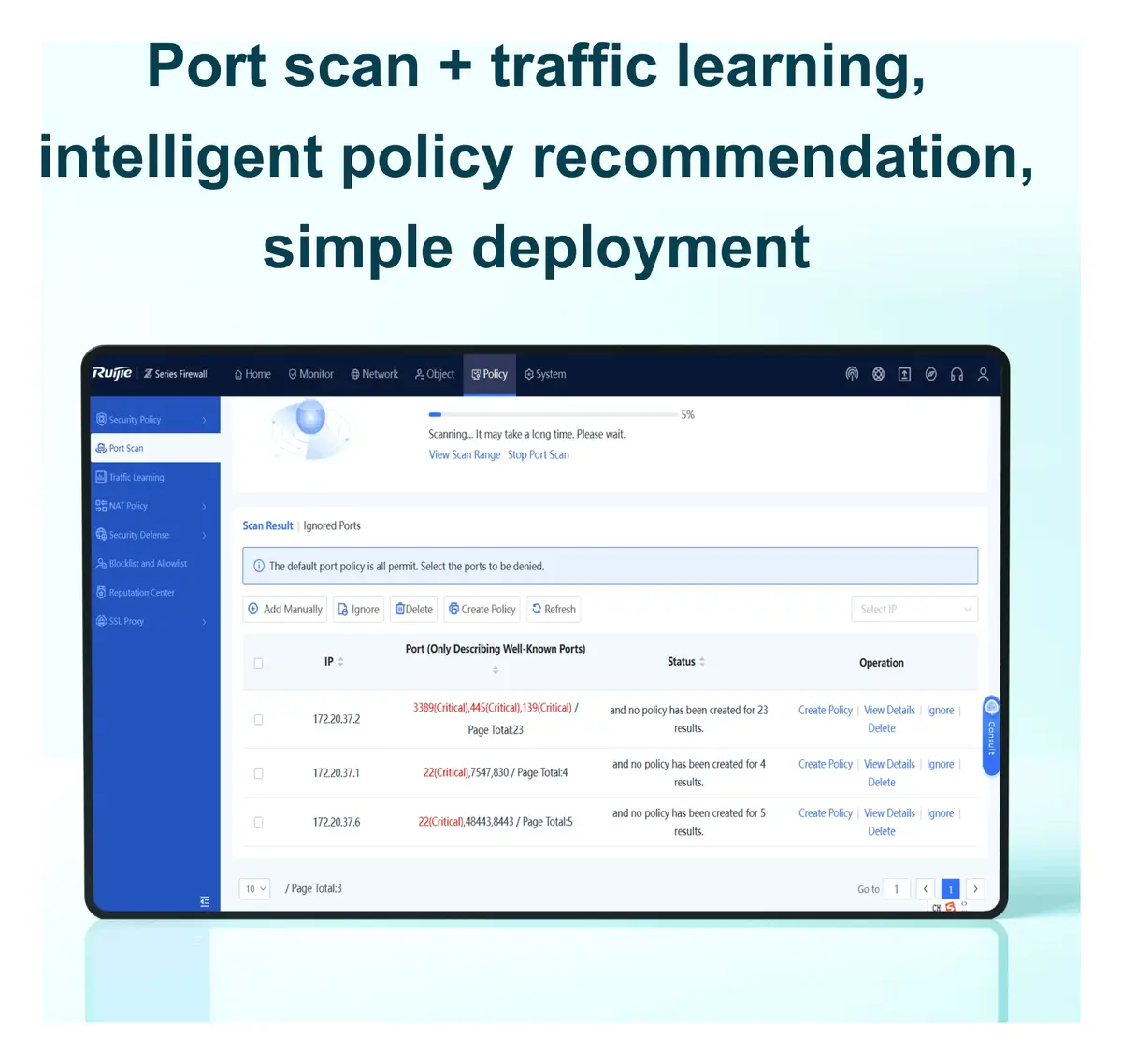

Port Scan + Traffic Learning, Intelligent Policy Recommendation, Simple Deployment
During deployment, use Port Scan to automatically identify the IP address and port number of a service system, and then enable Traffic Learning to automatically detect the service access relationship on the live network. You can also generate access control policies based on ports with one click, and complete firewall onboarding without professional knowledge.
1. Port Scan
2. Traffic Learning
3. Policy Generation

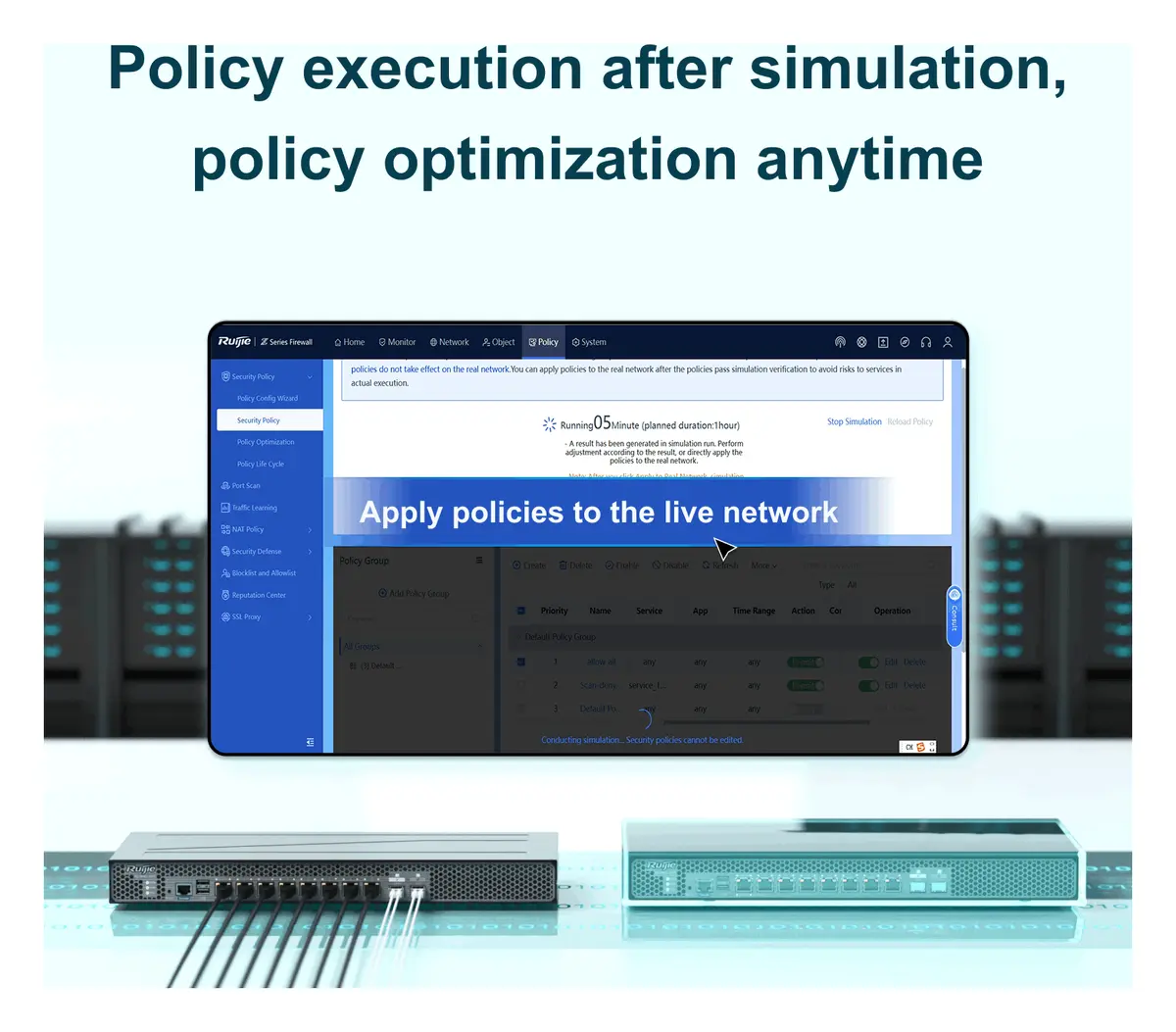

Policy Execution After Simulation, Policy Optimization Anytime
Verify policies in Policy Simulation Space without affecting actual services. Apply policies to the live network with one click after verification.

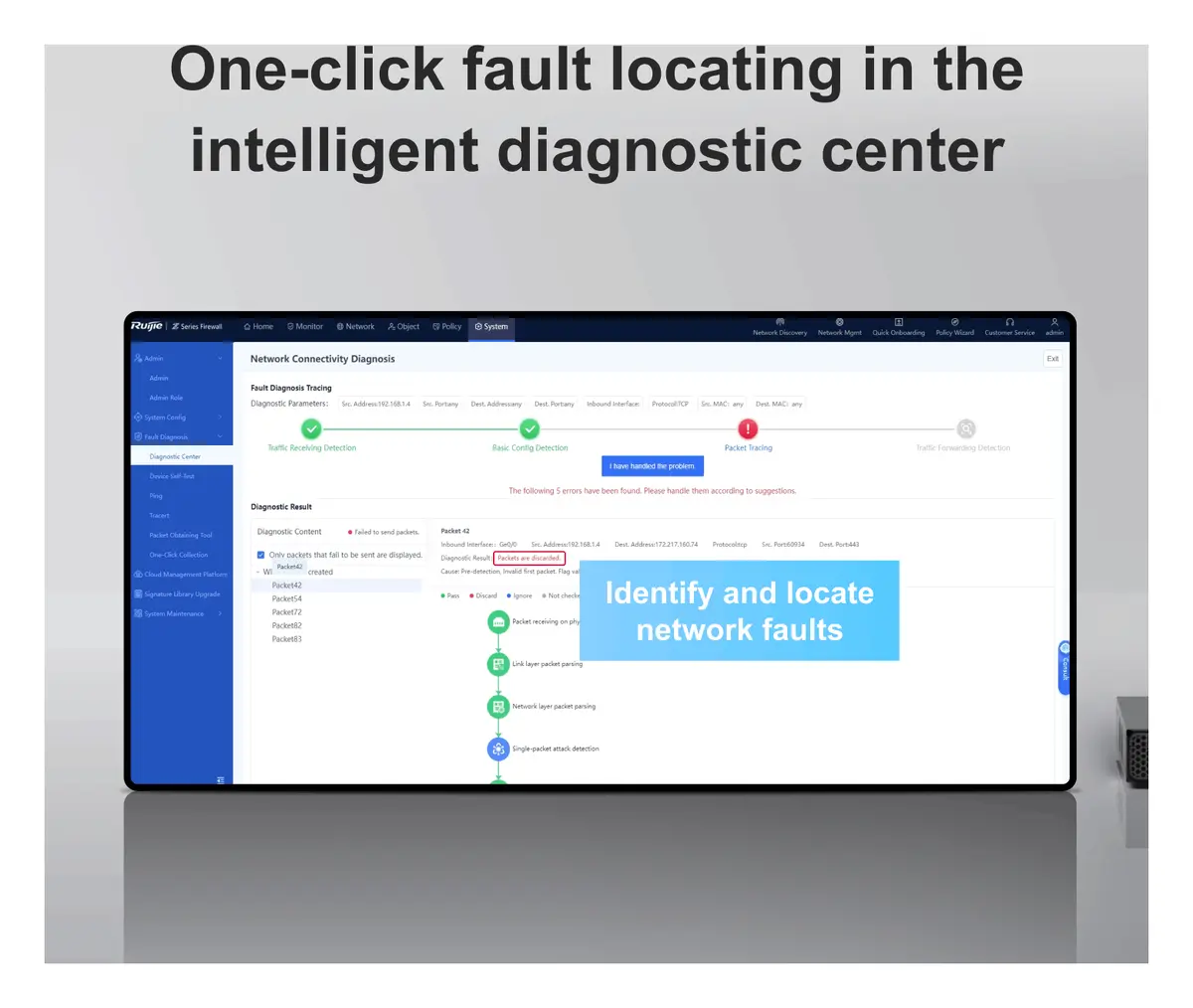

One-Click Fault Locating in the Intelligent Diagnostic Center
The intelligent diagnostic center supports automated analysis of network faults and provides a one-stop troubleshooting wizard for O&M personnel to quickly locate and resolve faults

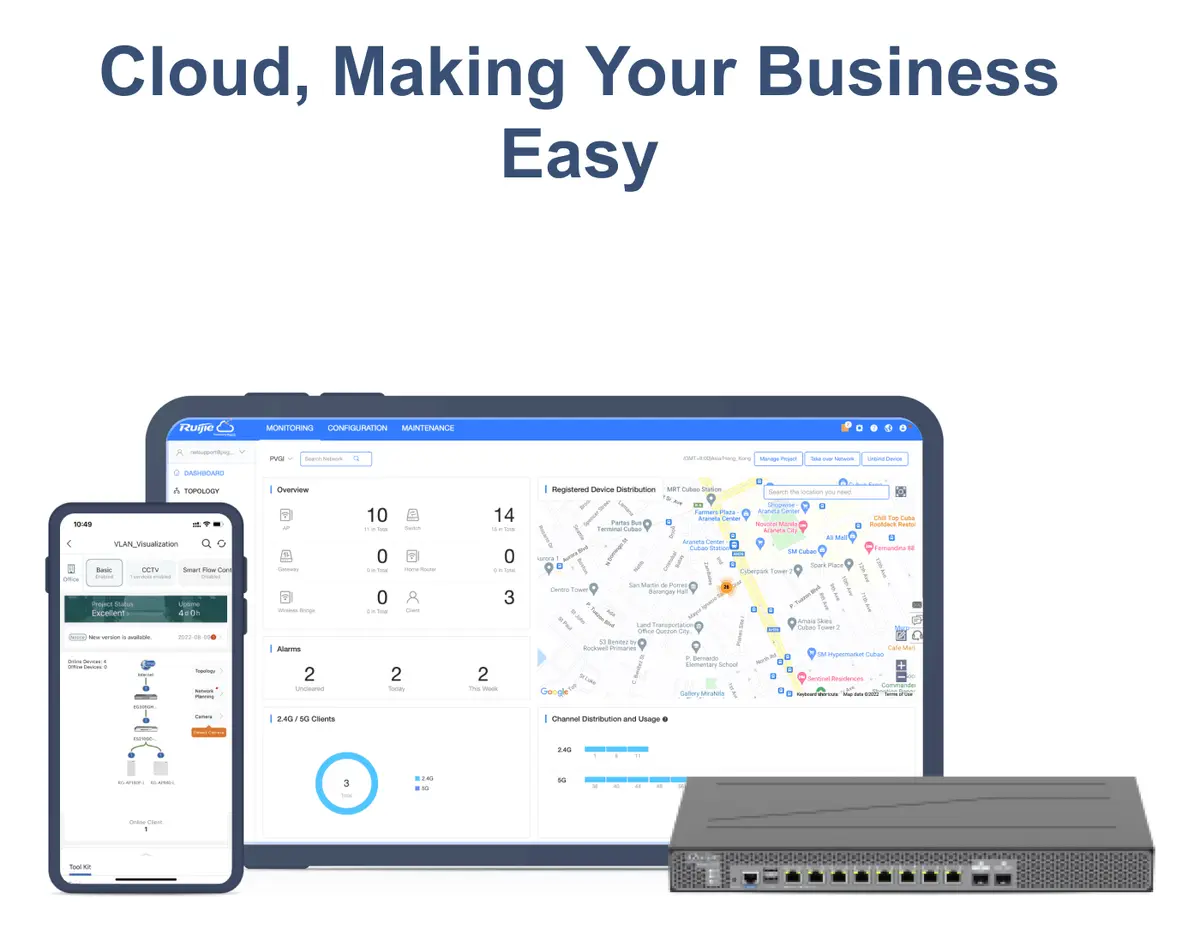

Cloud, Making Your Business Easy
- Remote Wi-Fi management
- Cloud portal authentication
- Wireless intelligent optimization
Dokümanlar
Veri sayfası ve kullanım kılavuzları.
Sık sorulanlar
RG-WALL 1600-Z3200-S hakkında kısa yanıtlar.
RG-WALL 1600-Z3200-S fiyatı ne kadar?
RG-WALL 1600-Z3200-S için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
Hızlı teklif
Formu doldurun, RG-WALL 1600-Z3200-S için fiyat ve teslim süresini iletelim.
