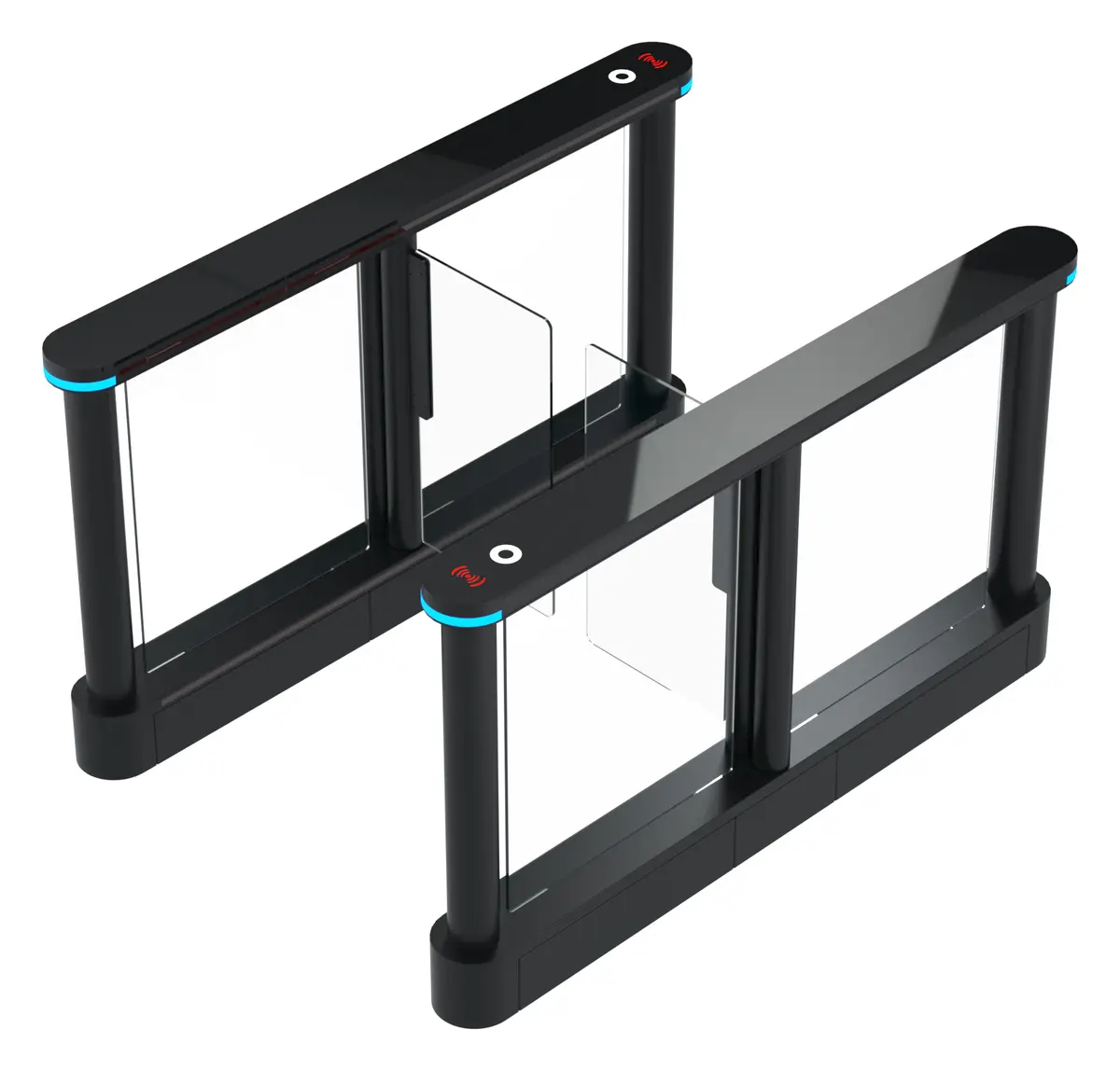

Tansa Loop LS 170 900 mm Geçiş Hızlı Geçiş Turnikesi

Nerelerde kullanılır?

Plaza, hastane ve kurumsal lobilerde estetik ve hızlı geçiş için kullanılır; yetkisiz geçiş ve kuyruk takibi (tailgating) algılama sunar.

Tüm özellikler

• 10 mm temperli camdan üretilmiş, hızlı açılan kanatlı bariyerli hızlı geçiş kapısı.
• Logic controlled interface, bi-directional operation
• Entrance and exit directions can be individually set as controlled, locked or free before or after the installation.
• In controlled access mode, after release confirmation which was sent by access control system, the gate opens the barrier wings and enables one person access in the direction of travel. After each person, the barrier win
• After the release, the gate closes the barrier wings after an adjusted time if no transition or passage occures.
• If people from both directions would like to pass through simultaneously, the first person who activates the gate takes precedense.
• Multiple opening: An additional person is able to to release the next passage cycle during an ongoing passage cycle in both directions. The gate controller stores up to 255 releases and lets corresponding number of indiv
• Relay outputs for counting passage in either direction
• RS 232 serial port • Control for inputs and outputs via potential-free contact
• Loop LS 170 can be controlled by any kind of access control system through dry contact or COM ports.
• Optional cuts on glass top is available for surface mount readers, reader holders or stands as well as standard or custom designed posts for access controller integration.
• RFID Icon positioned in the middle of reader installation area to indicate the card reader position clearly.
• An additional indicator on top illuminates in red when the gate is locked and changes to green for confirmed passages or during free passage.
