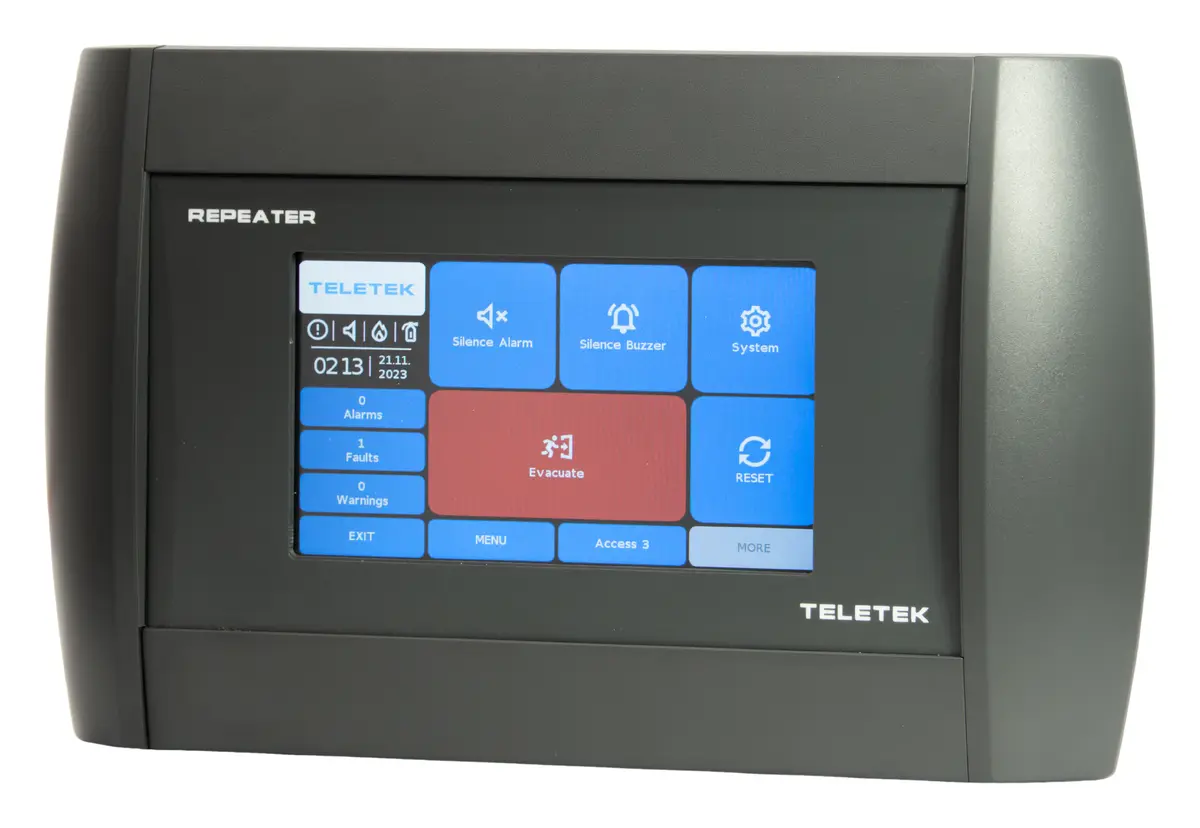

Teletek Repeater TFT IRIS/SIMPO Adresli Tekrarlayıcı (Repeater) Panel

Teletek Repeater TFT IRIS/SIMPO, adresli tekrarlayıcı paneldir. Öne çıkanlar: EN 54-2 uyumlu.

IRIS/SIMPO TFT is a wired fire alarm repeater panel that mirrors system information from compatible IRIS and SIMPO addressable fire alarm panels. It gives personnel access to system status from another operational point, without needing to remain beside the main control panel. This makes it particularly useful at locations such as reception desks, security rooms or secondary entrances.
The repeater connects through its built-in RS485 network module or a standard LAN network. RS485 networks support up to 64 nodes and distances of up to 1 km between panels. System information is presented through a 7-inch TFT touchscreen and LED indicators, while authorised operators can reset, evacuate, silence sounders and silence buzzers across networked panels.

A 10,000-event log, multilingual interface, real-time clock and micro USB connection support operation, programming and firmware updates. The repeater is BOSEC certified and designed according to EN 54-2.

Why Choose IRIS/SIMPO TFT Repeater?

Information Beyond the Main Panel
Place system information where personnel actually need it, rather than requiring every check or response to take place at the main fire alarm panel.

Flexible Network Connection
Built-in RS485 and LAN connectivity support different network layouts, with RS485 networks accommodating up to 64 nodes.

Monitoring and System Control
The touchscreen provides more than status visibility. Operators can also perform key network functions including reset, evacuation and sounder or buzzer silencing.

At a Glance

• • 7-inch TFT touchscreen with LED indication
  • Compatible with IRIS and SIMPO fire alarm panels
  • Built-in RS485 and LAN network modules
  • Up to 64 nodes in an RS485 network
  • Up to 1 km distance between panels
  • Reset, evacuation and sounder/buzzer silencing
  • 10,000-event log
  • Multilingual interface, real-time clock and micro USB

Nerelerde kullanılır?

Binadaki dedektör, buton ve sirenleri yöneten yangın algılama sisteminin merkezidir; alarmın yerini gösterir, tahliye uyarısını başlatır ve diğer sistemlerle (asansör, havalandırma, kapılar) entegre çalışır.

Kurulum ve uyumluluk

Yangın algılama sistemleri; Binaların Yangından Korunması Hakkında Yönetmelik ve TS EN 54 standardına uygun olarak projelendirilmeli ve yetkili ekiplerce devreye alınmalıdır.
