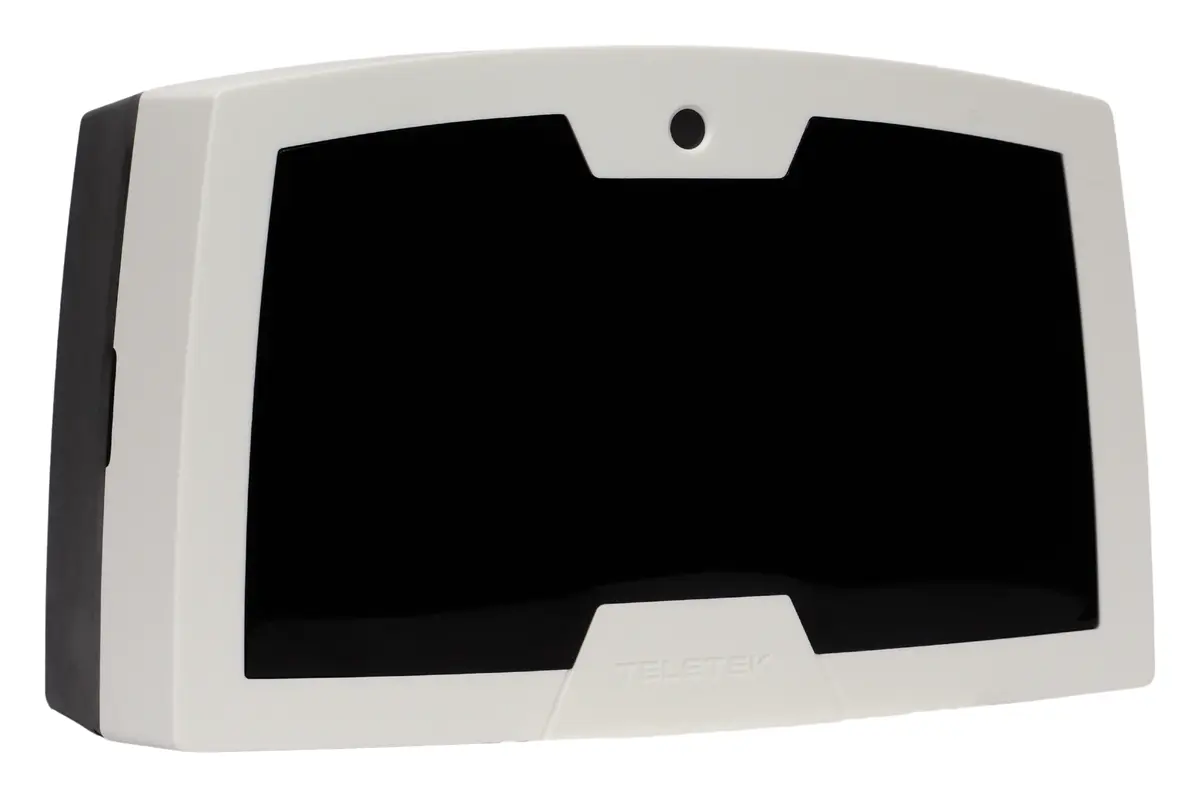

Teletek SensoMAG BM60 / BM120 Konvansiyonel Işın Tipi Duman Dedektörü

Teletek SensoMAG BM60 / BM120, konvansiyonel ışın tipi duman dedektörüdür. Öne çıkanlar: IP65 koruma sınıfı.

SensoMAG BM60 and BM120 are conventional reflective beam smoke detectors. They are designed for large, open spaces where point detector installation may be difficult or impractical. Typical applications include warehouses, production halls, atriums, sports facilities and other buildings with long, unobstructed detection paths.

The detector and controller are combined in one unit, while a reflector is installed at the opposite end of the protected area. A built-in laser pointer, manual adjustment screws and automatic calibration support faster alignment and commissioning.

BM60 covers distances from 5 to 60 metres and includes one reflector. BM120 is designed for distances from 50 to 120 metres and includes four reflectors. Both models provide coverage up to 15 metres wide and use standard input and output connections for integration with compatible conventional fire alarm systems.

Why Choose SensoMAG Beam Detectors?

Wide-Area Coverage
Protect long open spaces with a beam width of up to 15 metres.

Simplified Alignment
Use the integrated laser pointer, adjustment screws and automatic calibration during installation.

Conventional Compatibility
Connect the detector to compatible conventional systems through standard input and output connections.

Which Model Fits?

SensoMAG BM60
For detection distances from 5 to 60 metres, supplied with one reflector.

SensoMAG BM120
For detection distances from 50 to 120 metres, supplied with four reflectors.

At a Glance

• Reflective linear optical smoke detection
• BM60 range: 5 to 60 metres
• BM120 range: 50 to 120 metres
• Coverage width up to 15 metres
• Built-in laser alignment
• Automatic calibration
• IP65 enclosure
• 12–24 VDC operation

Looking for the addressable version? Check out the SensoIRIS BM60 / BM120.

Nerelerde kullanılır?

Yangını duman veya ısı artışıyla en erken aşamada algılayarak yangın alarm paneline bildirir; tahliye için kritik zaman kazandırır.

Kurulum ve uyumluluk

Yangın algılama sistemleri; Binaların Yangından Korunması Hakkında Yönetmelik ve TS EN 54 standardına uygun olarak projelendirilmeli ve yetkili ekiplerce devreye alınmalıdır.
