Teletek TTE LAN LAN (IP) İletişim Modülü

Teletek TTE LAN, LAN iletişim modülüdür.

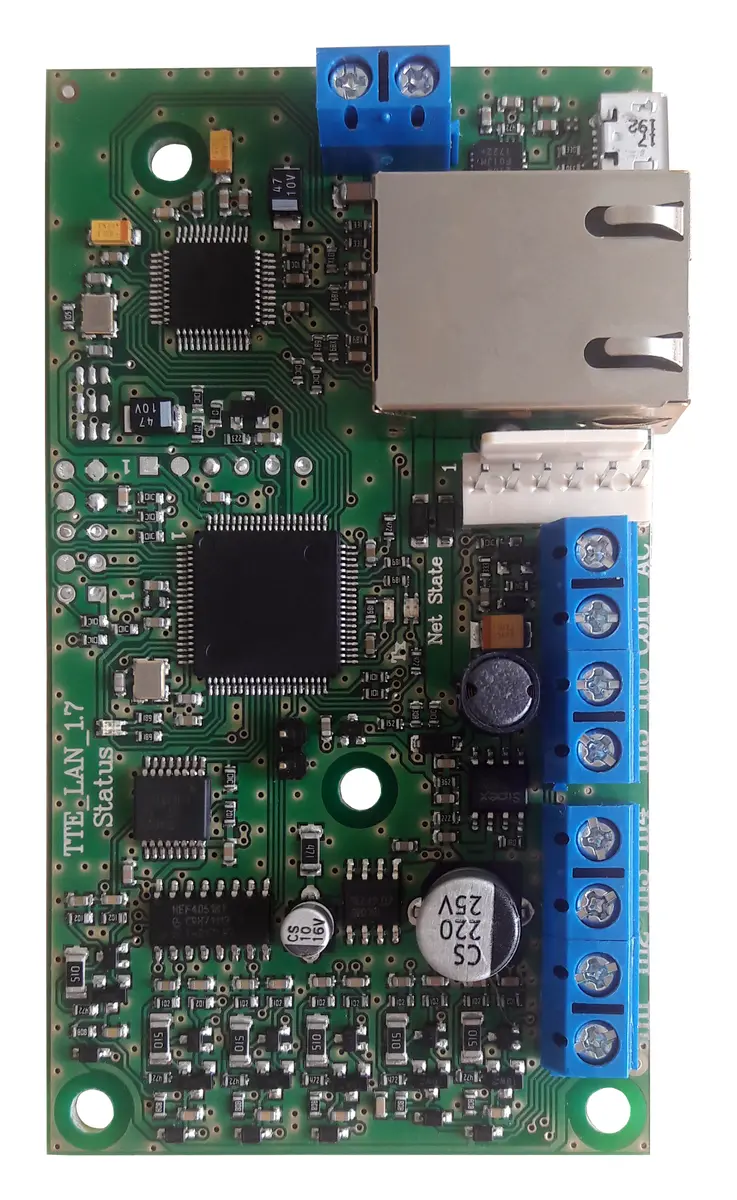

TTE LAN is a universal communication module. It is used for connection to intruder or fire alarm panels or as a stand-alone device. The device is connected to Eclipse series intruder control panels and SIMPO fire alarm control panel via serial communication or with third part panels via its 6 inputs. TTE LAN is used to send alarm messages to monitoring center or end-user. The module is mounted in small plastic box suitable for wall mounting.

TTE LAN can also be used for remote management, programming and monitoring of the security system together with Eclipse panel and the AJAX SP PRO software application. The module is suitable for realizing of home automation applications.

• Indication for the network status and the status of the connection of the control panel;
• Internet remote programming and control through AJAX SP PRO/MobileTTE (iOS/Android) application;
• Micro USB port for configuration with ProsTE software;
• Serial communication with ECLIPSE series control panels and SIMPO fire alarm control panel;
• 6 programmable inputs/outputs, OC type (up to 100 mA each);
• Main and Backup IP for connection with AJAX SP PRO;
• Automatic (DHCP) or manual settings for network connection;
• Suitable for home automation;
• Control panel communication supervision.

Nerelerde kullanılır?

Alarm sisteminin menzilini, iletişim yollarını veya otomasyon yeteneklerini genişletir; aydınlatma, kapı ve elektrikli cihazların kontrolüne olanak tanır.

Tüm özellikler

• Indication for the network status and the status of the connection of the control panel
• Internet remote programming and control through AJAX SP PRO/MobileTTE (iOS/Android) application
• Micro USB port for configuration with ProsTE software
• Serial communication with ECLIPSE series control panels and SIMPO fire alarm control panel
• 6 programmable inputs/outputs, OC type (up to 100 mA each)
• Main and Backup IP for connection with AJAX SP PRO
• Automatic (DHCP) or manual settings for network connection
• Suitable for home automation
• Control panel communication supervision.
