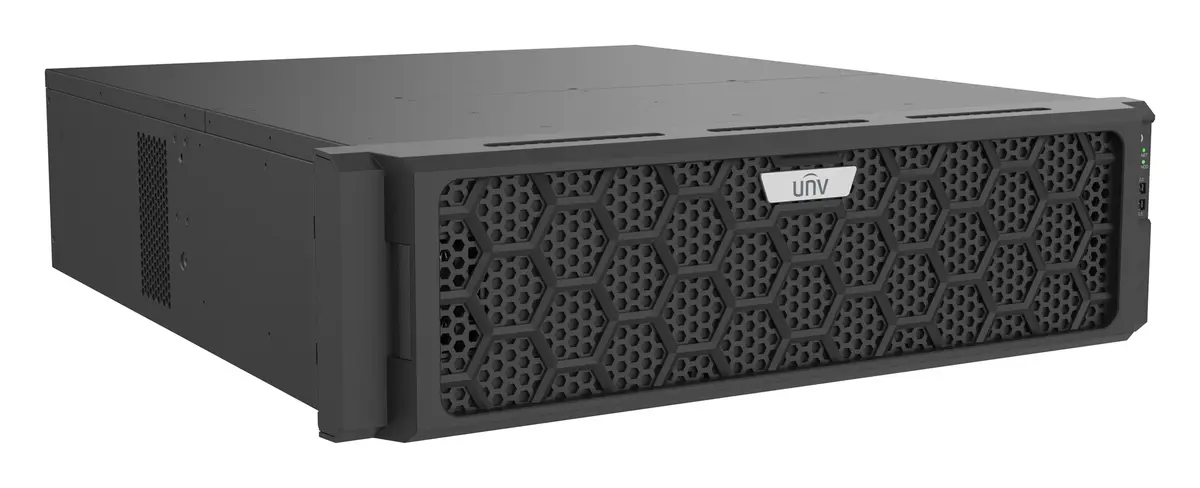

Uniview NVR516-64E-R-IM 64 Kanal 16 HDD NVR Kayıt Cihazı — görsel 3

1 / 3

NVR Kayıt Cihazı Prime

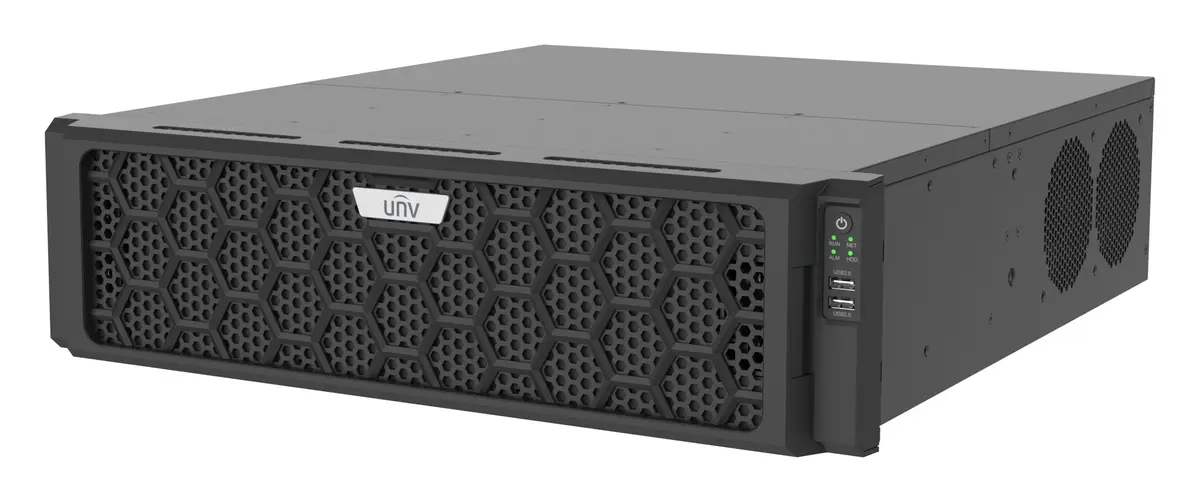

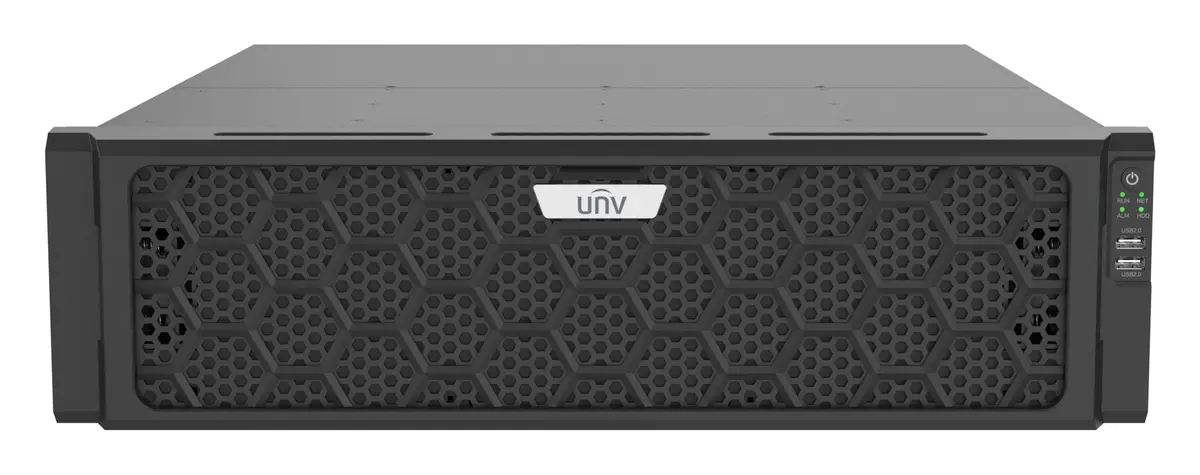

Uniview NVR516-64E-R-IM 64 Kanal 16 HDD NVR Kayıt Cihazı

ModelNVR516-64E-R-IM

Uniview NVR516-64E-R-IM, 64 kanala kadar kamera bağlanabilen bir NVR kayıt cihazıdır. 6 adet SATA disk yuvasıyla kayıt süresi ihtiyaca göre ölçeklenebilir. 32 MP çözünürlüğe kadar kamera kaydını destekler.

Kanal sayısı: 64 kanal
PoE: PoE yok

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Support Ultra 265/H.265/H.264 video formats
64/128-channel input
Support 2-ch HDMI, 2-ch VGA, HDMI at up to 8K (7680 × 4320)/30 Hz resolution
HDMI1/VGA1 and HDMI2/VGA2 independent output
Up to 32 Megapixels resolution recording
Redundant power supply optional
Support HDD hot swap with RAID 0, 1, 5, 6, 10, 50, 60 storage scheme configurable
Support 1 miniSAS Interfaces and 1 eSATA Interfaces

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Genel 3 satır

Model	NVR516-64E-R-IM
Seri	Prime
Ürün Tanımı (Üretici)	16 Hard Disks 64-Channel Intelligent Network Video Recorder

Kod Çözme 4 satır

Kod Çözme Formatı	Ultra 265, H.265, H.264
Kod Çözme Kapasitesi	Smart Off:; H265: 3 x 32MP@30, 6 x 16MP@30, 8 x 12MP@30, 12 x 4K@30, 16 x 6MP@30, 19 x 5MP@30, 24 x 4MP@30, 32 x 3MP@30, 48 x 1080P@30, 64 x 720P@30, 64 x D1@30; H264: 2 x 32MP@30, 4 x 16MP@30, 6 x 12MP@30, 9 x 4K@30, 12 x 6MP@30, 14 x 5MP@30, 18 x 4MP@30, 24 x 3MP@30, 36 x 1080P@30, 64 x 720P@30, 64 x D1@30; Smart On: Smart On: When Smart by NVR on, the decoding capacity is same as Smart off.
Decoding Capability Description	The resolution of each channel cannot exceed 8640 pixels in length or width, For VGA/HDMI independent output, the VGA live video is output by default. To output the highest resolution video from the HDMI port, please clear the VGA video on the preview page.
Ses Sıkıştırma	G.711A, G.711U

Ağ 5 satır

Gelen Bant Genişliği	8K OFF: 768 Mbps, 8K ON: 512 Mbps
Giden Bant Genişliği	8K OFF: 768 Mbps, 8K ON: 640 Mbps
Maks. Uzak Kullanıcı	128
Protokoller	TCP/IP, SMTP, RTSP, UPnP, NTP, DHCP, PPPoE, HTTP, DNS, DDNS, IPv6, IPv4, HTTPS, SNMP, NFS, 802.1x
Web Tarayıcı (Eklentili)	Chrome 45+, Edge 79+, Firefox 52+

Video/Ses Girişi 2 satır

IP Video Girişi	64-ch
RCA Ses Girişi	1-ch

Video/Ses Çıkışı 8 satır

Video Çıkışı	Support 2-ch HDMI, 2-ch VGA, HDMI1 and VGA1 simultaneous output, HDMI2 and VGA2 simultaneous output, HDMI1/VGA1 and HDMI2/VGA2 independent output
HDMI Çıkışı	HDMI1: 8K (7680 × 4320)/30 Hz, 4K (3840 2160)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz; HDMI2: 4K (3840 × 2160)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
VGA Çıkışı	1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
RCA Ses Çıkışı	2-ch
Canlı İzleme Ekranı	1/4/6/8/9/16/25/36/64
Koridor Modu Ekranı	3/4/5/7/9/10/12/16/32
Playback Screen	1/4/9/16
Corridor Mode Screen of Playback	1/3

Peripheral Input 2 satır

POS	All channels
Ip Speaker	64-ch

Çift Yönlü Ses 1 satır

Çift Yönlü Ses	1-ch, RCA (Using the audio input and output)

Anlık Görüntü 1 satır

FTP/Zamanlı/Olay Anlık Görüntü	16-ch snapshot (max. 8 MP (3840 × 2160) video resolution, with 1080P snapshot resolution)

Kayıt 3 satır

Kayıt Çözünürlüğü	32 MP/16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
Num of Concurrent Playback	32-ch
Yerel Senkron Oynatma	16-ch

Akıllı Özellikler 4 satır

Kamera Tabanlı Akıllı Analiz	All channels (up to 64 images/s in total) Face Detection, Face detection, Vehicle Detection (LPR), Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring, People Counting
NVR Tabanlı Akıllı Analiz	Face Detection, Face detection, Ultra Motion Detection (UMD), Smart Intrusion Prevention (SIP), Video Metadata, Plate Comparison
Smart by NVR Analyzer Mode	Single Mode (SIP), Single Mode (UMD), Mixed Mode (+Mixed-Traffic Dection+AcuSearch/AcuTrack), Modes cannot active simultaneously, only one mode can active at a time.
VCA Arama	Face detection Search, Behavior Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map, AcuSearch, AcuTrack, SmartSearch+

AcuSearch 1 satır

Acu Search Performance	All channels with UNV SIP/UMD Camera, Up to 32-ch with normal camera (UNV and Third-part brand, 32-ch 2MP, 16-ch 4MP, 8-ch 4K)

AcuTrack 1 satır

Acu Track Performance	All channels with UNV SIP/UMD Camera, Up to 32-ch with normal camera (UNV and Third-part brand, 32-ch 2MP, 16-ch 4MP, 8-ch 4K)

SeekFree 2 satır

SeekFree Performance	N/A
SeekFree Language	N/A

face detection 2 satır

face detection by NVR	Up to 6-ch with normal camera (UNV and Third-part brand, 6-ch 2MP, 3-ch 4MP, 1-ch 4K), Up to 32-ch with UNV Face Detection Camera
Search by Image	Support

Plate Comparison 1 satır

Plate Comparion by NVR	All channels with UNV LPR Camera, normal/Third-part brand cameras not supported

SIP 1 satır

SIP by NVR with normal cameras	Up to 24-ch with normal camera (UNV and Third-part brand, 24-ch 2MP, 12-ch 4MP, 6-ch 4K)

UMD 1 satır

UMD by NVR with normal cameras	Up to 32-ch with normal camera (UNV and Third-part brand, 32-ch 2MP, 16-ch 4MP, 8-ch 4K)

Video Metadata 2 satır

Video Metadata by NVR with normal cameras	Up to 6-ch with normal camera (UNV and Third-part brand, 6-ch 2MP, 3-ch 4MP, 1-ch 4K)
Video Metadata Type	Motor Vehicle: Vehicle Type, Vehicle Color, Vehicle Brand, Direction, Plate Type, Plate Color, Non-Motor Vehicle: Non-Motor Vehicle Type, Direction, Gender, Age, Upper Garment Length, Upper Garment Color, Human Body: Gender, Age, Mask, , Bag Style, Direction, Upper Garment Length, Lower Garment Length, Upper Garment Color, Lower Garment Color

Capacity of Smart Snapshots 1 satır

Capacity of Snapshot Records	3 millions records for face snapshot, 3 millions records for vehicle snapshot, 3 millions records for SIP

Alarm 2 satır

Genel Alarm	Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Audio Detection, Alarm Input
Uyarı Alarmı	IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal, Array Damaged, Array Degraded

Sabit Disk 6 satır

SATA	16 SATA Interfaces
Kapasite	Up to 24 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size, The environment temperature for use should not exceed 40°C)
Disk Grubu	Support
Yedekli Depolama	Support
Disk Dizisi (RAID) Tipi	RAID 0, 1, 5, 6, 10, 50, 60
Çalışırken Değiştirme (Hot Swap)	Support

Harici Arayüz 14 satır

Ağ Arayüzü	2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
Network Working Mode	Muli-access, load balance, network fault-tolerance
USB	Front panel: 2 × USB2.0, Rear panel: 2 × USB3.0
RS485	1
RS232	1
Alarm Girişi	16-ch
Alarm Çıkışı	10-ch
eSATA	1
miniSAS	1
Güç Çıkışı	12 V
Güç Kaynağı	AC 220 V
Power Switch	Support
Redundant Power Supply	Support
Buzzer	Support

Çalışma Ortamı 4 satır

Çalışma Sıcaklığı	-10 ℃ to 55 ℃ (14 ℉ to 131 ℉)
Çalışma Nemi	≤ 90% RH (non-condensing)
Güç Tüketimi (HDD Hariç)	≤50W
Heat Dissipation	Fan, Radiator

Boyutlar 3 satır

Ağırlık (HDD Hariç)	≤ 8.0Kg (17.6lb)
Yükseklik	3U
Boyutlar	481.6mm × 559.3mm × 131.0mm (19.0" ×22.0" ×5.2" )

Uyumluluk 1 satır

NDAA Uyumlu	Support

Sertifikalar 3 satır

Sertifikalar	CE; FCC; UL; RoHS; WEEE
CE	EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC	Part15 Subpart B

Feature Supported 12 satır

Preset Num	32
N+1 Hot Spare	Support
Fisheye Dewarping by IPC	Support
Fisheye Dewarping by NVR (Local)	Support (Max 1-CH, Max 12MP ), After fisheye correction, the actual display resolution will be reduced to around 1080P , 4K output on: Fisheye correction is not supported by NVR
ANR	Support
Video Image Database (Uplink)	Support
UCS (Web socket)	Support
NAS	Support
Ucode Basic Mode	Support
Ucode Advanced Mode	Support
Dual-lens Cameras	Support
Box-Dome Linkage	Support

GUI Language 1 satır

Arayüz Dili	38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian

Arayüz Dili

38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian

Others 1 satır

Decoding Capability (1080P)	N/A

Genel bakış

Uniview NVR516-64E-R-IM kullanım alanları ve özellikleri.

Uniview NVR516-64E-R-IM, Prime serisi 64 Kanal 16 HDD NVR Kayıt Cihazı modelidir. Öne çıkanlar: IP kanal girişi 64-ch.

Üretici tanımı: 16 Hard Disks 64-Channel Intelligent Network Video Recorder

Öne Çıkan Özellikler

Support Ultra 265/H.265/H.264 video formats
64/128-channel input
Support 2-ch HDMI, 2-ch VGA, HDMI at up to 8K (7680 × 4320)/30 Hz resolution
HDMI1/VGA1 and HDMI2/VGA2 independent output
Up to 32 Megapixels resolution recording
Redundant power supply optional
Support HDD hot swap with RAID 0, 1, 5, 6, 10, 50, 60 storage scheme configurable
Support 1 miniSAS Interfaces and 1 eSATA Interfaces
Support 12V power output
ANR technology to enhance the storage reliability when the network is disconnected
Support cloud upgrade
Support N+1 Hot spare

Nerelerde kullanılır?

IP kamera sistemlerinin merkezidir; görüntüleri disk üzerinde saklar, mobil uygulama ve bilgisayar üzerinden canlı izleme ile kayıt izleme imkânı verir.

Kurulum ve uyumluluk

Sürekli kayıt için gözetim diski (Seagate SkyHawk veya WD Purple) önerilir.

Tüm özellikler

Support Ultra 265/H.265/H.264 video formats
64/128-channel input
Support 2-ch HDMI, 2-ch VGA, HDMI at up to 8K (7680 × 4320)/30 Hz resolution
HDMI1/VGA1 and HDMI2/VGA2 independent output
Up to 32 Megapixels resolution recording
Redundant power supply optional
Support HDD hot swap with RAID 0, 1, 5, 6, 10, 50, 60 storage scheme configurable
Support 1 miniSAS Interfaces and 1 eSATA Interfaces
Support 12V power output
ANR technology to enhance the storage reliability when the network is disconnected
Support cloud upgrade
Support N+1 Hot spare

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet (Teknik Föy) - UNV NVR516-R-IM Series Network Video Recorder.pdfPDF · NVR516-64E-R-IM Kullanım Kılavuzu - UNV-Network Video Recorders User Manual(Old UI).pdfPDF · NVR516-64E-R-IM Kullanım Kılavuzu - UNV-Network Video Recorders User Manual(New UI).pdfPDF · NVR516-64E-R-IM Hızlı Kurulum Kılavuzu - Quick Guide.pdfPDF · NVR516-64E-R-IM

Sık sorulanlar

NVR516-64E-R-IM hakkında kısa yanıtlar.

NVR516-64E-R-IM kaç kamera destekler?

NVR516-64E-R-IM 64 kanallıdır; 64 kameraya kadar kayıt yapabilir.

NVR516-64E-R-IM kaç disk takılır?

NVR516-64E-R-IM üzerinde 6 adet SATA disk yuvası bulunur. 7/24 kayıt için gözetim diskleri önerilir.

NVR516-64E-R-IM için hangi disk önerilir?

Sürekli yazma yüküne göre tasarlanmış Seagate SkyHawk veya WD Purple gözetim diskleri önerilir. Kapasite; kamera sayısı, çözünürlük ve istenen kayıt gün sayısına göre hesaplanmalıdır.
