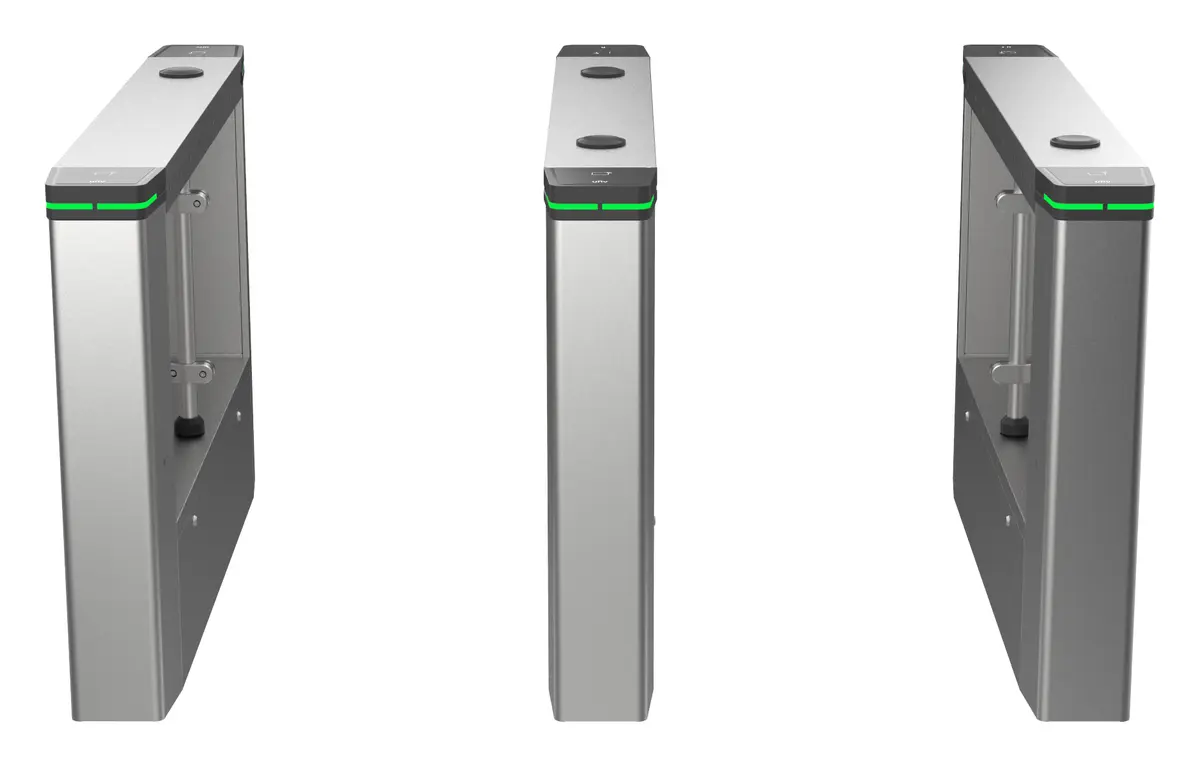

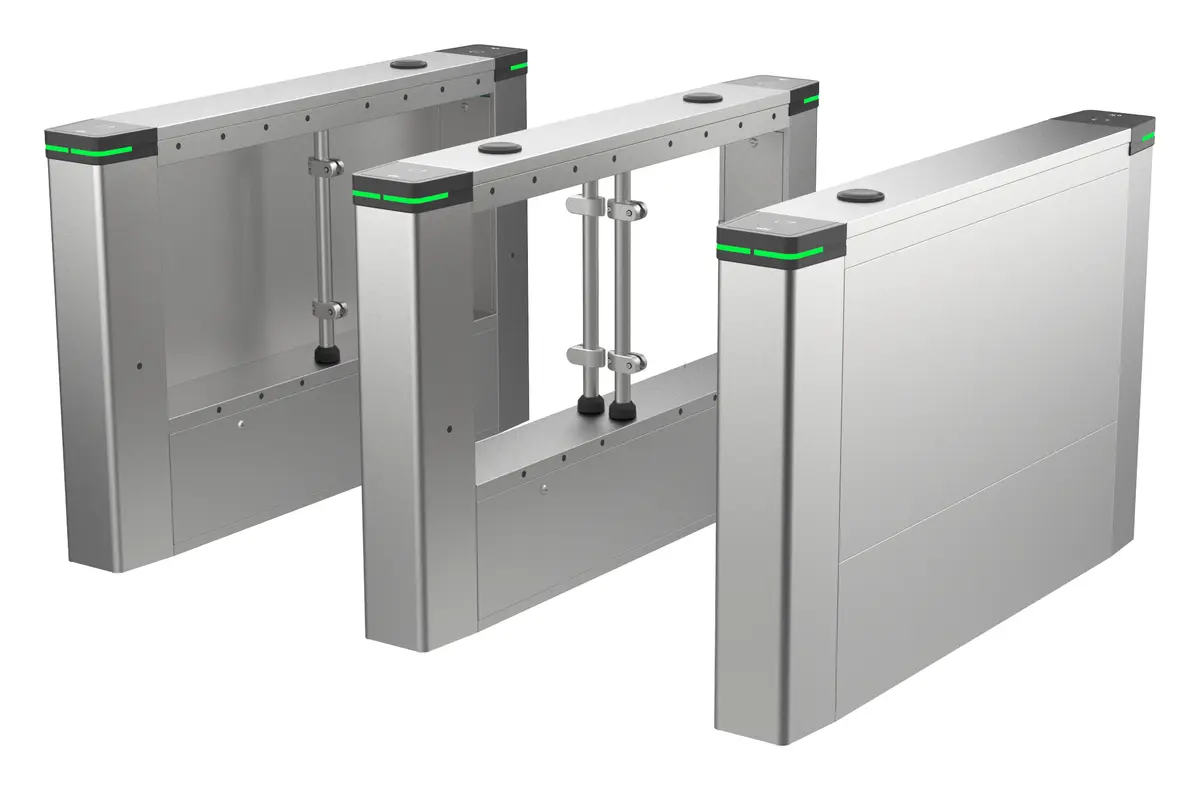

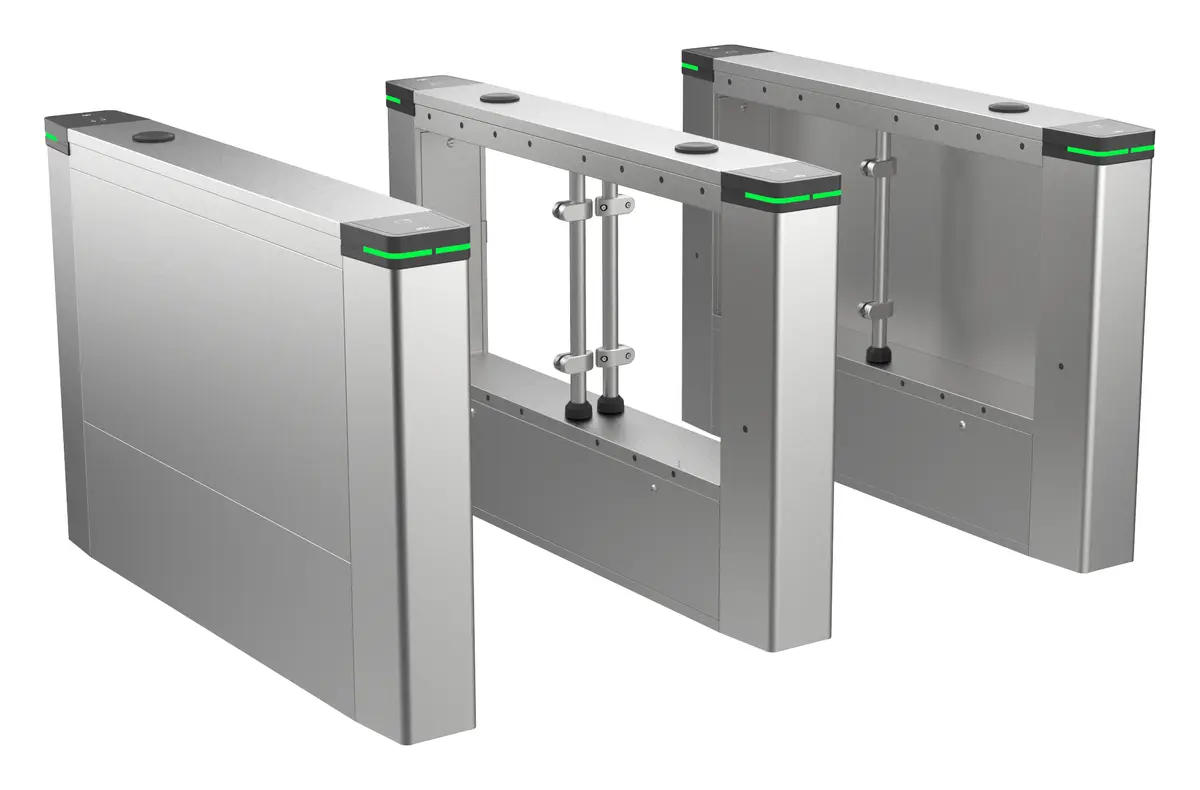

Uniview OFG8501N@R Dış Mekan İç Mekan Swing Turnike (Hızlı Geçiş)

ModelOFG8501N@R

Uniview OFG8501N@R swing turnike (hızlı geçiş): Standard access control board functionality supports direct connection to card readers., All functional components are pre-wired internally at the factory; the gate only requires connection of bridging cables, Ethernet cables, and power cables for operation.

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Standard access control board functionality supports direct connection to card readers.
All functional components are pre-wired internally at the factory; the gate only requires connection of bridging cables, Ethernet cables, and power cables for operation.
Supports advanced features including single-lane anti-passback, multi-lane cross-controller anti-passback, and multi-factor verification.
Enables quick setup via the web interface.
Supports external Bluetooth speakers for playing gate audio.
Incorporates an advanced non-destructive transmission mechanism paired with high-quality DC brushless motors, ensuring precise control, stable operation, and extended lifetime.
Utilizes cutting-edge motor control technology with a closed-loop control system and DSP-based self-regulating motor control, combined with proprietary motor control algorithms for precise positioning and stable performa
Comprehensive safety design.

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Genel 1 satır

Model	OFG8501N@R

Yapı 1 satır

Type	Right pedestal

Core Mechanism 1 satır

Motor	Brushless DC motor

IR Sensor 1 satır

IR sensors	16 pairs of infrared sensors:; 8 pairs on the upper level,; 6 pairs on the lower level,; and 2 pairs on the support columns.

Steel Plate Thickness 1 satır

Steel plate thickness	Chassis: 1.2 mm, cover: 1.5 mm thick, 304 brushed stainless steel

Working Parameters 5 satır

Card reader panel	Entrance Direction
Güç Tüketimi	Standby: approx. 35 W, Normal operation: approx. 45 W, Maximum: approx. 136 W
Ambient temperature	-40°C to 60°C（A heating module is required below -20 °C.）
Çalışma Nemi	5% to 80%
Çalışma Gerilimi	100V to 240AC input; 24 V DC/17 A output

Installation Holes 1 satır

Number of installation holes	Standard installation hole(s) for smart recognition terminal and decorative cover: one on each side pedestal, two on each middle pedestal

Door Wing 2 satır

Malzeme	Acrylic or stainless steel
Compatible lane width	Acrylic: 650 mm to 1050 mm(Customization for a width of 1050 mm is supported.); Stainless steel: 650 mm to 1050 mm (Customization for a width of 1050 mm is supported.)

Appearance Design 3 satır

Ağırlık	56.2KG
Çalışma Ortamı	Indoor, outdoor
Boyutlar	1506.9 x 970 x 190 mm

Lane Control Board 2 satır

Güç	24V
Lane control board interface	RS485 x 1, alarm input x 1, alarm output x 3, fire alarm interface x 1, IO port x 2, remote controller interface × 2

Access Control Board 11 satır

Güç Kaynağı	12V
Kart Kapasitesi	Normal card: 100,000; Duress card: 1,000; Other types of cards: 100
Event capacity	200,000
Communication	Wired communication, Wi-Fi communication
Permission groups	16
Time templates	256
Holiday templates	256
Anti-passback	Single-lane anti-passback, multi-lane cross-controller anti-passback
Custom audio	Supports custom modification of default audio
Abnormal cover opening detection	Supports abnormal cover opening alarm
Access control board interface	LAN x 2, RS485 × 2, USB × 2, alarm output x 4, exit button input × 2, fire alarm input × 2; Wiegand × 2

Anti-Pitch 1 satır

Anti-pinch	IR anti-pinch, electric current anti-pinch

Detection 3 satır

Anti-tailgating detection distance	5CM tailgating detection
Anti-reverse passing	Reverse intrusion detection
Power-off State	Fail-safe (automatically unlocks and opens upon power loss)

Alarm event 1 satır

Alarm event	Sound and light alarm

Genel bakış

Uniview OFG8501N@R kullanım alanları ve özellikleri.

Uniview OFG8501N@R, Dış Mekan İç Mekan swing turnike (hızlı geçiş) modelidir.

Öne Çıkan Özellikler

Standard access control board functionality supports direct connection to card readers.
All functional components are pre-wired internally at the factory; the gate only requires connection of bridging cables, Ethernet cables, and power cables for operation.
Supports advanced features including single-lane anti-passback, multi-lane cross-controller anti-passback, and multi-factor verification.
Enables quick setup via the web interface.
Supports external Bluetooth speakers for playing gate audio.
Incorporates an advanced non-destructive transmission mechanism paired with high-quality DC brushless motors, ensuring precise control, stable operation, and extended lifetime.
Utilizes cutting-edge motor control technology with a closed-loop control system and DSP-based self-regulating motor control, combined with proprietary motor control algorithms for precise positioning and stable performance of the blocking mechanism.
Comprehensive safety design.
Implements dual smart anti-pinch protection through advanced infrared sensors and current detection, ensuring complete pedestrian safety.
All electrical modules operate on safe voltages below 24V, preventing electric shock hazards.
Motors are installed in the under section of the gate, effectively preventing water damage from rain exposure.
Supports automatic door opening during power failure for efficient crowd evacuation.
Features a built-in professional receiver module, supporting 1-to-32 door opening configurations (remote transmitter modules must be purchased separately).
Allows flexible selection of normal passage modes: keep open or keep closed. Effectively alleviates crowd pressure by adjusting door wing speed based on pedestrian flow, improving operational efficiency.
Comprehensive infrared functionality:

Nerelerde kullanılır?

Plaza, hastane ve kurumsal lobilerde estetik ve hızlı geçiş için kullanılır; yetkisiz geçiş ve kuyruk takibi (tailgating) algılama sunar.

Tüm özellikler

Standard access control board functionality supports direct connection to card readers.
All functional components are pre-wired internally at the factory; the gate only requires connection of bridging cables, Ethernet cables, and power cables for operation.
Supports advanced features including single-lane anti-passback, multi-lane cross-controller anti-passback, and multi-factor verification.
Enables quick setup via the web interface.
Supports external Bluetooth speakers for playing gate audio.
Incorporates an advanced non-destructive transmission mechanism paired with high-quality DC brushless motors, ensuring precise control, stable operation, and extended lifetime.
Utilizes cutting-edge motor control technology with a closed-loop control system and DSP-based self-regulating motor control, combined with proprietary motor control algorithms for precise positioning and stable performa
Comprehensive safety design.
Implements dual smart anti-pinch protection through advanced infrared sensors and current detection, ensuring complete pedestrian safety.
All electrical modules operate on safe voltages below 24V, preventing electric shock hazards.
Motors are installed in the under section of the gate, effectively preventing water damage from rain exposure.
Supports automatic door opening during power failure for efficient crowd evacuation.
Features a built-in professional receiver module, supporting 1-to-32 door opening configurations (remote transmitter modules must be purchased separately).
Allows flexible selection of normal passage modes: keep open or keep closed. Effectively alleviates crowd pressure by adjusting door wing speed based on pedestrian flow, improving operational efficiency.
Comprehensive infrared functionality:
