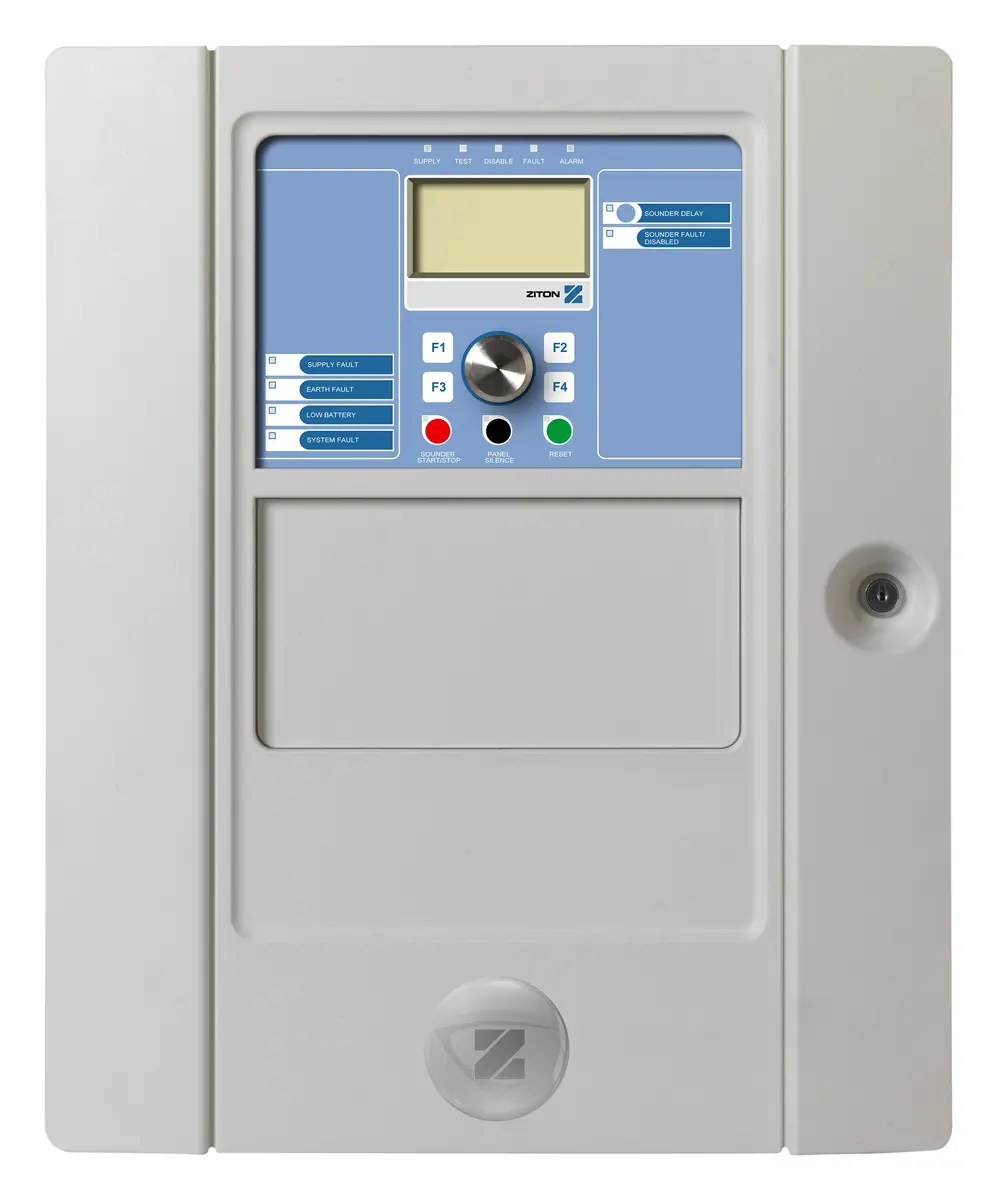

Ziton ZP2-F1-99 1 Loop Adresli Yangın Alarm Paneli

Ziton ZP2-F1-99 (ZP2 - Panels ailesi), adresli yangın alarm paneli ürünüdür. EN54-13, EN54-2, EN54-21, EN54-4, VdS standart/onaylarına uygundur.

Overview

The ZP2 Series life safety control systems are bringing the speed and functionality of high-end intelligent processing to small to mid-sized addressable applications. They feature an attractive contemporary design that fits with any decor. Special plastics allows for painting in any color and the easy to remove electronics will support in this matter. The gently lined door with the intuitive dark inset user interface and EN54 compliant graphical LCD offers a distinctive flair. The main controls are clearly, but discreetly highlighted with the focus on the central located Jog Dial.

With the addressable detection and a full line of easily configured option cards and modules, USB and Ethernet® connectivity, these quick-to-configure systems offer versatility that benefits building owners and life safety system installers alike.

The Panel

The fire panels supplied in local language, with user interface, with 1 loop that supports up to 254 devices (127 addresses) in 512 zones, have standard 2 supervised sounder/fire-routing outputs, which can be used as freely programmable outputs as well. In addition 2 conventional relay outputs and 2 supervised outputs, working in pair and dedicated to common fire and fault conditions, as well as 2 user configurable inputs for monitoring and control are available.

Options

The panels supports one network board to create a maximum of 32 nodes / 32 loops network of fire panels, fire panel repeaters (including conventional fire panels and fire panel repeaters up to a maximum of 64 conventional zones). Last but not least, in case seperate zone indications are required, a 20 or 40 zone fire/fault LED indicator board can be mounted in the panel or repeater with ample space for text.

Approvals & Compliance

• CE / CPD / EN54-2 / EN54-4 • NEN2535 / NBNS21-100 compliant • BS5839-1 compliant • VdS and LPCB certified • WEEE / RoHS compliant

Öne Çıkan Özellikler

• 1 loop with up to 512 zones
• Up to 40 LED Zone indicators for Fire and Fault with ample text space
• Auto configuration and default EN54 setup modes
• Ethernet port with TCP/IP for remote maintenance and programming
• EN54 compliant graphical LCD with icons and symbols for easy recognition of events
• Jog Dial with 4 soft buttons for simple and intuitive user control
• Aesthetic pleasing design with special paintable synthetic door
• Easy removable door and chassis for quick and clean installation
• All pluggable connectors
• 3 USB ports with memory stick support and RS232 for printer support
• Email notification for events directly from the panel (4 user accounts)
• Auxiliary 24VDC supply output with reset support
• 3 operator level menu structure with username and password
• History log memory for 9999 events
• Up to 72 hours standby time and 30 minutes alarm
• Compatible with the Ziton loop powered sounders/beacons and base sounders and Ziton series detectors

Nerelerde kullanılır?

Binadaki dedektör, buton ve sirenleri yöneten yangın algılama sisteminin merkezidir; alarmın yerini gösterir, tahliye uyarısını başlatır ve diğer sistemlerle (asansör, havalandırma, kapılar) entegre çalışır.

Kurulum ve uyumluluk

Yangın algılama sistemleri; Binaların Yangından Korunması Hakkında Yönetmelik ve TS EN 54 standardına uygun olarak projelendirilmeli ve yetkili ekiplerce devreye alınmalıdır.

Tüm özellikler

• Addressable Fire Panel - 1 Loop - English UK
• 1 loop with up to 512 zones
• Up to 40 LED Zone indicators for Fire and Fault with ample text space
• Auto configuration and default EN54 setup modes
• Ethernet port with TCP/IP for remote maintenance and programming
• EN54 compliant graphical LCD with icons and symbols for easy recognition of events
• Jog Dial with 4 soft buttons for simple and intuitive user control
• Aesthetic pleasing design with special paintable synthetic door
• Easy removable door and chassis for quick and clean installation
• All pluggable connectors
• 3 USB ports with memory stick support and RS232 for printer support
• Email notification for events directly from the panel (4 user accounts)
