Ziton ZP755B-2P Adresli Beyaz Sirenli Dedektör Tabanı

Ziton ZP755B-2P (Ziton Addr. Notification Bases ailesi), adresli beyaz sirenli dedektör tabanı ürünüdür. EN54-3 standart/onaylarına uygundur.

General

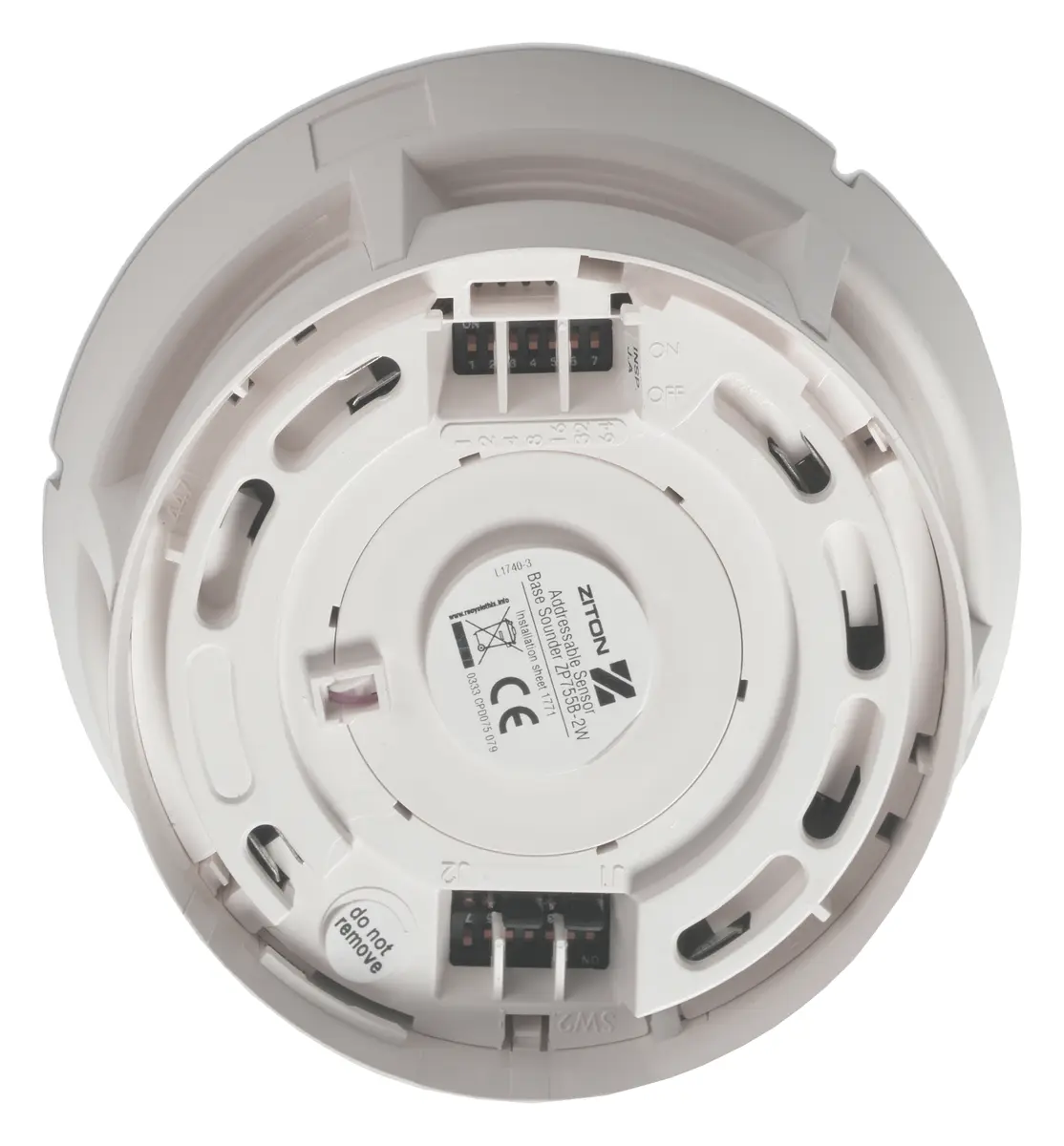

The ZP755B-2P POLAR WHITE base sounder combines a detector base and audible sounder in a single stylish moulding. The unit provides an elegant solution for areas where the installation of a separate detector and sounder would prove expensive, both in equipment capital value and system wiring costs. Installation time is further reduced as the moulding plugs directly onto a first fix base eliminating the need for any internal connections.

The ZP755B-2P is perfectly suited for any location involving multiple alarm sounders, for example hotel bedrooms and risk areas comprising many small compartments.

Independent addressing for the detector and alarm facility is featured, with sound levels conforming to EN54 Part 3.

Advanced acoustic design

High efficiency acoustic design and a low energy sound gun transducer enable up to 60 sensors with sounder bases to be connected to a 1 km loop of 1.5mm² cable, with a wiring run of 50 metres to the first device. In systems where loop lengths or current requirements are excessive, the sounder base can be powered directly from an external power supply.

Microphone output test

The ZP755 range features a unique self test facility that is automatically activated during routine sounder testing. A built in microphone circuit measures sound output level and automatically signals the sounder address to the control panel, should the output test fail.

Continuous, intermittent and two-tone audible outputs are available from which any combination can be chosen to provide alert and evacuate, two stage alarms. Sound types comply with most international codes (e.g. BS 5839 Part 1 recommended frequencies).

Öne Çıkan Özellikler

• Detector and sounder from a single wiring point – minimising installation costs
• Powered directly from the ZP loop
• Up to 60 detectors with sounders directly on the loop
• Separate addresses selectable for detector and sounder
• High efficiency sound gun transducer
• Compatible with all ZP loop devices
• Wide range of international sound types and frequencies
• EN54:3 approved and CPR certified

Nerelerde kullanılır?

Yangın algılama sisteminde giriş/çıkış kontrolü, loop izolasyonu veya kurulum aksesuarı olarak kullanılır.

Kurulum ve uyumluluk

Yangın algılama sistemleri; Binaların Yangından Korunması Hakkında Yönetmelik ve TS EN 54 standardına uygun olarak projelendirilmeli ve yetkili ekiplerce devreye alınmalıdır.

Tüm özellikler

• Ziton series Addressable Base Sounder (Polar White)
• Detector and sounder from a single wiring point – minimising installation costs
• Powered directly from the ZP loop
• Up to 60 detectors with sounders directly on the loop
• Separate addresses selectable for detector and sounder
• High efficiency sound gun transducer
• Compatible with all ZP loop devices
• Wide range of international sound types and frequencies
• EN54:3 approved and CPR certified
