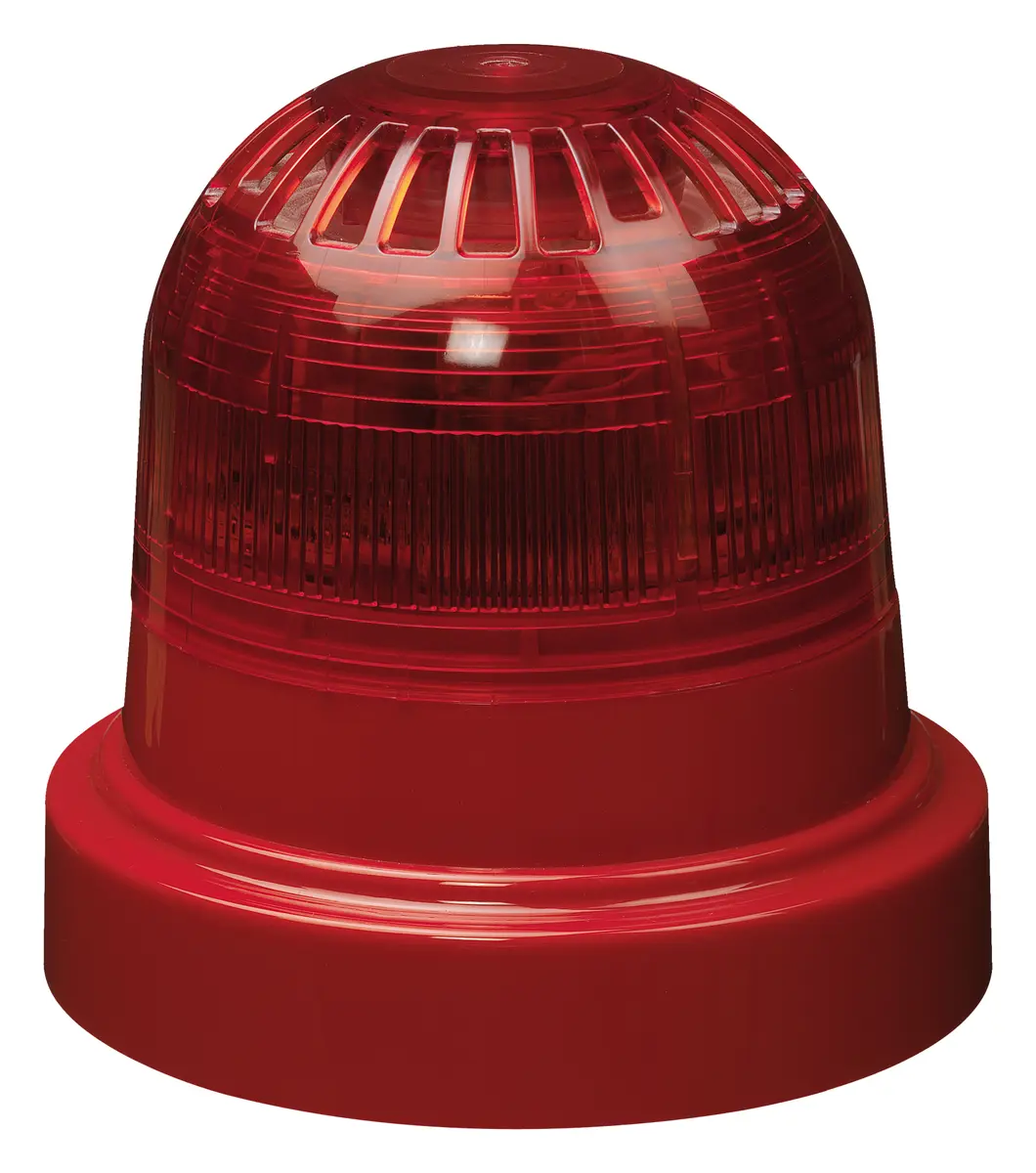

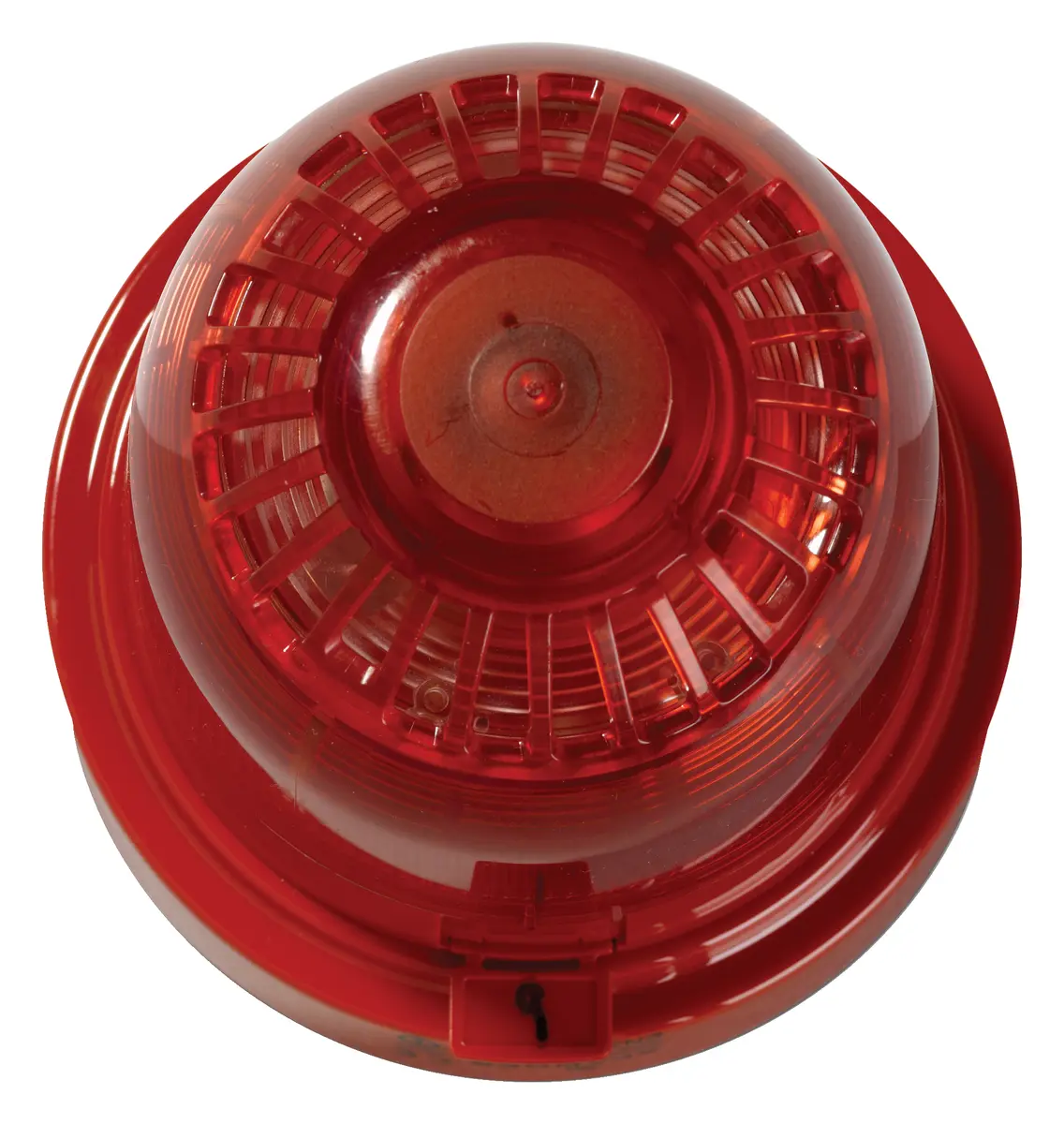

Ziton ZR455V-3RR Kablosuz Kırmızı Yangın Sireni / Flaşör

Ziton ZR455V-3RR (Ziton Wireless Notification ailesi), kablosuz kırmızı yangın sireni / flaşör ürünüdür. CPR, EN54-25, EN54-3 standart/onaylarına uygundur.

General

The ZR455V-3RR is a RED, addressable, wireless sounder/beacon with a RED lens, operating on 868 MHz. It is remotely controlled and supervised by an addressable, wireless system controller, allowing for both wireless and hardwired devices to be seamlessly located on the same fire system. ZR455V-3 series sounder/beacons feature selectable tones for notification of alert, evacuate, security alert and class change, with outputs up to 99 dBA, as well as visual notification via an LED beacon located on the front of the unit.

System design

ZR455V-3 sounder/beacons provide notification where the installation of hard wired sounders is not an option. They form part of an extensive range of wireless fire alarm devices that includes audio-visual notification, smoke/heat detectors, manual call points and input/output devices.

Suitable for applications specifying BS5839:1, ZR455V-3 sounder/beacons may be addressed as a standalone units, or as part of a group where several units in the same location are synchronized to operate simultaneously. Designed for surface mounting in indoor applications, they have no external aerials and are supplied complete with matching back box. The ZR455V-3 series is rated at IP54 and constructed of ABS plastic.

Highest signal integrity

To ensure the highest signal integrity, ZR455V-3 sounder/beacons transmit and receive statuses and instructions to and from the panel in a multi-path, harmonised European 868 MHz band. When installed as part of a ZP addressable fire system where up to 127 device addresses are available per loop, up to 62 ZR455V-3 devices may be used spread across two radio loop controllers. Every wireless device controlled through the ZPR868 loop interface is assigned its own address with which the main control panel communicates, providing the same system facilities as directly wired devices.

Power supply

Power for the ZR455V-3 sounder/beacons is derived from two independent and supervised battery sources using standard alkaline batteries, allowing up to 5 years of operational life.

Öne Çıkan Özellikler

• Full electronic addressing without tools
• No external aerials or antennae for improved aesthetics
• Wireless range in excess of 150 m
• Tamper supervision for unauthorized removal from it's base
• 32 Selectable, high output tones
• Acoustic self testing and problem notification
• Dual battery supply for extended service life (< 5 years) and long battery low warning times
• Using the harmonized European 868 MHz frequency band conforming to local country wireless regulations

Nerelerde kullanılır?

Yangın anında manuel ihbar ve binadaki kişilerin sesli/ışıklı uyarılması için kaçış yolları ve kat koridorlarında kullanılır.

Kurulum ve uyumluluk

Yangın algılama sistemleri; Binaların Yangından Korunması Hakkında Yönetmelik ve TS EN 54 standardına uygun olarak projelendirilmeli ve yetkili ekiplerce devreye alınmalıdır.

Tüm özellikler

• Ziton series wireless alarm sounder/beacon, red with clear lens
• Full electronic addressing without tools
• No external aerials or antennae for improved aesthetics
• Wireless range in excess of 150 m
• Tamper supervision for unauthorized removal from it's base
• 32 Selectable, high output tones
• Acoustic self testing and problem notification
• Dual battery supply for extended service life (< 5 years) and long battery low warning times
• Using the harmonized European 868 MHz frequency band conforming to local country wireless regulations
