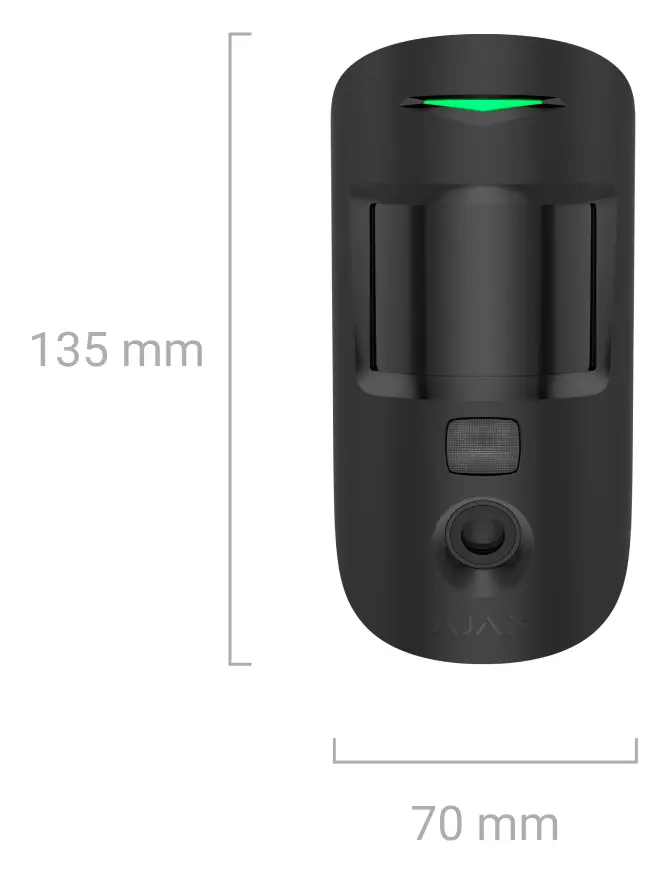

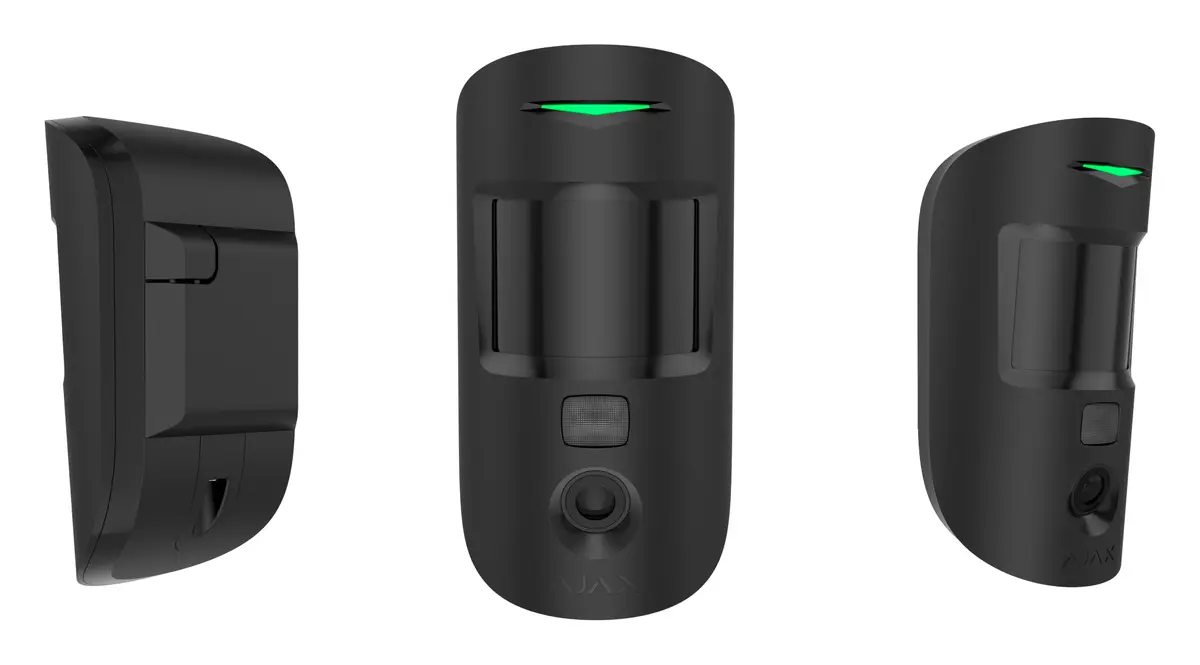

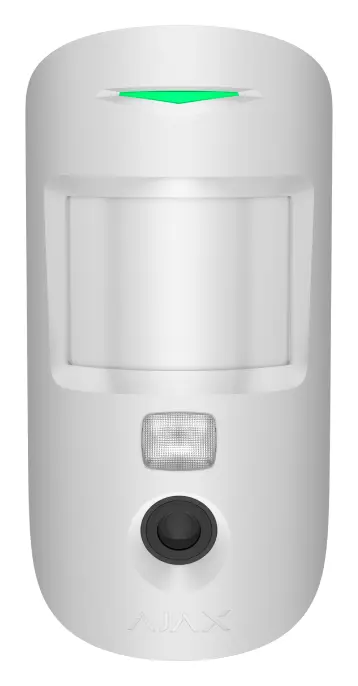

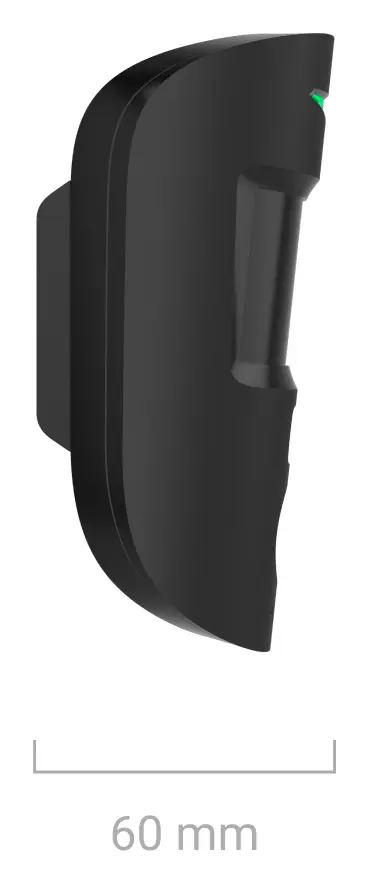

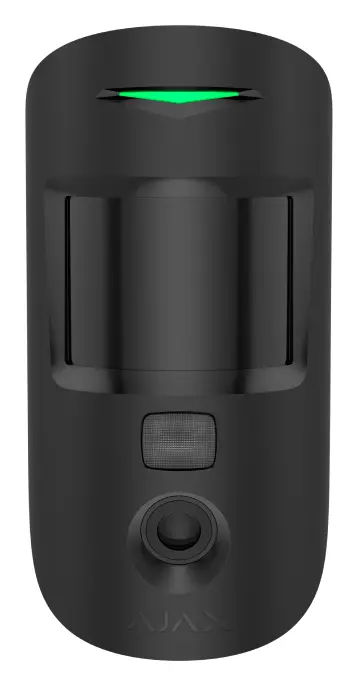

Ajax MotionCam U (PhOD) Jeweller Kablosuz Fotoğraf Doğrulamalı Hareket Dedektörü

Lightning-fast alarms. Verified.

MotionCam U (PhOD) Jeweller is a version of Ajax’s well-known motion detector, refined to meet strict UK standards. It has a built-in camera that takes photos when the detector is triggered. The device delivers clear visual evidence to Ajax apps in just 9 seconds. Thanks to HDR technology, the photos offer enhanced detail even in difficult lighting conditions. These features ensure fast threat verification, minimising user stress and reducing false patrol dispatches. Users can request on-demand photos to check their property. Additionally, a security professional can configure the detector to take photos automatically in response to alarms from other devices in the system, by arming/disarming or according to a set schedule.

Peace of mind on demand

The detector shows the actual situation on the scene in only a few seconds, providing a clear picture to ease user anxiety in case of alarm. Users can take an on-demand photo with a single tap in an Ajax app. Additionally, the detector can automatically take pictures according to a set schedule, when the security mode is changed, or when another device in the system is triggered.

Privacy first

The event log stores up to 500 recent system events, providing details such as the device name, time, and event description. On-demand photos are linked to the user who made the request. Only users with the appropriate rights can receive photos on demand. Security companies do not receive these images.

The Privacy menu in Ajax apps allows for precise control over visual data access. Users and security company operators can define who can request photos and when, which detectors can take on-demand photos, and who is allowed to view the photos or live streams from integrated cameras.

HDR for challenging lighting conditions

MotionCam U (PhOD) Jeweller captures clear, balanced images using an advanced optical system, a CMOS sensor, and HDR (High Dynamic Range) technology. HDR improves colors and contrast by combining photos with different exposures into one. This prevents images from being too bright or too dark. As a result, photos look more colorful, detailed, and natural — just like we see things in real life.

No intruder goes unnoticed

All Ajax motion detectors use PIR sensors by Excelitas Technologies, a field-leading American manufacturer specialising in designing and producing optronic components since 1931. Ajax Systems constantly proves the sensor’s Superior quality at the production stage: we test 100% of manufactured devices. This approach ensures the utmost accuracy of intrusion detection.

The detector’s sensitivity can be adjusted via Ajax apps to suit specific site conditions. PRO users can choose from three sensitivity levels to balance detection accuracy and false alarm prevention. Lower sensitivity works well in areas with potential thermal interference, such as near heating equipment or in direct sunlight. Higher sensitivity is recommended for areas requiring enhanced security, while the very high setting ensures the detection of even the slightest movement in the protected area. The optimal setting can be determined during installation via the detection zone test. The setting can be adjusted at any time when the system is disarmed if environmental conditions change or false alarms occur.

Stable and reliable performance

MotionCam U (PhOD) Jeweller is equipped with high-quality batteries from proven manufacturers only. In addition to real-time testing during battery production, Ajax Systems inspects every unit to ensure the accuracy of the batteries’ characteristics. The batteries provide stable performance at temperatures from –25 °C to +60 °С.

Unique wireless technologies

Ajax systems use two-way secure radio communication based on Jeweller and Wings proprietary protocols. Radio protocols work in parallel and focus on their own function, guaranteeing instant data delivery even in the event of communication interruptions or a weak signal.

Up to 1,700 m of radio communication with a hub or range extender

Scaled and comprehensive

ReX 2 Jeweller range extender boosts the radio range of all Ajax devices via Jeweller and ensures stable communication through steel and concrete via Ethernet using the wire as the additional communication channel. Up to 5 range extenders can operate within one Ajax system to expand the network twice as big, covering multistorey buildings with underground parking and basements.

Nerelerde kullanılır?

Kapı, pencere ve iç mekân hareketlerini algılayarak alarm paneline bildirir; izinsiz girişi henüz başlangıç aşamasında fark etmeyi sağlar.

Kurulum ve uyumluluk

MotionCam U (PhOD) Jeweller, Ajax Hub serisi merkez ünitelerle çalışır ve Ajax uygulamasından QR kodla sisteme eklenir.

Tüm özellikler

• Five types of photo verification
• Photo by alarm
• Photo on demand
• Photo by scenario
• Photo by schedule
• Photo by arming/disarming
• IR illumination for low-light conditions
• Privacy protection
• Up to 5 years of autonomous operation on pre-installed batteries
• Informative push notifications
